Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#7848) — 65 parça
Tümü
A - FRR6MF
B - FSR6MF
C - FTR6MF
◀

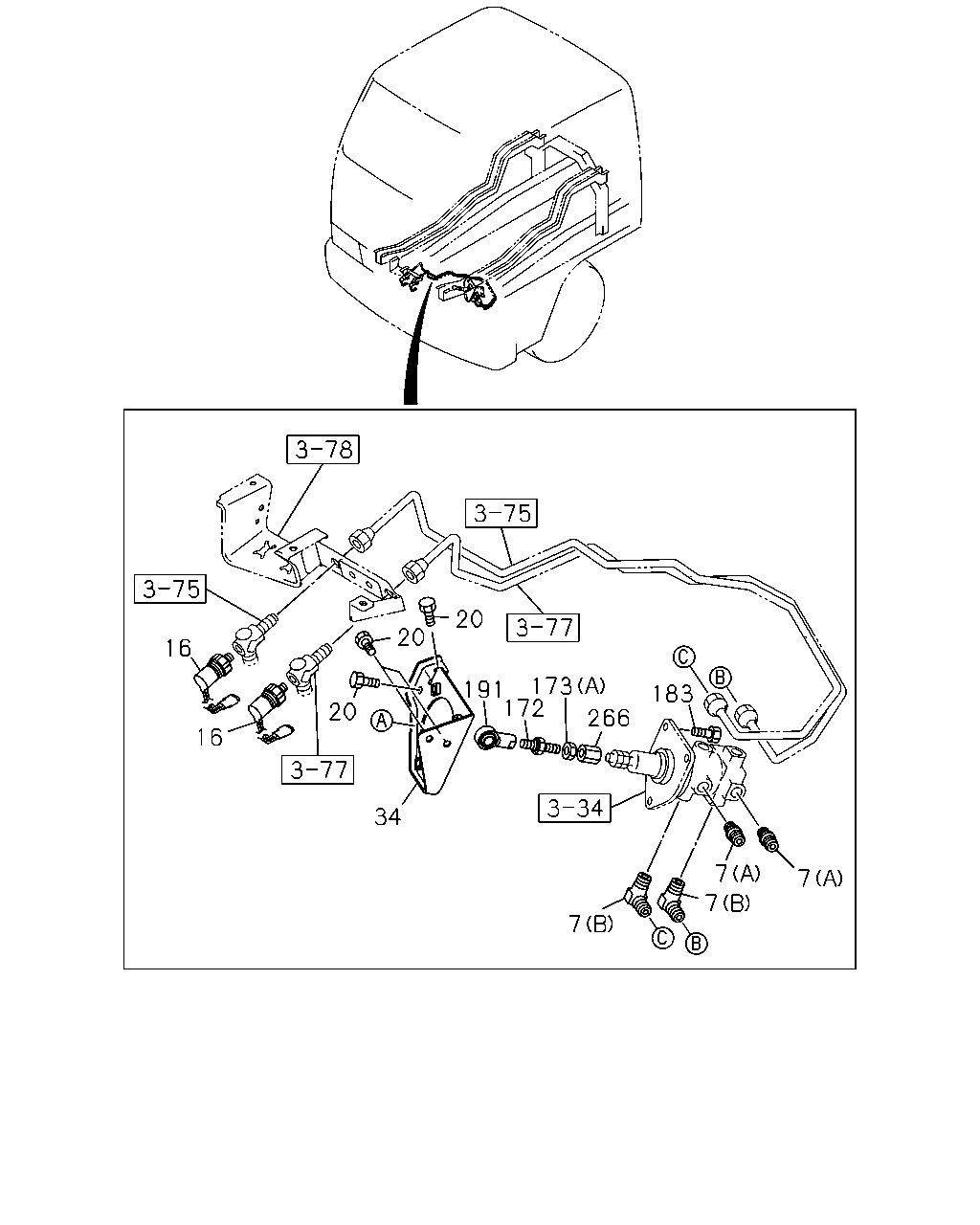

[310A] NO.1 (24 parça)

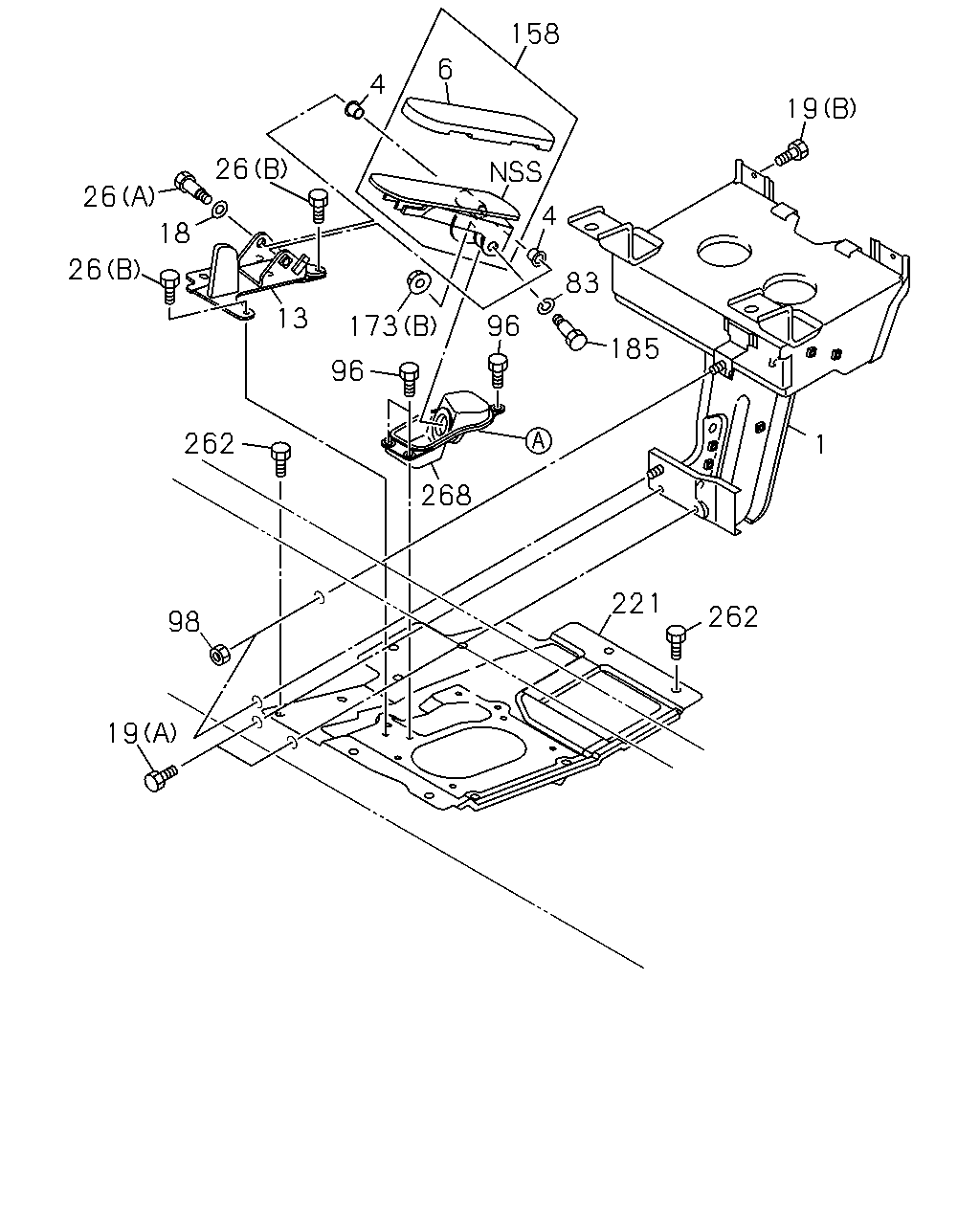

[310A] NO.2 (41 parça)
▶
20
20
16
191
173
172
183
20
266
16
34
7
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-233-1
02
1
9905-0301
●
●
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-233-1
02
1
0302-
●
●
●
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
9905-0301
●
●
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
02
1
0302-
●
●
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
9905-0301
●
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0302-
●
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9905-0301
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0302-
●
●
●
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
9905-0301
●
●
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
0302-
●
●
●
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
9905-0301
●
●
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
0302-
●
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9905-0301
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0302-0602
●
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
0603-
●
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9905-0301
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0302-0512
●
●
●
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
0601-
●
●
●
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
9905-0301
●
●
183
BOLT; BRK VLV
M10X25 W/LK WASHER
1-09980-503-0
03
1
0302-
●
●
●
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
9905-0301
●
●
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
0302-
●
●
●
266
JOINT ROD
1-73908-166-3
01
1
9905-0301
●
●
266
JOINT ROD
1-73908-166-3
01
1
0302-
●
●
●
158
6
4
19
26
26
4
18
26
83
13
173
96
185
96
262
1
268
221
262
98
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRACKET ASM; PEDAL
1-73908-077-9
01
1
9905-0301
●
●
1
BRACKET ASM; PEDAL
1-73908-077-9
01
1
0302-
●
●
●
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
9905-0301
●
●
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
0302-
●
●
●
6
COVER; BRK PEDAL
1-48119-333-0
01
1
9905-0301
●
●
6
COVER; BRK PEDAL
1-48119-333-0
01
1
0302-
●
●
●
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
9905-0301
●
●
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
0302-
●
●
●
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
9905-0301
●
●
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
0302-
●
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9905-0301
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0302-
●
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9905-0301
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0302-
●
●
●
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
9905-0301
●
●
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
0302-
●
●
●
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
9905-0301
●
●
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
0302-
●
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
9905-0301
●
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
0302-0603
●
●
●
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
01
1
0604-
●
●
●
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
9905-0301
●
●
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0302-
●
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9905-0301
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0302-
●
●
●
158
PEDAL ASM; BRK
1-73908-068-5
01
1
9905-0301
●
●
158
PEDAL ASM; BRK
1-73908-068-5
01
1
0302-
●
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
9905-0301
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91150-110-0
01
1
0302-0602
●
●
●
173
NUT; JOINT LOCK
(B) M10 FLANGE
0-91180-110-0
01
1
0603-
●
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
9905-0301
●
●
173
NUT; JOINT LOCK
(A) M12
9-99110-412-0
01
1
0302-0512
●
●
●
173
NUT; JOINT LOCK
(A) M12
0-91110-512-0
01
1
0601-
●
●
●
185
BOLT; BRKT
1-73996-282-1
01
1
9905-0301
●
●
185
BOLT; BRKT
1-73996-282-1
01
1
0302-
●
●
●
221
PLATE ASM; SIDE
1-73908-114-7
01
1
9905-0301
●
●
221
PLATE ASM; SIDE
1-73908-114-7
01
1
0302-
●
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
9905-0301
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
0302-
●
●
●
268
COVER; ROD
1-73908-192-1
01
1
9905-0301
●
●
268
COVER; ROD
1-73908-192-1
01
1
0302-
●
●
●
