◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51300 - NPR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#78479) — 27 parça

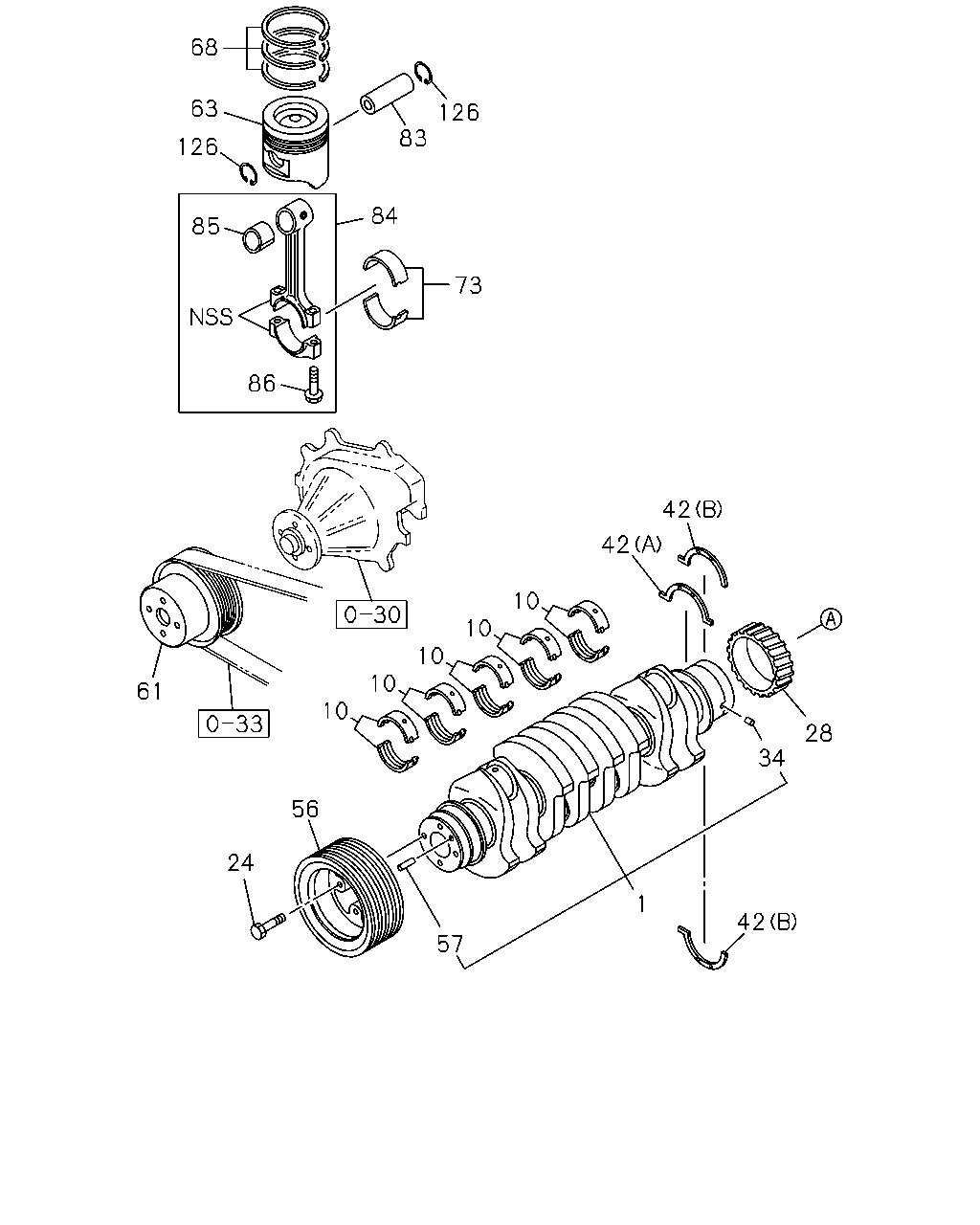

çizim 37662
68 63 126 85 86 73 84 83 126 61 24 56 10 10 10 10 10 42 42 28 34 42 1 57
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT 8-98029-270-0 01 1 1112-
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 1112-
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 1112-
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 1112-
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 1112-
28 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 1112-
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 1112-
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 1112-
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1112-
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-98004-024-3 01 1 1112-
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 1112-
61 PULLEY; FAN DRIVE
1-GROOVE 		8-98003-384-1 01 1 1112-
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98041-141-2 04 1 1112-
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-98040-125-0 04 1 1112-
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 04 1 1112-
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 04 1 1112-
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-98018-863-1 04 1 1112-
84 ROD ASM; CONN 8-98018-425-3 04 1 1112-
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 1112-
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1112-
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 		8-98006-828-0 08 1 1112-

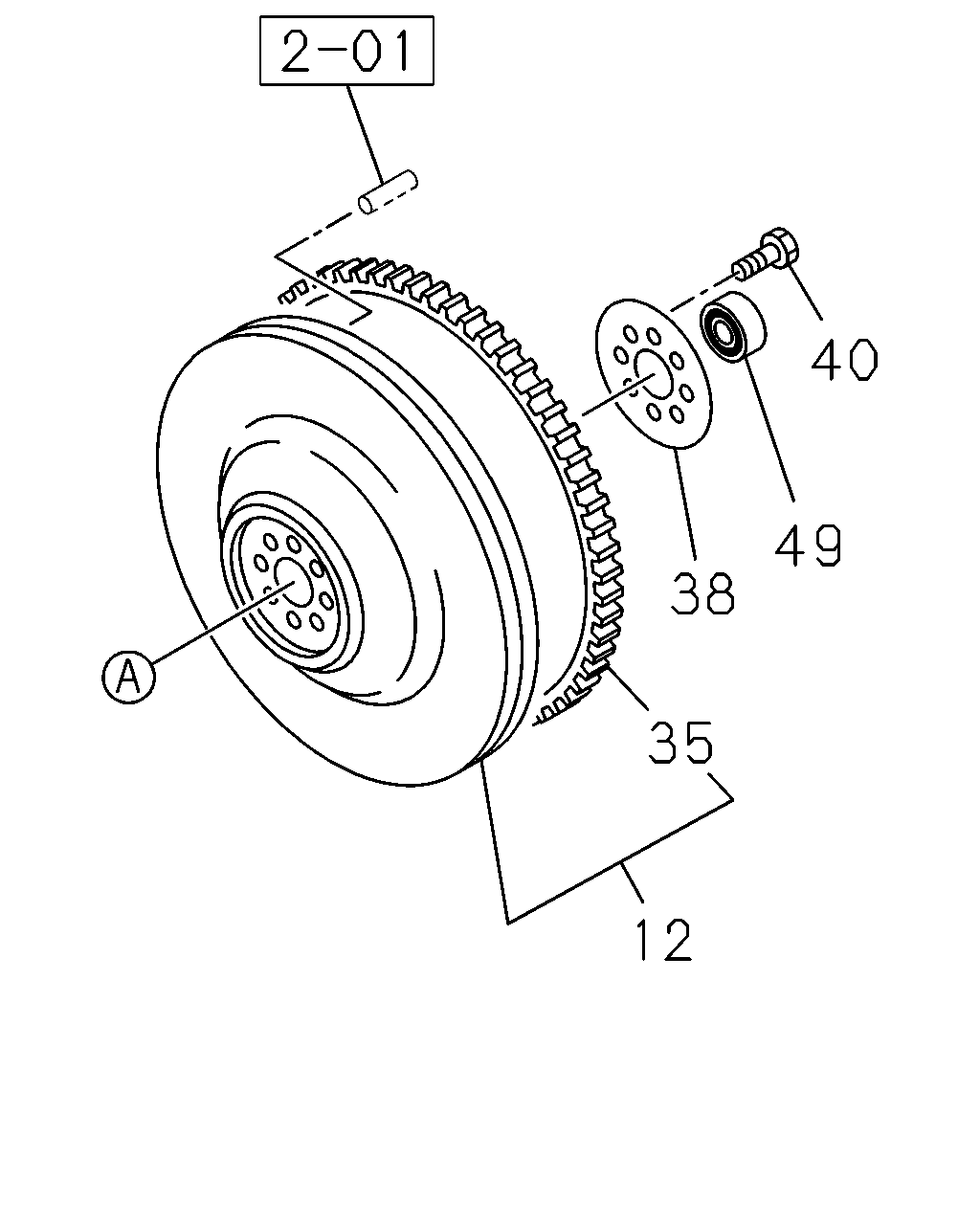

çizim 183587
40 49 38 35 12
BalonParca AdiParca NoAdetTipApplied Date
12 FLYWHEEL 8-97326-227-2 01 1 1112-
35 GEAR; RING
Z=138 		8-97046-366-1 01 1 1112-
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1112-
40 BOLT; FLYWHEEL
M16X42 		8-97178-013-0 08 1 1112-
49 BEARING; PILOT 8-97258-239-0 01 1 1112-
49 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1112-
