Isuzu WW
▶
TRUCKS
▶
NPR
▶
51300 - NPR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

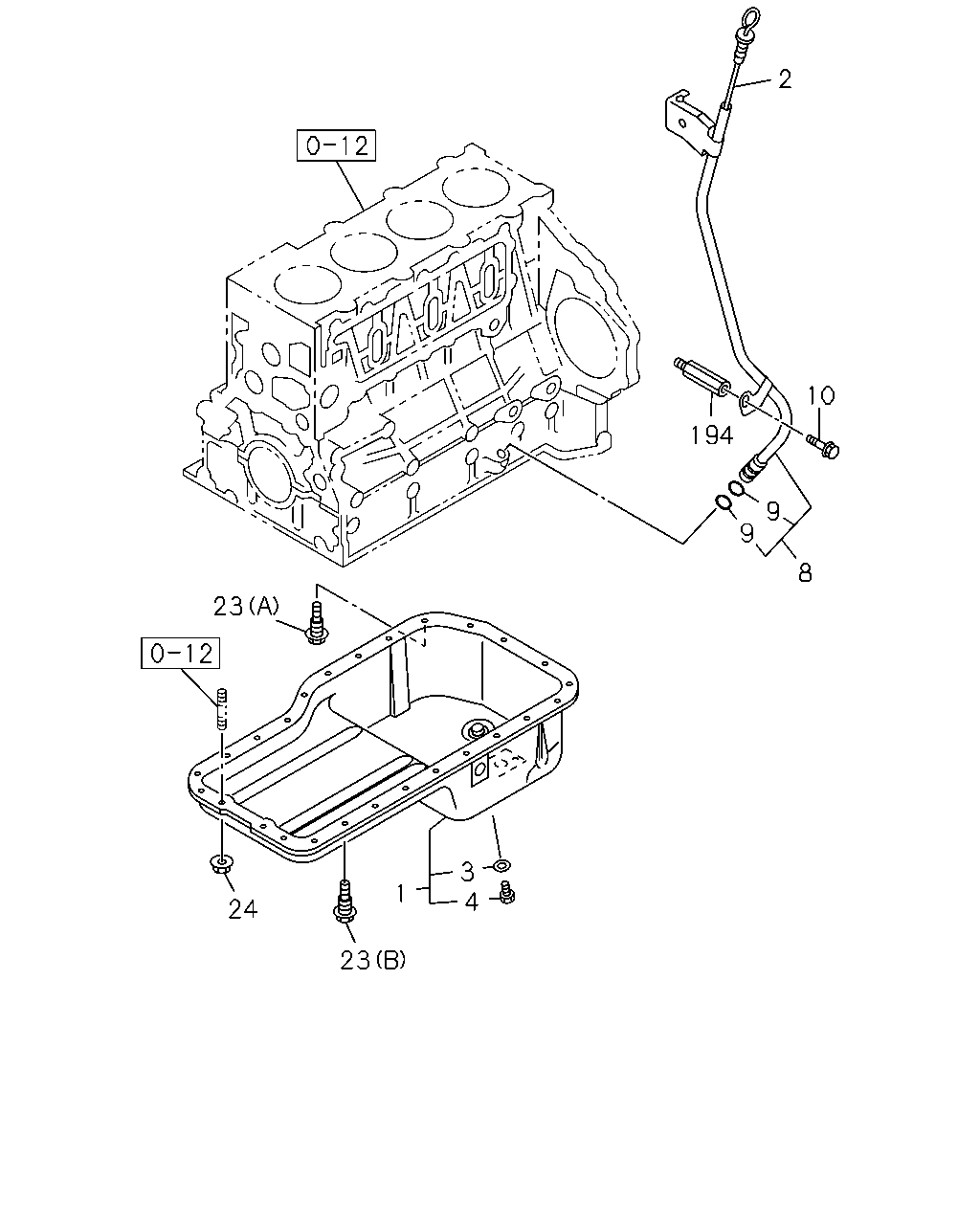

0-13 — OIL PAN AND LEVEL GAUGE
(#78477) — 11 parça
2
10
194
9
9
8
23
24
23
1
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98191-050-0
01
1
1112-
2
GAUGE; OIL LEVEL
8-98183-344-0
01
1
1112-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1112-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1112-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-98039-161-0
01
1
1112-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1112-
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28650-820-0
01
1
1112-
23
BOLT; OIL PAN
(A) M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1112-
23
BOLT; OIL PAN
(B) M8X14
8-97047-005-0
18
1
1112-
24
NUT; OIL PAN
M8 W/LK WASHER
8-97581-234-0
07
1
1112-
194
SPACER; GUIDE TUBE
8-97101-215-0
01
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
