Sayfa 9-32 - Isuzu EPC

9-32 — REAR BODY; GUARD FRAME (#78470) — 89 parça

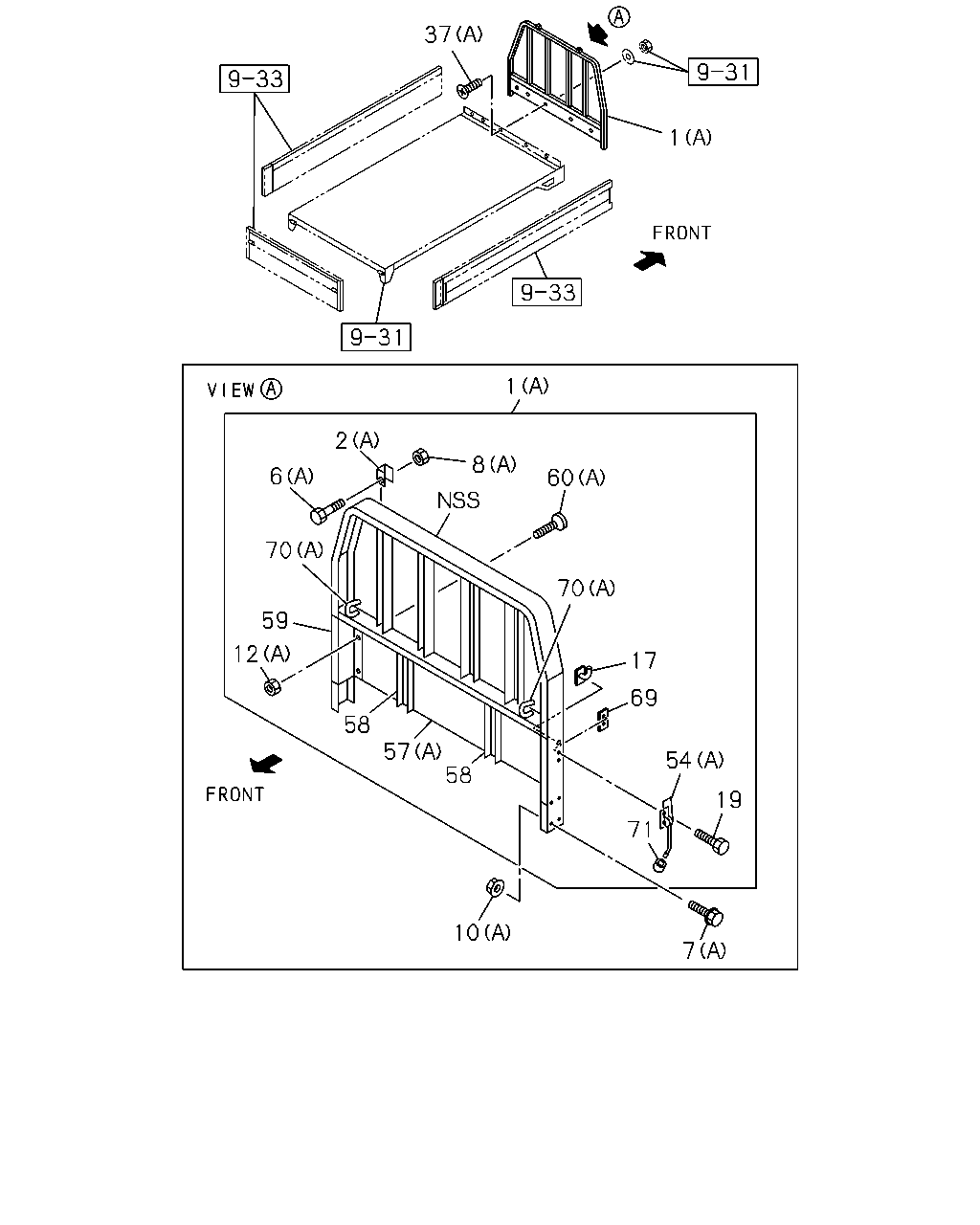

37 1 1 2 8 6 60 70 70 59 12 17 69 58 57 58 54 19 71 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) (A) TAKADA	8-98079-283-2	01	1	1012-	●
1	17.455 FRAME; GUARD,RR BODY BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-98079-283-2	01	1	1012-		●
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) TAKADA	8-98071-453-2	01	1	1012-	●
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98071-456-2	01	1	1012-	●
2	17.447 STOPPER; GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-396-0	02	1	1012-	●
2	17.447 STOPPER; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-396-0	02	1	1012-		●
2	17.447 STOPPER; GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-98045-225-0	02	1	1012-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-488-0	02	1	1012-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-488-0	02	1	1012-		●
6	17.447 BOLT; STOPPER TO GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-98045-226-0	02	1	1012-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED(RS6) 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-		●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M12X25 FLANGE	0-28661-225-0	08	1	1012-	●
8	17.447 NUT; STOPPER BOLT WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M10	8-97590-493-0	02	1	1012-	●
8	17.447 NUT; STOPPER BOLT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M10	8-97590-493-0	02	1	1012-		●
8	17.447 NUT; STOPPER BOLT WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M10	8-98045-227-0	02	1	1012-	●
10	17.447 NUT; GUARD FRAME STOPPER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED(RS6) 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-		●
10	17.447 NUT; GUARD FRAME STOPPER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 05.816 (B) M12 FLANGE	0-91180-212-0	08	1	1012-	●
12	17.455 NUT; GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-	●
12	17.455 NUT; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-		●
12	17.455 NUT; GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 16.682 (B) M8 LOCK NUT FLANGE	0-91380-008-0	04	1	1012-	●
17	17.455 HOOK; GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-683-0	02	1	1012-	●
17	17.455 HOOK; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97593-683-0	02	1	1012-		●
19	17.455 BOLT; HANDLE TO GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	1012-	●
19	17.455 BOLT; HANDLE TO GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) M8X20	8-94193-942-2	04	1	1012-		●
37	17.455 BOLT; GUARD FRAME WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (A) SCREW M8X26	8-97065-436-0	05	1	1012-	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED(RS6) (A) SCREW M8X26	8-97065-436-0	05	1	1012-		●
37	17.455 BOLT; GUARD FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) SCREW M8X25 PABCO	8-98030-412-0	04	1	1012-	●
54	17.455 HANDLE; LOCK,GATE,FRT WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97593-639-1	02	1	1012-	●
54	17.455 HANDLE; LOCK,GATE,FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97593-639-1	02	1	1012-		●
54	17.455 HANDLE; LOCK,GATE,FRT WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98045-206-0	02	1	1012-	●
57	17.400 BOARD; HEADER WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-738-1	01	1	1012-	●
57	17.400 BOARD; HEADER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-738-1	01	1	1012-		●
57	17.400 BOARD; HEADER WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98045-106-2	01	1	1012-	●
58	17.505 MEMBER; HEADER BOARD WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-452-0	02	1	1012-	●
58	17.505 MEMBER; HEADER BOARD BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-452-0	02	1	1012-		●
59	17.455 REINFORCEMENT; HEADER BOARD WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	1012-	●
59	17.455 REINFORCEMENT; HEADER BOARD BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-453-0	01	1	1012-		●
59	17.455 REINFORCEMENT; HEADER BOARD WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	1012-	●
59	17.455 REINFORCEMENT; HEADER BOARD BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-94194-454-0	01	1	1012-		●
60	17.455 SCREW; BOARD WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-	●
60	17.455 SCREW; BOARD BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-		●
60	17.455 SCREW; BOARD WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M8X25 PABCO	8-98030-412-0	04	1	1012-	●
69	17.455 SETTING PLATE; LOCK HANDLE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-976-0	02	1	1012-	●
69	17.455 SETTING PLATE; LOCK HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) TAKADA	8-97591-976-0	02	1	1012-		●
70	17.455 HOOK; ROPE,GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97592-598-0	02	1	1012-	●
70	17.455 HOOK; ROPE,GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97592-598-0	02	1	1012-		●
70	17.455 HOOK; ROPE,GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	5-87580-001-0	02	1	1012-	●
71	17.204 PIECE; END,FRT HANDLE WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.615 ID=12	9-61203-650-0	02	1	1012-	●
71	17.204 PIECE; END,FRT HANDLE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.615 ID=12	9-61203-650-0	02	1	1012-		●

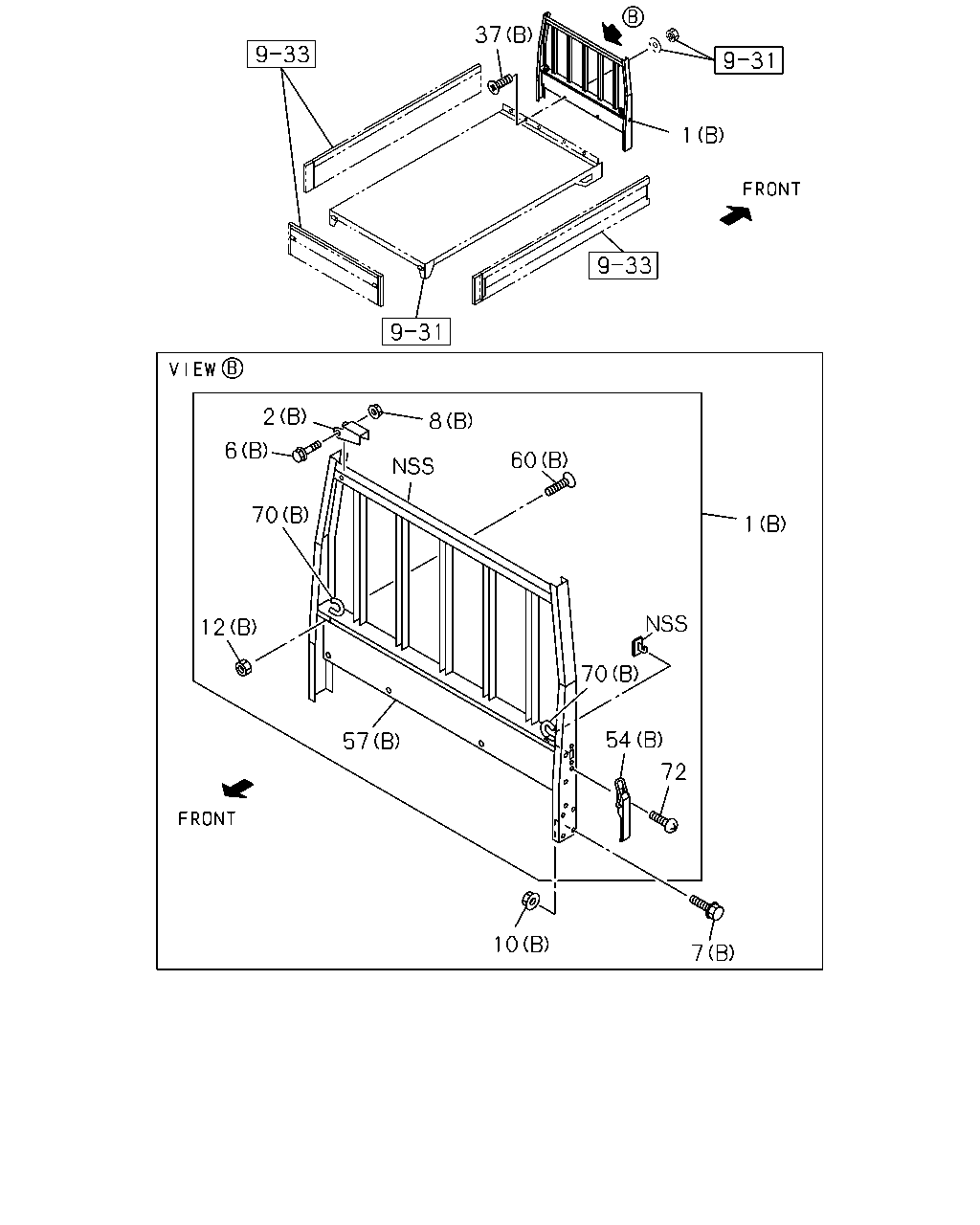

37 1 2 8 6 60 70 1 12 70 54 57 72 10 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) (A) TAKADA	8-98079-283-2	01	1	1012-	●
1	17.455 FRAME; GUARD,RR BODY BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-98079-283-2	01	1	1012-		●
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SMALL DOUBLE RR TIRE(6YE) (A) TAKADA	8-98071-453-2	01	1	1012-	●
1	17.455 FRAME; GUARD,RR BODY WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98071-456-2	01	1	1012-	●
2	17.447 STOPPER; GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-396-0	02	1	1012-	●
2	17.447 STOPPER; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-396-0	02	1	1012-		●
2	17.447 STOPPER; GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-98045-225-0	02	1	1012-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-488-0	02	1	1012-	●
6	17.447 BOLT; STOPPER TO GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A)	8-97590-488-0	02	1	1012-		●
6	17.447 BOLT; STOPPER TO GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-98045-226-0	02	1	1012-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY FLAT BED(RS6) 07.833 (A) M10X25 FLANGE	0-28661-025-0	08	1	1012-		●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M12X25 FLANGE	0-28661-225-0	08	1	1012-	●
8	17.447 NUT; STOPPER BOLT WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M10	8-97590-493-0	02	1	1012-	●
8	17.447 NUT; STOPPER BOLT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M10	8-97590-493-0	02	1	1012-		●
8	17.447 NUT; STOPPER BOLT WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M10	8-98045-227-0	02	1	1012-	●
10	17.447 NUT; GUARD FRAME STOPPER WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-	●
10	17.447 NUT; GUARD FRAME STOPPER RR BODY FLAT BED(RS6) 04.085 (A) M10 FLANGE	0-91180-210-0	08	1	1012-		●
10	17.447 NUT; GUARD FRAME STOPPER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 05.816 (B) M12 FLANGE	0-91180-212-0	08	1	1012-	●
12	17.455 NUT; GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-	●
12	17.455 NUT; GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) 17.447 (A) M8 FLANGE	8-94193-939-2	04	1	1012-		●
12	17.455 NUT; GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 16.682 (B) M8 LOCK NUT FLANGE	0-91380-008-0	04	1	1012-	●
37	17.455 BOLT; GUARD FRAME WHEEL BASE 2400MM(24W) RR BODY FLAT BED(RS6) (A) SCREW M8X26	8-97065-436-0	05	1	1012-	●
37	17.455 BOLT; GUARD FRAME RR BODY FLAT BED(RS6) (A) SCREW M8X26	8-97065-436-0	05	1	1012-		●
37	17.455 BOLT; GUARD FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) SCREW M8X25 PABCO	8-98030-412-0	04	1	1012-	●
54	17.455 HANDLE; LOCK,GATE,FRT WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97593-639-1	02	1	1012-	●
54	17.455 HANDLE; LOCK,GATE,FRT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97593-639-1	02	1	1012-		●
54	17.455 HANDLE; LOCK,GATE,FRT WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98045-206-0	02	1	1012-	●
57	17.400 BOARD; HEADER WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-738-1	01	1	1012-	●
57	17.400 BOARD; HEADER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97594-738-1	01	1	1012-		●
57	17.400 BOARD; HEADER WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	8-98045-106-2	01	1	1012-	●
60	17.455 SCREW; BOARD WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-	●
60	17.455 SCREW; BOARD BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) M8X30 TAKADA	8-94193-938-3	04	1	1012-		●
60	17.455 SCREW; BOARD WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M8X25 PABCO	8-98030-412-0	04	1	1012-	●
70	17.455 HOOK; ROPE,GUARD FRAME WHEEL BASE 2400MM(24W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97592-598-0	02	1	1012-	●
70	17.455 HOOK; ROPE,GUARD FRAME BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) (A) TAKADA	8-97592-598-0	02	1	1012-		●
70	17.455 HOOK; ROPE,GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) PABCO	5-87580-001-0	02	1	1012-	●
72	17.455 SCREW; HANDLE TO GUARD FRAME WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M8X13 PABCO	8-98045-180-0	04	1	1012-	●
