Sayfa 3-08 - Isuzu EPC

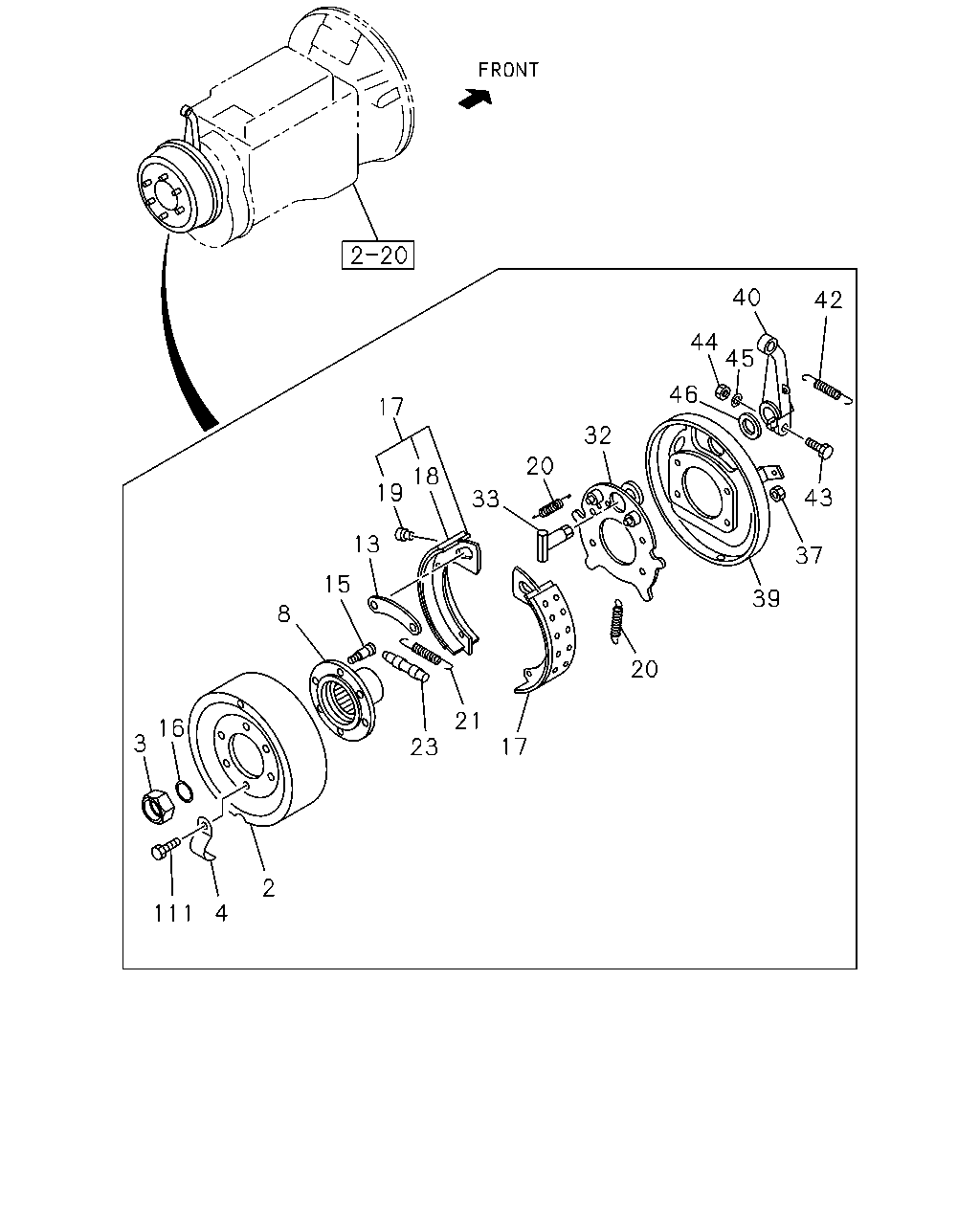

3-08 — PARKING BRAKE (#7847) — 295 parça

42 41 32 40 46 20 17 33 13 39 15 37 8 38 20 47 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9905-9905	●
2	DRUM; PARKING BRK FSR(FS****)	1-46211-019-0	01	1	9911-0301	●
2	DRUM; PARKING BRK FSR(FS**) FTR(FT**)	1-46211-019-0	01	1	0302-	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9905-9905		●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9906-9910	●	●
2	DRUM; PARKING BRK FRR(FR****)	1-46211-020-0	01	1	9911-0301	●
2	DRUM; PARKING BRK FRR(FR****)	1-46211-020-0	01	1	0302-	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0302-		●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9905-	●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	9905-9909		●
3	NUT; LK M33 FLANGE	1-09449-077-0	01	1	9910-		●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9905-9905	●
4	COVER; ADJ HOLE FSR(FS****)	1-46219-030-0	02	1	9911-0301	●
4	COVER; ADJ HOLE FSR(FS**) FTR(FT**)	1-46219-030-0	02	1	0302-	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9905-9905		●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9906-9910	●	●
4	COVER; ADJ HOLE FRR(FR****)	1-46219-018-0	02	1	9911-0301	●
4	COVER; ADJ HOLE FRR(FR****)	1-46219-018-0	02	1	0302-	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0302-		●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9905-9905	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	9905-9910	●
8	FLANGE; PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-37243-236-0	01	1	9911-0301	●
8	FLANGE; PARKING BRK FRR(FR****)	1-37243-236-0	01	1	0302-	●
8	FLANGE; PARKING BRK FSR(FS****)	1-37243-235-0	01	1	9911-0301	●
8	FLANGE; PARKING BRK FSR(FS**) FTR(FT**)	1-37243-235-0	01	1	0302-	●
8	FLANGE; PARKING BRK	1-37243-253-0	01	1	9905-		●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9905-9905	●
13	BRACE; PARKING BRK FSR(FS****)	9-46239-002-0	01	1	9911-0301	●
13	BRACE; PARKING BRK FSR(FS**) FTR(FT**)	9-46239-002-0	01	1	0302-	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9905-9905		●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9906-9910	●	●
13	BRACE; PARKING BRK FRR(FR****)	9-46239-003-0	01	1	9911-0301	●
13	BRACE; PARKING BRK FRR(FR****)	9-46239-003-0	01	1	0302-	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0302-		●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9905-9905	●
15	BOLT; FLANGE FSR(FS****) M16X55	1-46219-039-0	04	1	9911-0301	●
15	BOLT; FLANGE FSR(FS**) FTR(FT**) M16X55	1-46219-039-0	04	1	0302-	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9905-9905		●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9906-9910	●	●
15	BOLT; FLANGE FRR(FR****) M14X43 KNURL	1-09046-003-0	04	1	9911-0301	●
15	BOLT; FLANGE FRR(FR****) M14X43 KNURL	1-09046-003-0	04	1	0302-	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0302-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9905-	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9905-		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9905-9905	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	9905-9910	●
17	SHOE; PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46220-029-0	02	1	9911-0301	●
17	SHOE; PARKING BRK FRR(FR****)	1-46220-029-0	02	1	0302-0410	●
17	SHOE; PARKING BRK FRR(FR****)	1-46220-029-0	02	1	0411-	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0411-		●
17	SHOE; PARKING BRK FSR(FS****)	1-46220-022-0	02	1	9911-0301	●
17	SHOE; PARKING BRK FSR(FS**) FTR(FT**)	1-46220-022-1	02	1	0302-	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	9905-0410		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9905-9905	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FSR(FS****)	9-09942-434-0	02	1	9911-0301	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FSR(FS**) FTR(FT**)	9-09942-434-0	02	1	0302-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9905-9905		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9905-9910	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR(FR****)	9-09942-567-1	02	1	9911-0301	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR(FR****)	9-09942-567-1	02	1	0302-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0302-		●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9905-9905	●
21	SPRING; RETURN,PARKING BRK SHOE FSR(FS****)	9-09942-516-0	01	1	9911-0301	●
21	SPRING; RETURN,PARKING BRK SHOE FSR(FS**) FTR(FT**)	9-09942-516-0	01	1	0302-	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9905-9905		●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9905-9910	●	●
21	SPRING; RETURN,PARKING BRK SHOE FRR(FR****)	1-09583-268-0	01	1	9911-0301	●
21	SPRING; RETURN,PARKING BRK SHOE FRR(FR****)	1-09583-268-0	01	1	0302-	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0302-		●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9905-9905	●
23	SCREW; ADJ,PARKING BRK SHOE FSR(FS****)	1-46240-003-0	01	1	9911-0301	●
23	SCREW; ADJ,PARKING BRK SHOE FSR(FS**) FTR(FT**)	1-46240-003-0	01	1	0302-	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9905-9905		●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9905-9910	●	●
23	SCREW; ADJ,PARKING BRK SHOE FRR(FR****)	9-46240-008-0	01	1	9911-0301	●
23	SCREW; ADJ,PARKING BRK SHOE FRR(FR****)	9-46240-008-0	01	1	0302-	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0302-		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9905-9905	●
32	PLATE; SUPPORT,PARKING BRK FSR(FS****)	1-46213-039-0	01	1	9911-0301	●
32	PLATE; SUPPORT,PARKING BRK FSR(FS**) FTR(FT**)	1-46213-039-0	01	1	0302-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9905-9905		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9905-9910	●	●
32	PLATE; SUPPORT,PARKING BRK FRR(FR****)	1-46213-023-0	01	1	9911-0301	●
32	PLATE; SUPPORT,PARKING BRK FRR(FR****)	1-46213-023-0	01	1	0302-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0302-		●
33	SHAFT; CAM,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46251-070-0	01	1	0411-	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9905-9905	●
33	SHAFT; CAM,PARKING BRK FSR(FS****)	1-46251-006-0	01	1	9911-0301	●
33	SHAFT; CAM,PARKING BRK FSR(FS**) FTR(FT**)	1-46251-006-0	01	1	0302-0410	●
33	SHAFT; CAM,PARKING BRK FSR(FS**) FTR(FT**)	1-46251-010-0	01	1	0411-	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9905-9905		●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9906-9910	●	●
33	SHAFT; CAM,PARKING BRK FRR(FR****)	1-46251-002-0	01	1	9911-0301	●
33	SHAFT; CAM,PARKING BRK FRR(FR****)	1-46251-002-0	01	1	0302-0410	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	0302-0410		●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	0411-		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9905-0604	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9905-0604		●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	01	1	0605-		●
38	WASHER; LK,SUPPORT PLATE ID=14.2	9-09150-514-0	03	1	9905-0603		●
38	WASHER; LK,SUPPORT PLATE ID=14.2	0-91510-514-0	03	1	0604-		●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9905-9905	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	9906-9910	●
39	COVER; DUST,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46213-019-0	01	1	9911-	●
39	COVER; DUST,PARKING BRK FSR(FS****)	1-46213-038-0	01	1	9911-0301	●
39	COVER; DUST,PARKING BRK FSR(FS**) FTR(FT**)	1-46213-038-0	01	1	0302-	●
39	COVER; DUST,PARKING BRK	1-46213-067-0	01	1	9905-		●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46252-043-0	01	1	0411-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9905-9905	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS****)	1-46252-013-0	01	1	9911-0301	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS**) FTR(FT**)	1-46252-013-0	01	1	0302-0410	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS**) FTR(FT**)	1-46252-046-0	01	1	0411-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9905-9905		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9906-9910	●	●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****)	1-46252-003-0	01	1	9911-0301	●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****)	1-46252-003-0	01	1	0302-0410	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	0302-0410		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	0411-		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	9905-9905		●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	9905-9910	●	●
41	PIN; KNOCK,LEVER FRR(FR****)	9-09878-594-0	01	1	9911-0301	●
41	PIN; KNOCK,LEVER FRR(FR****)	9-09878-594-0	01	1	0302-	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0302-		●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9905-9905	●
42	SPRING; RETURN,LEVER FSR(FS****)	1-09583-104-0	01	1	9911-0301	●
42	SPRING; RETURN,LEVER FSR(FS**) FTR(FT**)	1-09583-104-0	01	1	0302-	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9905-9905		●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9905-9910	●	●
42	SPRING; RETURN,LEVER FRR(FR****)	9-09942-592-0	01	1	9911-0301	●
42	SPRING; RETURN,LEVER FRR(FR****)	9-09942-592-0	01	1	0302-	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0302-		●
46	WASHER; LEVER	9-09855-362-0	01	1	9905-9905	●
46	WASHER; LEVER FSR(FS****)	9-09855-362-0	01	1	9911-0301	●
46	WASHER; LEVER FSR(FS**) FTR(FT**)	9-09855-362-0	01	1	0302-	●
46	WASHER; LEVER	9-09855-367-0	01	1	9905-9905		●
46	WASHER; LEVER	9-09855-367-0	01	1	9905-9910	●	●
46	WASHER; LEVER FRR(FR****)	9-09855-367-0	01	1	9911-0301	●
46	WASHER; LEVER FRR(FR****)	9-09855-367-0	01	1	0302-	●
46	WASHER; LEVER	9-09855-367-0	01	1	0302-		●
47	BOLT; SUPPORT PLATE M14X32	0-23801-432-0	03	1	9905-		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9905-	●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	9905-		●

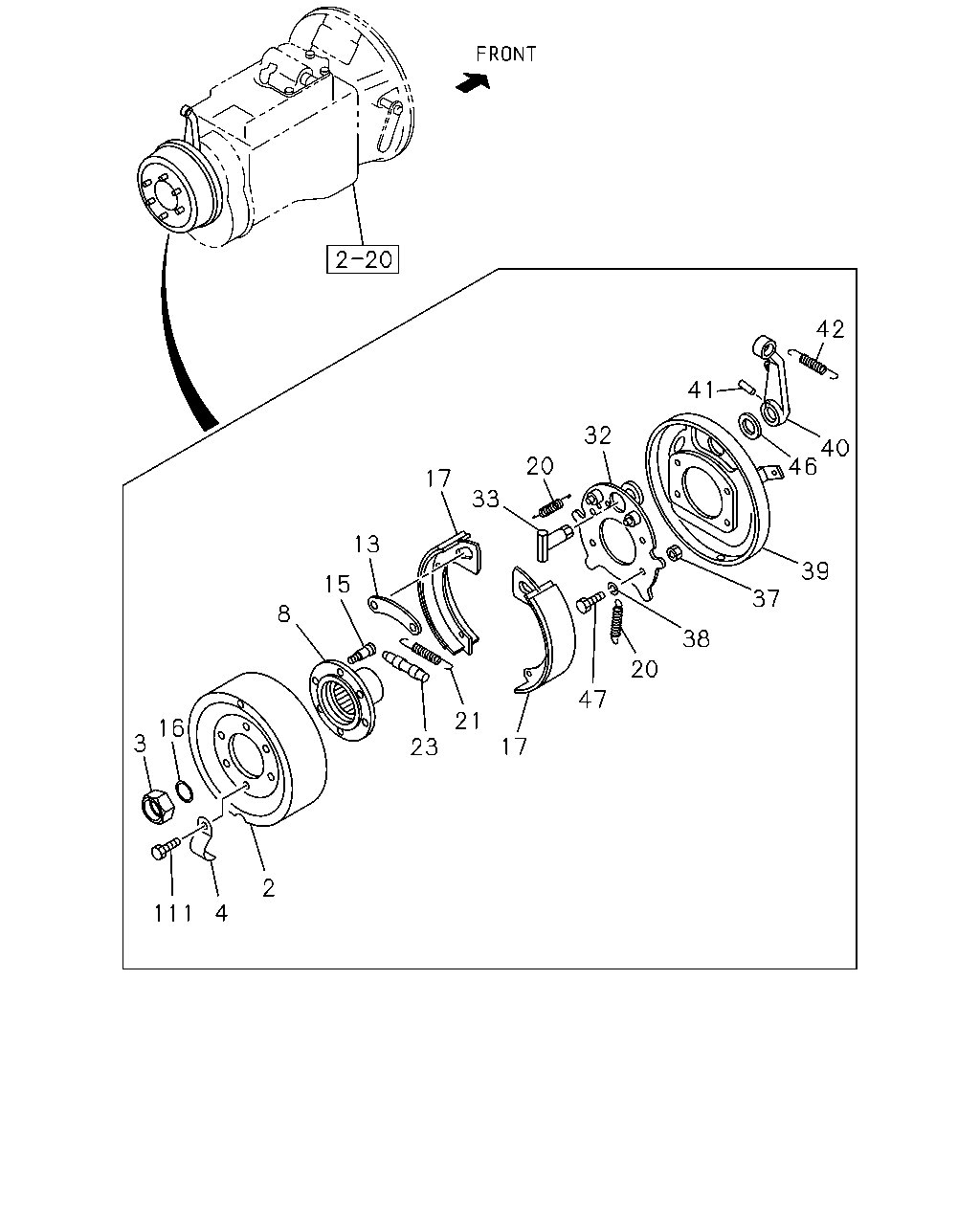

40 42 44 45 46 17 32 20 18 19 43 33 13 37 15 39 8 20 21 16 3 17 23 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK	1-46211-019-0	01	1	9905-9905	●
2	DRUM; PARKING BRK FSR(FS****)	1-46211-019-0	01	1	9911-0301	●
2	DRUM; PARKING BRK FSR(FS**) FTR(FT**)	1-46211-019-0	01	1	0302-	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9905-9905		●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	9906-9910	●	●
2	DRUM; PARKING BRK FRR(FR****)	1-46211-020-0	01	1	9911-0301	●
2	DRUM; PARKING BRK FRR(FR****)	1-46211-020-0	01	1	0302-	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0302-		●
3	NUT; LK M36 FLANGE	1-09449-063-0	01	1	9905-	●
3	NUT; LK M30 FLANGE	1-09449-066-1	01	1	9905-9909		●
3	NUT; LK M33 FLANGE	1-09449-077-0	01	1	9910-		●
4	COVER; ADJ HOLE	1-46219-030-0	02	1	9905-9905	●
4	COVER; ADJ HOLE FSR(FS****)	1-46219-030-0	02	1	9911-0301	●
4	COVER; ADJ HOLE FSR(FS**) FTR(FT**)	1-46219-030-0	02	1	0302-	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9905-9905		●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	9906-9910	●	●
4	COVER; ADJ HOLE FRR(FR****)	1-46219-018-0	02	1	9911-0301	●
4	COVER; ADJ HOLE FRR(FR****)	1-46219-018-0	02	1	0302-	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0302-		●
8	FLANGE; PARKING BRK	1-37243-235-0	01	1	9905-9905	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	9905-9910	●
8	FLANGE; PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-37243-236-0	01	1	9911-0301	●
8	FLANGE; PARKING BRK FRR(FR****)	1-37243-236-0	01	1	0302-	●
8	FLANGE; PARKING BRK FSR(FS****)	1-37243-235-0	01	1	9911-0301	●
8	FLANGE; PARKING BRK FSR(FS**) FTR(FT**)	1-37243-235-0	01	1	0302-	●
8	FLANGE; PARKING BRK	1-37243-253-0	01	1	9905-		●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	9905-9905	●
13	BRACE; PARKING BRK FSR(FS****)	9-46239-002-0	01	1	9911-0301	●
13	BRACE; PARKING BRK FSR(FS**) FTR(FT**)	9-46239-002-0	01	1	0302-	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9905-9905		●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	9906-9910	●	●
13	BRACE; PARKING BRK FRR(FR****)	9-46239-003-0	01	1	9911-0301	●
13	BRACE; PARKING BRK FRR(FR****)	9-46239-003-0	01	1	0302-	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0302-		●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	9905-9905	●
15	BOLT; FLANGE FSR(FS****) M16X55	1-46219-039-0	04	1	9911-0301	●
15	BOLT; FLANGE FSR(FS**) FTR(FT**) M16X55	1-46219-039-0	04	1	0302-	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9905-9905		●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	9906-9910	●	●
15	BOLT; FLANGE FRR(FR****) M14X43 KNURL	1-09046-003-0	04	1	9911-0301	●
15	BOLT; FLANGE FRR(FR****) M14X43 KNURL	1-09046-003-0	04	1	0302-	●
15	BOLT; FLANGE M14X43 KNURL	1-09046-003-0	04	1	0302-		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9905-	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	9905-		●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	9905-9905	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	9905-9910	●
17	SHOE; PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46220-029-0	02	1	9911-0301	●
17	SHOE; PARKING BRK FRR(FR****)	1-46220-029-0	02	1	0302-0410	●
17	SHOE; PARKING BRK FRR(FR****)	1-46220-029-0	02	1	0411-	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0411-		●
17	SHOE; PARKING BRK FSR(FS****)	1-46220-022-0	02	1	9911-0301	●
17	SHOE; PARKING BRK FSR(FS**) FTR(FT**)	1-46220-022-1	02	1	0302-	●
17	SHOE; PARKING BRK	1-46220-024-0	02	1	9905-0410		●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	9905-9905	●
18	LINING; BRK,PARKING FSR(FS****)	1-46225-023-0	02	1	9911-0301	●
18	LINING; BRK,PARKING FSR(FS**) FTR(FT**)	1-46225-023-0	02	1	0302-	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	9905-9905	●
19	RIVET; LINING,PARKING BRK FSR(FS****)	1-09732-012-0	32	1	9911-0301	●
19	RIVET; LINING,PARKING BRK FSR(FS**) FTR(FT**)	1-09732-012-0	32	1	0302-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	9905-9905	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FSR(FS****)	9-09942-434-0	02	1	9911-0301	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FSR(FS**) FTR(FT**)	9-09942-434-0	02	1	0302-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9905-9905		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	9905-9910	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR(FR****)	9-09942-567-1	02	1	9911-0301	●
20	SPRING; RETURN,SECONDARY,PARKING BRK FRR(FR****)	9-09942-567-1	02	1	0302-	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0302-		●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	9905-9905	●
21	SPRING; RETURN,PARKING BRK SHOE FSR(FS****)	9-09942-516-0	01	1	9911-0301	●
21	SPRING; RETURN,PARKING BRK SHOE FSR(FS**) FTR(FT**)	9-09942-516-0	01	1	0302-	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9905-9905		●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	9905-9910	●	●
21	SPRING; RETURN,PARKING BRK SHOE FRR(FR****)	1-09583-268-0	01	1	9911-0301	●
21	SPRING; RETURN,PARKING BRK SHOE FRR(FR****)	1-09583-268-0	01	1	0302-	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0302-		●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	9905-9905	●
23	SCREW; ADJ,PARKING BRK SHOE FSR(FS****)	1-46240-003-0	01	1	9911-0301	●
23	SCREW; ADJ,PARKING BRK SHOE FSR(FS**) FTR(FT**)	1-46240-003-0	01	1	0302-	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9905-9905		●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	9905-9910	●	●
23	SCREW; ADJ,PARKING BRK SHOE FRR(FR****)	9-46240-008-0	01	1	9911-0301	●
23	SCREW; ADJ,PARKING BRK SHOE FRR(FR****)	9-46240-008-0	01	1	0302-	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0302-		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-039-0	01	1	9905-9905	●
32	PLATE; SUPPORT,PARKING BRK FSR(FS****)	1-46213-039-0	01	1	9911-0301	●
32	PLATE; SUPPORT,PARKING BRK FSR(FS**) FTR(FT**)	1-46213-039-0	01	1	0302-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9905-9905		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	9905-9910	●	●
32	PLATE; SUPPORT,PARKING BRK FRR(FR****)	1-46213-023-0	01	1	9911-0301	●
32	PLATE; SUPPORT,PARKING BRK FRR(FR****)	1-46213-023-0	01	1	0302-	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0302-		●
33	SHAFT; CAM,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46251-070-0	01	1	0411-	●
33	SHAFT; CAM,PARKING BRK	1-46251-006-0	01	1	9905-9905	●
33	SHAFT; CAM,PARKING BRK FSR(FS****)	1-46251-006-0	01	1	9911-0301	●
33	SHAFT; CAM,PARKING BRK FSR(FS**) FTR(FT**)	1-46251-006-0	01	1	0302-0410	●
33	SHAFT; CAM,PARKING BRK FSR(FS**) FTR(FT**)	1-46251-010-0	01	1	0411-	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9905-9905		●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	9906-9910	●	●
33	SHAFT; CAM,PARKING BRK FRR(FR****)	1-46251-002-0	01	1	9911-0301	●
33	SHAFT; CAM,PARKING BRK FRR(FR****)	1-46251-002-0	01	1	0302-0410	●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	0302-0410		●
33	SHAFT; CAM,PARKING BRK	1-46251-002-0	01	1	0411-		●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	04	1	9905-0604	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0605-	●
37	NUT; SUPPORT PLATE M14 FLANGE	1-09440-048-0	01	1	9905-0604		●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	01	1	0605-		●
39	COVER; DUST,PARKING BRK	1-46213-038-0	01	1	9905-9905	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	9906-9910	●
39	COVER; DUST,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46213-019-0	01	1	9911-	●
39	COVER; DUST,PARKING BRK FSR(FS****)	1-46213-038-0	01	1	9911-0301	●
39	COVER; DUST,PARKING BRK FSR(FS**) FTR(FT**)	1-46213-038-0	01	1	0302-	●
39	COVER; DUST,PARKING BRK	1-46213-067-0	01	1	9905-		●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-46252-043-0	01	1	0411-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-013-0	01	1	9905-9905	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS****)	1-46252-013-0	01	1	9911-0301	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS**) FTR(FT**)	1-46252-013-0	01	1	0302-0410	●
40	LEVER; CM/SHF,PARKING BRK FSR(FS**) FTR(FT**)	1-46252-046-0	01	1	0411-	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9905-9905		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	9906-9910	●	●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****)	1-46252-003-0	01	1	9911-0301	●
40	LEVER; CM/SHF,PARKING BRK FRR(FR****)	1-46252-003-0	01	1	0302-0410	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	0302-0410		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-003-0	01	1	0411-		●
42	SPRING; RETURN,LEVER	1-09583-104-0	01	1	9905-9905	●
42	SPRING; RETURN,LEVER FSR(FS****)	1-09583-104-0	01	1	9911-0301	●
42	SPRING; RETURN,LEVER FSR(FS**) FTR(FT**)	1-09583-104-0	01	1	0302-	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9905-9905		●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	9905-9910	●	●
42	SPRING; RETURN,LEVER FRR(FR****)	9-09942-592-0	01	1	9911-0301	●
42	SPRING; RETURN,LEVER FRR(FR****)	9-09942-592-0	01	1	0302-	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0302-		●
43	BOLT; LEVER TO CM/SHF	0-10811-040-0	01	1	9905-9905	●
43	BOLT; LEVER TO CM/SHF FSR(FS****)	0-10811-040-0	01	1	9911-0301	●
43	BOLT; LEVER TO CM/SHF FSR(FS**) FTR(FT**)	0-10811-040-0	01	1	0302-	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	9905-9905	●
44	NUT; LEVER TO CM/SHF FSR(FS****) M10	9-09111-410-0	01	1	9911-0301	●
44	NUT; LEVER TO CM/SHF FSR(FS**) FTR(FT**) M10	9-09111-410-0	01	1	0302-0512	●
44	NUT; LEVER TO CM/SHF FSR(FS**) FTR(FT**) M10	0-91111-510-0	01	1	0601-	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	9905-9905	●
45	WASHER; LK,LEVER TO CM/SHF FSR(FS****) ID=10.2	9-09150-510-0	01	1	9911-0301	●
45	WASHER; LK,LEVER TO CM/SHF FSR(FS**) FTR(FT**) ID=10.2	9-09150-510-0	01	1	0302-0603	●
45	WASHER; LK,LEVER TO CM/SHF FSR(FS**) FTR(FT**) ID=10.2	0-91510-510-0	01	1	0604-	●
46	WASHER; LEVER	9-09855-362-0	01	1	9905-9905	●
46	WASHER; LEVER FSR(FS****)	9-09855-362-0	01	1	9911-0301	●
46	WASHER; LEVER FSR(FS**) FTR(FT**)	9-09855-362-0	01	1	0302-	●
46	WASHER; LEVER	9-09855-367-0	01	1	9905-9905		●
46	WASHER; LEVER	9-09855-367-0	01	1	9905-9910	●	●
46	WASHER; LEVER FRR(FR****)	9-09855-367-0	01	1	9911-0301	●
46	WASHER; LEVER FRR(FR****)	9-09855-367-0	01	1	0302-	●
46	WASHER; LEVER	9-09855-367-0	01	1	0302-		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	9905-	●
111	BOLT; COVER,CHECK HOLE M8X18 W/LK WASHER	0-50040-818-0	02	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
