Sayfa 8-71 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶

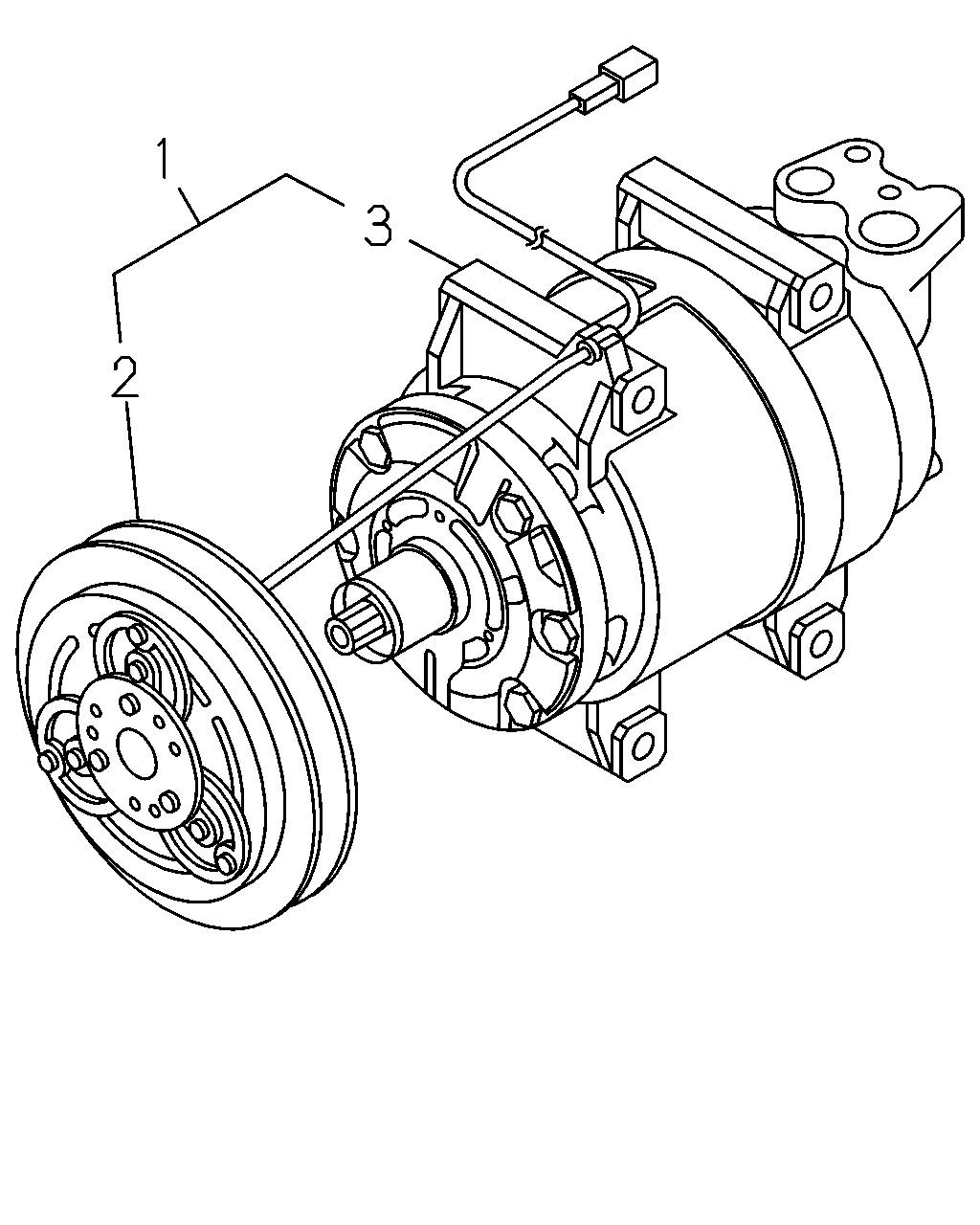

8-71 — COMPRESSOR; AIR CONDITIONING (#78462) — 22 parça

1 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98000-988-2	01	1	1012-1211	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98000-988-2	01	1	1012-1211				●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98214-324-0	01	1	1212-1301	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98214-324-0	01	1	1212-1301				●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98214-324-0	01	1	1302-1410	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98214-324-0	01	1	1302-1410			●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98286-199-0	01	1	1411-	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO	8-98286-199-0	01	1	1411-			●	●
1	09.170 COMPRESSOR ASM; A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98037-146-2	01	1	1012-1211		●
1	09.170 COMPRESSOR ASM; A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98214-321-0	01	1	1212-1410		●
1	09.170 COMPRESSOR ASM; A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) VALEO	8-98286-197-0	01	1	1411-		●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98208-772-1	01	1	1012-1301	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98208-772-1	01	1	1012-1301				●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98208-772-1	01	1	1302-	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98208-772-1	01	1	1302-			●	●
2	09.188 CLUTCH; MAGNET,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98208-773-1	01	1	1012-		●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98042-531-1	01	1	1012-1301	●		●
3	09.170 COMPRESSOR ASM; A/C 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98042-531-1	01	1	1012-1301		●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98042-531-1	01	1	1012-1301				●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98042-531-1	01	1	1302-	●
3	09.170 COMPRESSOR ASM; A/C 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65)	8-98042-531-1	01	1	1302-		●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98042-531-1	01	1	1302-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
