Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#7846) — 277 parça

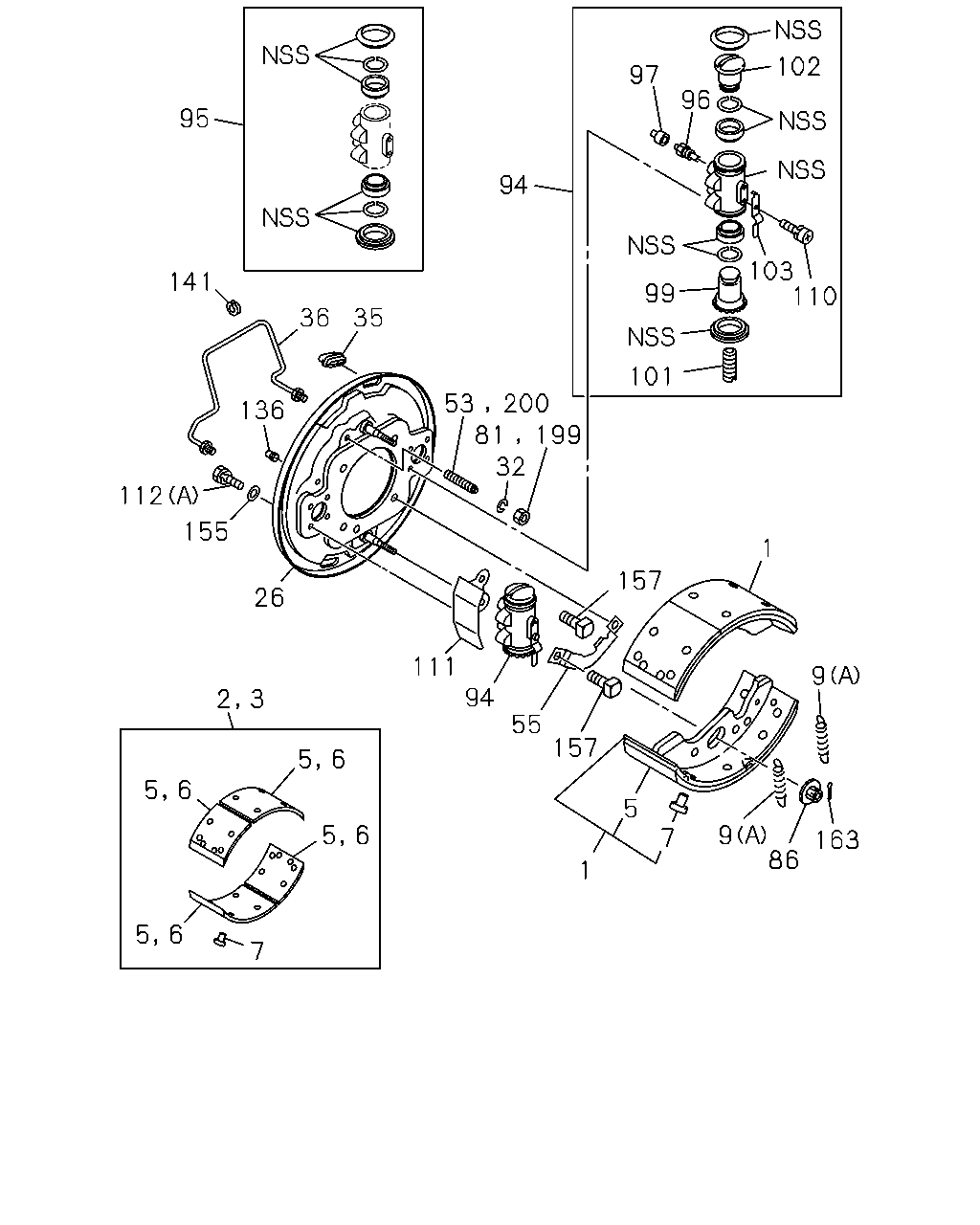

102 97 96 95 94 103 110 141 99 36 35 101 81 199 32 136 112 155 1 157 26 111 9 94 55 157 5 6 5 6 5 5 6 9 86 7 163 1 5 6 7 53 200 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR	1-47120-708-0	04	1	0302-	●
1	SHOE; BRK,RR	1-47120-626-0	04	1	9905-		●
1	SHOE; BRK,RR	1-47120-629-0	04	1	9905-			●
2	LINING SET; RR BRK,STANDARD	1-88310-529-0	02	1	0302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-551-1	02	1	9905-		●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9905-			●
3	LINING SET; RR BRK,OVER SIZE	1-88310-530-1	02	1	0302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-552-1	02	1	9905-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9905-			●
5	LINING; RR BRK SHOE,STANDARD	1-47125-813-0	08	1	0302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9905-		●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9905-			●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-814-0	08	1	0302-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9905-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9905-			●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0302-	●
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	9905-		●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9905-			●
9	SPRING; RETURN,BRK SHOE (C)	1-09583-175-0	02	1	0302-	●
9	SPRING; RETURN,BRK SHOE (D)	1-09583-210-0	04	1	0302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-271-0	04	1	9905-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-167-0	08	1	9905-			●
26	PLATE; BACK,RR BRK	1-47150-468-0	01	1	9905-		●
26	PLATE; BACK,RR BRK	1-47150-467-0	01	1	9905-		●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9905-			●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9905-			●
32	WASHER; LK ID=12.2	9-09150-512-0	04	1	9905-0603		●
32	WASHER; LK ID=12.2	0-91510-512-0	04	1	0604-		●
35	GROMMET; CHECK HOLE	1-09333-033-0	04	1	9905-		●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9905-			●
36	PIPE; OIL,RR BRK	1-47421-815-0	02	1	9905-		●
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9905-			●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0302-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-	●
53	BOLT; LOCK PLATE	1-47162-017-0	02	1	9905-		●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0302-	●
55	PLATE; LK,RR WHEEL CYL	1-47139-064-0	04	1	9905-		●
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9905-			●
81	NUT	1-09400-100-0	02	1	9905-		●
86	NUT; FLANGE	1-09440-003-0	04	1	9905-		●
86	NUT; FLANGE	1-09440-009-0	02	1	9905-			●
94	CYLINDER; WHEEL,RR BRK	1-47600-682-0	02	1	0302-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-958-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-959-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-956-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-957-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-558-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-559-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-556-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-557-1	01	1	9905-			●
95	CUP SET; RR WHEEL CYL	1-87830-528-0	02	1	0302-	●
95	CUP SET; RR WHEEL CYL	1-87830-770-0	04	1	9905-		●
95	CUP SET; RR WHEEL CYL	1-87830-553-0	04	1	9905-			●
96	SCREW; BLEEDER,RR BRK	1-47615-002-0	02	1	0302-	●
96	SCREW; BLEEDER,RR BRK	1-47615-020-0	02	1	9905-		●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9905-			●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0302-	●
97	CAP; BLEEDER,RR WHEEL CYL	1-47619-009-0	02	1	9905-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9905-			●
99	PISTON; RR WHEEL CYL	1-47624-303-0	04	1	0302-	●
99	PISTON; RR WHEEL CYL	1-47624-310-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-309-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9905-			●
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9905-			●
101	SCREW; ADJ,RR WHEEL CYL M22 RH THREAD	1-47622-034-0	02	1	9905-		●
101	SCREW; ADJ,RR WHEEL CYL M22 LH THREAD	1-47622-033-0	02	1	9905-		●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9905-			●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9905-			●
102	PISTON; REAR WHEEL CYL	1-47624-311-0	04	1	9905-		●
102	PISTON; REAR WHEEL CYL	1-47624-203-0	04	1	9905-			●
103	SPRING; LK,RR WHEEL CYL,ADJ	1-47629-072-0	04	1	9905-		●
110	SCREW; LOCK SPRING,RR WHEEL CYL	8-94128-727-0	04	1	9905-		●
111	COVER; WHEEL CYL	1-47159-081-0	02	1	0302-	●
111	COVER; WHEEL CYL	1-47159-103-0	04	1	9905-		●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20801-435-0	04	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20851-435-0	04	1	0601-	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50040-816-0	06	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50540-816-0	06	1	0601-	●
112	BOLT; WHEEL CYL SETTING (A)	1-47159-125-0	16	1	9905-0111		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0112-0301		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0302-		●
112	BOLT; WHEEL CYL SETTING (B)	9-92361-435-0	16	1	9905-			●
136	GROMMET	9-09956-640-0	04	1	9905-		●
136	GROMMET	1-09333-065-2	04	1	9905-			●
141	PROTECTOR; RR BRK PIPE	9-47461-158-0	02	1	9905-		●
155	WASHER; PL,WHEEL CYL	1-09503-221-0	16	1	9905-0111		●
157	BOLT; RR BRK SET M14X45 SQUARE HEAD	1-09060-015-0	12	1	9905-		●
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9905-			●
163	PIN; SPLIT,SHOE HOLD	9-09874-040-0	04	1	9905-		●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	02	1	9905-0606			●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	02	1	0607-			●
199	NUT	1-09400-100-0	02	1	9905-		●
200	BOLT	1-47162-017-0	02	1	9905-		●

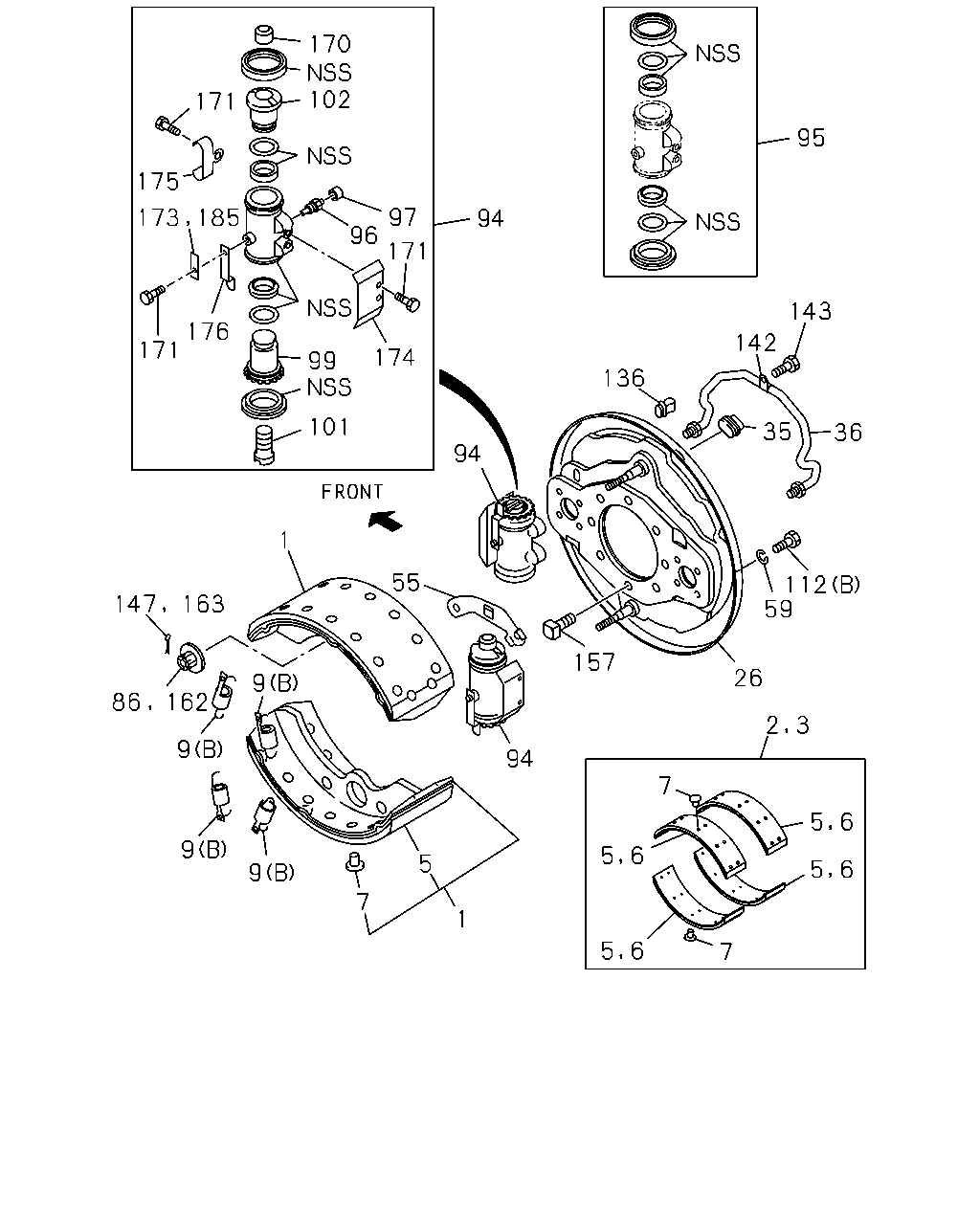

170 102 171 95 175 97 94 96 171 143 176 142 171 174 99 136 101 35 36 94 1 55 112 59 147 163 157 26 9 86 162 9 94 7 9 5 9 7 1 7 5 6 5 6 5 6 5 6 173 185 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR	1-47120-708-0	04	1	0302-	●
1	SHOE; BRK,RR	1-47120-626-0	04	1	9905-		●
1	SHOE; BRK,RR	1-47120-629-0	04	1	9905-			●
2	LINING SET; RR BRK,STANDARD	1-88310-529-0	02	1	0302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-551-1	02	1	9905-		●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9905-			●
3	LINING SET; RR BRK,OVER SIZE	1-88310-530-1	02	1	0302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-552-1	02	1	9905-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9905-			●
5	LINING; RR BRK SHOE,STANDARD	1-47125-813-0	08	1	0302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9905-		●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9905-			●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-814-0	08	1	0302-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9905-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9905-			●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0302-	●
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	9905-		●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9905-			●
9	SPRING; RETURN,BRK SHOE (C)	1-09583-175-0	02	1	0302-	●
9	SPRING; RETURN,BRK SHOE (D)	1-09583-210-0	04	1	0302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-271-0	04	1	9905-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-167-0	08	1	9905-			●
26	PLATE; BACK,RR BRK	1-47150-468-0	01	1	9905-		●
26	PLATE; BACK,RR BRK	1-47150-467-0	01	1	9905-		●
26	PLATE; BACK,RR BRK	1-47150-443-0	01	1	9905-			●
26	PLATE; BACK,RR BRK	1-47150-442-0	01	1	9905-			●
35	GROMMET; CHECK HOLE	1-09333-033-0	04	1	9905-		●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	9905-			●
36	PIPE; OIL,RR BRK	1-47421-815-0	02	1	9905-		●
36	PIPE; OIL,RR BRK	1-47416-356-0	02	1	9905-			●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0302-	●
55	PLATE; LK,RR WHEEL CYL	1-47139-064-0	04	1	9905-		●
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9905-			●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-514-0	04	1	0302-0603	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-514-0	04	1	0604-	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9905-0603			●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-			●
86	NUT; FLANGE	1-09440-003-0	04	1	9905-		●
86	NUT; FLANGE	1-09440-009-0	02	1	9905-			●
94	CYLINDER; WHEEL,RR BRK	1-47600-682-0	02	1	0302-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-958-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-959-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-956-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-957-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-558-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-559-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-556-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-557-1	01	1	9905-			●
95	CUP SET; RR WHEEL CYL	1-87830-528-0	02	1	0302-	●
95	CUP SET; RR WHEEL CYL	1-87830-770-0	04	1	9905-		●
95	CUP SET; RR WHEEL CYL	1-87830-553-0	04	1	9905-			●
96	SCREW; BLEEDER,RR BRK	1-47615-002-0	02	1	0302-	●
96	SCREW; BLEEDER,RR BRK	1-47615-020-0	02	1	9905-		●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9905-			●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0302-	●
97	CAP; BLEEDER,RR WHEEL CYL	1-47619-009-0	02	1	9905-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9905-			●
99	PISTON; RR WHEEL CYL	1-47624-303-0	04	1	0302-	●
99	PISTON; RR WHEEL CYL	1-47624-310-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-309-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9905-			●
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9905-			●
101	SCREW; ADJ,RR WHEEL CYL M22 RH THREAD	1-47622-034-0	02	1	9905-		●
101	SCREW; ADJ,RR WHEEL CYL M22 LH THREAD	1-47622-033-0	02	1	9905-		●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	9905-			●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	9905-			●
102	PISTON; REAR WHEEL CYL	1-47624-311-0	04	1	9905-		●
102	PISTON; REAR WHEEL CYL	1-47624-203-0	04	1	9905-			●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20801-435-0	04	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20851-435-0	04	1	0601-	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50040-816-0	06	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50540-816-0	06	1	0601-	●
112	BOLT; WHEEL CYL SETTING (A)	1-47159-125-0	16	1	9905-0111		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0112-0301		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0302-		●
112	BOLT; WHEEL CYL SETTING (B)	9-92361-435-0	16	1	9905-			●
136	GROMMET	9-09956-640-0	04	1	9905-		●
136	GROMMET	1-09333-065-2	04	1	9905-			●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	9905-			●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	9905-			●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	02	1	9905-0606			●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	02	1	0607-			●
157	BOLT; RR BRK SET M14X45 SQUARE HEAD	1-09060-015-0	12	1	9905-		●
157	BOLT; RR BRK SET M14X56	1-09060-004-0	12	1	9905-			●
162	NUT; SHOE HOLD DOWN	1-09440-009-0	02	1	9905-			●
163	PIN; SPLIT,SHOE HOLD	9-09874-040-0	04	1	9905-		●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	9-08112-020-0	02	1	9905-0606			●
163	PIN; SPLIT,SHOE HOLD OD=1.8 L=20	0-81122-020-0	02	1	0607-			●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	04	1	9905-			●
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	04	1	9905-			●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	08	1	9905-			●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	12	1	9905-			●
173	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9905-			●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	9905-			●
175	HANGER; RR WHEEL BRK	1-47118-084-0	08	1	9905-			●
176	STOPPER; RR WHEEL CYL	1-47169-008-0	04	1	9905-			●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	9905-			●

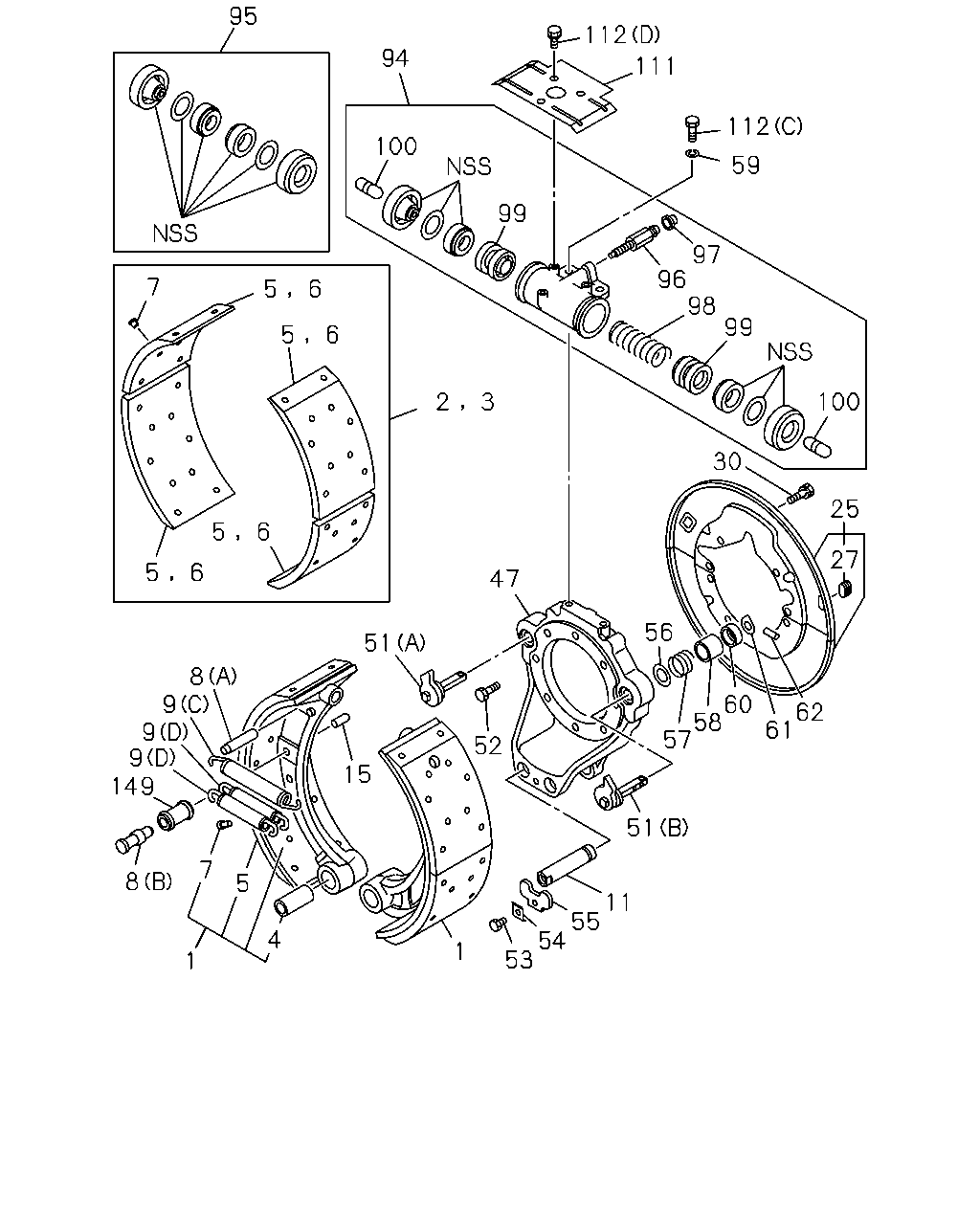

95 112 94 111 112 100 59 99 97 96 98 99 7 5 6 5 6 2 3 100 30 25 5 6 27 5 6 47 56 51 8 9 9 9 149 60 58 57 62 61 52 15 51 7 8 5 11 55 54 53 4 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHOE; BRK,RR	1-47120-708-0	04	1	0302-	●
1	SHOE; BRK,RR	1-47120-626-0	04	1	9905-		●
1	SHOE; BRK,RR	1-47120-629-0	04	1	9905-			●
2	LINING SET; RR BRK,STANDARD	1-88310-529-0	02	1	0302-	●
2	LINING SET; RR BRK,STANDARD	1-88310-551-1	02	1	9905-		●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	9905-			●
3	LINING SET; RR BRK,OVER SIZE	1-88310-530-1	02	1	0302-	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-552-1	02	1	9905-		●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	9905-			●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-813-0	08	1	0302-	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-803-0	08	1	9905-		●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	9905-			●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-814-0	08	1	0302-	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-804-0	08	1	9905-		●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	9905-			●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0302-	●
7	RIVET; LINING,RR BRK	1-09732-029-0	96	1	9905-		●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	9905-			●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-09744-051-0	04	1	0302-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-025-0	04	1	0302-	●
9	SPRING; RETURN,BRK SHOE (C)	1-09583-175-0	02	1	0302-	●
9	SPRING; RETURN,BRK SHOE (D)	1-09583-210-0	04	1	0302-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-271-0	04	1	9905-		●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-167-0	08	1	9905-			●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0302-	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK	1-47116-002-0	04	1	0302-	●
25	COVER SET; RR BRK DRUM	1-47151-461-1	02	1	0302-	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0302-	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0302-	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-151-0	02	1	0302-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (A)	1-47165-058-1	02	1	0302-	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK (B)	1-47165-059-1	02	1	0302-	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0302-	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0302-0512	●
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0601-	●
53	BOLT; LOCK PLATE	1-47162-017-0	02	1	9905-		●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0302-	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0302-	●
55	PLATE; LK,RR WHEEL CYL	1-47139-064-0	04	1	9905-		●
55	PLATE; LK,RR WHEEL CYL	1-47139-068-0	04	1	9905-			●
56	WASHER; ADJ CAM,RR WHEEL BRK	1-47169-033-0	04	1	0302-	●
57	SPRING; ADJ CAM,RR WHEEL BRK	1-47169-046-0	04	1	0302-	●
58	BOOT; ADJ CAM,RR WHEEL BRK	1-47169-034-0	04	1	0302-	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-514-0	04	1	0302-0603	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-514-0	04	1	0604-	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	16	1	9905-0603			●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	16	1	0604-			●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK	1-47169-031-0	04	1	0302-	●
61	INDICATOR; WEAR,RR BRK SHOE	1-47169-032-1	04	1	0302-	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK	1-47169-030-0	04	1	0302-	●
94	CYLINDER; WHEEL,RR BRK	1-47600-682-0	02	1	0302-	●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-958-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-959-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-956-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-957-0	01	1	9905-		●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-558-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-559-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK BACKWARD	1-47600-556-1	01	1	9905-			●
94	CYLINDER; WHEEL,RR BRK FORWARD	1-47600-557-1	01	1	9905-			●
95	CUP SET; RR WHEEL CYL	1-87830-528-0	02	1	0302-	●
95	CUP SET; RR WHEEL CYL	1-87830-770-0	04	1	9905-		●
95	CUP SET; RR WHEEL CYL	1-87830-553-0	04	1	9905-			●
96	SCREW; BLEEDER,RR BRK	1-47615-002-0	02	1	0302-	●
96	SCREW; BLEEDER,RR BRK	1-47615-020-0	02	1	9905-		●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	9905-			●
97	CAP; BLEEDER,RR WHEEL CYL OD=12	1-47619-011-0	02	1	0302-	●
97	CAP; BLEEDER,RR WHEEL CYL	1-47619-009-0	02	1	9905-		●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	9905-			●
98	SPRING; RR WHEEL CYL	1-09580-019-0	02	1	0302-	●
99	PISTON; RR WHEEL CYL	1-47624-303-0	04	1	0302-	●
99	PISTON; RR WHEEL CYL	1-47624-310-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-309-0	02	1	9905-		●
99	PISTON; RR WHEEL CYL	1-47624-202-0	02	1	9905-			●
99	PISTON; RR WHEEL CYL	1-47624-201-0	02	1	9905-			●
100	ROD; PUSH,RR WHEEL CYL	1-47621-009-0	04	1	0302-	●
111	COVER; WHEEL CYL	1-47159-081-0	02	1	0302-	●
111	COVER; WHEEL CYL	1-47159-103-0	04	1	9905-		●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20801-435-0	04	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (C) M14X35	0-20851-435-0	04	1	0601-	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50040-816-0	06	1	0302-0512	●
112	BOLT; WHEEL CYL SETTING (D) M8X16 W/LK WASHER	0-50540-816-0	06	1	0601-	●
112	BOLT; WHEEL CYL SETTING (A)	1-47159-125-0	16	1	9905-0111		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0112-0301		●
112	BOLT; WHEEL CYL SETTING (A) M12	1-47159-184-0	16	1	0302-		●
112	BOLT; WHEEL CYL SETTING (B)	9-92361-435-0	16	1	9905-			●
149	PIN; GUIDE RETURN	1-47119-024-0	04	1	0302-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
