Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#78457) — 282 parça

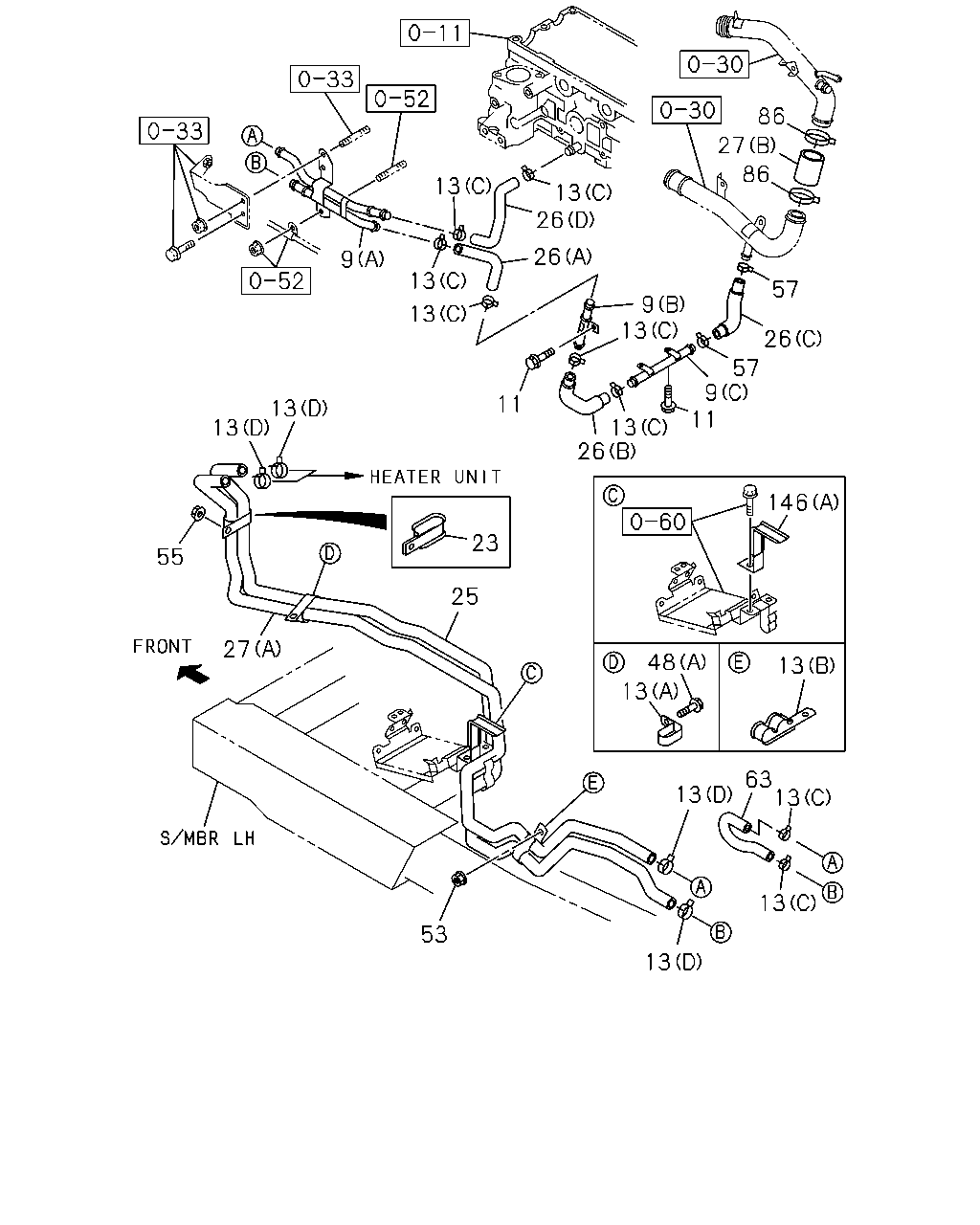

25 27 27 27 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1012-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98085-568-2	01	1	1012-1206	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK>	8-97129-200-0	01	1	1012-1210	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98115-487-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1405-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (F)	8-98178-529-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98085-567-2	01	1	1012-1206	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98009-701-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (E)	8-97129-201-0	01	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98100-096-1	01	1	1012-		●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1012-1208	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1012-1208	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1210-1404	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1210-1404	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	1405-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	1012-	●	●

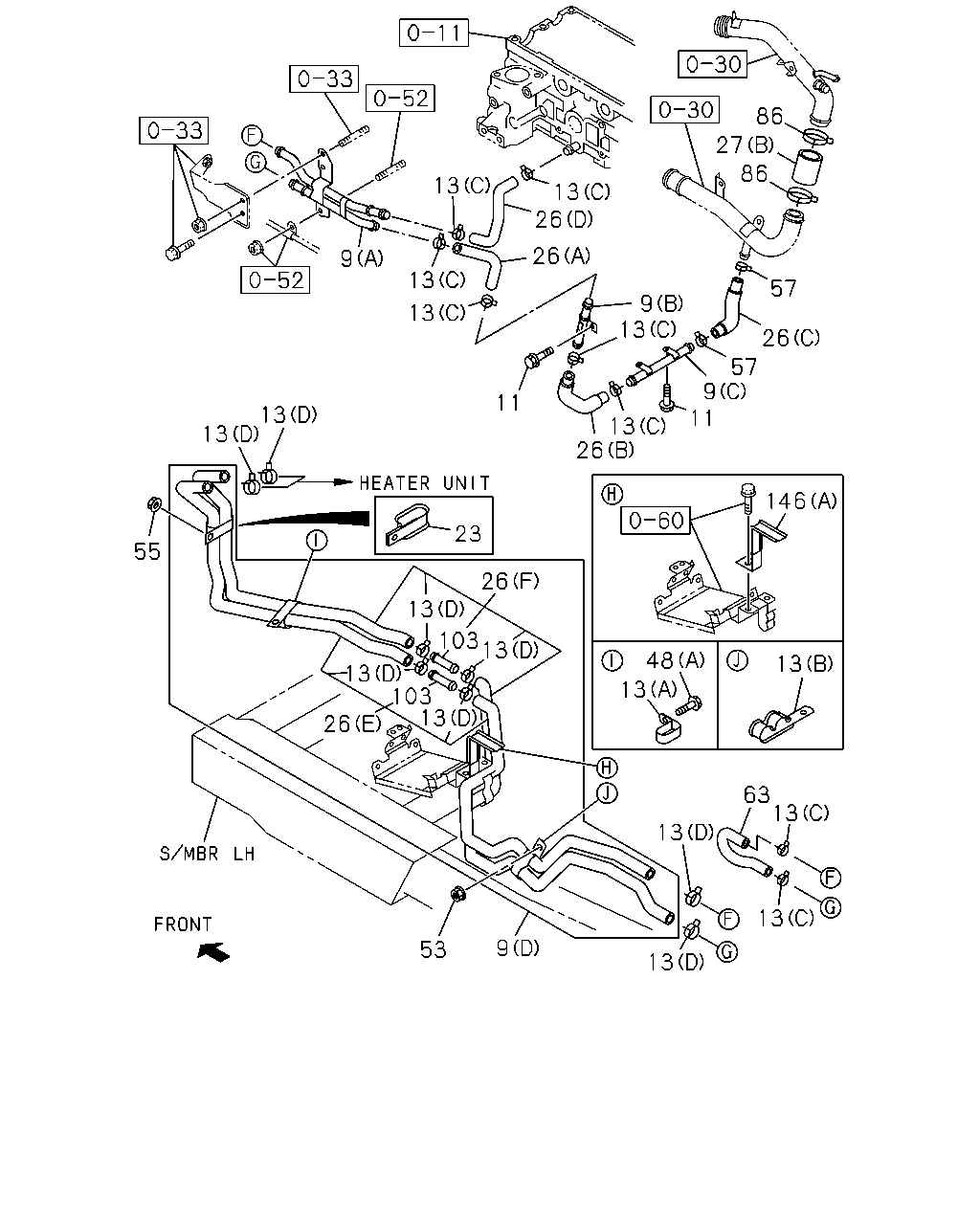

13 13 13 63 13 9 53 13 103 13 26 13 103 13 26 23 13 13 55 11 13 13 9 13 13 26 26 86 27 86 57 9 13 11 9 57 26 13 26 146 48 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-97381-481-3	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1012-			●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1012-			●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98028-829-1	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	1012-			●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-1206	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1201-	●	●
13	08.846 CLIP; HTR HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1201-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98000-099-1	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98000-101-2	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1405-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (F)	8-98178-529-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98085-567-2	01	1	1012-1206	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98009-701-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (E)	8-97129-201-0	01	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98100-096-1	01	1	1012-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●		●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-		●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●		●	●
53	08.845 NUT; HOSE CLIP 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1012-			●	●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1012-	●	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 ID=40.5	8-97313-472-0	02	1	1012-	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	1012-			●	●
103	08.866 CONNECTOR; HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	9-09703-048-0	02	1	1207-	●	●	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1012-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	1012-	●	●	●	●

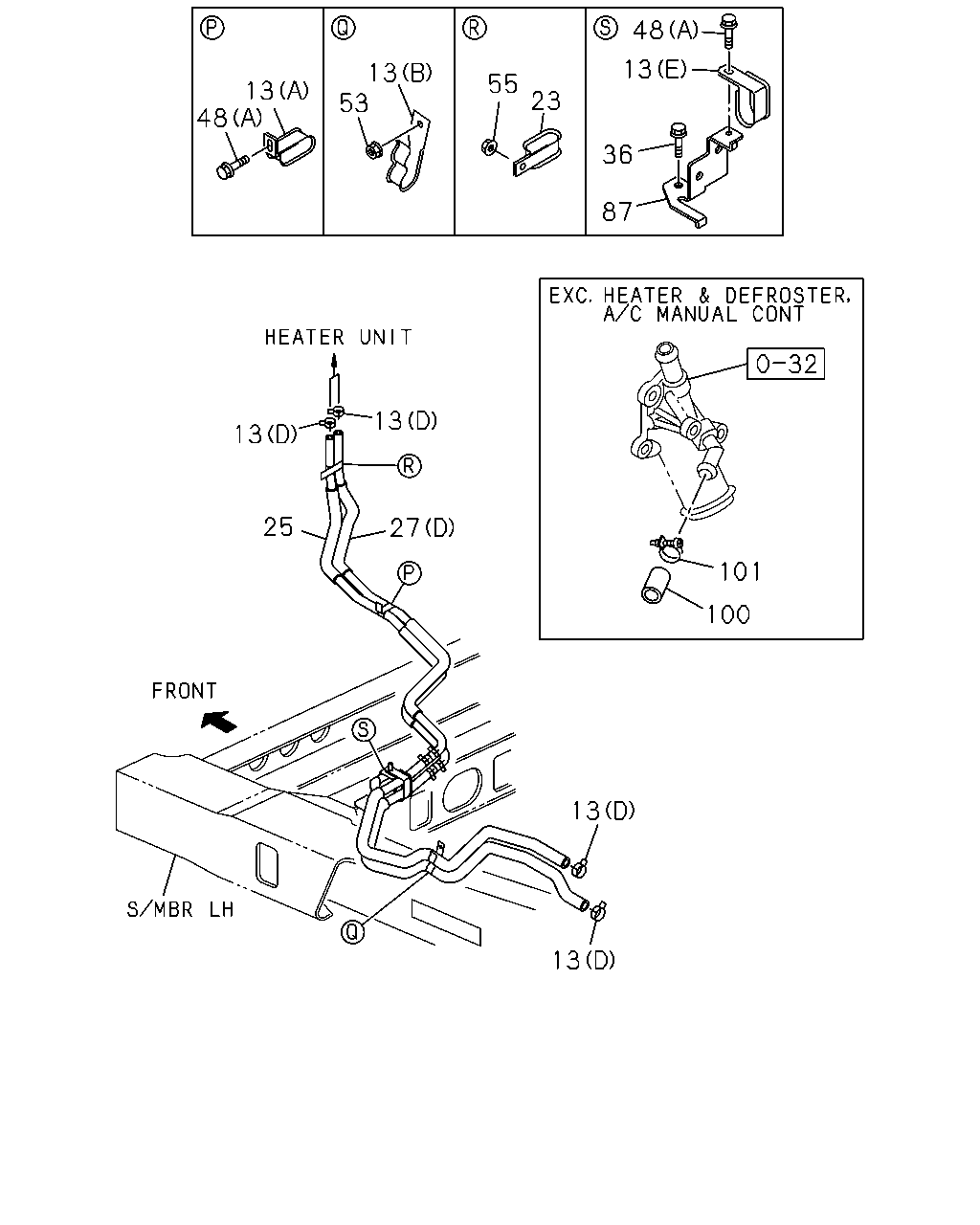

13 13 55 25 23 27 27 27 13 73 73 13 48 48 13 13 48 13 146 48 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-1206	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1201-	●	●
13	08.846 CLIP; HTR HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1201-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1012-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98085-568-2	01	1	1012-1206	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK>	8-97129-200-0	01	1	1012-1210	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98115-487-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1405-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (F)	8-98178-529-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98085-567-2	01	1	1012-1206	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98009-701-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (E)	8-97129-201-0	01	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98100-096-1	01	1	1012-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●		●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1012-1208	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1012-1208	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1209-1209	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 03.278 (B) ID=22	8-97359-141-0	02	1	1210-1404	●	●
73	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> 03.278 (B) ID=22	8-97359-141-0	02	1	1210-1404	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	1405-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.559 (A) L=250	5-09707-030-1	01	1	1012-	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1012-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	1012-	●	●	●	●

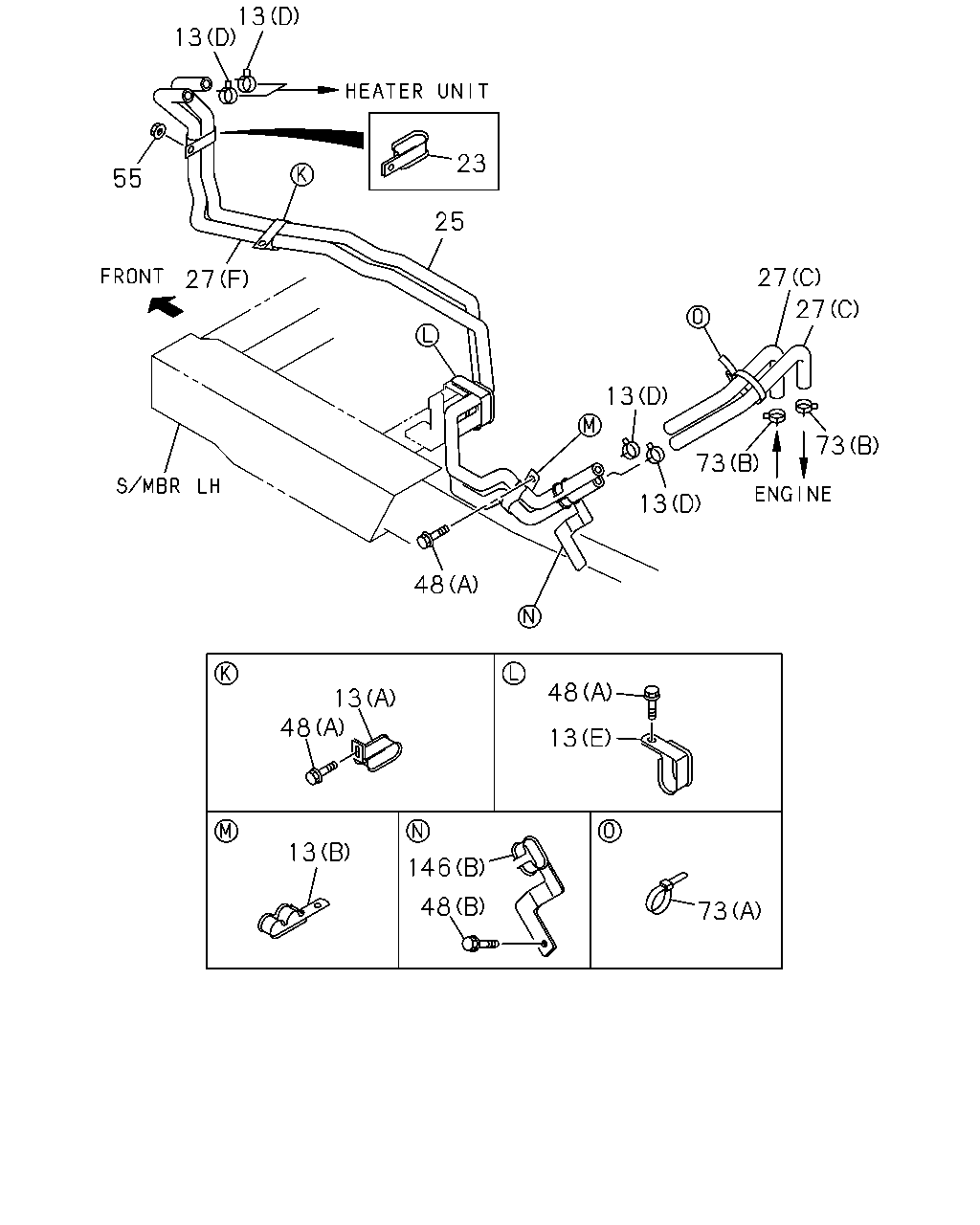

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 13 13 26 146 23 55 25 27 48 13 13 63 13 13 13 53 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-	●	●	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-97381-481-3	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1012-			●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-97383-035-1	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1012-			●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98028-829-1	01	1	1012-	●	●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	1012-			●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-			●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-1206	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1201-	●	●
13	08.846 CLIP; HTR HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1201-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1012-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98085-568-2	01	1	1012-1206	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK>	8-97129-200-0	01	1	1012-1210	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98115-487-0	01	1	1012-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-	●	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D)	8-97383-048-1	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98000-099-1	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C)	8-98000-101-2	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	1012-			●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98143-868-0	01	1	1012-	●	●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1405-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (F)	8-98178-529-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98085-567-2	01	1	1012-1206	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98009-701-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (E)	8-97129-201-0	01	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98100-096-1	01	1	1012-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●		●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-		●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●		●	●
53	08.845 NUT; HOSE CLIP 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 ID=20.8	8-94125-862-1	02	1	1012-	●	●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	1012-			●	●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1012-	●	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 ID=40.5	8-97313-472-0	02	1	1012-	●	●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	1012-			●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (B)	8-98178-391-0	01	1	1012-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98060-001-0	01	1	1012-	●	●	●	●

13 13 100 101 27 25 13 13 87 36 13 48 23 55 13 53 13 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1012-1206	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B)	8-98040-023-0	01	1	1012-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1012-1112			●	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	1201-	●	●
13	08.846 CLIP; HTR HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (E)	8-98029-677-0	01	1	1201-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-	●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1012-			●	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	1012-	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-97359-144-0	01	1	1012-1205	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1012-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98085-568-2	01	1	1012-1206	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK>	8-97129-200-0	01	1	1012-1210	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98115-487-0	01	1	1012-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1110-1208	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1) (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1209-1209	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1209-1209	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (C)	8-97205-283-0	02	1	1210-1404	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (C)	8-97205-283-0	02	1	1405-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) (F)	8-98178-529-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (A)	8-98085-567-2	01	1	1012-1206	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (B)	8-98009-701-0	01	1	1012-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1012-			●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) EXC. GLOW SYSTEM DELETE<7RK> (E)	8-97129-201-0	01	1	1012-1109	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (D)	8-98100-096-1	01	1	1012-		●
36	08.846 BOLT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1112	●		●	●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1112		●
36	08.846 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1201-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●	●
48	09.262 BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112	●		●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-1112		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-	●	●
48	09.262 BOLT; CLIP FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1201-		●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●		●	●
53	08.845 NUT; HOSE CLIP 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98009-465-3	01	1	1012-1112	●		●	●
87	08.846 BRACKET; HTR HOSE CLIP 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98009-465-3	01	1	1012-1112		●
87	08.846 BRACKET; HTR HOSE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98009-465-3	01	1	1201-		●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) 01.166	8-94107-793-0	01	1	1012-1202		●
101	08.846 CLIP; CAP,WATER PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) 01.166 ID=25	8-94233-115-0	01	1	1012-1202		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
