8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#78453) — 261 parça

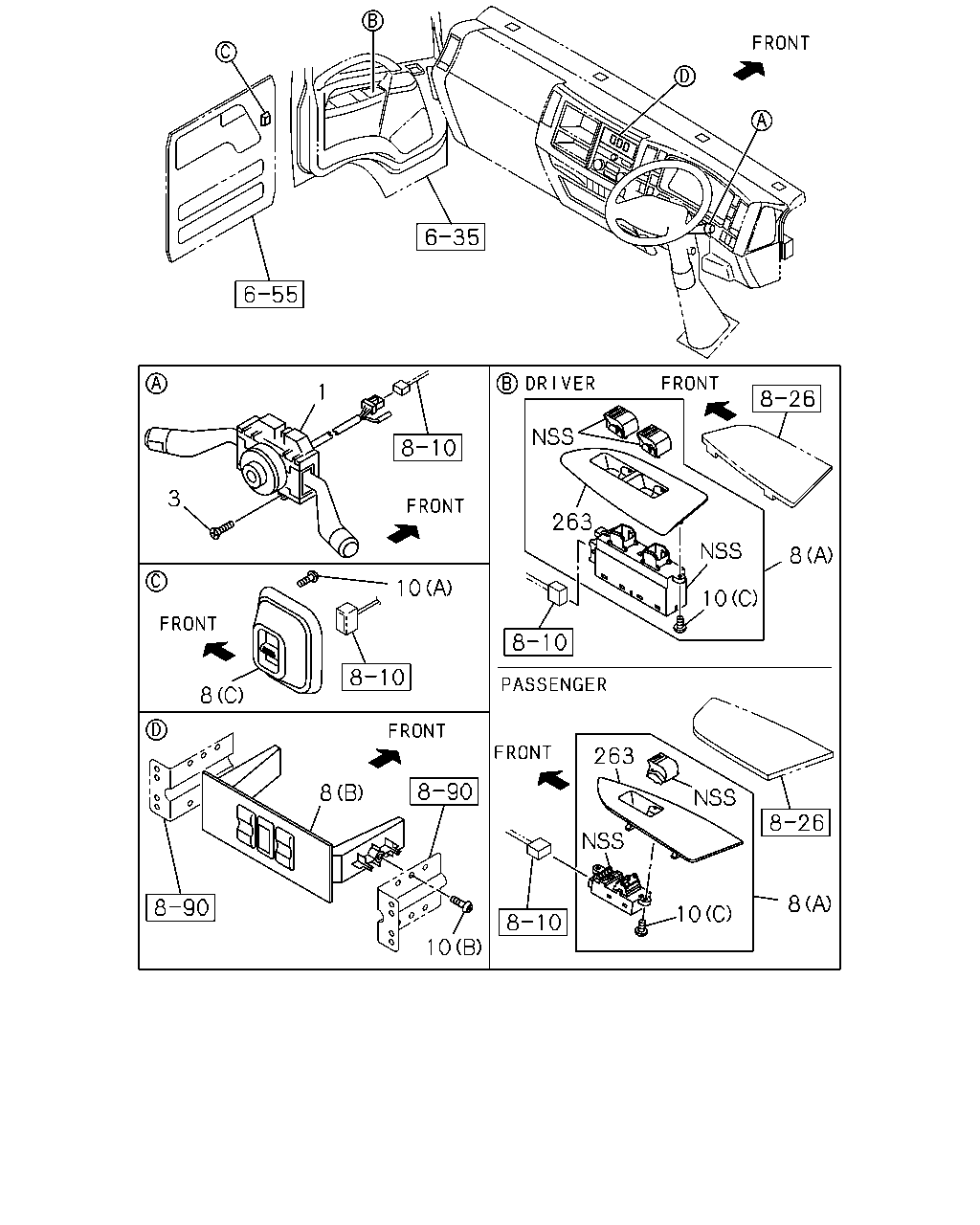

çizim 137916
1 3 263 8 10 10 8 263 8 8 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> 		8-98072-670-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> 		8-98243-733-0 01 1 1311-1511 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 		8-98243-733-0 01 1 1512- ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> EXC. EXHAUST BRAKE<NF8> 		8-98072-665-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> EXC. EXHAUST BRAKE<NF8> 		8-98243-731-0 01 1 1311-1511 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> EXC. EXHAUST BRAKE<NF8>,CORNERING LAMP<T87> 		8-98243-731-0 01 1 1512- ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13> 		8-98072-671-2 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13> 		8-98243-734-0 01 1 1311-1511 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98243-734-0 01 1 1512- ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-663-2 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-732-0 01 1 1311-1511 ● ●
1 02.895 SWITCH; COMB
4JB1-TC ENG(RDT),4JB1 ENG(RLF) VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,CORNERING LAMP<T87> 		8-98243-732-0 01 1 1512- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98069-995-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> 		8-98069-995-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98243-729-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98069-993-2 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98243-728-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98114-332-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98243-736-0 01 1 1311- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98114-331-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98243-735-0 01 1 1311- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98159-545-0 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98298-752-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98159-543-0 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-543-0 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1012- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-97387-035-0 02 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 01 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 01 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 02 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 02 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-836-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-836-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-98153-841-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98153-841-0 01 1 1012- ● ●
çizim 138161
151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ● ● ●
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●

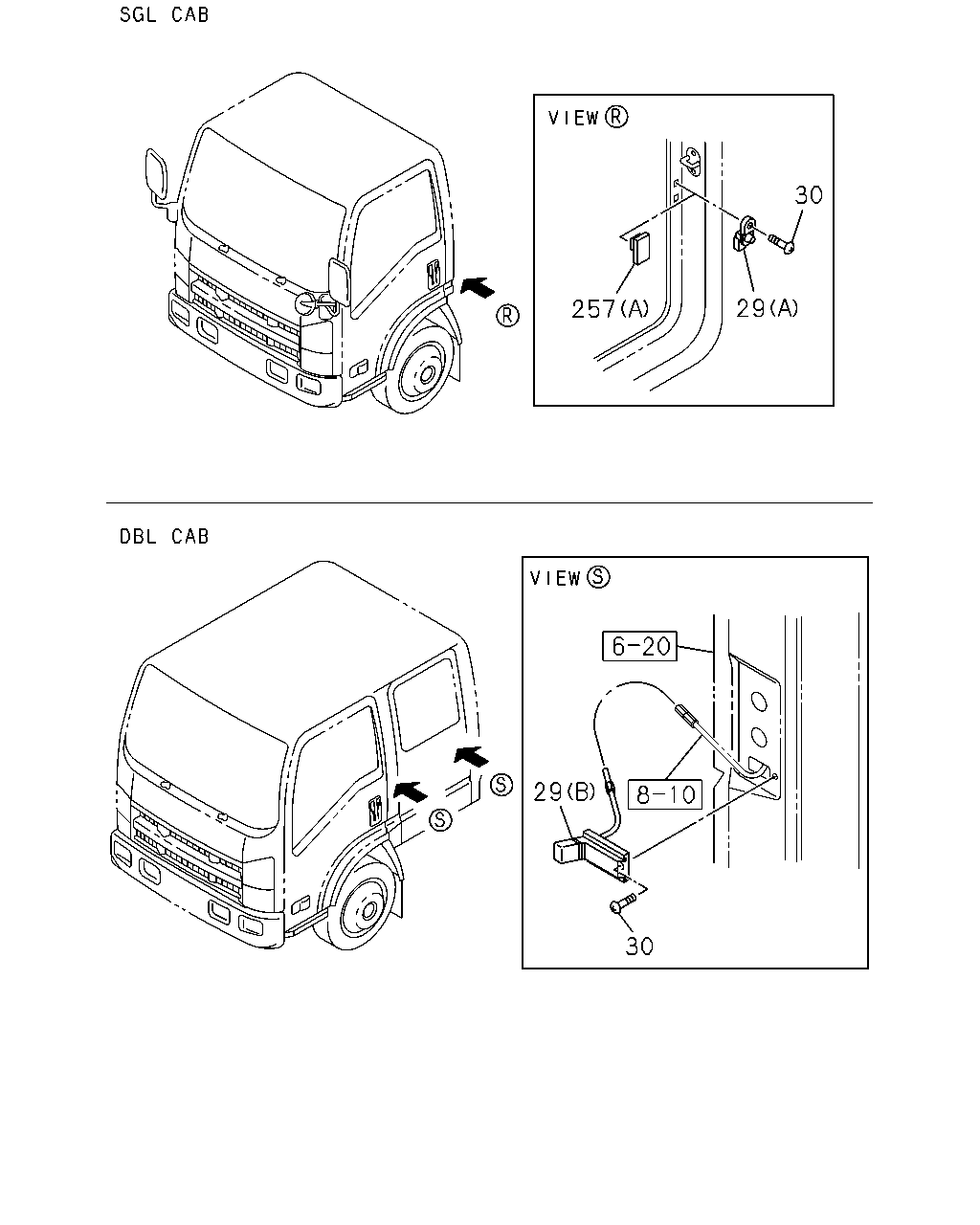

çizim 138203
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1012- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ● ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1012- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1303- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1303- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDEDIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (C) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●

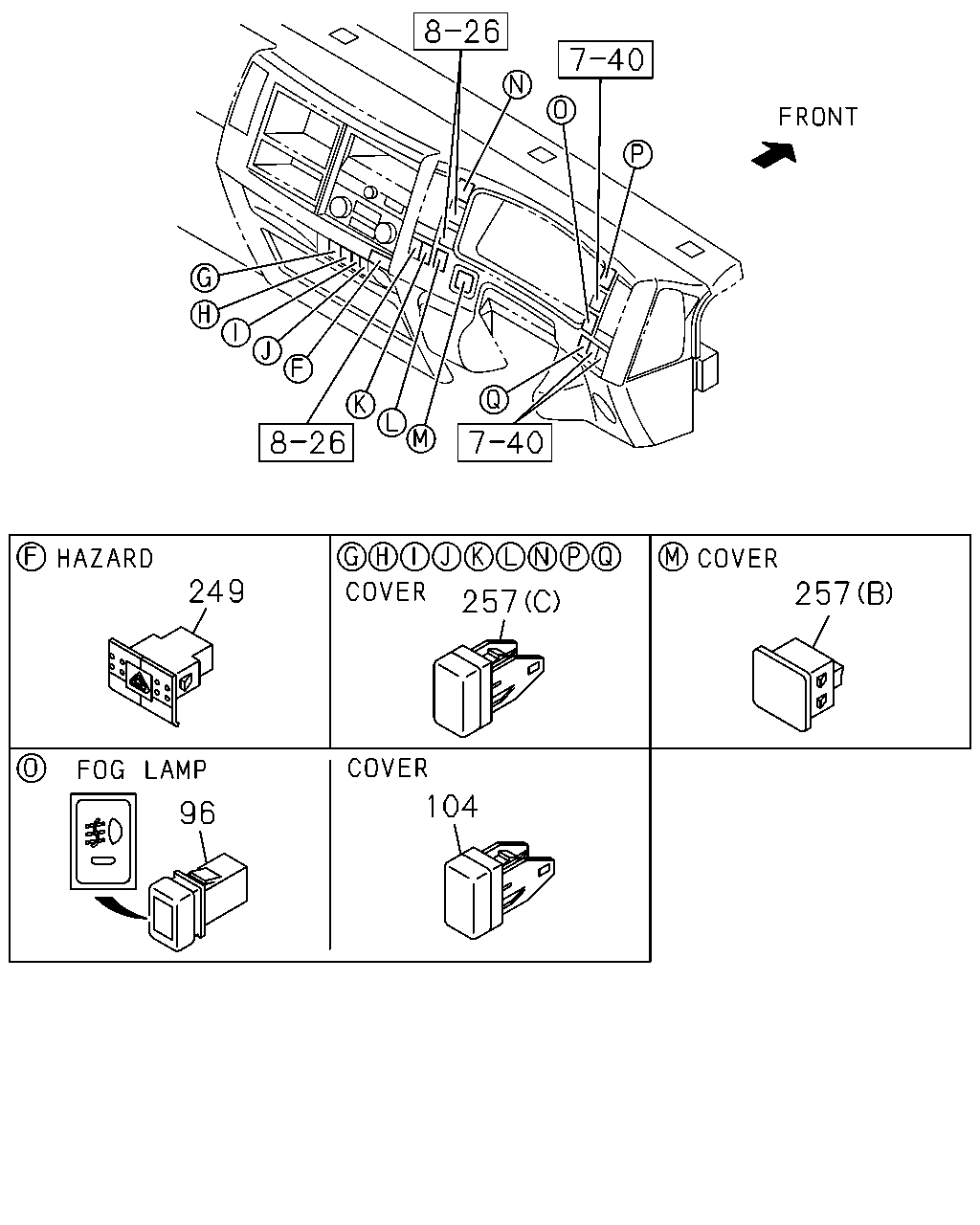

çizim 138257
249 257 257 104 96
BalonParca AdiParca NoAdetTipApplied Date A B C D
96 02.485 SWITCH; FOG LAMP
VOLTAGE 12V<TRQ> FOG LAMP<T96> 		8-98022-021-1 01 1 1012- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97387-031-4 01 1 1012- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012- ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 12V<TRQ> 		8-98011-707-2 01 1 1012- ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 12V<TRQ> 		8-97386-922-1 01 1 1012- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1303- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1303- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1303-1303 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1304-1505 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1506- ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66),PTO T/M SIDEDIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) (C) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012-1302 ● ● ● ●

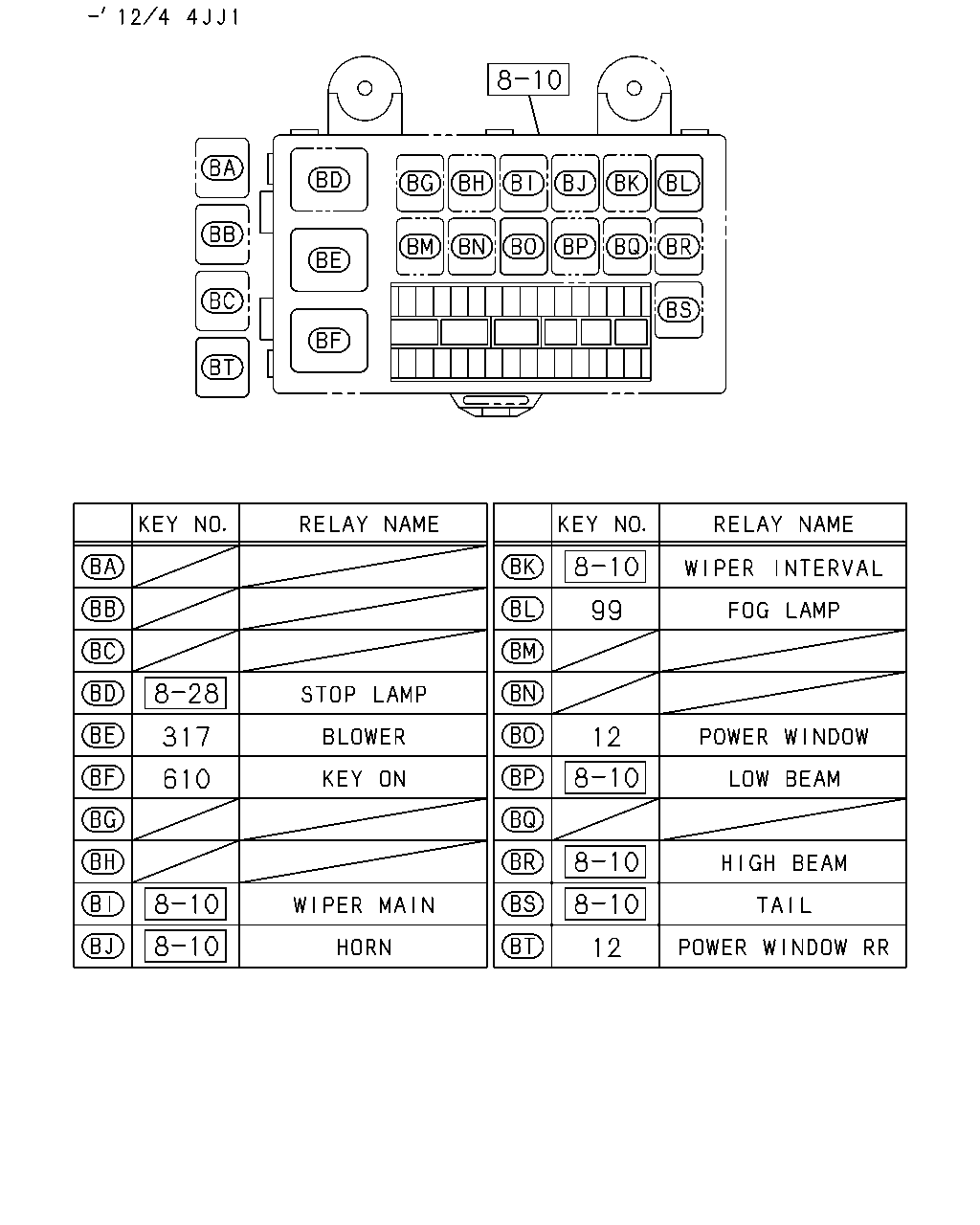

çizim 138338
99 317 12 610 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT),4JB1 ENG(RLF) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FOG LAMP<T96> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 12V 35A 		8-97180-794-1 01 1 1012- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.277 12V 30A 		8-97210-972-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ● ● ●

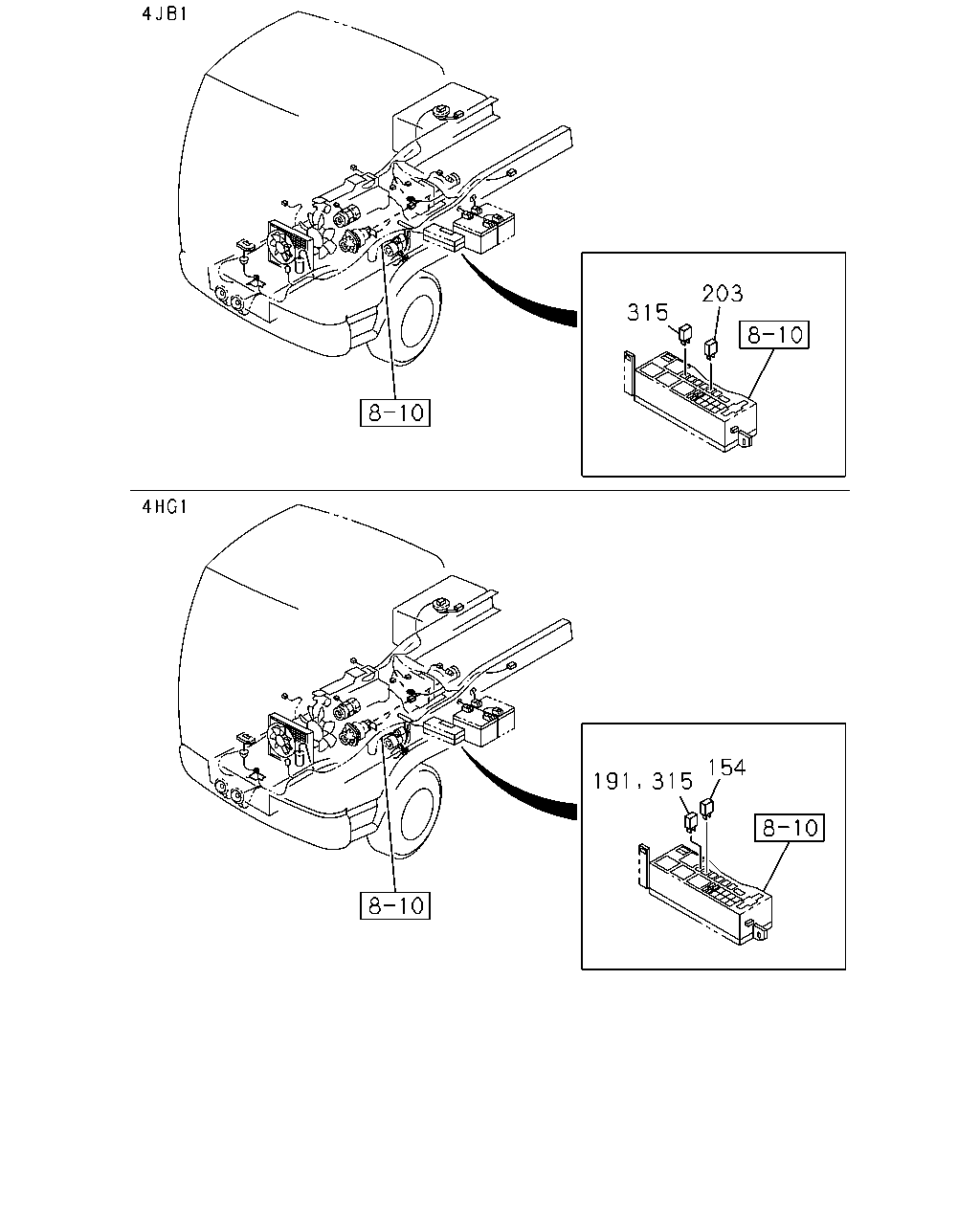

çizim 138403
203 315 154 191 315
BalonParca AdiParca NoAdetTipApplied Date A B C D
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ● ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1301 ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
154 09.277 RELAY; CONDENSER FAN
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1302- ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
203 02.510 RELAY; COLD START DEVICE (CSD)
4JB1 ENG(RLF) FAST GLOW SYSTEM<KM6> 12V 20A 		8-97173-037-1 01 1 1012- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107- ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●

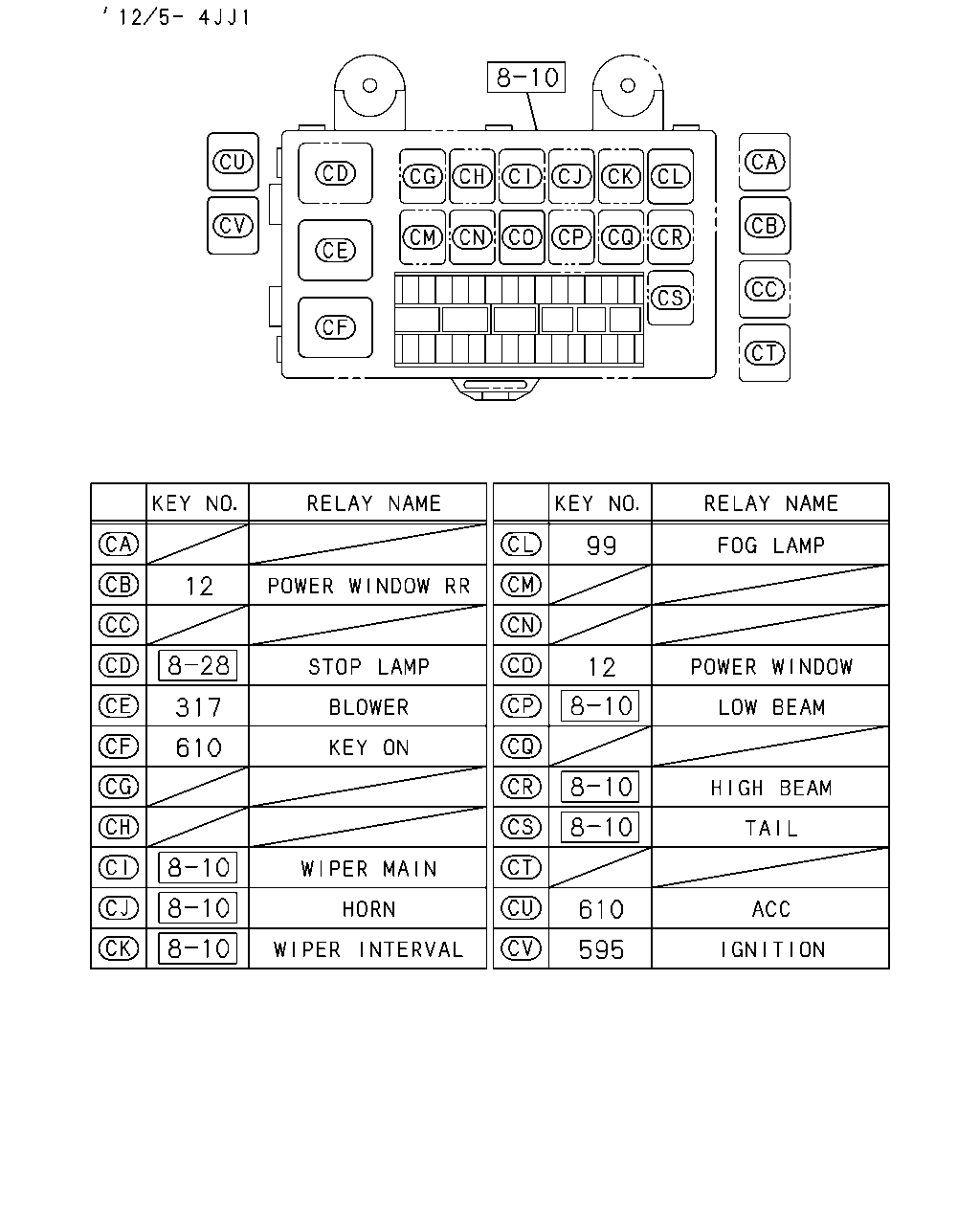

çizim 138408
99 12 12 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT),4JB1 ENG(RLF) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FOG LAMP<T96> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 12V 35A 		8-97180-794-1 01 1 1012- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.277 12V 30A 		8-97210-972-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ● ● ●
çizim 138466
527 86 87 609 317 610 45 693 12 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT),4JB1 ENG(RLF) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
45 02.252 RELAY; HORN
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
86 02.485 RELAY; HI-BEAM
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
87 02.485 RELAY; LOW-BEAM
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FOG LAMP<T96> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 12V 35A 		8-97180-794-1 01 1 1012- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
527 02.510 RELAY; TAIL
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 12V 20A 		8-97173-037-1 01 1 1012- ● ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 		8-97063-441-2 01 1 1012- ● ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.277 12V 30A 		8-97210-972-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ● ● ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
çizim 138467
527 86 87 12 609 610 99 45 317
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT),4JB1 ENG(RLF) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
45 02.252 RELAY; HORN
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
86 02.485 RELAY; HI-BEAM
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
87 02.485 RELAY; LOW-BEAM
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FOG LAMP<T96> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
99 02.485 RELAY; FOG LAMP
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 12V 35A 		8-97180-794-1 01 1 1012- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1301 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ● ●
527 02.510 RELAY; TAIL
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 12V 20A 		8-97173-037-1 01 1 1012- ● ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.510 12V 		8-97063-441-2 01 1 1012- ● ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1302- ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.277 12V 30A 		8-97210-972-1 01 1 1012- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ● ● ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1301 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 1302- ● ● ● ●
çizim 191211
26 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1012- ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1012- ● ●
26 03.636 SWITCH; ACCEL
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012- ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012- ●

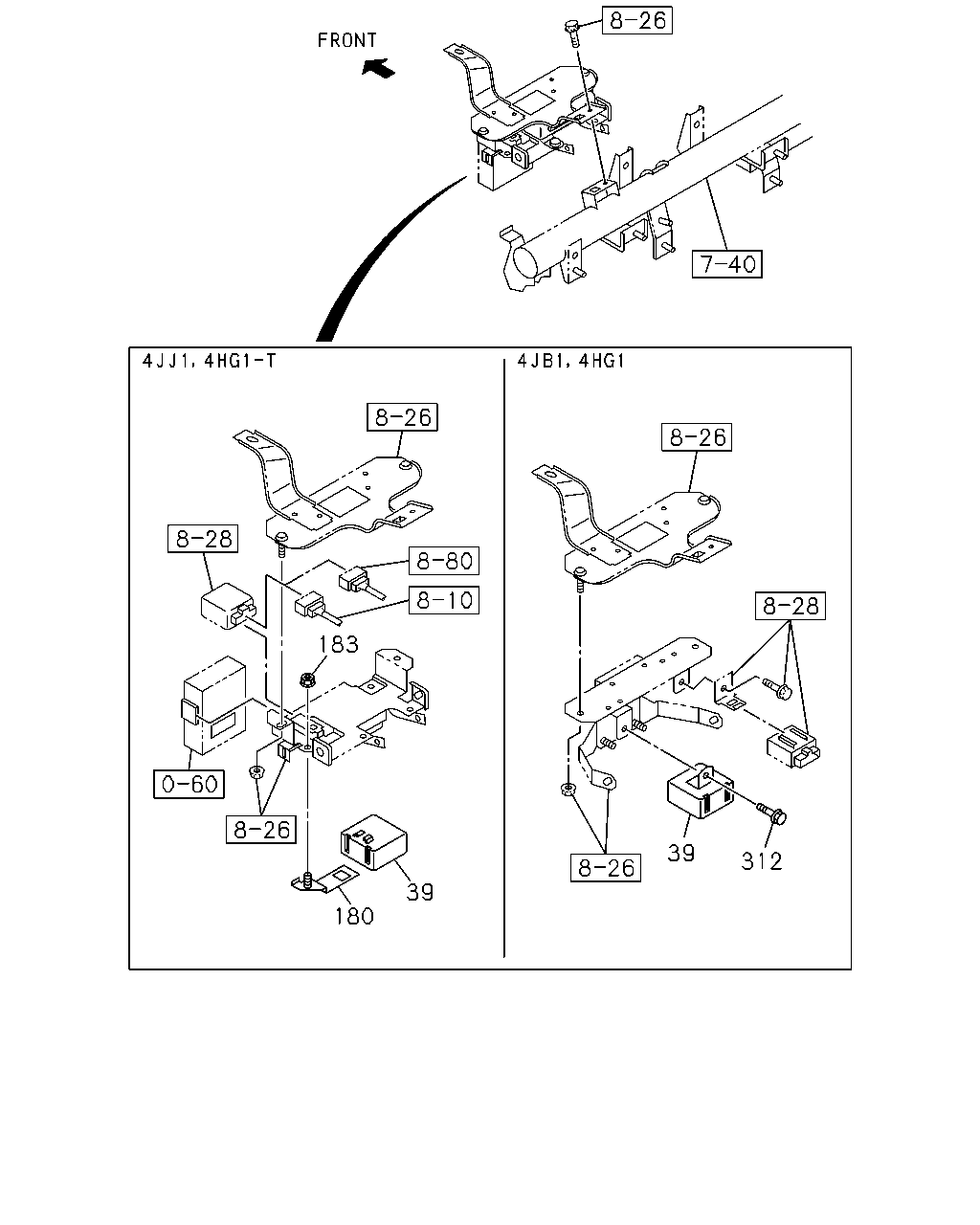

çizim 191213
183 39 180 39 312
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 		8-97359-591-0 01 1 1012- ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ> 		8-98060-789-0 01 1 1012- ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1012- ● ●
180 02.510 BRACKET; RELAY
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ> 		8-98091-660-0 01 1 1012- ●
183 02.510 NUT; RELAY BRKT
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
