3-01 — FRONT WHEEL BRAKE (#7845) — 240 parça

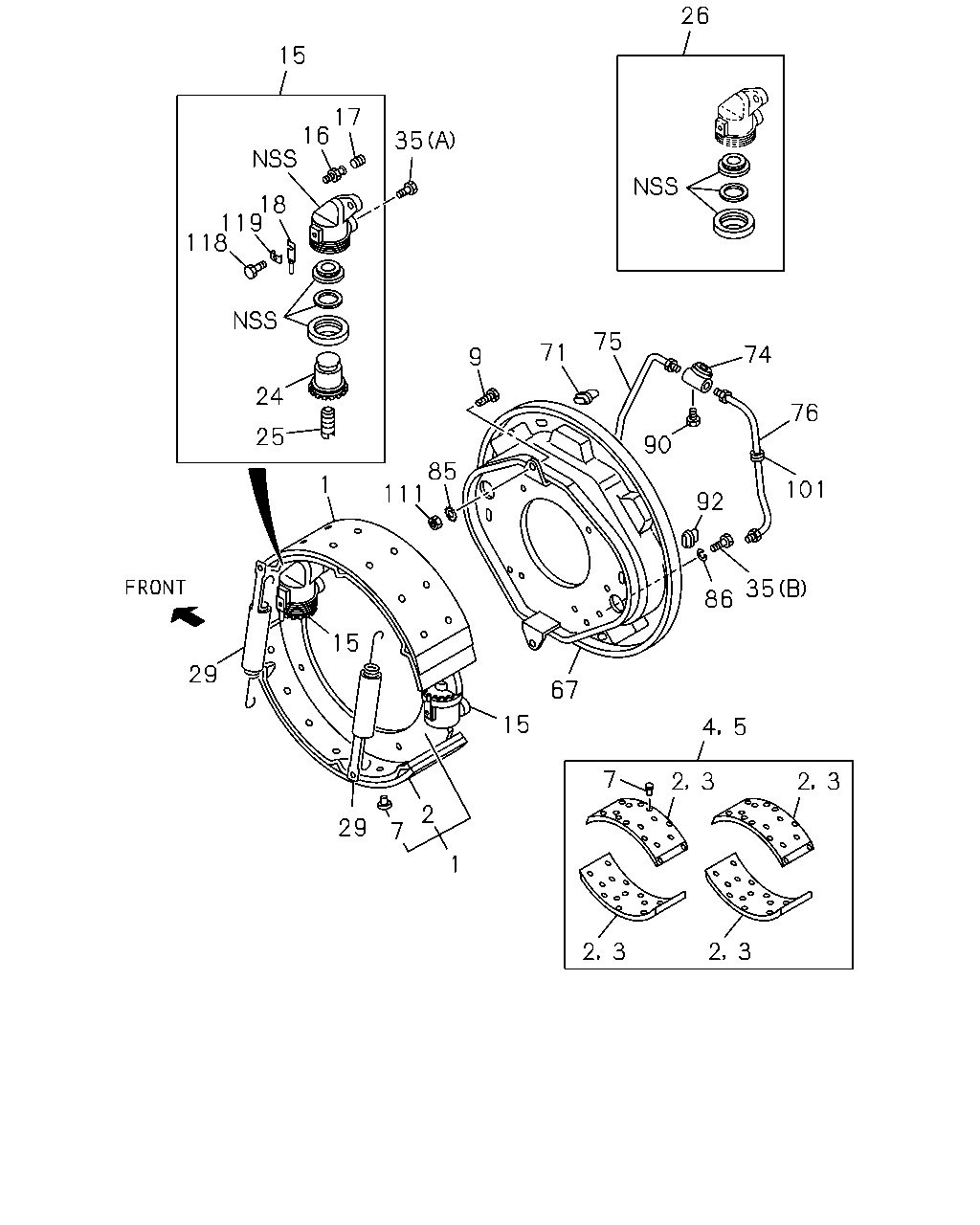

çizim 98930
26 15 17 16 35 18 119 118 75 71 74 9 24 76 25 90 85 111 1 101 92 35 86 15 29 67 15 5 4 7 2 3 2 3 2 29 7 1 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT 1-47120-706-0 04 1 0302- ●
1 SHOE; BRK,FRT 1-47120-624-0 04 1 9905- ●
1 SHOE; BRK,FRT 1-47120-628-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-811-0 08 1 0302- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-801-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-805-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-812-0 08 1 0302- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-802-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-806-0 04 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-495-0 01 1 0302- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-501-1 01 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-505-0 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-496-1 02 1 0302- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-502-1 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-506-0 01 1 9905- ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 0302- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 56 1 9905- ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 9905- ●
9 PIN; SHOE HOLDER 1-47162-012-0 04 1 9905-0303 ●
9 PIN; SHOE HOLDER 1-47162-036-0 04 1 0304- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-122-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-123-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-939-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-938-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-555-1 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-554-1 02 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 0302- ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 04 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=44 		1-47615-007-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0302- ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=9.5 		9-47619-005-0 04 1 9905- ●
18 STOPPER; ADJ SCREW 1-47169-008-0 04 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-389-0 04 1 0302- ●
24 PISTON; FRT WHEEL CYL 1-47624-319-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-318-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-200-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-199-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL
RH THREAD 		1-47622-021-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL
LH THREAD 		1-47622-020-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-015-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-014-0 02 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-676-0 02 1 0302- ●
26 CUP SET; FRT WHEEL CYL 1-87830-679-0 04 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-577-0 04 1 9905- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 0302- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-288-0 04 1 9905- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-126-1 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(C) M12X35 W/LK WASHER 		0-50051-235-0 04 1 0302- ●
35 BOLT; FRT WHEEL CYL
(A) M14X30 		1-09000-365-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M8X22 		9-09802-475-0 08 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M16X30 		0-23801-630-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(A) M10X22 W/LK WASHER 		0-50051-022-0 08 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-376-0 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-375-0 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-348-1 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-347-1 01 1 9905- ●
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 9905- ●
71 GROMMET; CHECK HOLE 1-09333-058-1 04 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-014-1 01 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-013-1 01 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-003-2 02 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47414-238-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47414-237-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-792-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-791-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-242-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-241-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-790-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-789-0 01 1 9905- ●
85 PLATE; LK,CONNECTOR 1-09533-006-0 04 1 9905- ●
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		9-09150-614-0 04 1 9905-0603 ●
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		0-91510-614-0 04 1 0604- ●
86 WASHER; LK,FRT WHEEL CYL
ID=16.2 		9-09150-616-0 04 1 9905-0603 ●
86 WASHER; LK,FRT WHEEL CYL
ID=16.2 		0-91510-616-0 04 1 0604- ●
90 BOLT; CONNECTOR
M8X16 		9-09602-119-1 02 1 9905- ●
90 BOLT; CONNECTOR
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9905- ●
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 9905- ●
92 GROMMET; ADJ HOLE 1-09333-010-0 04 1 9905- ●
101 PROTECTOR; OIL PIPE,FRT BRK 9-47461-158-0 02 1 9905- ●
101 PROTECTOR; OIL PIPE,FRT BRK
ID=5 OD=18 T=8 		1-09332-063-0 02 1 9905- ●
111 NUT; FLANGE,SHOE HOLD 1-09440-002-0 04 1 9905- ●
111 NUT; FLANGE,SHOE HOLD
M16 		9-99111-416-0 04 1 9905-0512 ●
111 NUT; FLANGE,SHOE HOLD
M16 		0-91111-516-0 04 1 0601- ●
118 BOLT; STOPPER
M6X8 		0-20800-608-0 04 1 9905- ●
119 PLATE; LK,STOPPER 1-47169-009-0 04 1 9905- ●

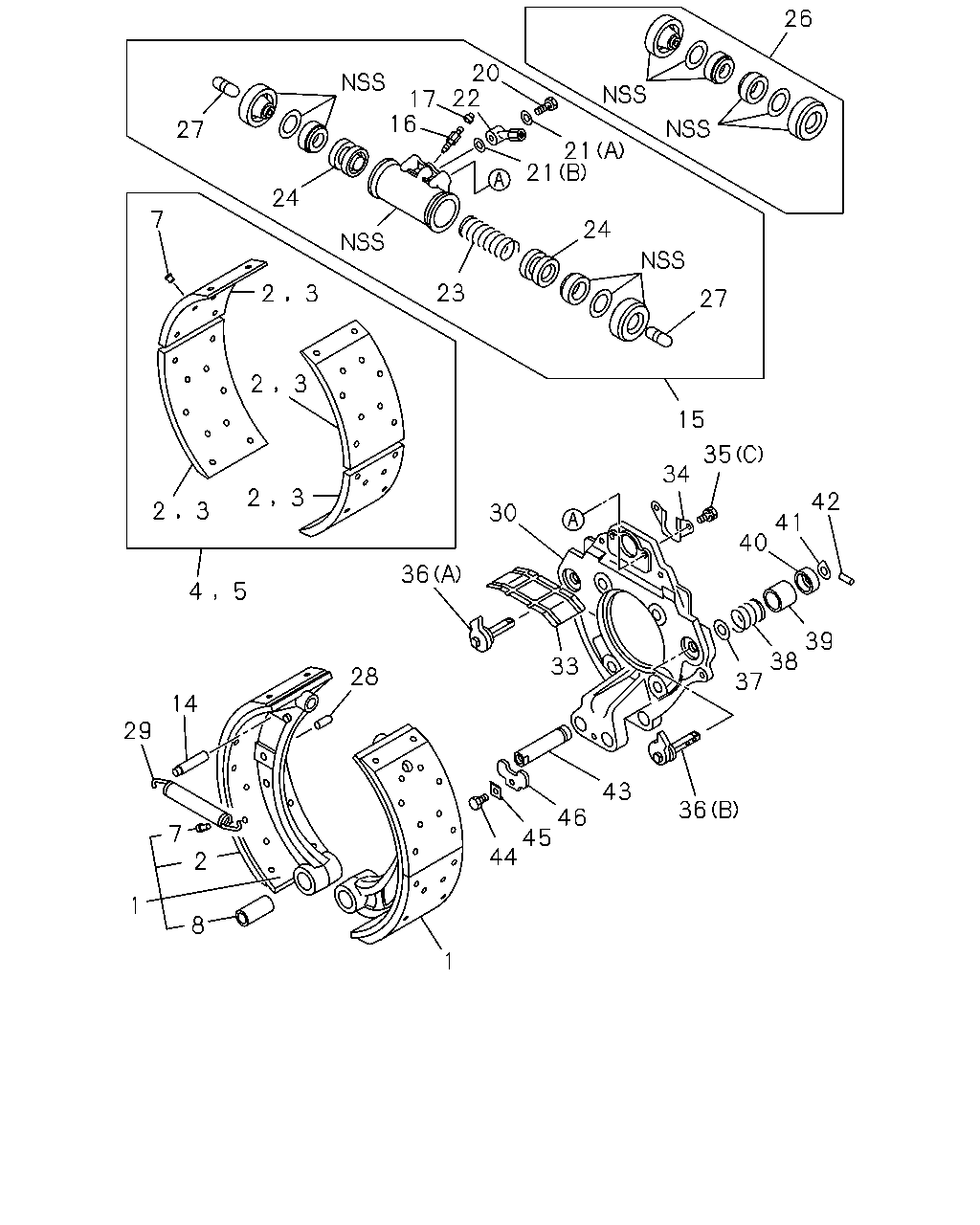

çizim 98935
26 20 22 17 16 27 21 21 24 7 24 23 2 3 27 2 3 15 35 34 2 3 42 3 2 30 41 40 36 5 4 39 38 37 33 28 14 29 43 36 46 45 44 7 2 1 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT 1-47120-706-0 04 1 0302- ●
1 SHOE; BRK,FRT 1-47120-624-0 04 1 9905- ●
1 SHOE; BRK,FRT 1-47120-628-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-811-0 08 1 0302- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-801-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-805-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-812-0 08 1 0302- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-802-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-806-0 04 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-495-0 01 1 0302- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-501-1 01 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-505-0 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-496-1 02 1 0302- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-502-1 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-506-0 01 1 9905- ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 0302- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 56 1 9905- ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 9905- ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 0302- ●
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-122-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-123-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-939-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-938-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-555-1 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-554-1 02 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 0302- ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 04 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=44 		1-47615-007-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0302- ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=9.5 		9-47619-005-0 04 1 9905- ●
20 BOLT; JOINT 1-47634-006-0 02 1 0302- ●
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 0302- ●
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 0302- ●
22 JOINT; PIPE 1-47631-057-1 02 1 0302- ●
23 SPRING; COIL 9-09940-435-0 02 1 0302- ●
24 PISTON; FRT WHEEL CYL 1-47624-389-0 04 1 0302- ●
24 PISTON; FRT WHEEL CYL 1-47624-319-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-318-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-200-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-199-0 02 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-676-0 02 1 0302- ●
26 CUP SET; FRT WHEEL CYL 1-87830-679-0 04 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-577-0 04 1 9905- ●
27 ROD; PUSH 1-47621-009-0 04 1 0302- ●
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 0302- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 0302- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-288-0 04 1 9905- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-126-1 04 1 9905- ●
30 BRACKET; ANCHOR,FRT 1-47137-435-0 02 1 0302- ●
33 COVER; WHEEL CYL 1-47159-080-0 02 1 0302- ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 0302- ●
35 BOLT; FRT WHEEL CYL
(C) M12X35 W/LK WASHER 		0-50051-235-0 04 1 0302- ●
35 BOLT; FRT WHEEL CYL
(A) M14X30 		1-09000-365-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M8X22 		9-09802-475-0 08 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M16X30 		0-23801-630-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(A) M10X22 W/LK WASHER 		0-50051-022-0 08 1 9905- ●
36 CAM ASM; ADJ
(B) 		1-47165-058-1 02 1 0302- ●
36 CAM ASM; ADJ
(A) 		1-47165-059-1 02 1 0302- ●
37 WASHER; ADJ CAM 1-47169-033-0 04 1 0302- ●
38 SPRING; ADJ CAM 1-47169-046-0 04 1 0302- ●
39 BOOT; ADJ CAM 1-47169-034-0 04 1 0302- ●
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 0302- ●
41 INDICATOR 1-47169-032-1 04 1 0302- ●
42 PIN; SPINDLE 1-47169-030-0 04 1 0302- ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 0302- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 0302-0512 ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0601- ●
45 WASHER; LK 1-47133-011-0 02 1 0302- ●
46 PLATE; LOCK 1-47133-005-0 02 1 0302- ●

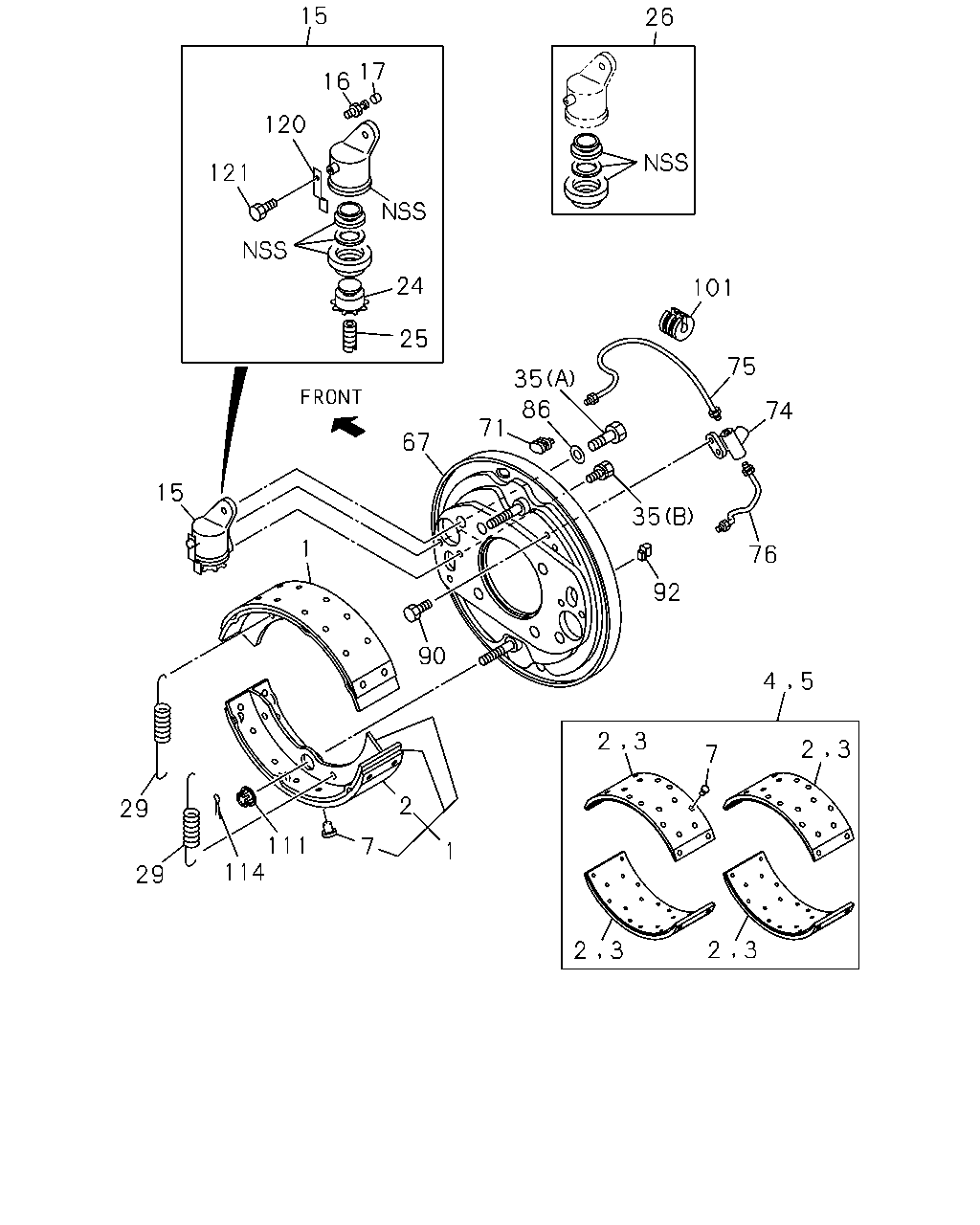

çizim 99001
15 26 17 16 120 121 24 101 25 75 35 86 74 71 67 15 35 1 76 92 90 5 4 2 3 3 2 7 2 29 111 114 7 1 29 2 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT 1-47120-706-0 04 1 0302- ●
1 SHOE; BRK,FRT 1-47120-624-0 04 1 9905- ●
1 SHOE; BRK,FRT 1-47120-628-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-811-0 08 1 0302- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-801-0 04 1 9905- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47125-805-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-812-0 08 1 0302- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-802-0 04 1 9905- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-806-0 04 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-495-0 01 1 0302- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-501-1 01 1 9905- ●
4 LINING SET; FRT BRK,STANDARD 1-88310-505-0 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-496-1 02 1 0302- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-502-1 01 1 9905- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88310-506-0 01 1 9905- ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 0302- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 56 1 9905- ●
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-122-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-123-0 01 1 0302- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-939-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-938-0 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-555-1 02 1 9905- ●
15 CYLINDER; WHEEL,FRT BRK 1-47600-554-1 02 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 0302- ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 04 1 9905- ●
16 SCREW; BLEEDER,FRT BRK
L=44 		1-47615-007-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0302- ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 04 1 9905- ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=9.5 		9-47619-005-0 04 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-389-0 04 1 0302- ●
24 PISTON; FRT WHEEL CYL 1-47624-319-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-318-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-200-0 02 1 9905- ●
24 PISTON; FRT WHEEL CYL 1-47624-199-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL
RH THREAD 		1-47622-021-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL
LH THREAD 		1-47622-020-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-015-0 02 1 9905- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-014-0 02 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-676-0 02 1 0302- ●
26 CUP SET; FRT WHEEL CYL 1-87830-679-0 04 1 9905- ●
26 CUP SET; FRT WHEEL CYL 1-87830-577-0 04 1 9905- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 0302- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-288-0 04 1 9905- ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-126-1 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(C) M12X35 W/LK WASHER 		0-50051-235-0 04 1 0302- ●
35 BOLT; FRT WHEEL CYL
(A) M14X30 		1-09000-365-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M8X22 		9-09802-475-0 08 1 9905- ●
35 BOLT; FRT WHEEL CYL
(B) M16X30 		0-23801-630-0 04 1 9905- ●
35 BOLT; FRT WHEEL CYL
(A) M10X22 W/LK WASHER 		0-50051-022-0 08 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-376-0 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-375-0 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-348-1 01 1 9905- ●
67 PLATE; BACK,FRT BRK 1-47150-347-1 01 1 9905- ●
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 9905- ●
71 GROMMET; CHECK HOLE 1-09333-058-1 04 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-014-1 01 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-013-1 01 1 9905- ●
74 CONNECTOR; FRT BRK 1-47630-003-2 02 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47414-238-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47414-237-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-792-0 01 1 9905- ●
75 PIPE; OIL,FWD,FRT BRK 1-47413-791-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-242-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-241-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-790-0 01 1 9905- ●
76 PIPE; OIL,BACKWARD,FRT BRK 1-47413-789-0 01 1 9905- ●
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		9-09150-614-0 04 1 9905-0603 ●
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		0-91510-614-0 04 1 0604- ●
86 WASHER; LK,FRT WHEEL CYL
ID=16.2 		9-09150-616-0 04 1 9905-0603 ●
86 WASHER; LK,FRT WHEEL CYL
ID=16.2 		0-91510-616-0 04 1 0604- ●
90 BOLT; CONNECTOR
M8X16 		9-09602-119-1 02 1 9905- ●
90 BOLT; CONNECTOR
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9905- ●
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 9905- ●
92 GROMMET; ADJ HOLE 1-09333-010-0 04 1 9905- ●
101 PROTECTOR; OIL PIPE,FRT BRK 9-47461-158-0 02 1 9905- ●
101 PROTECTOR; OIL PIPE,FRT BRK
ID=5 OD=18 T=8 		1-09332-063-0 02 1 9905- ●
111 NUT; FLANGE,SHOE HOLD 1-09440-002-0 04 1 9905- ●
111 NUT; FLANGE,SHOE HOLD
M16 		9-99111-416-0 04 1 9905-0512 ●
111 NUT; FLANGE,SHOE HOLD
M16 		0-91111-516-0 04 1 0601- ●
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 9905- ●
120 SPRING; LK,ADJ,FRT WHEEL CYL 1-47629-072-0 04 1 9905- ●
121 SCREW; LK SPR FRT WHEEL CYL 8-94128-727-0 04 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
