Isuzu WW
▶
TRUCKS
▶
NLR
▶
51284 - NLR/NMR55,71,85(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

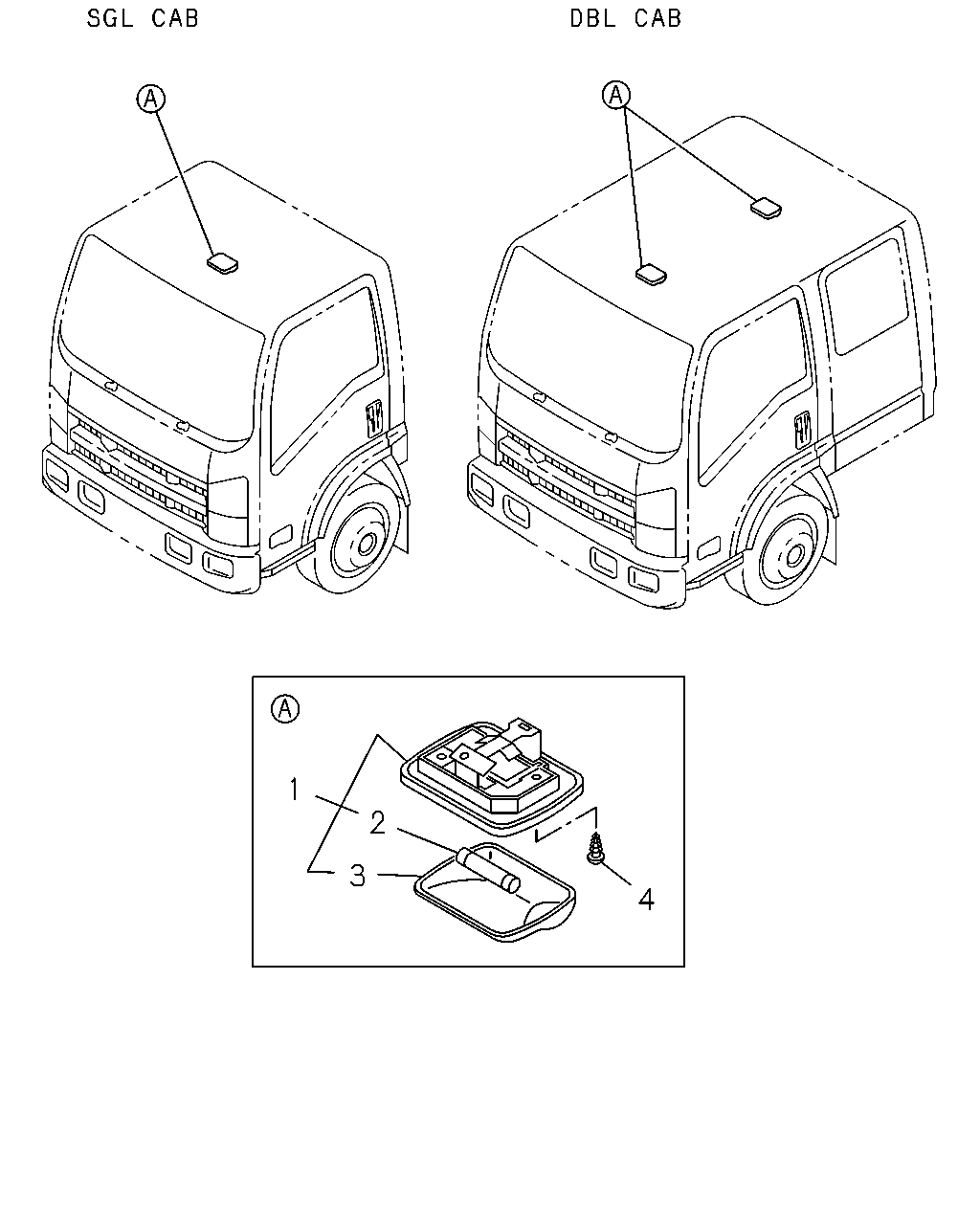

8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#78449) — 12 parça
Tümü
A - NMR5SE
B - NMR5SN
C - NMR5WE
D - NMR5WN
1
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
16.494 LAMP ASM; ROOM
VOLTAGE 12V<TRQ>
8-98032-123-3
01
1
1012-
●
●
1
16.494 LAMP ASM; ROOM
EXC. VOLTAGE 12V<TRQ>
8-98013-421-3
01
1
1012-
●
●
1
16.494 LAMP ASM; ROOM
8-98013-421-3
01
1
1012-
●
●
1
16.494 LAMP ASM; ROOM
8-98013-421-3
01
1
1012-
●
●
2
08.991 BULB; ROOM LAMP
VOLTAGE 12V<TRQ> 12V 10W
8-97128-771-0
01
1
1012-
●
●
2
08.991 BULB; ROOM LAMP
EXC. VOLTAGE 12V<TRQ> 24V 10W
5-82194-030-0
01
1
1012-
●
●
2
08.991 BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
1012-
●
●
2
08.991 BULB; ROOM LAMP
24V 10W
5-82194-030-0
01
1
1012-
●
●
3
16.495 LENS; ROOM LAMP
8-98047-272-0
01
1
1012-
●
●
●
●
3
16.495 LENS; ROOM LAMP
8-98047-272-0
01
1
1012-
●
●
4
16.495 SCREW; ROOM LAMP
M5X14 W/WASHER
8-98075-766-0
02
1
1012-
●
●
●
●
4
16.495 SCREW; ROOM LAMP
M5X14 W/WASHER
8-98075-766-0
02
1
1012-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
