◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#78440) — 73 parça
çizim 132636
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98145-979-0 01 1 1012-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1204-1301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1302- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-009-0 01 1 1012-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1204-1301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98201-230-0 01 1 1302- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 1012-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204-1301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1302- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98031-807-1 01 1 1012-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1204-1301 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-158-0 01 1 1302- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98088-953-0 01 1 1012-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98201-186-0 01 1 1204-1301 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98201-186-0 01 1 1302- ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> 		8-98201-186-0 01 1 1302- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> 		8-98115-301-0 01 1 1012-1012 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98115-301-0 01 1 1101-1203 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98201-201-0 01 1 1204-1301 ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98201-201-0 01 1 1302- ●
1 02.188 CYLINDER SET; CAR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98201-201-0 01 1 1302- ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012- ● ● ● ●

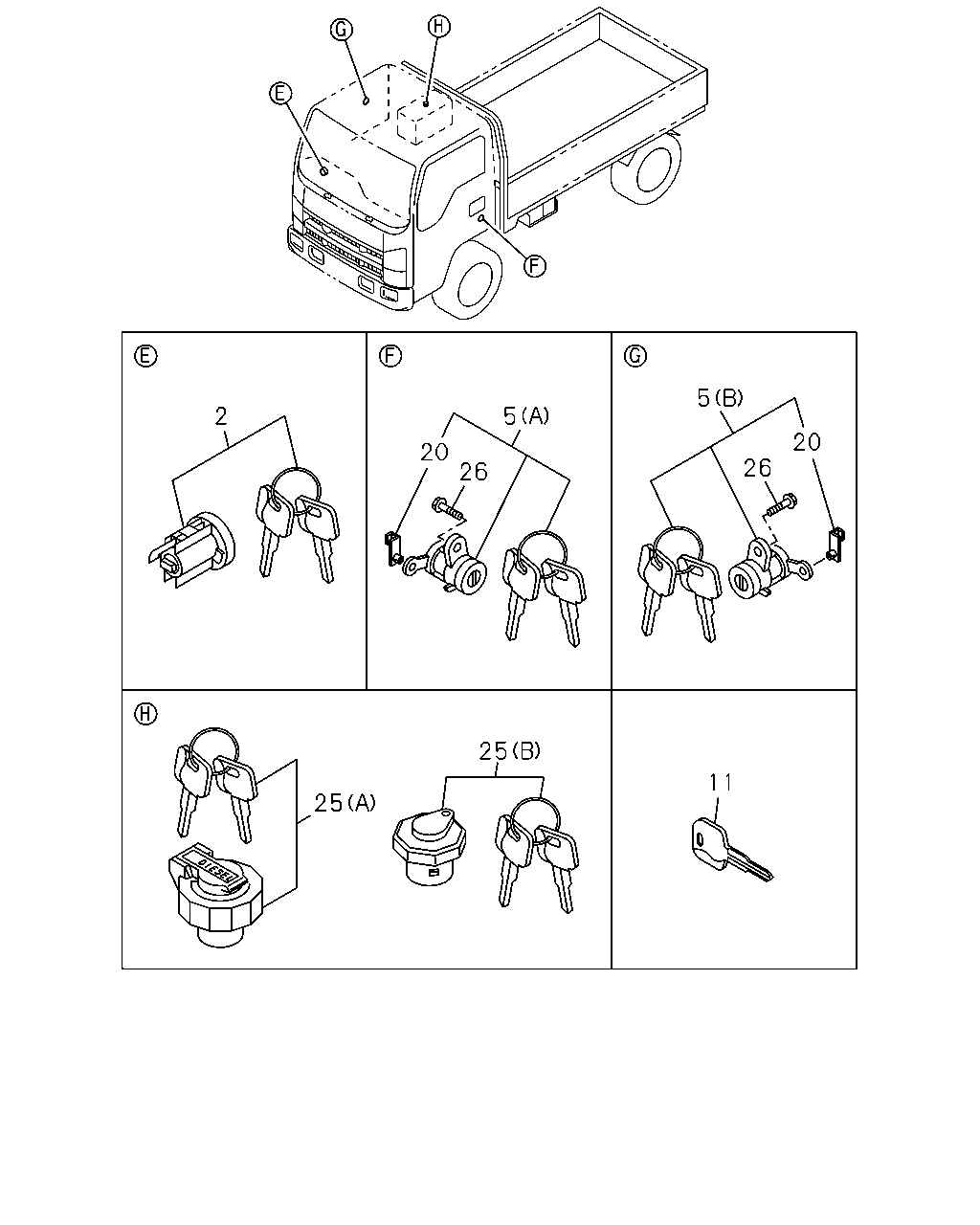

çizim 132637
5 2 5 20 20 26 26 25 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> 		8-98055-148-0 01 1 1012-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98055-148-0 01 1 1012-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1204-1301 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1204-1301 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1302- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. ISUZU BRAND<7WL> 		8-98055-160-0 01 1 1012-1012 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> 		8-98055-160-0 01 1 1012-1012 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98055-160-0 01 1 1101-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98055-160-0 01 1 1101-1203 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98201-352-0 01 1 1204-1301 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98201-352-0 01 1 1204-1301 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98201-352-0 01 1 1302- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1012-1301 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1012-1301 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1302- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1012-1301 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1012-1301 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1302- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1012-1012 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1012-1012 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) 		8-98055-161-0 01 1 1101-1301 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> (B) 		8-98055-161-0 01 1 1101-1301 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) 		8-98055-161-0 01 1 1302- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1012-1012 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1012-1012 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> (A) 		8-98055-162-0 01 1 1101-1301 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> (A) 		8-98055-162-0 01 1 1101-1301 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
CHEVROLET BRAND<RWE>,GM BRAND<X61> (A) 		8-98055-162-0 01 1 1302- ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1012-1301 ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1012-1301 ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1302- ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 1012-1012 ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 1012-1012 ● ●
11 02.187 KEY; BLANK
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98055-171-0 AR 1 1101-1301 ● ● ● ●
11 02.187 KEY; BLANK
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> 		8-98055-171-0 AR 1 1101-1301 ● ●
11 02.187 KEY; BLANK
CHEVROLET BRAND<RWE>,GM BRAND<X61> 		8-98055-171-0 AR 1 1302- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1012- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1012- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> (A) 		8-98146-010-0 01 1 1012-1301 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> (A) 		8-98146-010-0 01 1 1302- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> (A) 		8-98146-014-0 01 1 1012-1301 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> (A) 		8-98146-014-0 01 1 1302- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> (B) 		8-98088-979-0 01 1 1012-1301 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> ISUZU BRAND<7WL> (B) 		8-98088-979-0 01 1 1302- ●
25 03.028 CAP; FUEL TANK,W/KEY
ISUZU BRAND<7WL> (B) 		8-98088-979-0 01 1 1302- ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> FUEL TANK 63L<6EF> EXC. ISUZU BRAND<7WL> (B) 		8-98088-981-0 01 1 1012-1012 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> (B) 		8-98088-981-0 01 1 1101-1301 ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> CHEVROLET BRAND<RWE>,GM BRAND<X61> FUEL TANK 63L<6EF> (B) 		8-98088-981-0 01 1 1302- ●
25 03.028 CAP; FUEL TANK,W/KEY
CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) 		8-98088-981-0 01 1 1302- ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1012- ● ● ● ●
