◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#7844) — 122 parça

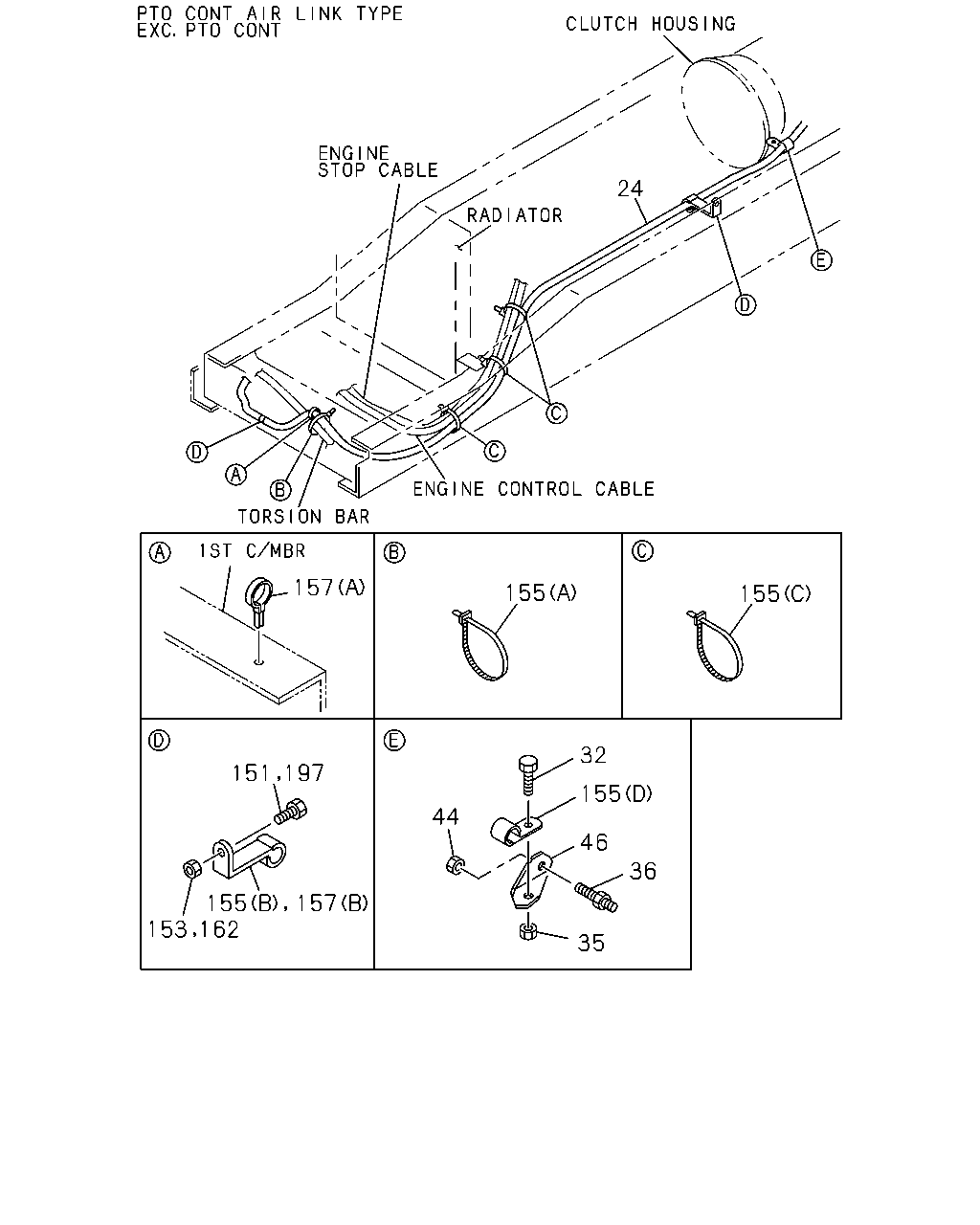

çizim 26752
24 157 155 155 32 151 197 155 44 46 36 155 157 35 153 162
BalonParca AdiParca NoAdetTipApplied Date A B
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4581 		1-38319-041-0 01 1 9905-9911 ●
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4881 		1-38319-046-0 01 1 9912-0106 ●
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4791 		1-38319-048-1 01 1 0107- ●
32 BOLT; CLIP,CABLE
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28680-825-0 01 1 9905-0512 ●
32 BOLT; CLIP,CABLE
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
35 NUT; CLIP,CABLE
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 01 1 9905-0302 ●
36 BOLT; PTO BRKT
EXC. PTO CONT<SV6> M10X20,M10X26 L=56 		1-09049-014-1 01 1 9905- ●
44 NUT; BRKT
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 01 1 0101-0602 ●
44 NUT; BRKT
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
44 NUT; BRKT
EXC. PTO CONT<SV6> M10 FLANGE 		0-91150-210-0 01 1 9905-0602 ●
44 NUT; BRKT
EXC. PTO CONT<SV6> M10 FLANGE 		0-91180-210-0 01 1 0603- ●
46 BRACKET; PTO,TRANS SIDE
EXC. PTO CONT<SV6> 		1-38329-074-0 01 1 9905-0301 ●
46 BRACKET; PTO,TRANS SIDE
EXC. PTO CONT<SV6> 		1-38329-079-0 01 1 0302- ●
151 BOLT; BRKT C
PTO CONT AIR LINK TYPE<SEC> M8X30 FLANGE 		0-28680-830-0 01 1 9905-0012 ●
151 BOLT; BRKT C
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512 ●
151 BOLT; BRKT C
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
153 NUT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 01 1 9905-9911 ●
153 NUT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 02 1 9912-0012 ●
153 NUT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 01 1 0101-0602 ●
153 NUT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91180-108-0 01 1 0603- ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (B) ID=13 H=75 L=25 		1-09700-601-0 01 1 9905- ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (A) L=250 		5-09707-030-1 01 1 9905- ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (C) L=140 		5-09707-031-1 03 1 9905- ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (D) ID=11 L=28 		9-09525-055-0 01 1 9905-9911 ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (D) ID=13 		1-09700-757-0 01 1 9912- ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (D) ID=18 L=54 		1-09701-068-0 01 1 9912-0012 ●
155 CLIP; CABLE
PTO CONT AIR LINK TYPE<SEC> (D) ID=10 & 15 		1-09709-279-1 01 1 9912- ●
157 CLIP; CABLE,1ST C/MBR
PTO CONT AIR LINK TYPE<SEC> (B) ID=11 H=34 L=27 		1-09701-023-0 01 1 9905-9911 ●
157 CLIP; CABLE,1ST C/MBR
PTO CONT AIR LINK TYPE<SEC> (A) ID=13 L=40 		9-09525-276-0 01 1 9905-9911 ●
157 CLIP; CABLE,1ST C/MBR
PTO CONT AIR LINK TYPE<SEC> (B) ID=18 L=40 		1-09701-111-0 01 1 0101- ●
162 NUT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8 FLANGE 		0-91150-108-0 02 1 9905-9911 ●
197 BOLT; CLIP FIX,C/MBR
PTO CONT AIR LINK TYPE<SEC> M8X30 FLANGE 		0-28680-830-0 02 1 9905-9911 ●
197 BOLT; CLIP FIX,C/MBR
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28680-825-0 01 1 0101-0512 ●
197 BOLT; CLIP FIX,C/MBR
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
çizim 26783
55
BalonParca AdiParca NoAdetTipApplied Date A B
55 GROMMET; CABLE 1-09983-068-0 01 1 9905- ●
55 GROMMET; CABLE
PTO CONT<SV6> 		1-09983-068-0 01 1 9905- ●

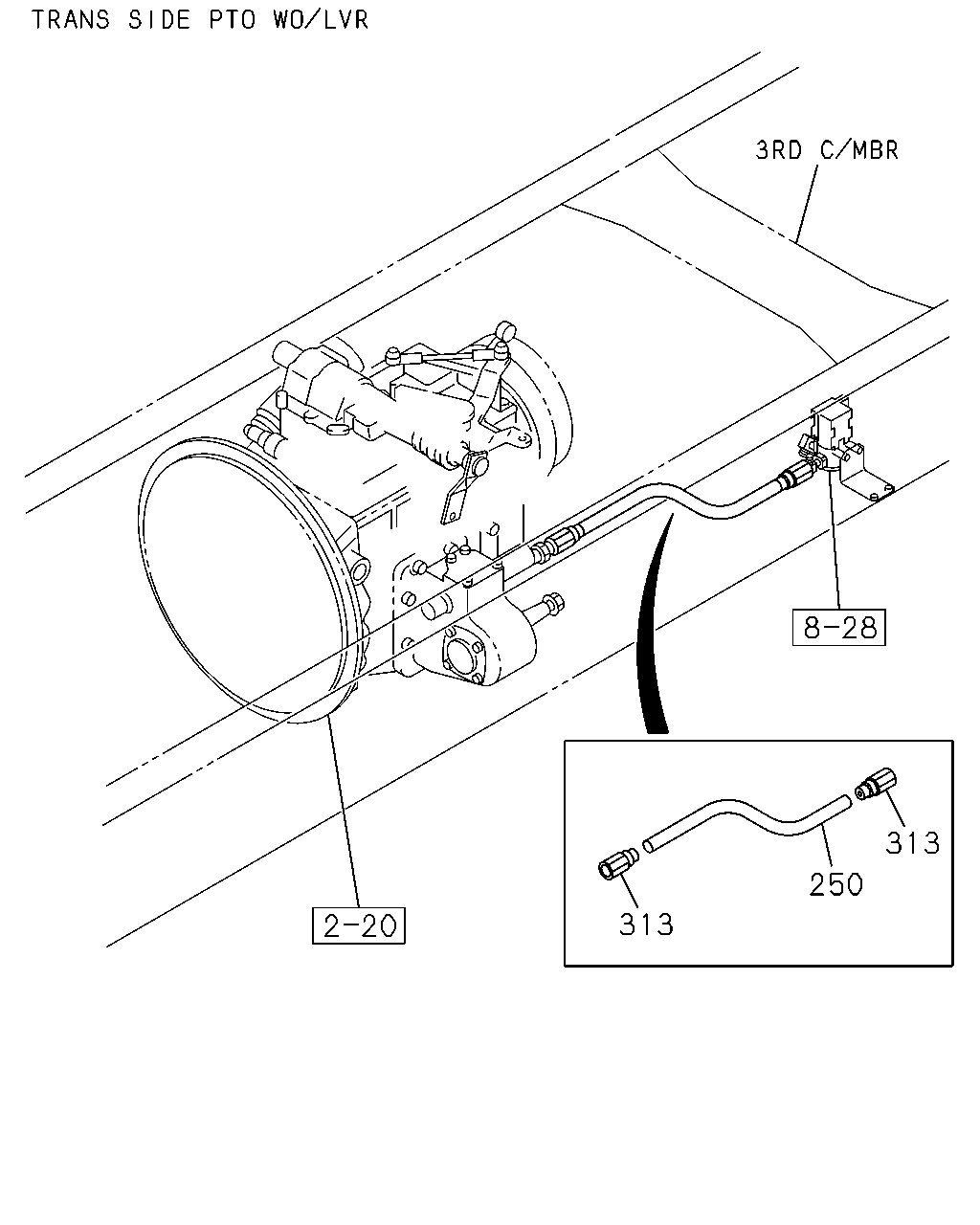

çizim 98931
313 250 313
BalonParca AdiParca NoAdetTipApplied Date A B
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907 ●
250 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907 ●
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ● ●
250 TUBE; NYLON
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0301 ● ●
250 TUBE; NYLON
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0301 ●
250 TUBE; NYLON
FRR(FR****) FSR(FS****) TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302- ●
250 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302- ●
313 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0003 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0004-0007 ● ●
313 ADAPTER
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0004-0007 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0301 ● ●
313 ADAPTER
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0301 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0302- ●
313 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0302- ●

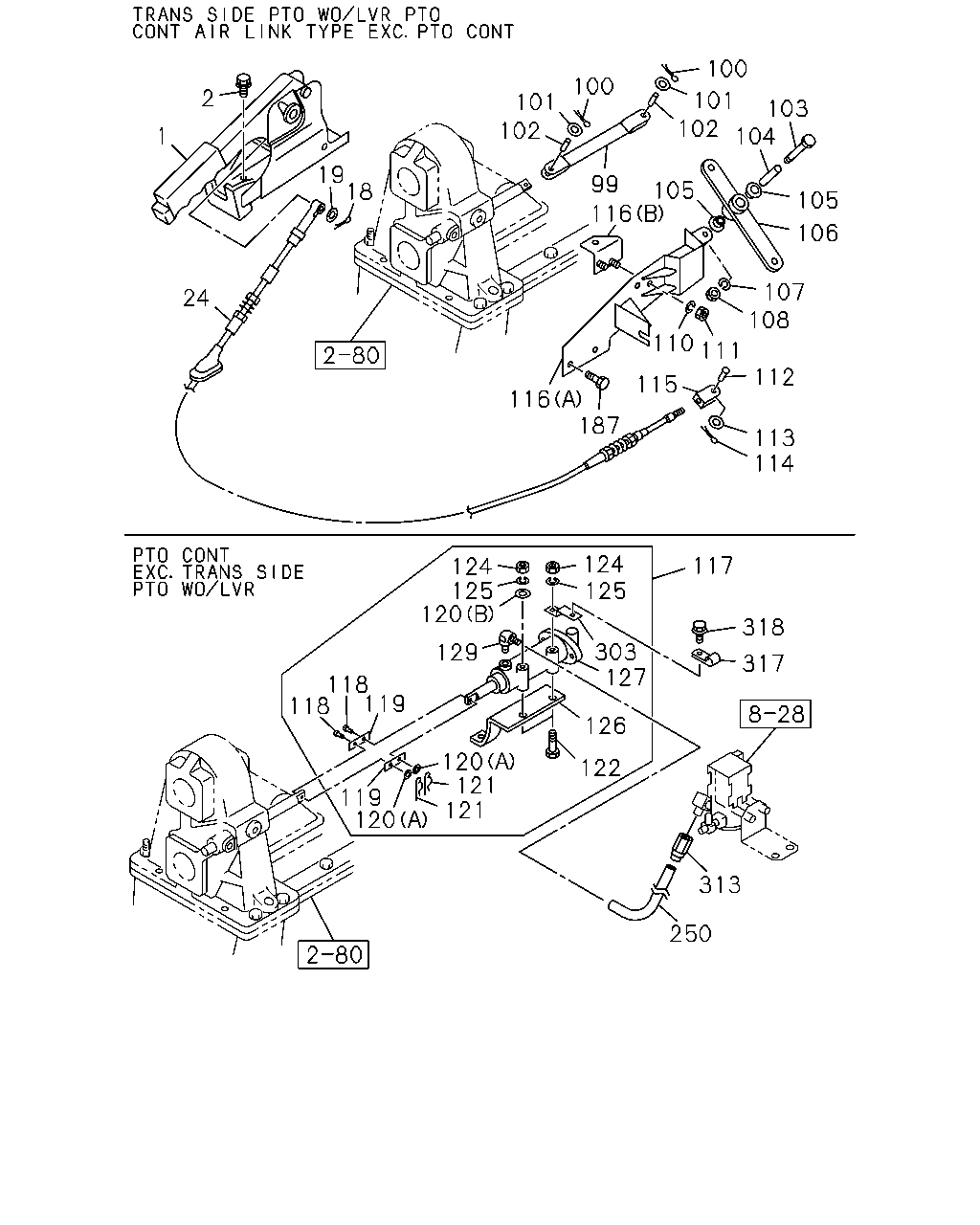

çizim 98934
100 100 2 101 102 101 102 103 104 1 19 18 99 105 116 105 106 107 108 24 110 111 112 115 116 187 113 114 124 125 117 124 125 120 318 303 127 129 317 118 118 119 126 120 121 121 122 119 120 313 250
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
EXC. PTO CONT<SV6> 		1-79996-256-1 01 1 9905- ●
2 BOLT; PTO CONT
EXC. PTO CONT<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9905- ●
18 PIN; SNAP,PTO CABLE
EXC. PTO CONT<SV6> L=27.7 		1-09987-141-0 01 1 9905- ●
19 WASHER; PL,PTO CABLE
EXC. PTO CONT<SV6> ID=8.4 OD=18 		9-09160-608-0 01 1 9905-0605 ●
19 WASHER; PL,PTO CABLE
EXC. PTO CONT<SV6> ID=8.4 OD=18 		0-91610-608-0 01 1 0606- ●
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4581 		1-38319-041-0 01 1 9905-9911 ●
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4881 		1-38319-046-0 01 1 9912-0106 ●
24 CABLE; PTO CONT
EXC. PTO CONT<SV6> L=4791 		1-38319-048-1 01 1 0107- ●
99 LINK; CONT,FRT PTO
TRANS SIDE PTO WO/LVR(SH5) 		1-38323-007-0 01 1 9905- ●
100 PIN; SPLIT
TRANS SIDE PTO WO/LVR(SH5) OD=1.8 L=15 		9-08112-015-0 04 1 9905-0606 ●
100 PIN; SPLIT
TRANS SIDE PTO WO/LVR(SH5) OD=1.8 L=15 		0-81122-015-0 04 1 0607- ●
101 WASHER; PL,LINK
TRANS SIDE PTO WO/LVR(SH5) ID=8.4 		9-09160-508-0 04 1 9905-0605 ●
101 WASHER; PL,LINK
TRANS SIDE PTO WO/LVR(SH5) ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ●
102 PIN; STRAIGHT,LINK FIX
TRANS SIDE PTO WO/LVR(SH5) 		9-08280-830-0 02 1 9905- ●
103 BOLT; LEVER FIX
TRANS SIDE PTO WO/LVR(SH5) M10X55 		0-10811-055-0 01 1 9905- ●
104 SHAFT; CONT LEVER
TRANS SIDE PTO WO/LVR(SH5) 		1-38321-003-1 01 1 9905- ●
105 BUSHING; CONT LEVER
TRANS SIDE PTO WO/LVR(SH5) 		1-09330-023-0 02 1 9905- ●
106 LEVER; CONT,FRT PTO
TRANS SIDE PTO WO/LVR(SH5) 		1-38322-031-0 01 1 9905- ●
107 WASHER; LK,LEVER
TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		9-09150-510-0 01 1 9905-0603 ●
107 WASHER; LK,LEVER
TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		0-91510-510-0 01 1 0604- ●
108 NUT; LEVER FIX
TRANS SIDE PTO WO/LVR(SH5) M10 		9-09110-510-0 01 1 9905-0512 ●
108 NUT; LEVER FIX
TRANS SIDE PTO WO/LVR(SH5) M10 		0-91110-510-0 01 1 0601- ●
110 WASHER; LK,BRKT
TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		9-09150-510-0 02 1 9905-0603 ●
110 WASHER; LK,BRKT
TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		0-91510-510-0 02 1 0604- ●
111 NUT; BRKT
TRANS SIDE PTO WO/LVR(SH5) M10 		9-09110-410-0 02 1 9905-0512 ●
111 NUT; BRKT
TRANS SIDE PTO WO/LVR(SH5) M10 		0-91110-510-0 02 1 0601- ●
112 PIN; JAW JOINT
PTO CONT AIR LINK TYPE<SEC> OD=10 L=28 		9-08224-028-0 01 1 9905-0006 ●
112 PIN; JAW JOINT
PTO CONT AIR LINK TYPE<SEC> OD=10 L=28 		9-08234-028-0 01 1 0007-0606 ●
112 PIN; JAW JOINT
PTO CONT AIR LINK TYPE<SEC> OD=10 L=28 		0-82354-028-0 01 1 0607- ●
113 WASHER; PL,JAW JOINT
PTO CONT AIR LINK TYPE<SEC> ID=10.5 OD=18 		9-09160-510-0 01 1 9905-0605 ●
113 WASHER; PL,JAW JOINT
PTO CONT AIR LINK TYPE<SEC> ID=10.5 		0-91610-510-0 01 1 0606- ●
114 PIN; SPLIT,JAW JOINT
PTO CONT AIR LINK TYPE<SEC> OD=2.8 L=18 		9-08113-018-0 01 1 9905-0606 ●
114 PIN; SPLIT,JAW JOINT
PTO CONT AIR LINK TYPE<SEC> OD=2.8 L=18 		0-81123-018-0 01 1 0607- ●
115 JOINT; JAW,CONT CABLE
PTO CONT AIR LINK TYPE<SEC> 		1-09768-015-0 01 1 9905- ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANS SIDE PTO WO/LVR(SH5) (A) 		1-38325-089-1 01 1 9905- ●
116 BRACKET; CONT,TRANS,FRT PTO
TRANS SIDE PTO WO/LVR(SH5) (B) 		1-38325-095-0 01 1 9905- ●
117 CYLINDER ASM; AIR
EXC. TRANS SIDE PTO WO/LVR(SH5) 		1-38370-009-0 01 1 9905- ●
118 PIN; PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) 		9-08213-620-0 02 1 9905- ●
119 PLATE; FRT PTO,CONT LEVER
EXC. TRANS SIDE PTO WO/LVR(SH5) 		1-38379-011-0 02 1 9905- ●
120 WASHER; PL,PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) (A) ID=6.4 		9-09160-506-0 02 1 9905- ●
120 WASHER; PL,PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) (B) ID=10.5 OD=18 		9-09160-510-0 01 1 9905- ●
121 RING; SNAP
EXC. TRANS SIDE PTO WO/LVR(SH5) ID=4 		9-09185-404-0 02 1 9905- ●
122 BOLT; PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) M10X60 		0-10806-060-0 02 1 9905- ●
124 NUT; PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) M10 		9-09110-410-0 02 1 9905- ●
125 WASHER; LK,PLATE
EXC. TRANS SIDE PTO WO/LVR(SH5) ID=10.2 		9-09150-510-0 02 1 9905- ●
126 PLATE; AIR CYL
EXC. TRANS SIDE PTO WO/LVR(SH5) 		1-38379-024-2 01 1 9905- ●
127 CYLINDER; AIR
EXC. TRANS SIDE PTO WO/LVR(SH5) 		1-38377-004-0 01 1 9905- ●
129 NIPPLE; AIR CYL
EXC. TRANS SIDE PTO WO/LVR(SH5) M12 & PT1/8 		9-09224-306-2 01 1 9905- ●
187 BOLT; BRKT,SIDE PTO,UPR
TRANS SIDE PTO WO/LVR(SH5) M10X22 FLANGE 		0-28181-022-0 02 1 9905- ●
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907 ●
250 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9905-9907 ●
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ● ●
250 TUBE; NYLON
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9908-0212 ●
250 TUBE; NYLON
TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0301 ● ●
250 TUBE; NYLON
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-0301 ●
250 TUBE; NYLON
FRR(FR****) FSR(FS****) TRANS SIDE PTO WO/LVR(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302- ●
250 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0302- ●
303 BRACKET; CLIP
PTO CONT AIR LINK TYPE<SEC> 		1-47478-981-0 01 1 0101- ●
303 BRACKET; CLIP
EXC. TRANS SIDE PTO WO/LVR(SH5) 		1-38379-029-0 01 1 9905- ●
313 ADAPTER
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 9905-0003 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0004-0007 ● ●
313 ADAPTER
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0004-0007 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0301 ● ●
313 ADAPTER
TRANS FRT PTO(RC2) EXC. TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0301 ●
313 ADAPTER
TRANS SIDE PTO WO/LVR(SH5) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0302- ●
313 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0302- ●
317 CLIP; NYLON TUBE
EXC. TRANS SIDE PTO WO/LVR(SH5) ID=11 L=50 		9-09525-085-0 01 1 9905-0606 ●
317 CLIP; NYLON TUBE
EXC. TRANS SIDE PTO WO/LVR(SH5) ID=11 L=50 		0-95235-085-0 01 1 0607- ●
318 BOLT; CLIP
PTO CONT AIR LINK TYPE<SEC> M8X25 FLANGE 		0-28680-825-0 01 1 9912-0012 ●
318 BOLT; CLIP
EXC. TRANS SIDE PTO WO/LVR(SH5) M8X20 FLANGE 		0-28680-820-0 01 1 9905-0512 ●
318 BOLT; CLIP
EXC. TRANS SIDE PTO WO/LVR(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
