7 |

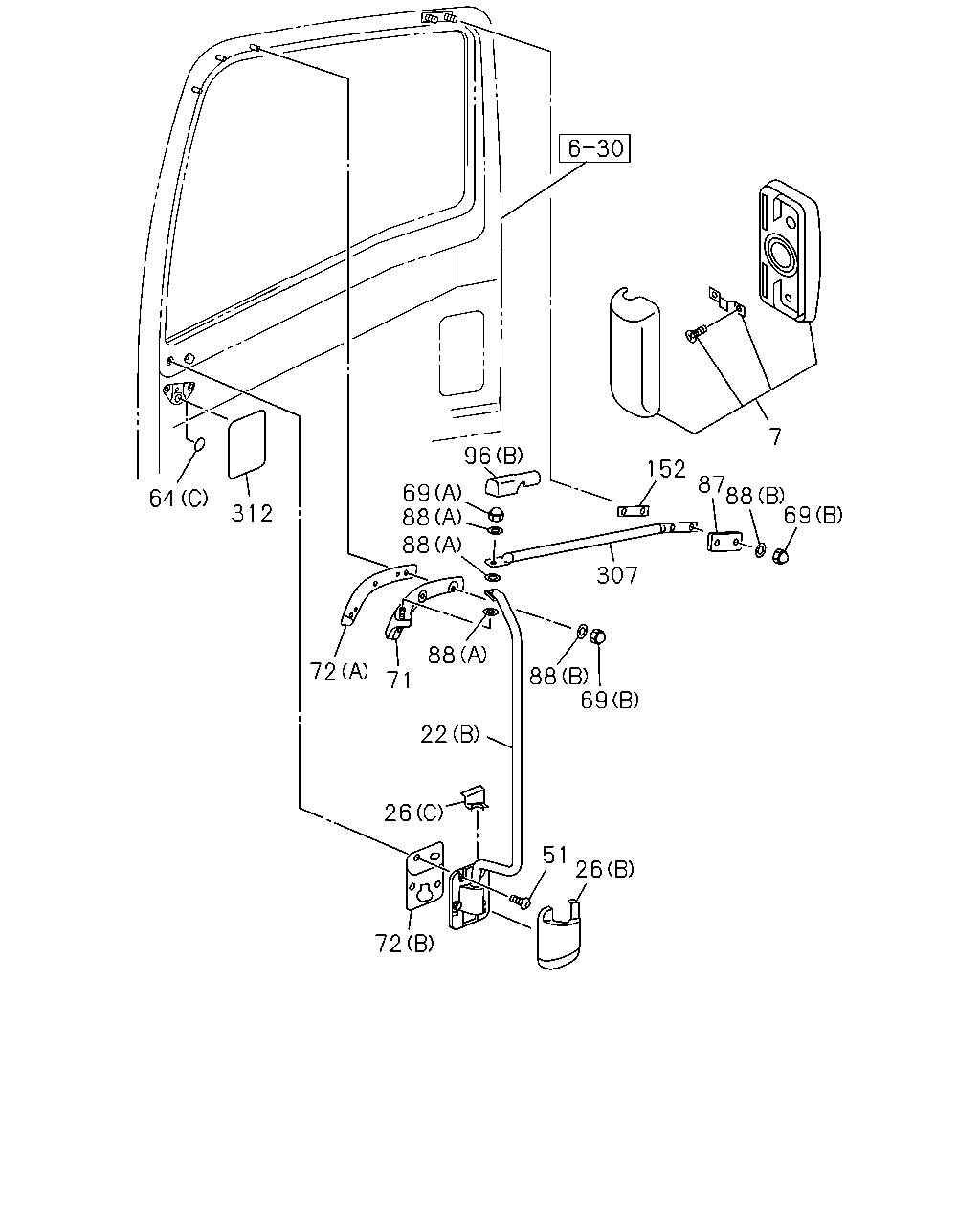

16.068 MIRROR ASM; DOOR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98055-991-1 |
01 |
1 |
1302- |
● |
|
|
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98055-992-1 |
01 |
1 |
1302- |
● |
|
|
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-846-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE>
(B)
|
8-98158-847-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-848-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(B)
|
8-98158-849-0 |
01 |
1 |
1302- |
● |
|
|
|
| |

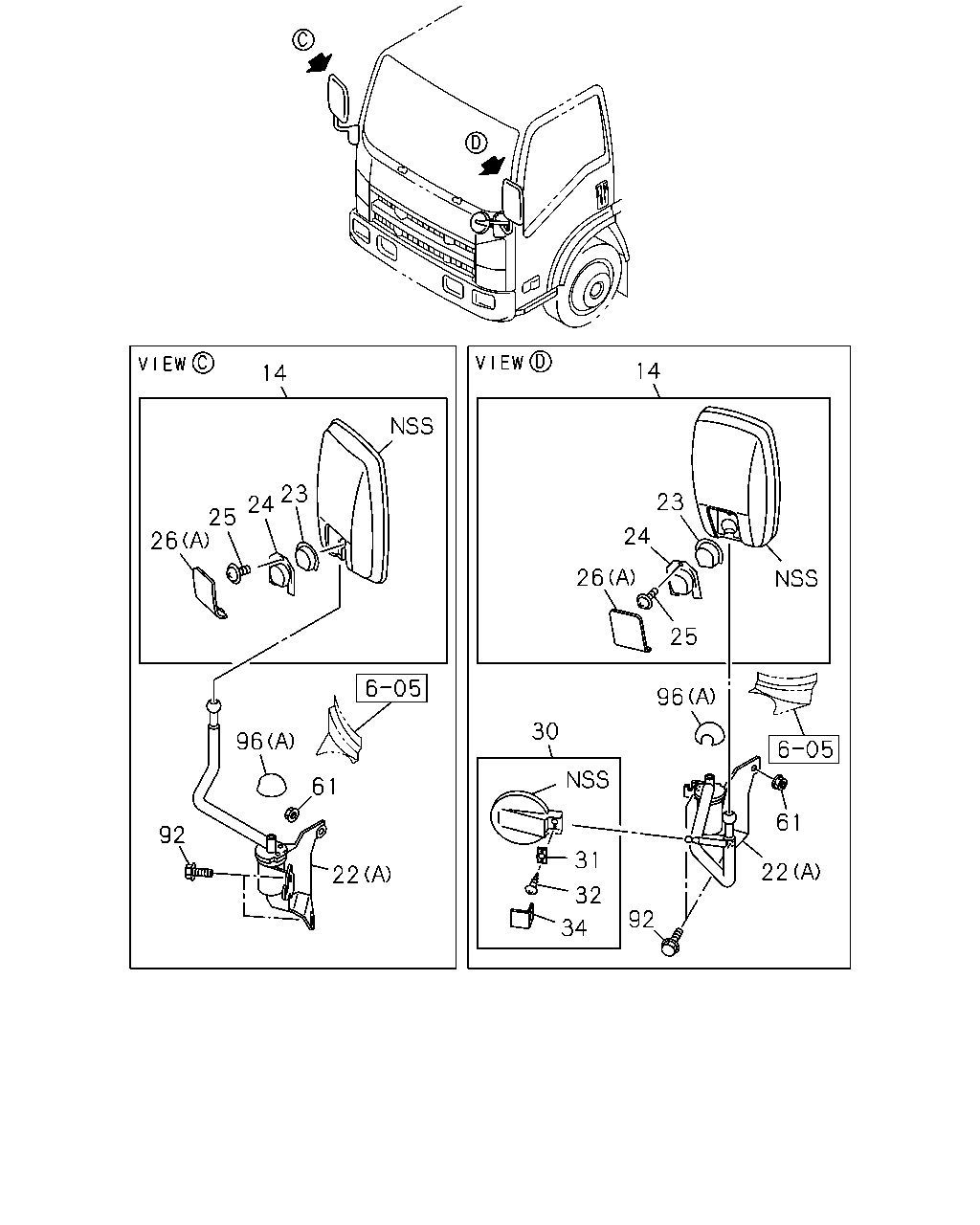

22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>
UNDER MIRROR<RR9>
(A)
|
8-98070-507-0 |
01 |
1 |
1012- |
● |
|
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-505-0 |
01 |
1 |
1012- |
● |
|
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(A)
|
8-98038-224-1 |
01 |
1 |
1012- |
● |
|
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
(A)
|
8-98038-224-1 |
01 |
1 |
1012- |
|
● |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S
TAY<6TF>
(A)
|
8-98027-519-0 |
01 |
1 |
1012- |
● |
|
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
(A)
|
8-98027-519-0 |
01 |
1 |
1012- |
|
● |
|
● |
| |
22 |
16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG S
TAY<6TF>
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-509-0 |
01 |
1 |
1012- |
● |
|
● |
|
| |
22 |
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9>
(A)
|
8-98070-509-0 |
01 |
1 |
1012- |
|
● |
|
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1012- |
● |
● |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(A)
T=2.3
|
8-94262-547-2 |
01 |
1 |
1012- |
● |
● |
● |
● |
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98031-802-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98031-803-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(C)
|
8-98031-805-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
26 |
16.069 COVER; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(C)
|
8-98031-806-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
51 |
16.069 SCREW; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
16.323
M8X23
|
8-97310-216-1 |
08 |
1 |
1302- |
● |
|
|
|
| |
64 |
16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
16.165
(B)
OD=25 BLACK
|
1-76798-019-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
64 |
16.069 SEAL; MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
16.332
(C)
OD=52 BLACK
|
1-76798-041-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR
AL GRAY(517),BODY COLOR PURPLISH
BLUE(668),BODY COLOR GERANIUM RED(681),BODY C
OLOR DARK BLUE(695),BODY COLOR
CARDINALRED(736),BODY COLOR WOODLAND
GREEN(807),BODY COLOR WHEATLAND YELLOW(812),
BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR
INE BLUE(890),BODY COLOR HIGHWAY
ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD
Y COLOR QUICK SILVER MET(998),BODY
COLOR TRANS BLUE(999)
EXC. WINDOW RR<8LF>
16.165
(A)
OD=20 T=0.05 BLACK
|
5-76777-036-0 |
02 |
1 |
1012- |
● |
● |
|
|
| |
64 |
16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR
ARC WHITE(729)
EXC. WINDOW RR<8LF>
16.570
(A)
OD=20 T=0.05 WHITE
|
8-98059-421-0 |
02 |
1 |
1012- |
● |
● |
|
|
| |
69 |
16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
M10 CAP NUT
|
8-98059-913-0 |
02 |
1 |
1302-1404 |
● |
|
|
|
| |
69 |
16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1405- |
● |
|
|
|
| |
69 |
16.069 NUT; CAP
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1302- |
● |
|
|
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98031-793-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
71 |
16.069 BRACKET; OUTSIDE MIRROR
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98031-794-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-796-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
|
8-98031-797-0 |
01 |
1 |
1302- |
● |
|
|
|
| |
72 |
16.069 SHEET
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98080-418-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
87 |
16.069 SPACER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-789-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1302- |
● |
|
|
|
| |
88 |
16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(A)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1302- |
● |
|
|
|
| |
96 |
16.069 CAP; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
(B)
|
8-98080-173-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
96 |
16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT
STAY<D37>,O/SIDE MIRROR ASSIST SIDE
MANUAL LONG STAY<6TF>
(A)
|
8-98027-552-2 |
02 |
1 |
1012- |
● |
|
● |
|
| |
96 |
16.069 CAP; MIRROR STAY
(A)
|
8-98027-552-2 |
02 |
1 |
1012- |
|
● |
|
● |
| |
152 |
16.069 SHEET; MIRROR STAY
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-786-0 |
02 |
1 |
1302- |
● |
|
|
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-784-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
307 |
16.069 STAY; MIRROR SUPPORT
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98063-785-2 |
01 |
1 |
1302- |
● |
|
|
|
| |
312 |
16.081 TAPE
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW
MIDDLE ARM<8ML>
|
8-98164-812-0 |
02 |
1 |
1302- |
● |
|
|
|
