7-10 — CAUTION PLATE AND LABEL (#78438) — 75 parça

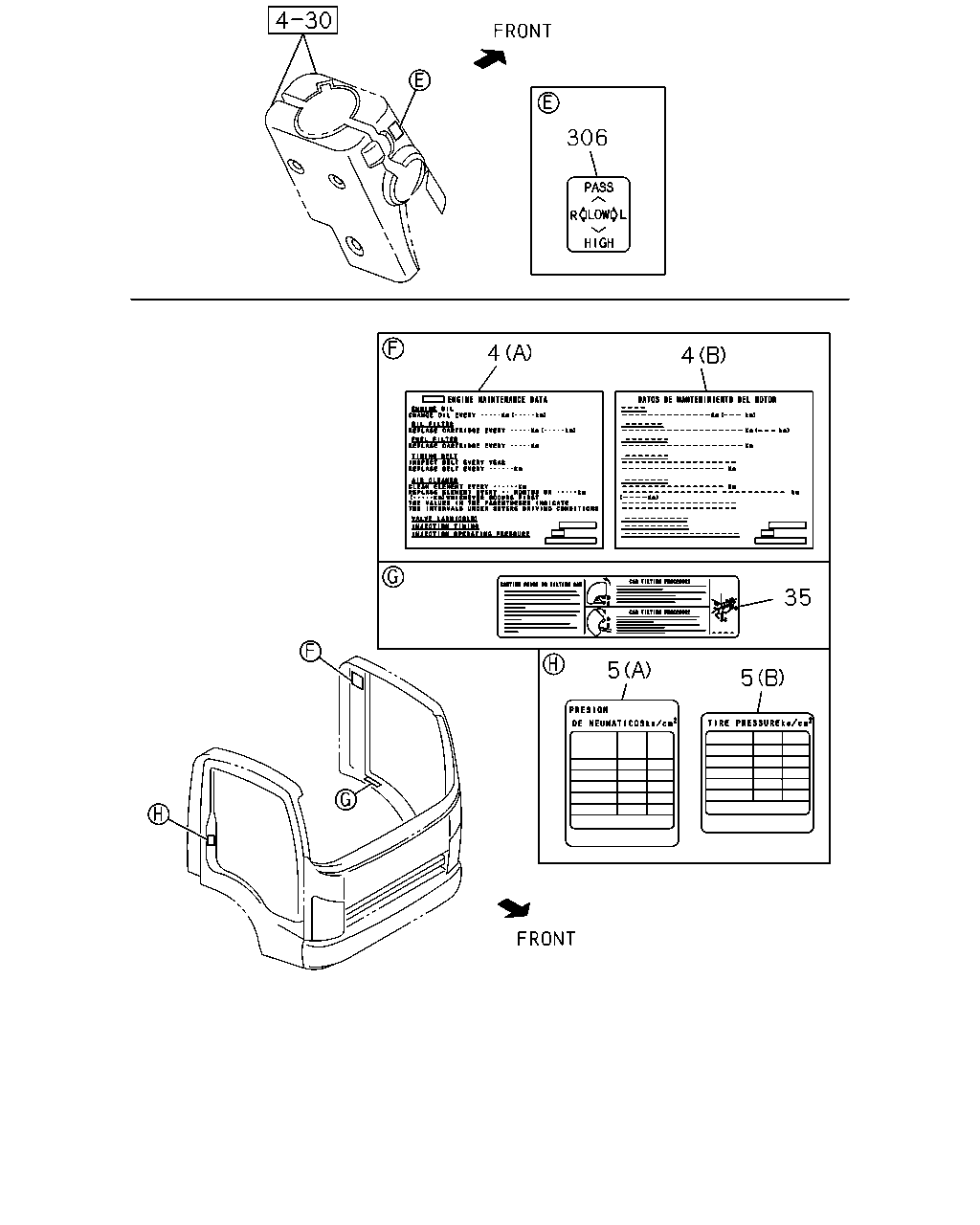

306 4 4 35 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	00.004 LABEL; ENG MAINTENANCE 4HG1-T ENG(RDP) CAUTION SPANISH<YN1> (B)	8-97211-906-0	01	1	1012-	●
4	00.004 LABEL; ENG MAINTENANCE 4HG1-T ENG(RDP) EXC. CAUTION SPANISH<YN1> (A)	8-97187-424-0	01	1	1012-	●
4	00.004 LABEL; ENG MAINTENANCE 4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B)	8-97189-402-1	01	1	1012-	●
4	00.004 LABEL; ENG MAINTENANCE 4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A)	8-97189-401-1	01	1	1012-	●
4	00.004 LABEL; ENG MAINTENANCE 4JB1-TC ENG(RDT) CAUTION SPANISH<YN1> (B)	8-97218-381-0	01	1	1012-	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JB1-TC ENG(RDT) EXC. CAUTION SPANISH<YN1> (A)	8-97205-917-0	01	1	1012-	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B)	8-98030-803-1	01	1	1012-	●	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A)	8-98030-757-0	01	1	1012-	●	●	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JB1 ENG(RLF) CAUTION SPANISH<YN1> (B)	8-97189-414-0	01	1	1012-	●	●
4	00.004 LABEL; ENG MAINTENANCE 4JB1 ENG(RLF) EXC. CAUTION SPANISH<YN1> (A)	8-97189-413-0	01	1	1012-	●	●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 7-15-8 15X5.5F-30(BVT) CAUTION SPANISH<YN1> (A)	8-94400-944-0	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 7-15-8 15X5.5F-30(BVT) EXC. CAUTION SPANISH<YN1> (B)	8-94178-980-1	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1012-1012			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1012-1012			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1101-1301		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1101-1301			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT) CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1302-		●
5	05.880 LABEL; TIRE AIR PRESSURE CAUTION SPANISH<YN1> (A)	8-98096-198-3	01	1	1302-			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1012-1012			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1012-1012		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1012-1012			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1101-1301		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1101-1301			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT) EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1302-		●
5	05.880 LABEL; TIRE AIR PRESSURE EXC. CAUTION SPANISH<YN1> (B)	8-98096-197-3	01	1	1302-			●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 7.5-15-10 5.5FX15-25(09V) CAUTION SPANISH<YN1> (A)	8-94400-943-0	01	1	1012-		●
5	05.880 LABEL; TIRE AIR PRESSURE FRT&RR 7.5-15-10 5.5FX15-25(09V) EXC. CAUTION SPANISH<YN1> (B)	8-94178-979-0	01	1	1012-		●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1>	8-98070-512-0	01	1	1012-	●	●
35	08.808 PLATE; CAUTION,CAB MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1>	8-98067-809-0	01	1	1012-	●	●
306	08.808 LABEL; BEAM & PASS	8-98070-239-0	01	1	1012-	●	●	●	●

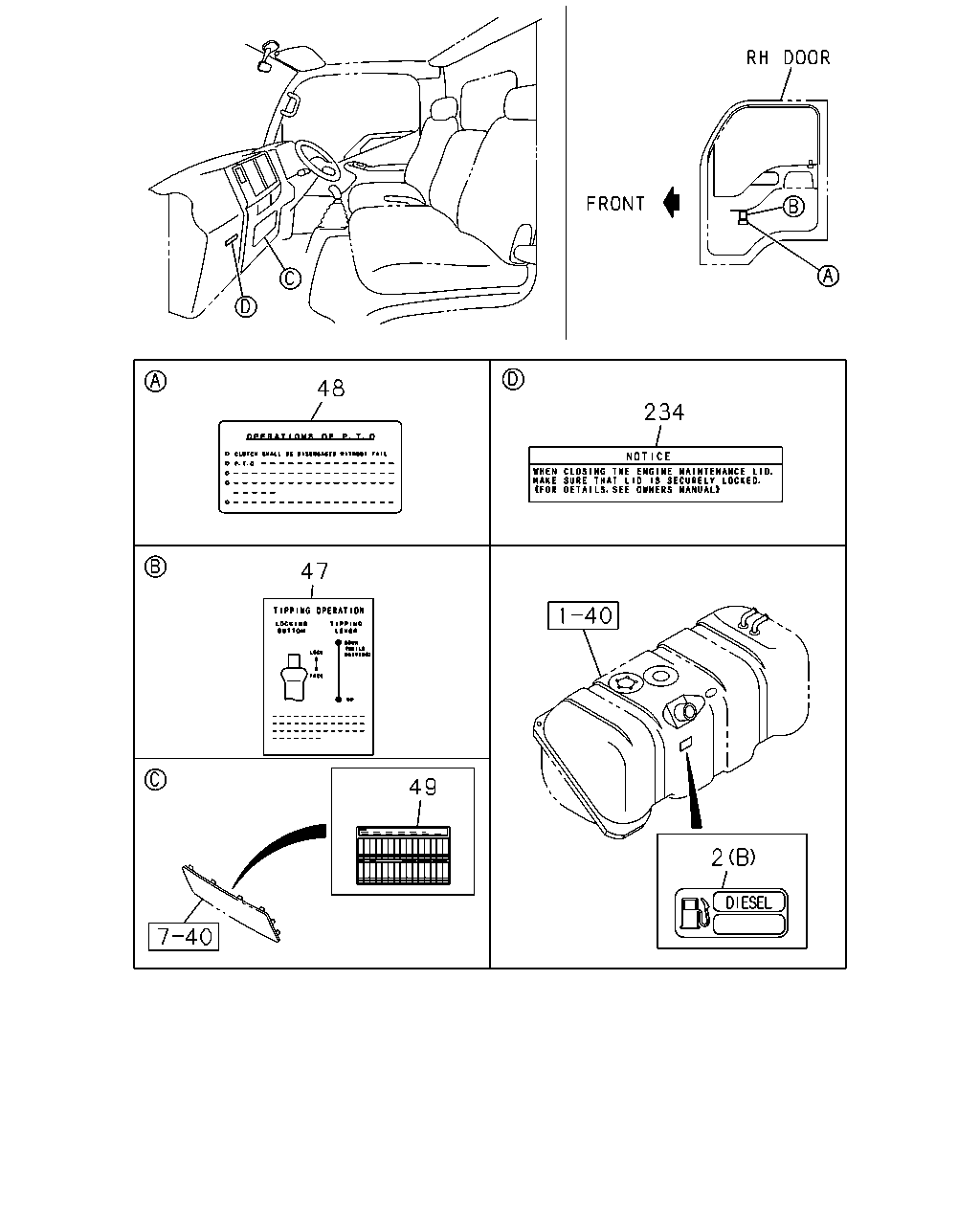

48 47 49 234 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.680 LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A)	8-98083-876-0	01	1	1012-	●	●	●	●
2	03.680 LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 (A)	8-98036-252-0	01	1	1012-	●	●	●	●
2	03.680 LABEL; FUEL CAUTION FUEL TANK 63L<6EF> (B)	8-97203-837-0	01	1	1012-1301		●	●
2	03.680 LABEL; FUEL CAUTION FUEL TANK 63L<6EF> (B)	8-97203-837-0	01	1	1302-		●
2	03.680 LABEL; FUEL CAUTION (B)	8-97203-837-0	01	1	1302-			●
47	08.808 PLATE; CAUTION,DUMP CONT CAUTION SPANISH<YN1> PTO T/M SIDE DIRECT PUMP(8KZ)	8-98096-341-0	01	1	1506-	●
47	08.808 PLATE; CAUTION,DUMP CONT PTO T/M SIDE DIRECT PUMP(8KZ) EXC. CAUTION SPANISH<YN1>	8-97115-792-0	01	1	1506-	●
48	08.808 PLATE; CAUTION,PTO CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC)	8-94313-054-0	01	1	1012-1302	●	●	●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) EXC. MINI BUS CHASSIS(V4B)	8-94313-054-0	01	1	1303-1505		●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC)	8-94313-054-0	01	1	1303-1505	●		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) EXC. MINI BUS CHASSIS(V4B)	8-94313-054-0	01	1	1506-		●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-94313-054-0	01	1	1506-	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC)	8-94313-054-0	01	1	1506-			●	●
48	08.808 PLATE; CAUTION,PTO PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1012-1302	●	●	●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. MINI BUS CHASSIS(V4B),CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1303-1505		●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1303-1505	●		●	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. MINI BUS CHASSIS(V4B),CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1506-		●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1506-	●
48	08.808 PLATE; CAUTION,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1>	8-94469-277-0	01	1	1506-			●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98173-141-0	01	1	1012-	●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4JJ1-TCC ENG(RDU)	8-98090-175-0	01	1	1012-	●	●	●	●
49	08.808 PLATE; CAUTION,FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98173-142-0	01	1	1012-	●
234	08.808 PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA>	8-98071-067-0	01	1	1012-	●	●
234	08.808 PLATE; CAUTION,ENG COVER CAUTION SPANISH<YN1>	8-98071-067-0	01	1	1012-			●	●
234	08.808 PLATE; CAUTION,ENG COVER INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	1012-	●	●
234	08.808 PLATE; CAUTION,ENG COVER EXC. CAUTION SPANISH<YN1>	8-97994-545-0	01	1	1012-			●	●

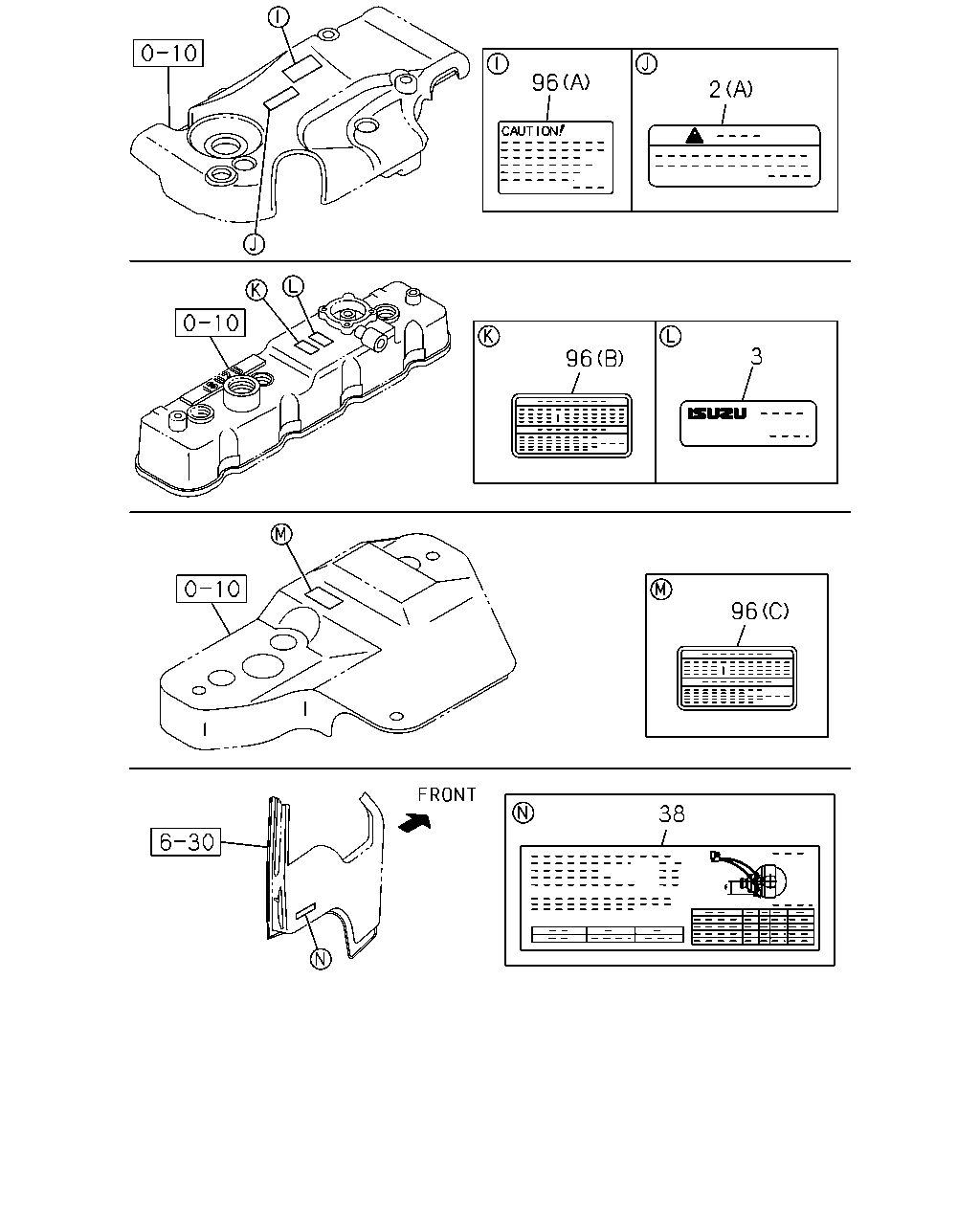

96 2 96 3 96 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.680 LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A)	8-98083-876-0	01	1	1012-	●	●	●	●
2	03.680 LABEL; FUEL CAUTION 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 (A)	8-98036-252-0	01	1	1012-	●	●	●	●
2	03.680 LABEL; FUEL CAUTION FUEL TANK 63L<6EF> (B)	8-97203-837-0	01	1	1012-1301		●	●
2	03.680 LABEL; FUEL CAUTION FUEL TANK 63L<6EF> (B)	8-97203-837-0	01	1	1302-		●
2	03.680 LABEL; FUEL CAUTION (B)	8-97203-837-0	01	1	1302-			●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1)	8-98123-349-0	01	1	1012-1304	●	●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2)	8-98123-350-0	01	1	1012-1208	●	●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2)	8-98123-350-0	01	1	1209-1209		●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2)	8-98123-350-0	01	1	1210-1404	●	●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) EXC. MALAYSIA EQUIPMENT(B10)	8-98123-350-0	01	1	1405-		●
3	03.680 LABEL; VAC PIPING 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2)	8-98123-350-0	01	1	1405-	●
38	08.808 PLATE; CAUTION,LSV MALAYSIA EQUIPMENT(B10)	8-98232-416-0	01	1	1302-1304		●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) (C)	8-97066-479-1	01	1	1405-		●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A)	8-98036-112-0	01	1	1012-	●	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A)	8-98036-111-1	01	1	1012-	●	●	●	●
96	08.808 PLATE; CAUTION,ENGINE OIL 4JB1 ENG(RLF) (B)	8-97092-930-1	01	1	1012-	●	●
