◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#78436) — 95 parça

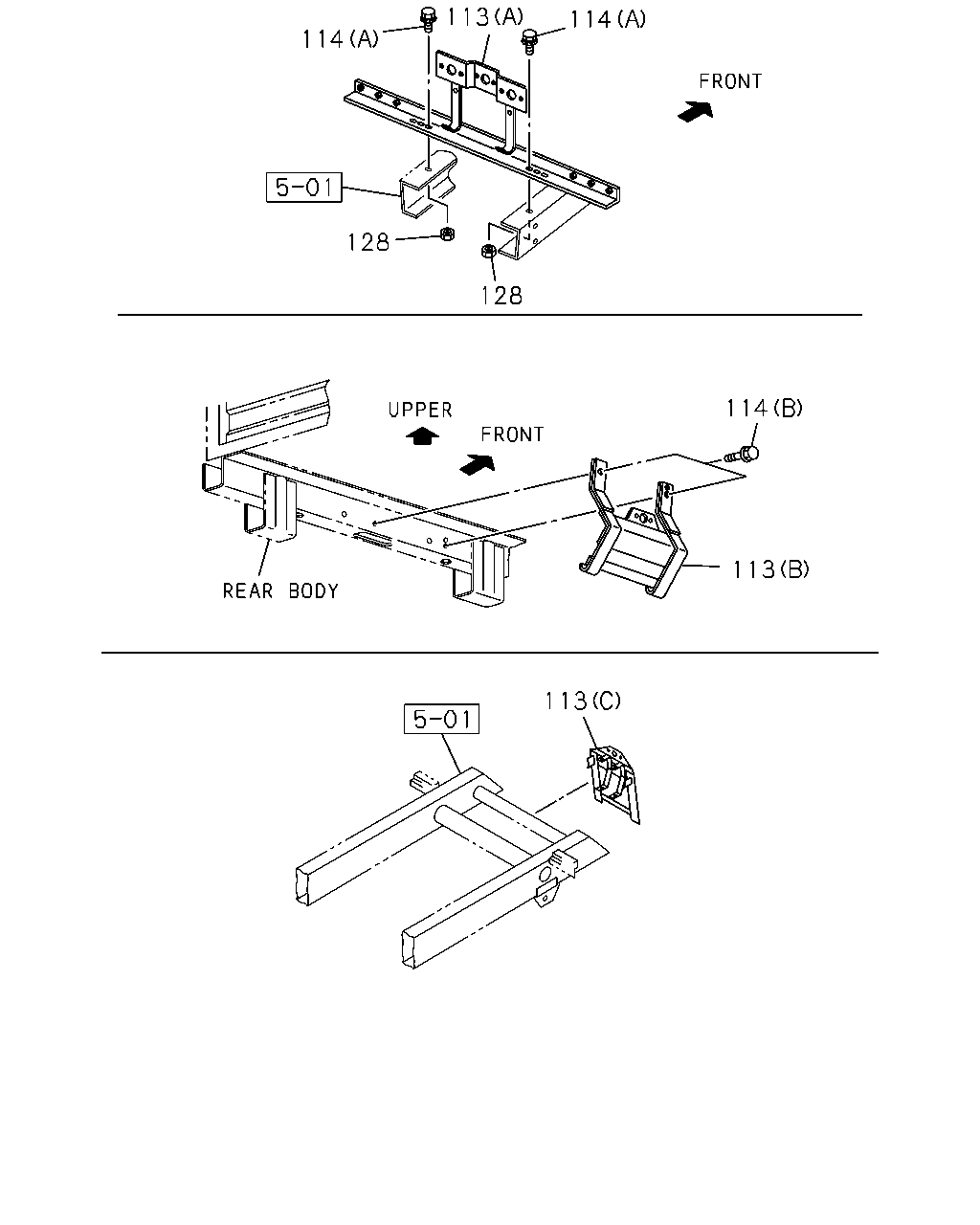

çizim 131919
113 114 114 128 128 114 113 113
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 07.800 BRACKET; LICENSE PLATE
4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 07.039 (C) 		8-97033-248-2 01 1 1509- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) (B) 		8-97077-571-2 01 1 1012- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) EXC. SMALL DOUBLE RR TIRE(6YE) (B) 		8-97077-573-2 01 1 1012- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 1012- ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 1012-1505 ● ●
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 1012-1505 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 1506- ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. DUMP CHASSIS(V4D) (A) 		8-98029-390-3 01 1 1506- ●
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 1506- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 02 1 1012- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1012-1505 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1012-1505 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1506- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. DUMP CHASSIS(V4D) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1506- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 1506- ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1505 ● ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1505 ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
128 02.662 NUT; CROSS PLATE
EXC. DUMP CHASSIS(V4D) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
çizim 132304
2 2 2 306 12 9 315 11 1 306 12 9 20 315 11 1 2 9 20 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) STAMP D IJ2G 		8-98045-850-0 01 1 1506- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) STAMP IJ2H 		8-98000-145-1 01 1 1012-1505 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> STAMP IJ2H 		8-98000-145-1 01 1 1012-1505 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) STAMP IJ2H 		8-98000-145-1 01 1 1506- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> STAMP IJ2H 		8-98000-145-1 01 1 1506- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. REAR WIDE TREAD(V4T) STAMP IJ2G 		8-98000-144-1 01 1 1012-1505 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) STAMP IJ2G 		8-98000-144-1 01 1 1506- ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W) WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) M14X30 		0-20851-430-0 06 1 1506- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 1012-1209 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 02 1 1210- ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (B) M14X30 		0-20851-430-0 08 1 1012-1505 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) M14X30 		0-20851-430-0 08 1 1506- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (B) M14X30 		0-20851-430-0 08 1 1506- ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 1012-1209 ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1210- ● ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> 		8-97174-008-0 02 1 1012-1505 ● ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-97174-008-0 02 1 1506- ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D) 		8-97174-008-0 02 1 1506- ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> 		8-97174-008-0 02 1 1506- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1012-1505 ● ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1506- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 1506- ●
20 07.070 WASHER; PL,BUMPER
WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) STAMP IE 		8-98211-482-0 01 1 1506- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> (B) STAMP IE 		8-98211-483-0 01 1 1506- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 1012-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-979-0 01 1 1210-1505 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1 		8-98208-979-0 01 1 1506- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-979-0 01 1 1506- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 1012-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-980-0 01 1 1210-1505 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D),FRAME-KICK UP<7EW> (B) STAMP IA1 		8-98208-980-0 01 1 1506- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-980-0 01 1 1506- ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 D8X13.5 		1-09987-248-1 04 1 1012-1505 ● ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 08.155 D8X13.5 		1-09987-248-1 04 1 1506- ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> EXC. DUMP CHASSIS(V4D) 08.155 D8X13.5 		1-09987-248-1 04 1 1506- ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 D8X13.5 		1-09987-248-1 04 1 1506- ●
çizim 498227
120 243 136 134 133 134 133 136
BalonParca AdiParca NoAdetTipApplied Date A B C D
120 07.800 BOLT
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506- ●
133 07.112 HOOK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) 07.330 (A) 		8-94183-262-0 01 1 1012-1301 ● ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) 07.330 (A) 		8-94183-262-0 01 1 1302- ●
133 07.112 HOOK
07.330 (A) 		8-94183-262-0 01 1 1302- ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.068 (B) 		8-97387-665-0 01 1 1012-1301 ● ● ● ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.068 (B) 		8-97387-665-0 01 1 1302- ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) 07.068 (B) 		8-97387-665-0 01 1 1302- ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 1302- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD), IDENTIFICATIONLABEL FOR KD<6UT>,SMALL DOUBLE RR TIRE(6YE) M14X60 		0-10861-460-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD), IDENTIFICATIONLABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD), IDENTIFICATIONLABEL FOR KD<6UT>,SMALL DOUBLE RR TIRE(6YE) M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1302- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 1012-1012 ● ● ● ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1012-1301 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1302- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1012-1301 ● ● ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1302- ● ●
134 07.068 BOLT; HOOK
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1302- ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1012-1301 ● ● ● ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1302- ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) 00.429 M14 FLANGE 		0-91180-214-0 02 1 1302- ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 1302- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 1012-1301 ● ● ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 1302-1505 ● ●
136 07.068 NUT; HOOK
00.833 M10 		0-91110-510-0 02 1 1302-1505 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 1506- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 1506- ●
136 07.068 NUT; HOOK
00.833 M10 		0-91110-510-0 02 1 1506- ●
243 07.869 BRACKET
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-98030-084-0 01 1 1506- ●
243 07.869 BRACKET
WHEEL BASE 2400MM(24W) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> 		8-98030-085-0 01 1 1506- ●
