◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#78433) — 54 parça

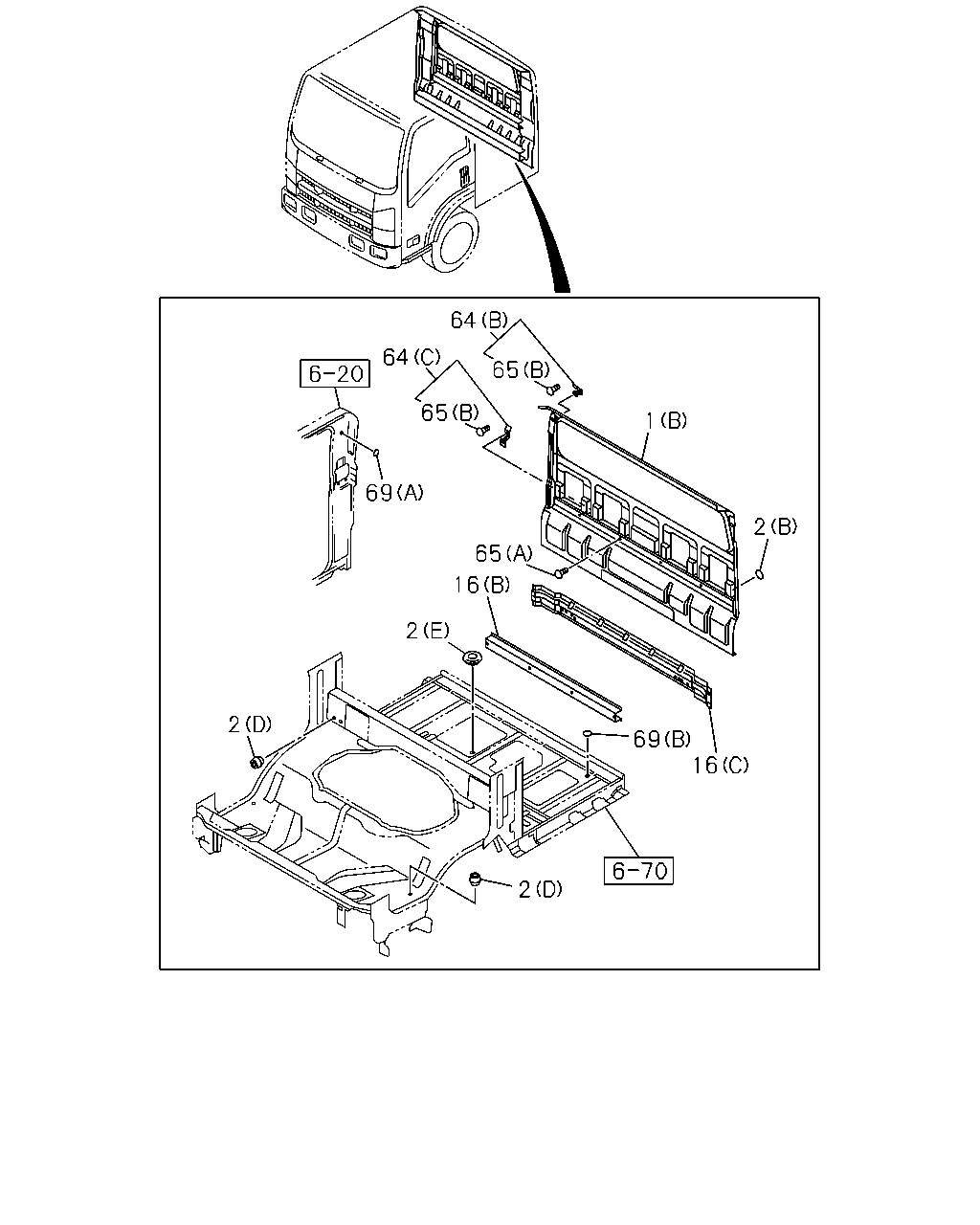

çizim 131815
64 64 65 65 1 69 2 65 16 2 2 69 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-303-4 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-300-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A) 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1012-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A) 		8-97584-607-3 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1505 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1506- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) 16.588 (A) M6X12 		8-98013-112-0 04 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ● ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.592 (A) OD=36 WHITE 		1-76778-007-0 02 1 1012- ● ●
69 16.587 SEAL; LOCATION HOLE
EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> 16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●

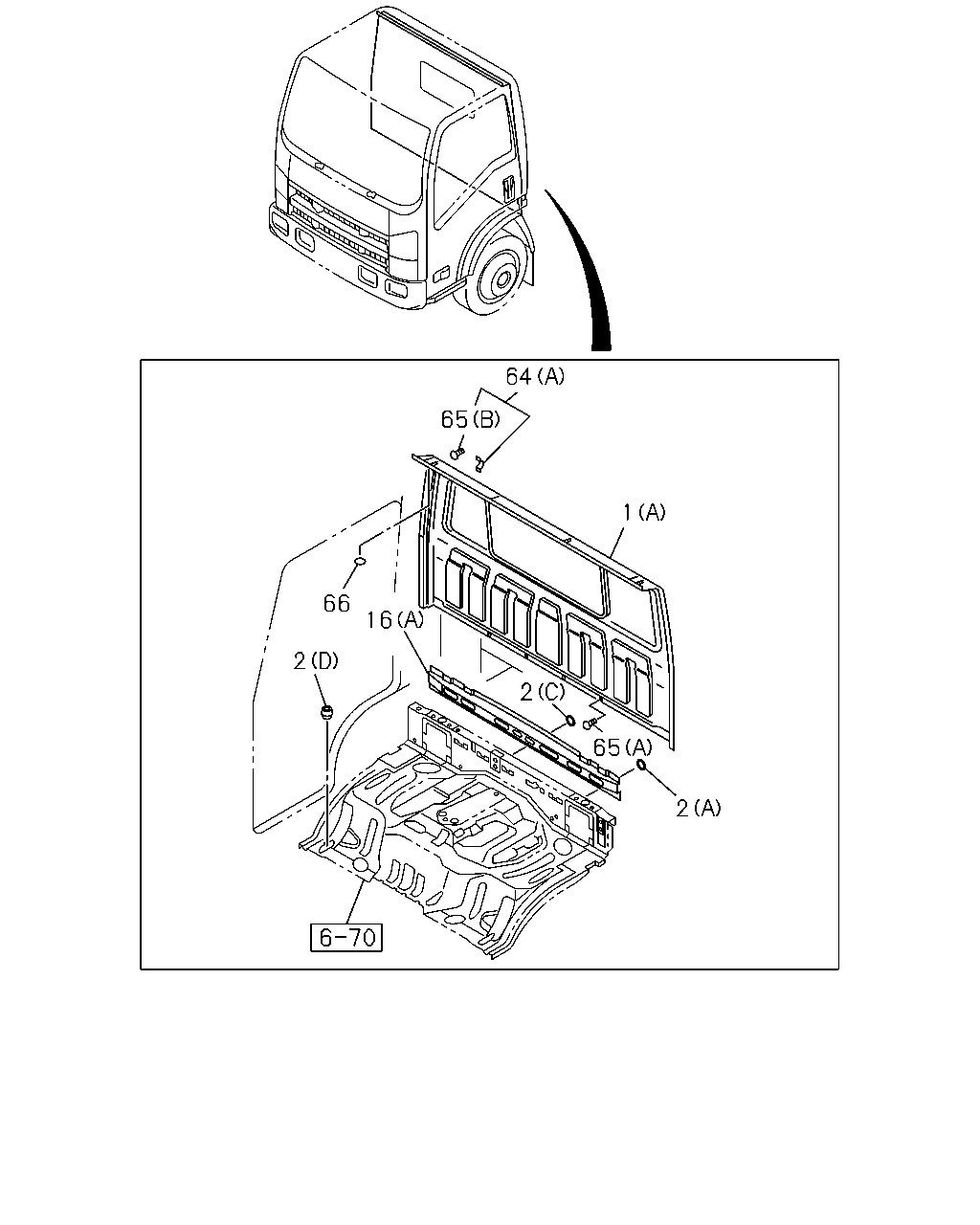

çizim 132291
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-303-4 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-300-3 01 1 1012- ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 1012- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 1012- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> (A) 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-607-3 01 1 1012-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> (A) 		8-97584-607-3 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-98006-213-0 01 1 1012- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-97410-667-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1012- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1012- ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1012-1505 ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1506- ●
65 17.198 STUD; BACK PANEL
DUMP CHASSIS(V4D) 16.588 (A) M6X12 		8-98013-112-0 04 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 1012- ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 03 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY C OLOR DARK BLUE(695),BODY COLOR CARDINALRED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812), BODYCOLOR SAHARA BEIGE(829),BODY COLOR MAR INE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BOD Y COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 03 1 1012- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
