◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#78414) — 176 parça

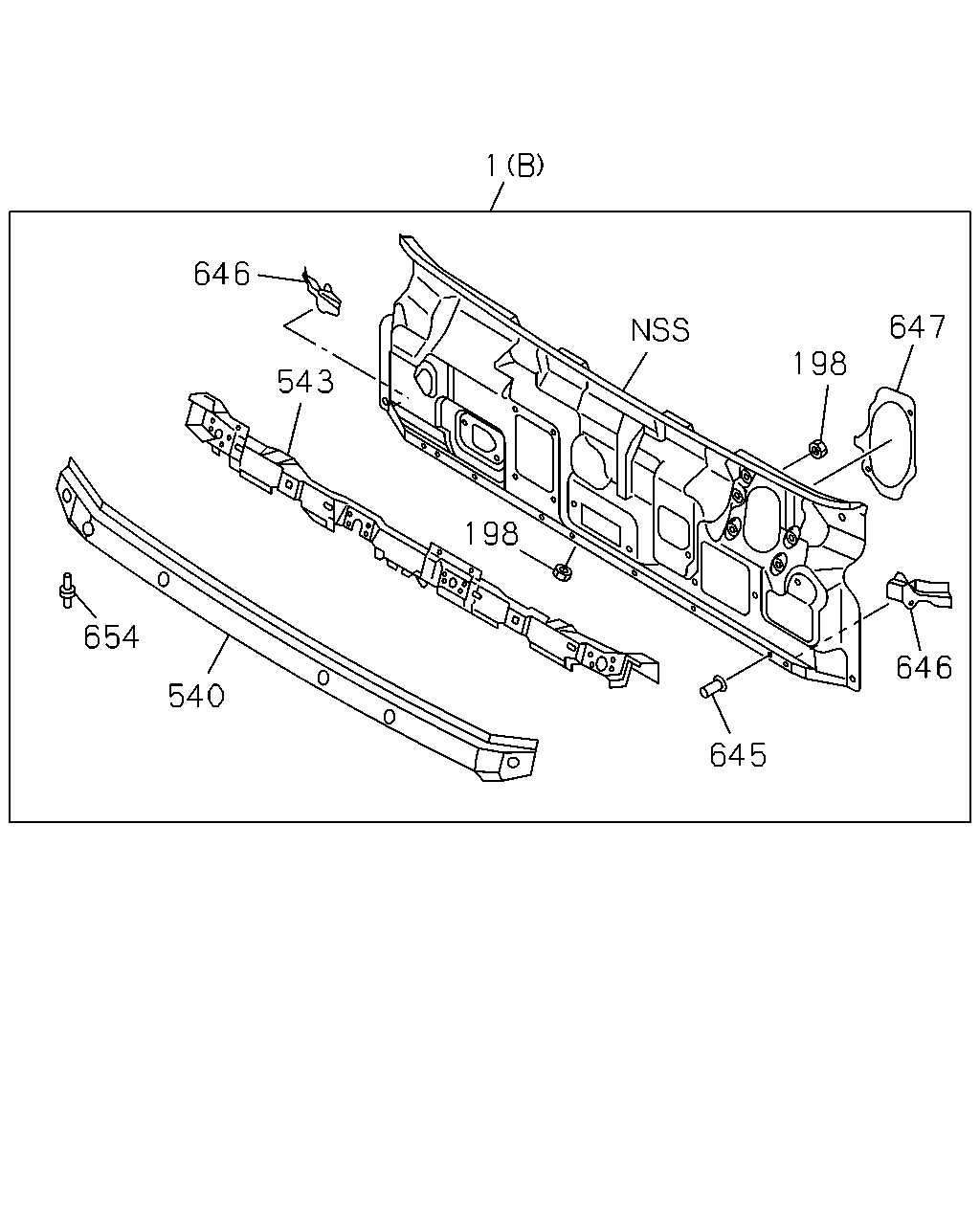

çizim 126674
1 646 647 198 543 198 654 646 540 645
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 1012-1103 ● ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104- ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 1012-1103 ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-1505 ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1506- ● ● ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ● ● ●
198 16.125 NUT; PANEL
PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 08 1 1012- ● ● ● ●
198 16.125 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1012-1505 ● ● ● ●
198 16.125 NUT; PANEL
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 16.545 M6 		9-09114-086-0 06 1 1506- ● ● ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 1012- ● ● ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 1012- ● ● ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1012- ● ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1012- ● ● ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1012- ● ● ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1012- ● ● ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1012- ● ● ● ●

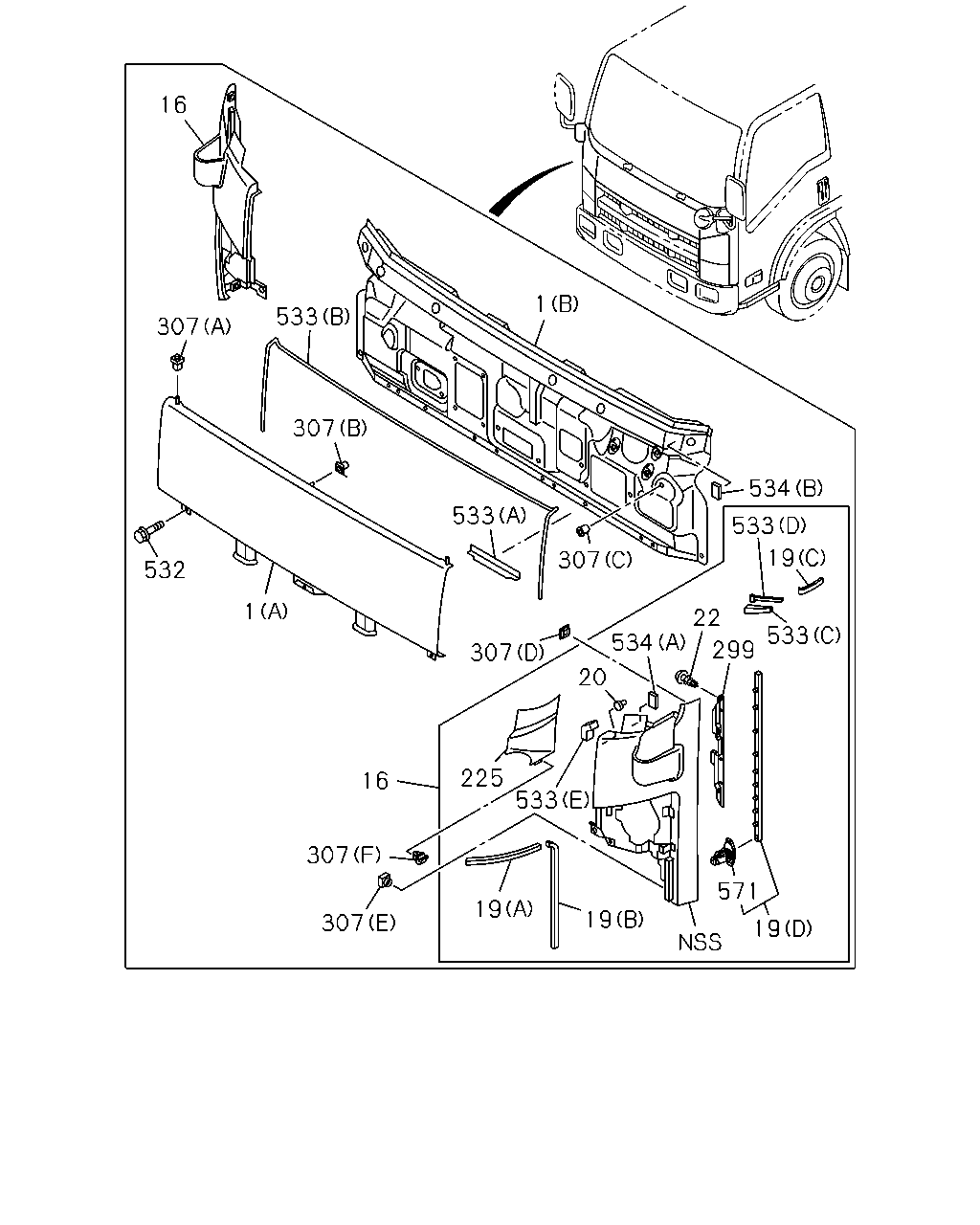

çizim 126709
19 571 19 19 307 307 16 225 533 533 299 22 534 20 307 19 533 534 1 307 533 307 533 307 16 532 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98049-844-5 01 1 1012-1103 ● ● ● ●
1 16.550 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98186-849-0 01 1 1104- ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98021-581-5 01 1 1012-1103 ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1104-1505 ● ● ● ●
1 16.550 PANEL ASM; FRT
EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (B) 		8-98186-848-0 01 1 1506- ● ● ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1012- ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLACK 		8-97407-904-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLACK 		8-97407-909-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GRAY 		8-97417-302-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GRAY 		8-97417-308-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97417-303-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97417-310-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97417-304-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97417-311-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97417-305-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97417-312-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97407-905-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97407-910-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97406-039-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> WHITE 		8-97406-040-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97407-342-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> RED 		8-97407-343-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> DARK GREEN 		8-97407-906-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> DARK GREEN 		8-97407-911-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> YELLOW 		8-97407-907-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> YELLOW 		8-97407-912-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BEIGE 		8-97417-306-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BEIGE 		8-97417-314-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97415-715-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97415-716-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> ORANGE 		8-97417-307-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> ORANGE 		8-97417-313-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GREEN 		8-97412-842-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> GREEN 		8-97412-843-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97414-635-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> LIGHT GRAY 		8-97414-636-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97409-870-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> BLUE 		8-97409-872-9 01 1 1302- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97417-315-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-315-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLACK 		8-97417-316-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-316-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97412-096-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-096-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GRAY 		8-97412-107-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97412-107-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97412-105-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-105-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97412-116-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-116-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-097-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-097-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-108-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-108-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97409-579-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-579-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97409-588-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97409-588-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-098-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-098-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-109-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97412-109-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97405-621-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-621-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> WHITE 		8-97405-625-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97405-625-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97412-099-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-099-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> RED 		8-97412-110-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-110-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97412-100-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-100-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK GREEN 		8-97412-111-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-111-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97412-101-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-101-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> YELLOW 		8-97412-112-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-112-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97412-102-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-102-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BEIGE 		8-97412-113-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-113-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-103-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97412-114-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK YELLOW 		8-97412-104-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-104-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> DARK YELLOW 		8-97412-115-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-115-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-106-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-106-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> GREEN 		8-97412-117-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-117-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97405-619-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> LIGHT GRAY 		8-97405-623-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1012- ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97405-620-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> BLUE 		8-97405-624-8 01 1 1012- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1012- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1012- ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1012- ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1012- ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1012- ● ● ● ●
19 16.588 SEAL; FRT SIDE PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (D) 		8-98028-750-3 01 1 1012-1301 ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1012-1301 ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (D) 		8-98028-750-3 01 1 1012-1301 ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) (D) 		8-98028-750-3 01 1 1012-1301 ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (D) 		8-98028-750-3 01 1 1302- ●
19 16.588 SEAL; FRT SIDE PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (D) 		8-98028-750-3 01 1 1302- ●
19 16.588 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1302- ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (D) 		8-98028-750-3 01 1 1302- ●
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) (D) 		8-98028-750-3 01 1 1302- ●
20 16.588 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1012- ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1012- ● ● ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-520-3 01 1 1012- ● ● ● ●
225 16.069 COVER; SIDE,FRT
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> PLEASE PAINT TO MATCH BODY COLOR 		8-98036-521-3 01 1 1012- ● ● ● ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1012- ● ● ● ●
299 16.069 COVER; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98028-145-1 01 1 1012-1301 ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1012-1301 ●
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98028-145-1 01 1 1012-1301 ●
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98028-145-1 01 1 1012-1301 ●
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98028-145-1 01 1 1302- ●
299 16.069 COVER; FRT PANEL SIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98028-145-1 01 1 1302- ●
299 16.069 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1302- ●
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98028-145-1 01 1 1302- ●
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 		8-98028-145-1 01 1 1302- ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1012- ● ● ● ●
307 16.125 GROMMET; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (F) 		8-98028-743-0 02 1 1012- ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1012- ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1012- ● ● ● ●
533 08.143 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1012- ● ● ● ●
533 08.143 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1012- ● ● ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 1012- ● ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98030-961-4 01 1 1012-1506 ● ● ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1507- ● ● ● ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1012- ● ● ● ●
533 08.143 SEAL; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) 		8-98043-510-0 01 1 1012-1301 ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1012-1301 ●
533 08.143 SEAL; FRT PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) 		8-98043-510-0 01 1 1012-1301 ●
533 08.143 SEAL; FRT PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98043-510-0 01 1 1012-1301 ●
533 08.143 SEAL; FRT PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (C) 		8-98043-510-0 01 1 1302- ●
533 08.143 SEAL; FRT PANEL
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) 		8-98043-510-0 01 1 1302- ●
533 08.143 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1302- ●
533 08.143 SEAL; FRT PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) 		8-98043-510-0 01 1 1302- ●
533 08.143 SEAL; FRT PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK B LUE(695),BODY COLOR ARC WHITE(729), BODYCOLOR CARDINAL RED(736),BODY COLOR WOO DLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829) ,BODY COLOR MARINE BLUE(890),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) (C) 		8-98043-510-0 01 1 1302- ●
534 16.550 FASTENER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) 20X30 		8-98059-208-1 02 1 1012- ● ● ● ●
534 16.550 FASTENER
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR POLAR WHITE(534),BODY COLOR PURPLISH BLUE(668),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE (729),BODY COLOR CARDINAL RED(736), BODYCOLOR WOODLAND GREEN(807),BODY COLOR W HEATLAND YELLOW(812),BODY COLOR MARINE BLUE(890),BODY COLOR SUNBELT GREEN(989) ,BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) 40X25 		8-98089-412-1 02 1 1302- ●
534 16.550 FASTENER
DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) 40X25 		8-98089-411-1 02 1 1302- ●
571 16.570 CLIP; SEAL
16.165 NATURAL 		8-98027-457-0 20 1 1012- ● ● ● ●

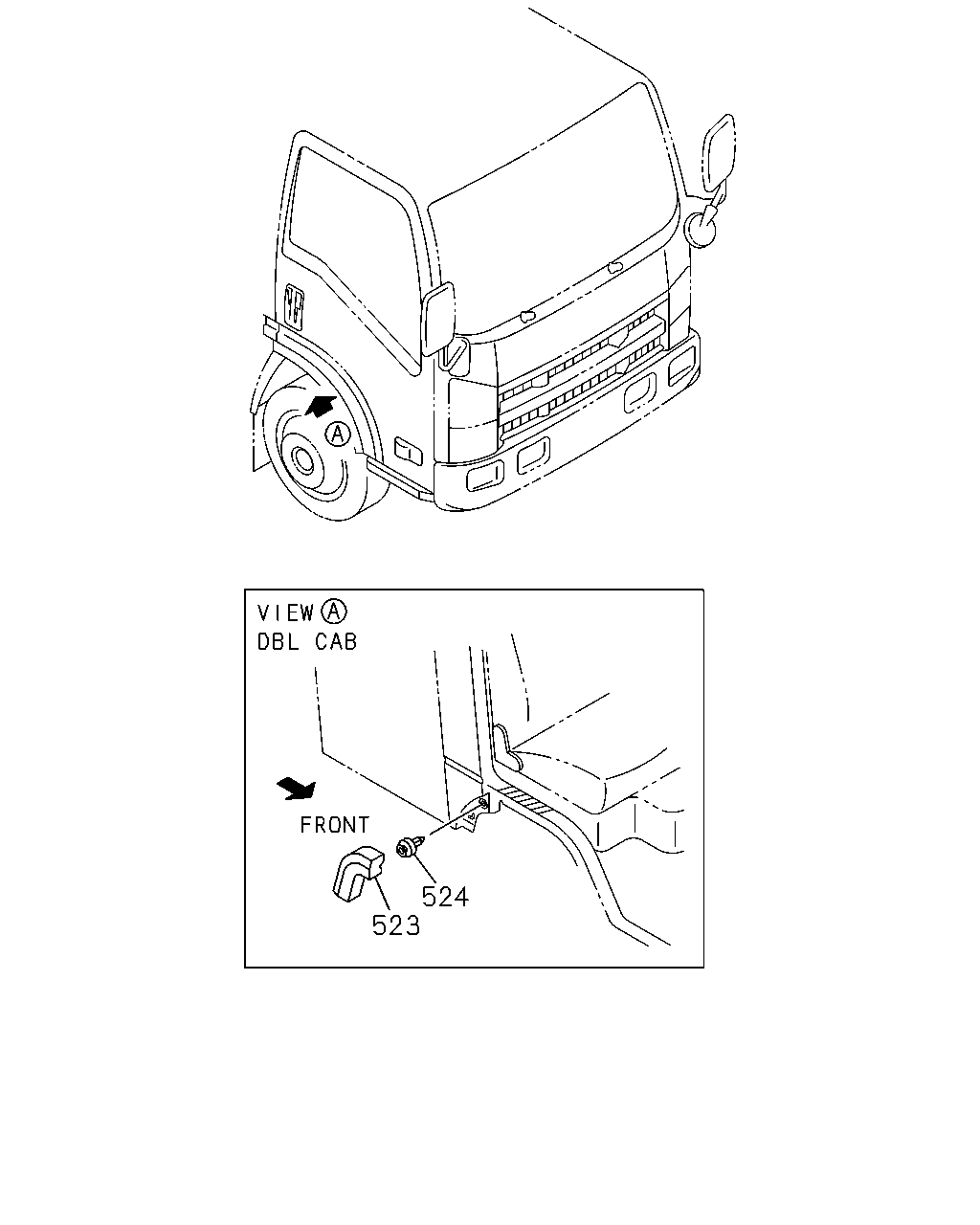

çizim 191088
524 523
BalonParca AdiParca NoAdetTipApplied Date A B C D
523 08.212 COVER; FENDER RR 8-98039-013-2 01 1 1012- ● ●
523 08.212 COVER; FENDER RR 8-98039-014-2 01 1 1012- ● ●
524 08.212 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
