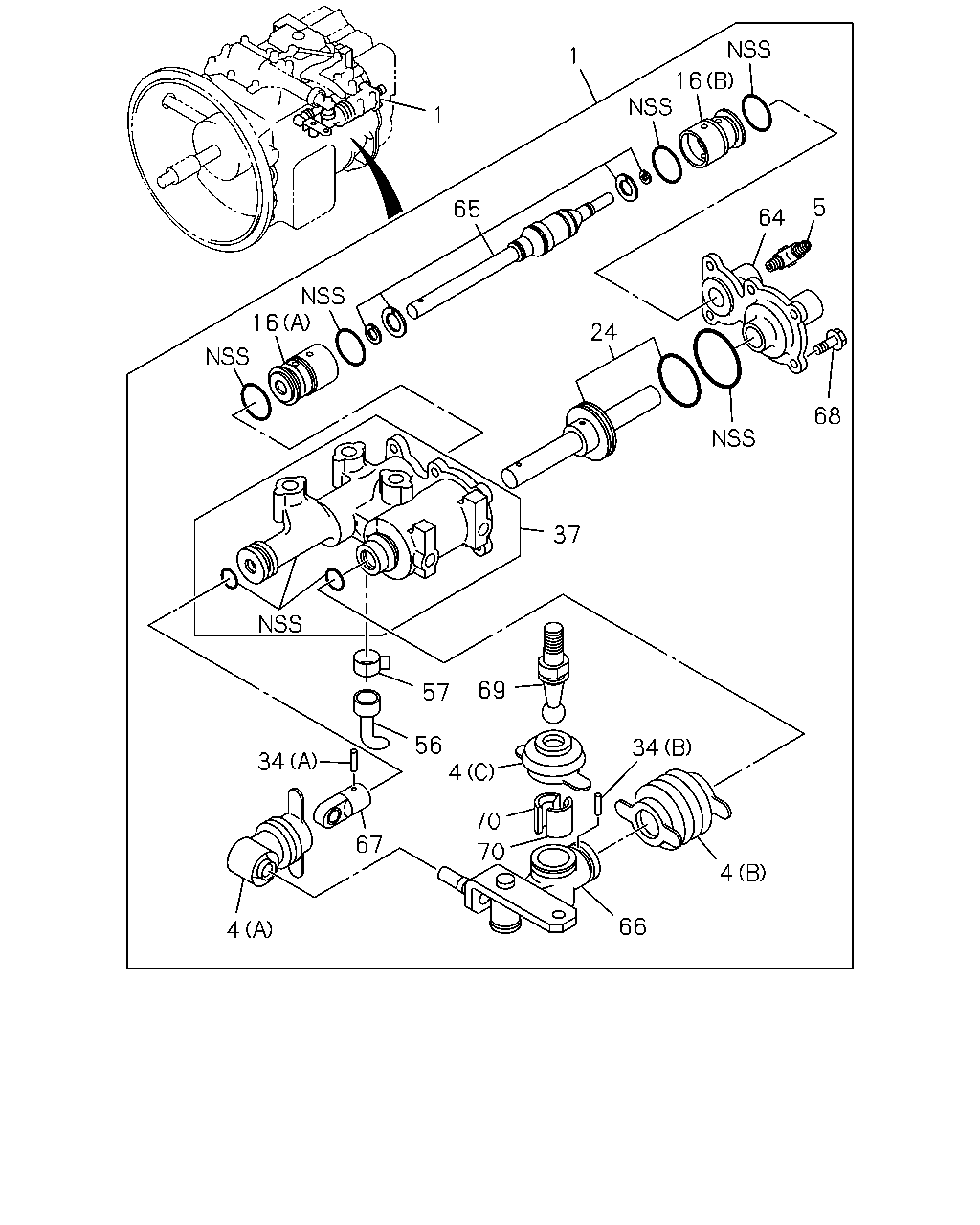

2-39 — POWER ASSISTOR (#7841) — 99 parça

1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ASSISTOR ASM; POWER,SHIFT EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33730-233-2	01	1	9905-9910
1	ASSISTOR ASM; POWER,SHIFT FSR(FS****)	1-33730-233-3	01	1	9911-0301
1	ASSISTOR ASM; POWER,SHIFT FSR(FS**) FTR(FT**)	1-33730-233-3	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-843-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (A)	1-33739-843-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-843-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-844-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (B)	1-33739-844-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-844-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (C)	1-33739-847-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (C)	1-33739-847-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (C)	1-33739-847-0	01	1	0302-
5	CONNECTOR; CYL EXC. TRANS SIDE PTO WO/LVR(SH5) M12 & PT1/8	9-09224-306-2	01	1	9905-9910
5	CONNECTOR; CYL FSR(FS****) M12 & PT1/8	9-09224-306-2	01	1	9911-0301
5	CONNECTOR; CYL FSR(FS**) FTR(FT**) M12 & PT1/8	9-09224-306-2	01	1	0302-
16	SEAT; VALVE EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-838-1	01	1	9905-9910
16	SEAT; VALVE FSR(FS****) (A)	1-33739-838-1	01	1	9911-0301
16	SEAT; VALVE FSR(FS**) FTR(FT**) (A)	1-33739-838-1	01	1	0302-
16	SEAT; VALVE EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-839-1	01	1	9905-9910
16	SEAT; VALVE FSR(FS****) (B)	1-33739-839-1	01	1	9911-0301
16	SEAT; VALVE FSR(FS**) FTR(FT**) (B)	1-33739-839-1	01	1	0302-
24	PISTON EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-836-1	01	1	9905-9910
24	PISTON FSR(FS****)	1-33739-836-1	01	1	9911-0301
24	PISTON FSR(FS**) FTR(FT**)	1-33739-836-1	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-885-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (B)	1-33739-885-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-885-0	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-974-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (A)	1-33739-974-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-974-0	01	1	0302-
37	HOUSING; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-969-0	01	1	9905-9910
37	HOUSING; POWER SHIFTER FSR(FS****)	1-33739-969-0	01	1	9911-0301
37	HOUSING; POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-969-0	01	1	0302-
56	HOSE; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-848-0	01	1	9905-9910
56	HOSE; POWER SHIFTER FSR(FS****)	1-33739-848-0	01	1	9911-0301
56	HOSE; POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-848-0	01	1	0302-
57	CLAMP; HOSE EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-849-0	01	1	9905-9910
57	CLAMP; HOSE FSR(FS****)	1-33739-849-0	01	1	9911-0301
57	CLAMP; HOSE FSR(FS**) FTR(FT**)	1-33739-849-0	01	1	0302-
64	COVER; HOUSING EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-970-0	01	1	9905-9910
64	COVER; HOUSING FSR(FS****)	1-33739-970-0	01	1	9911-0301
64	COVER; HOUSING FSR(FS**) FTR(FT**)	1-33739-970-0	01	1	0302-
65	VALVE; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-971-0	01	1	9905-9910
65	VALVE; POWER SHIFTER FSR(FS****)	1-33739-971-0	01	1	9911-0301
65	VALVE; POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-971-0	01	1	0302-
66	JOINT ASM; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-972-0	01	1	9905-9910
66	JOINT ASM; POWER SHIFTER FSR(FS****)	1-33739-972-0	01	1	9911-0301
66	JOINT ASM; POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-972-0	01	1	0302-
67	JOINT; BALL,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-973-0	01	1	9905-9910
67	JOINT; BALL,POWER SHIFTER FSR(FS****)	1-33739-973-0	01	1	9911-0301
67	JOINT; BALL,POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-973-0	01	1	0302-
68	BOLT; COVER EXC. TRANS SIDE PTO WO/LVR(SH5) M6X12 FLANGE	1-33739-842-0	06	1	9905-9910
68	BOLT; COVER FSR(FS****) M6X12 FLANGE	1-33739-842-0	06	1	9911-0301
68	BOLT; COVER FSR(FS**) FTR(FT**) M6X12 FLANGE	1-33739-842-0	06	1	0302-
69	STUD; BALL,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-846-0	01	1	9905-9910
69	STUD; BALL,POWER SHIFTER FSR(FS****)	1-33739-846-0	01	1	9911-0301
69	STUD; BALL,POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-846-0	01	1	0302-
70	SEAT; BALL STUD EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33659-118-0	02	1	9905-9910
70	SEAT; BALL STUD FSR(FS****)	1-33659-118-0	02	1	9911-0301
70	SEAT; BALL STUD FSR(FS**) FTR(FT**)	1-33659-118-0	02	1	0302-

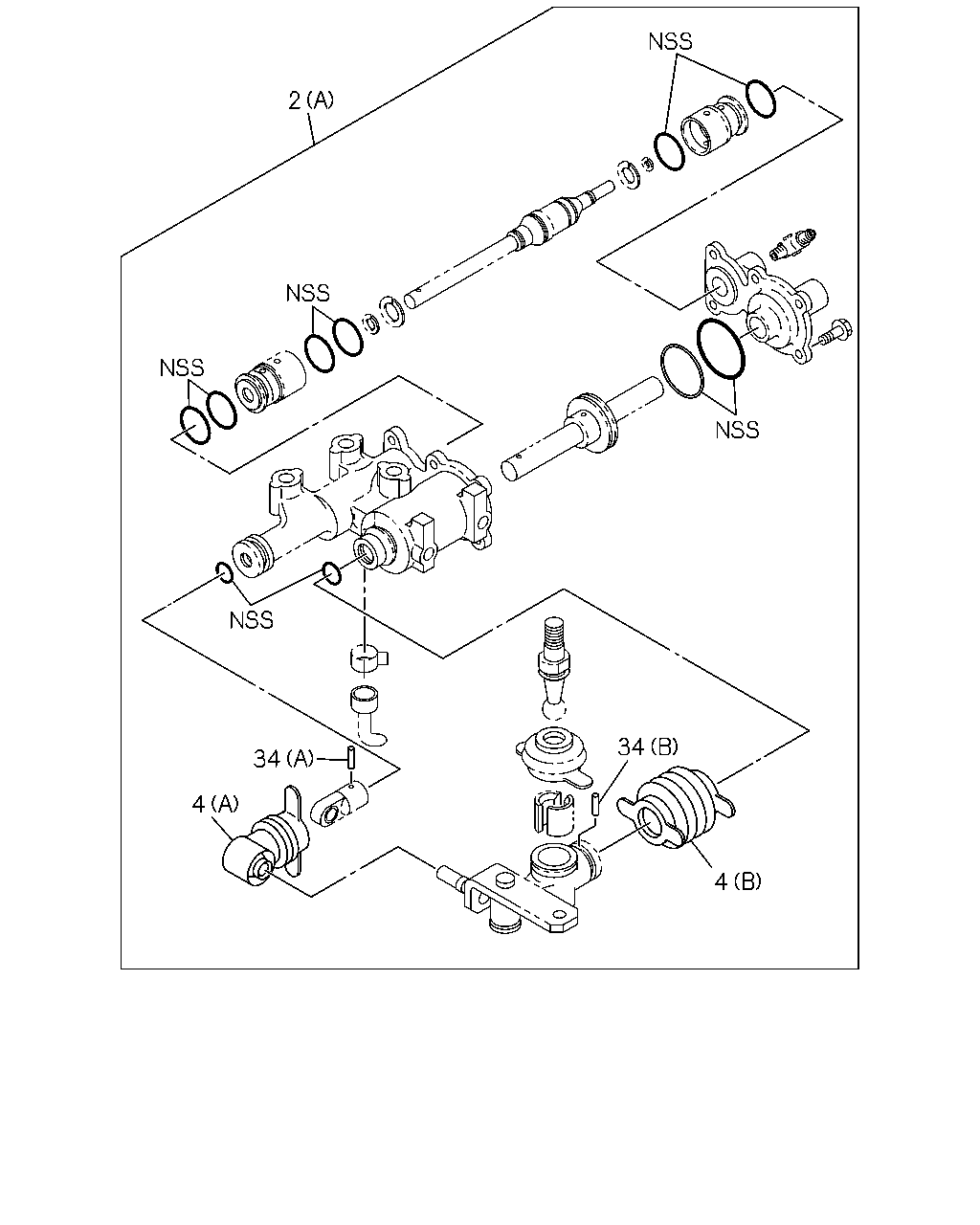

2 56 34 34 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-975-0	01	1	9905-9910
2	REPAIR KIT; POWER SHIFTER FSR(FS****) (B)	1-33738-028-0	01	1	9911-0301
2	REPAIR KIT; POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33738-028-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-843-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (A)	1-33739-843-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-843-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-844-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (B)	1-33739-844-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-844-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (C)	1-33739-847-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (C)	1-33739-847-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (C)	1-33739-847-0	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-885-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (B)	1-33739-885-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-885-0	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-974-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (A)	1-33739-974-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-974-0	01	1	0302-
56	HOSE; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33739-848-0	01	1	9905-9910
56	HOSE; POWER SHIFTER FSR(FS****)	1-33739-848-0	01	1	9911-0301
56	HOSE; POWER SHIFTER FSR(FS**) FTR(FT**)	1-33739-848-0	01	1	0302-

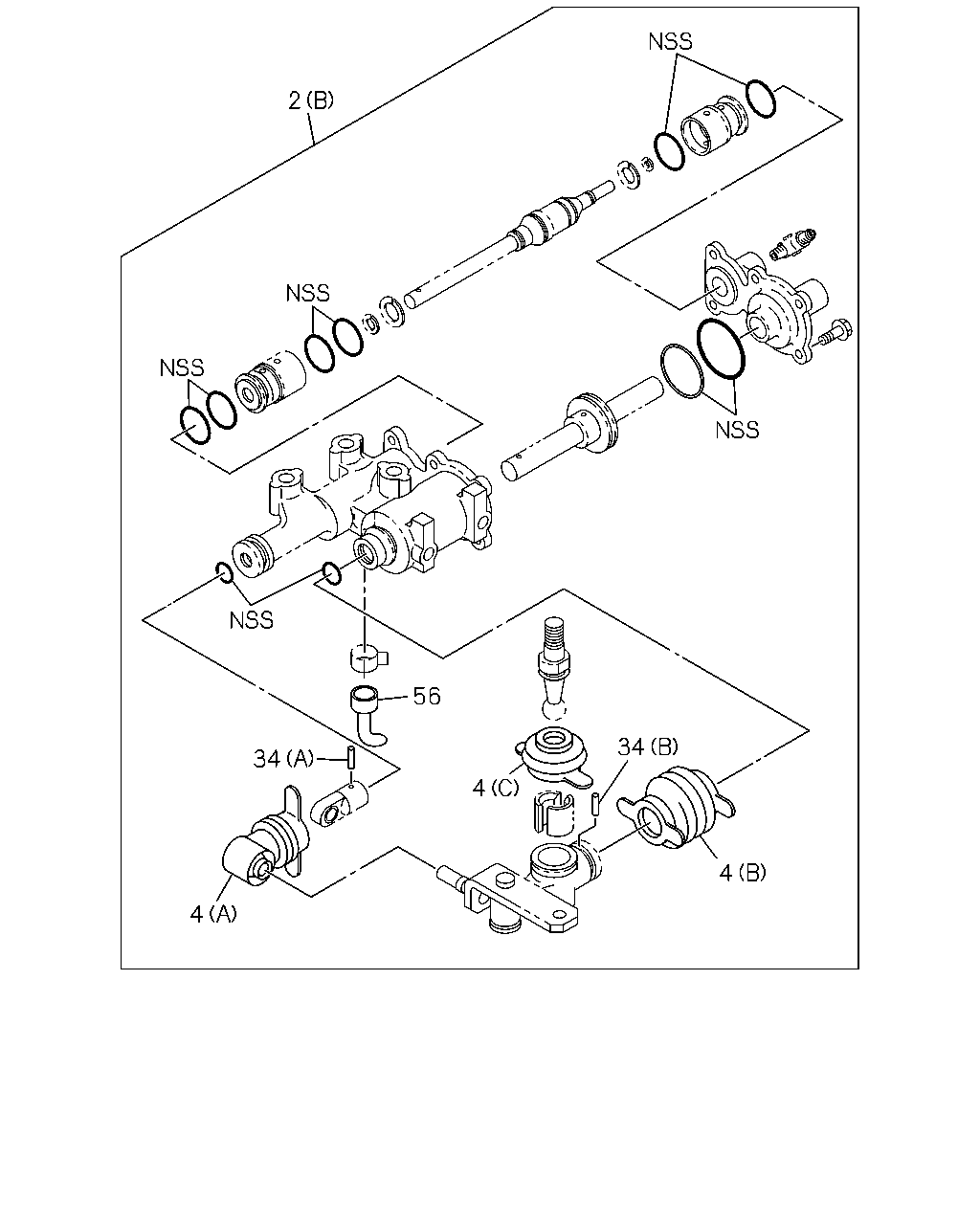

2 34 34 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-975-0	01	1	9905-9910
2	REPAIR KIT; POWER SHIFTER FSR(FS****) (B)	1-33738-028-0	01	1	9911-0301
2	REPAIR KIT; POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33738-028-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-843-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (A)	1-33739-843-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-843-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-844-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (B)	1-33739-844-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-844-0	01	1	0302-
4	BOOT; POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (C)	1-33739-847-0	01	1	9905-9910
4	BOOT; POWER SHIFTER FSR(FS****) (C)	1-33739-847-0	01	1	9911-0301
4	BOOT; POWER SHIFTER FSR(FS**) FTR(FT**) (C)	1-33739-847-0	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (B)	1-33739-885-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (B)	1-33739-885-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (B)	1-33739-885-0	01	1	0302-
34	PIN; STRAIGHT,POWER SHIFTER EXC. TRANS SIDE PTO WO/LVR(SH5) (A)	1-33739-974-0	01	1	9905-9910
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS****) (A)	1-33739-974-0	01	1	9911-0301
34	PIN; STRAIGHT,POWER SHIFTER FSR(FS**) FTR(FT**) (A)	1-33739-974-0	01	1	0302-
