Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#78406) — 399 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

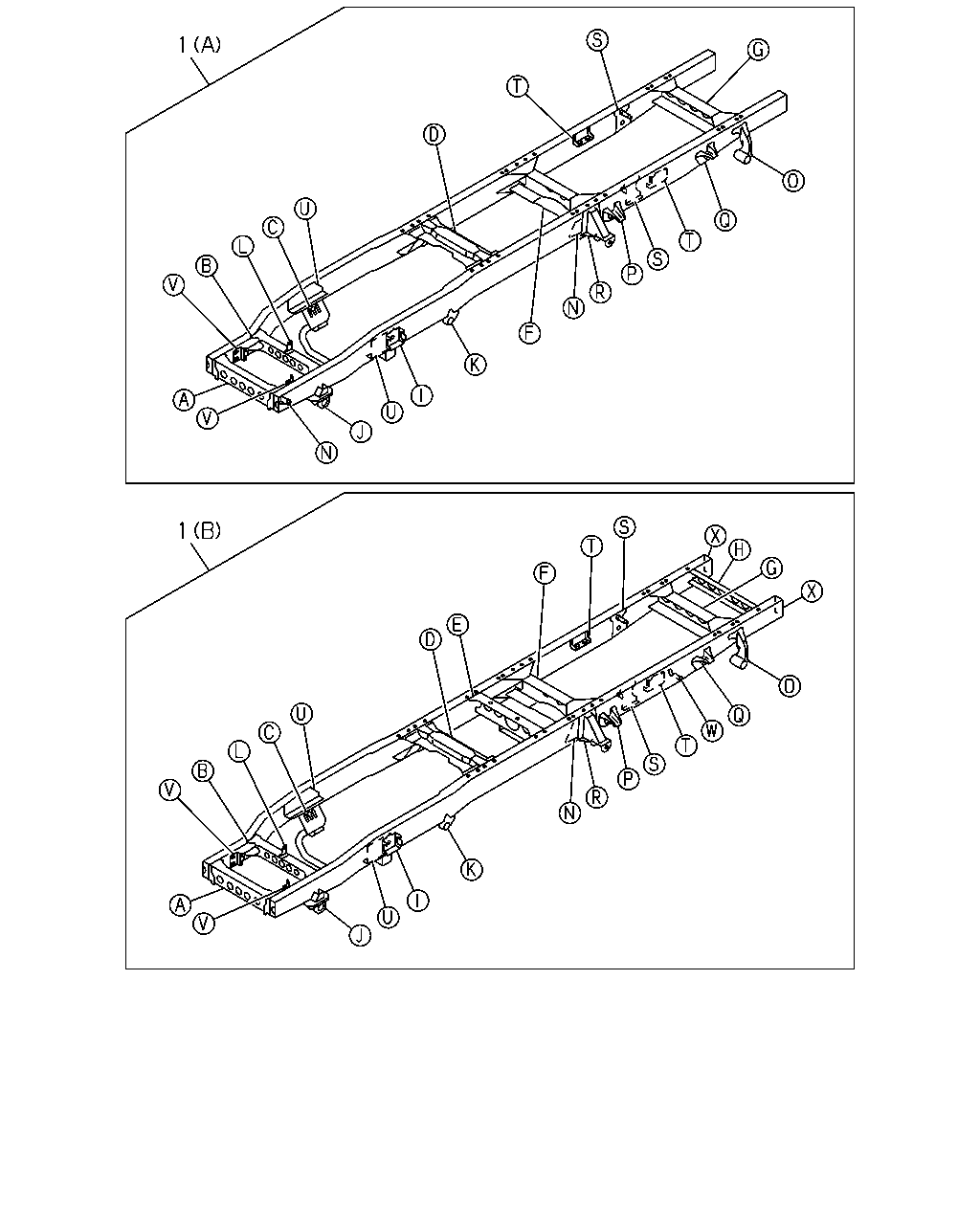

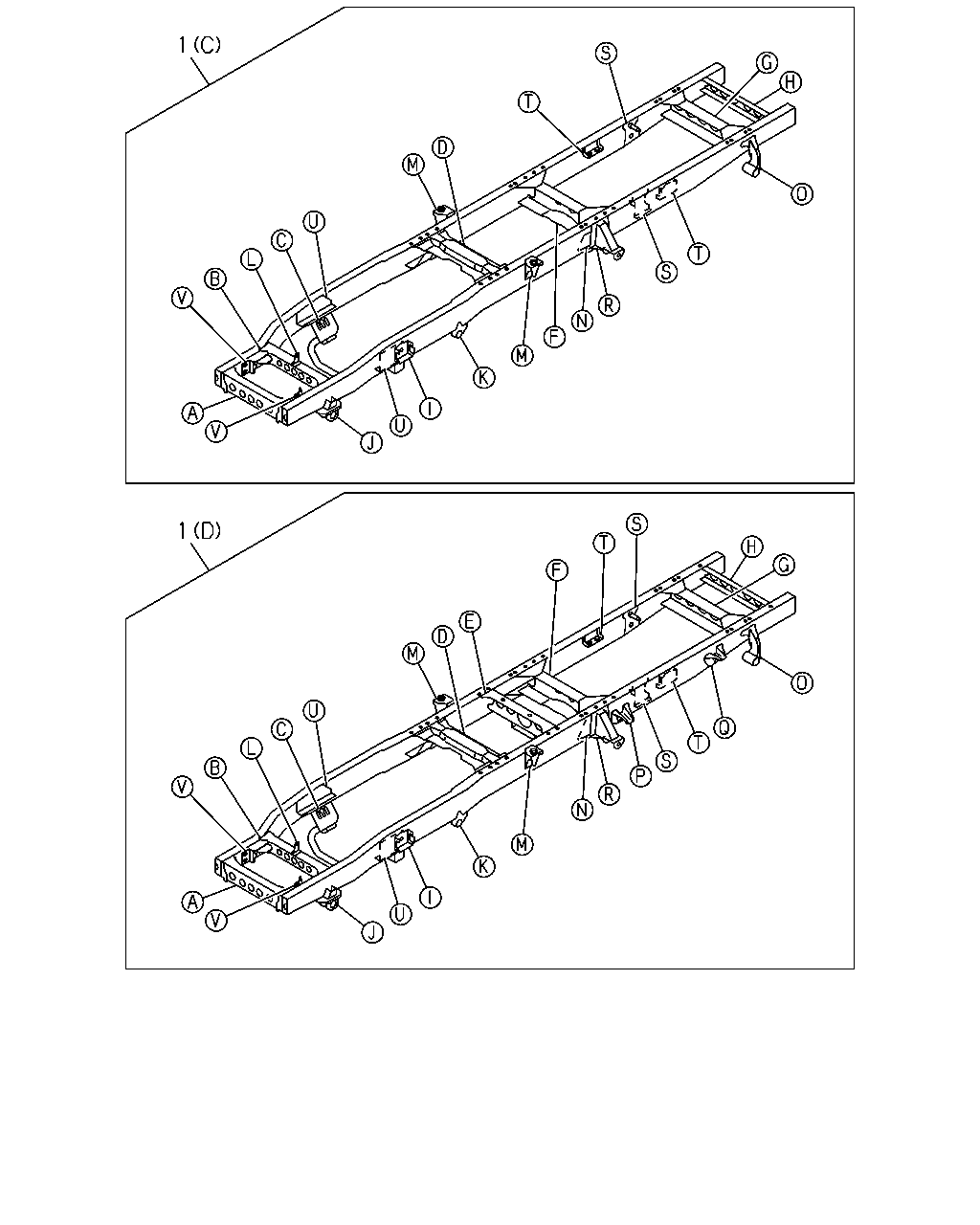

1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98322-843-0	01	1	1509-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (A)	8-98250-720-0	01	1	1308-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98237-454-0	01	1	1304-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98237-462-0	01	1	1304-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98254-647-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> (A)	8-98226-467-0	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> (A)	8-98255-006-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98226-468-0	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98255-007-1	01	1	1310-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A)	8-98112-942-0	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (A)	8-98112-942-0	01	1	1308-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-941-0	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-941-0	01	1	1308-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1012-1301		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1012-1301		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1302-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98257-662-0	01	1	1312-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98023-277-3	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98023-277-3	01	1	1308-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98257-663-0	01	1	1312-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98023-304-3	01	1	1012-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (A)	8-98257-664-0	01	1	1312-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-944-0	01	1	1012-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) (B)	8-98173-101-0	01	1	1012-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (B)	8-98112-943-0	01	1	1012-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98112-945-0	01	1	1012-1311	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98257-670-0	01	1	1312-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98023-262-4	01	1	1012-1311	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98257-665-0	01	1	1312-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98023-308-4	01	1	1012-1303	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98023-308-4	01	1	1304-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98023-265-4	01	1	1012-1303	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (B)	8-98023-265-4	01	1	1304-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) (A)	8-98105-286-2	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98105-286-2	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B)	8-98105-288-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98105-288-1	01	1	1302-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (C)	8-98072-771-3	01	1	1012-1301			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) FRONT STABILIZER SHAFT<F59> (C)	8-98072-771-3	01	1	1302-1309			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) FRONT STABILIZER SHAFT<F59> (C)	8-98254-646-1	01	1	1310-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98072-770-3	01	1	1012-1301			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98072-770-3	01	1	1302-1309			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98254-645-1	01	1	1310-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) (D)	8-98023-267-3	01	1	1012-1309				●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) (D)	8-98254-648-1	01	1	1310-				●

217 140 140 140 217 217 356 356 234 142 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
140	07.112 BRACKET; S/ABS,RR SINGLE RR TIRE(6TD) (A)	8-98006-174-0	02	1	1012-		●
140	07.112 BRACKET; S/ABS,RR (A)	8-98006-174-0	02	1	1012-			●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (B)	8-98006-177-1	01	1	1012-1311		●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (B)	8-98006-177-1	01	1	1312-		●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (C)	8-98006-179-1	01	1	1012-1311		●
140	07.112 BRACKET; S/ABS,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (C)	8-98006-179-1	01	1	1312-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1012-	●			●
140	07.112 BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	1012-	●			●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97259-035-0	01	1	1509-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (B)	8-97163-899-1	02	1	1012-		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1-T ENG(RDP) (C)	8-98006-210-0	02	1	1012-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (C)	8-98006-210-0	02	1	1012-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG(RJH) (A)	8-97202-417-0	02	1	1012-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 2400MM(24W) (A)	8-97202-417-0	02	1	1012-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-97202-417-0	02	1	1012-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (A)	8-97202-417-0	02	1	1012-				●
234	07.006 COVER; END,S/MBR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-249-0	02	1	1509-	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98062-610-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98062-610-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (A)	8-98062-610-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98062-610-1	01	1	1012-1301	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) (A)	8-98062-610-1	01	1	1012-1301	●
356	07.011 BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1012-1301			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98062-610-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98062-610-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (A)	8-98062-610-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98062-610-1	01	1	1302-1307	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1302-1307	●
356	07.011 BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1302-1307			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98062-610-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98062-610-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (A)	8-98062-610-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98062-610-1	01	1	1308-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98062-610-1	01	1	1308-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1308-1309			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (A)	8-98062-610-1	01	1	1310-1311	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98062-610-1	01	1	1310-1311		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98062-610-1	01	1	1310-1311		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98062-610-1	01	1	1310-1311	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B)	8-98062-611-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (B)	8-98062-611-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (B)	8-98062-611-1	01	1	1012-1301		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98062-611-1	01	1	1012-1301	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) (B)	8-98062-611-1	01	1	1012-1301	●
356	07.011 BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1012-1301			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B)	8-98062-611-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (B)	8-98062-611-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (B)	8-98062-611-1	01	1	1302-1307		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98062-611-1	01	1	1302-1307	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1302-1307	●
356	07.011 BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1302-1307			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B)	8-98062-611-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (B)	8-98062-611-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (B)	8-98062-611-1	01	1	1308-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98062-611-1	01	1	1308-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98062-611-1	01	1	1308-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1308-1309			●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1 ENG(RLF) (B)	8-98062-611-1	01	1	1310-1311	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B)	8-98062-611-1	01	1	1310-1311		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (B)	8-98062-611-1	01	1	1310-1311		●
356	07.011 BRACKET; ENG SUPPORT,INNER 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98062-611-1	01	1	1310-1311	●
533	07.010 STIFFENER; REINFORCEMENT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W)	8-98006-680-1	02	1	1310-1311	●
533	07.010 STIFFENER; REINFORCEMENT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00)	8-98006-680-1	02	1	1310-1311	●
533	07.010 STIFFENER; REINFORCEMENT 4HG1 ENG(RJH)	8-98006-680-1	02	1	1310-1311	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1310-1311			●	●
533	07.010 STIFFENER; REINFORCEMENT EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98006-680-1	02	1	1312-		●
533	07.010 STIFFENER; REINFORCEMENT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98006-680-1	02	1	1312-	●
533	07.010 STIFFENER; REINFORCEMENT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W)	8-98006-680-1	02	1	1312-	●
533	07.010 STIFFENER; REINFORCEMENT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00)	8-98006-680-1	02	1	1312-	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1312-			●	●

345 75 345 75 345 75 75 198 198 139 198 198 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

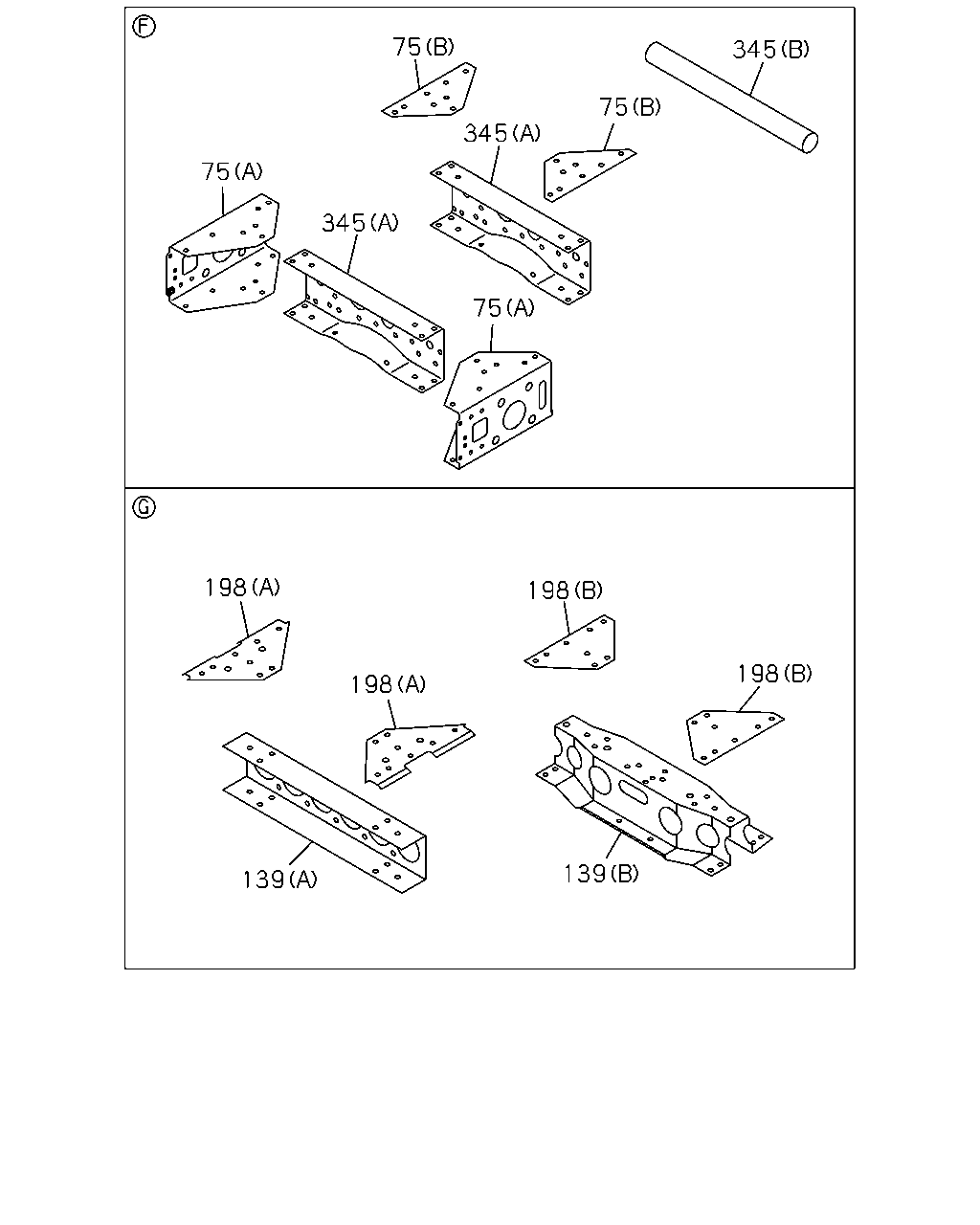

75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) (B) UPPER	8-98011-863-0	02	1	1012-1307		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (B) UPPER	8-98011-863-0	02	1	1012-1307		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) (B) UPPER	8-98011-863-0	02	1	1308-		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (B) UPPER	8-98011-863-0	02	1	1308-		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) (B) LOWER	8-98070-312-0	02	1	1012-1307		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (B) LOWER	8-98070-312-0	02	1	1012-1307		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1-TCC ENG(RDU) (B) LOWER	8-98070-312-0	02	1	1308-		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (B) LOWER	8-98070-312-0	02	1	1308-		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98006-124-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (A)	8-98006-124-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF) SINGLE RR TIRE(6TD) (A)	8-98006-124-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98006-124-1	01	1	1012-1301			●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98006-124-1	01	1	1302-		●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF) SINGLE RR TIRE(6TD) (A)	8-98006-124-1	01	1	1302-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98006-124-1	01	1	1302-			●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98011-312-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (A)	8-98011-312-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF) SINGLE RR TIRE(6TD) (A)	8-98011-312-1	01	1	1012-1301		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-312-1	01	1	1012-1301			●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98011-312-1	01	1	1302-		●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF) SINGLE RR TIRE(6TD) (A)	8-98011-312-1	01	1	1302-		●
75	07.039 GUSSET; 5TH C/MBR (A)	8-98011-312-1	01	1	1302-			●
75	07.039 GUSSET; 5TH C/MBR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) SMALL DOUBLE RR TIRE(6YE) (B)	8-98011-863-0	04	1	1012-		●
75	07.039 GUSSET; 5TH C/MBR (B)	8-98011-863-0	04	1	1012-	●			●
139	07.012 MEMBER; CROSS,6TH (B)	8-98006-168-1	01	1	1012-		●	●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	1012-	●			●
198	07.039 GUSSET; 6TH C/MBR (B)	8-98011-865-0	02	1	1012-		●	●
198	07.039 GUSSET; 6TH C/MBR (A) RH-LOWER,LH-UPPER	8-94258-068-1	02	1	1012-	●			●
198	07.039 GUSSET; 6TH C/MBR (A) RH-UPPER,LH-LOWER	8-94258-069-1	02	1	1012-	●			●
345	07.012 MEMBER; CROSS,5TH 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97033-229-1	01	1	1509-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	1012-	●	●	●	●

148 20 148 2 534 534 42 42 344 188 344 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

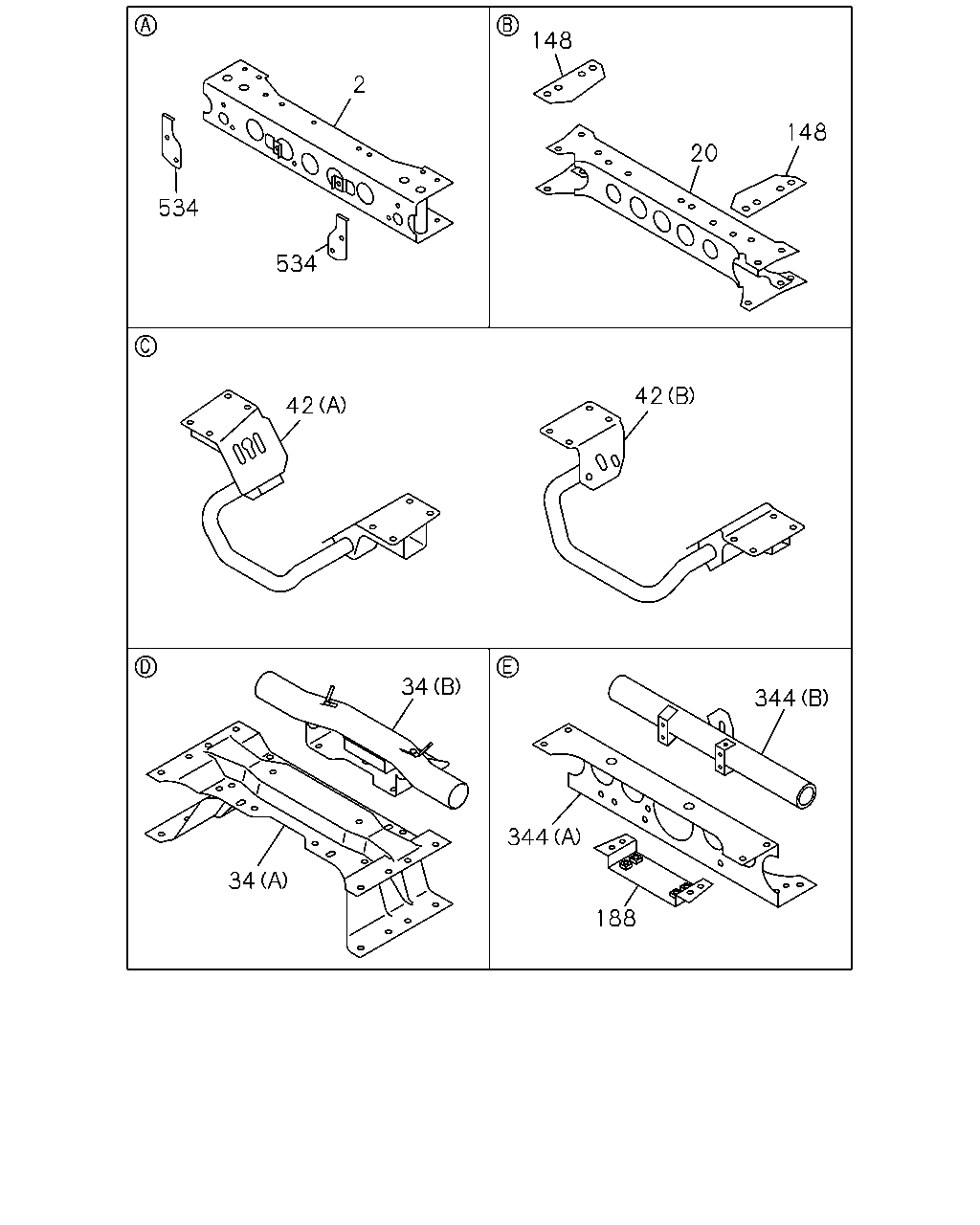

2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1012-	●	●	●	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	1012-	●	●	●	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-97256-169-0	01	1	1509-	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A)	8-97384-743-1	01	1	1012-1301		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-97384-743-1	01	1	1012-1301		●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP) (A)	8-97384-743-1	01	1	1012-1301	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (A)	8-97384-743-1	01	1	1012-1301	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A)	8-97384-743-1	01	1	1302-1303		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-97384-743-1	01	1	1302-1303		●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP) (A)	8-97384-743-1	01	1	1302-1303	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (A)	8-97384-743-1	01	1	1302-1303	●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1302-1303	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A)	8-97384-743-1	01	1	1304-1309		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-97384-743-1	01	1	1304-1309		●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP) (A)	8-97384-743-1	01	1	1304-1309	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (A)	8-97384-743-1	01	1	1304-1309	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEAVY DUTY FRAME<6WB> (A)	8-97384-743-1	01	1	1304-1309	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) (A)	8-97384-743-1	01	1	1310-1311		●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU) (A)	8-97384-743-1	01	1	1310-1311		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (A)	8-97384-743-1	01	1	1310-1311	●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97384-743-1	01	1	1310-1311	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1310-1311			●	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97384-743-1	01	1	1312-	●	●	●	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98081-959-0	01	1	1012-1301		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98081-959-0	01	1	1012-1301		●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) (A)	8-98081-959-0	01	1	1012-1301		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98081-959-0	01	1	1012-1301	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) (A)	8-98081-959-0	01	1	1012-1301	●
34	07.012 MEMBER; CROSS,3RD (A)	8-98081-959-0	01	1	1012-1301			●	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98081-959-0	01	1	1302-1307		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98081-959-0	01	1	1302-1307		●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) (A)	8-98081-959-0	01	1	1302-1307		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98081-959-0	01	1	1302-1307	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1302-1307	●
34	07.012 MEMBER; CROSS,3RD (A)	8-98081-959-0	01	1	1302-1307			●	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98081-959-0	01	1	1308-1309		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98081-959-0	01	1	1308-1309		●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) (A)	8-98081-959-0	01	1	1308-1309		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98081-959-0	01	1	1308-1309	●
34	07.012 MEMBER; CROSS,3RD 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98081-959-0	01	1	1308-1309	●
34	07.012 MEMBER; CROSS,3RD (A)	8-98081-959-0	01	1	1308-1309			●	●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) (A)	8-98081-959-0	01	1	1310-1311	●	●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98081-959-0	01	1	1310-1311		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98081-959-0	01	1	1310-1311		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98081-959-0	01	1	1310-1311	●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98063-653-0	01	1	1012-	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1-TCC ENG(RDU) (A)	8-98006-224-1	01	1	1012-	●	●
42	07.011 MEMBER; CROSS,ENG MTG (A)	8-98006-224-1	01	1	1012-			●	●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-98092-533-0	01	1	1012-	●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98081-958-0	04	1	1012-1301		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE)	8-98081-958-0	04	1	1012-1301		●
148	07.105 SPACER; C/MBR 4JB1 ENG(RLF)	8-98081-958-0	04	1	1012-1301		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00)	8-98081-958-0	04	1	1012-1301	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98081-958-0	04	1	1012-1301	●
148	07.105 SPACER; C/MBR	8-98081-958-0	04	1	1012-1301			●	●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98081-958-0	04	1	1302-1307		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE)	8-98081-958-0	04	1	1302-1307		●
148	07.105 SPACER; C/MBR 4JB1 ENG(RLF)	8-98081-958-0	04	1	1302-1307		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00)	8-98081-958-0	04	1	1302-1307	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1302-1307	●
148	07.105 SPACER; C/MBR	8-98081-958-0	04	1	1302-1307			●	●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98081-958-0	04	1	1308-1309		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE)	8-98081-958-0	04	1	1308-1309		●
148	07.105 SPACER; C/MBR 4JB1 ENG(RLF)	8-98081-958-0	04	1	1308-1309		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-98081-958-0	04	1	1308-1309	●
148	07.105 SPACER; C/MBR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB>	8-98081-958-0	04	1	1308-1309	●
148	07.105 SPACER; C/MBR	8-98081-958-0	04	1	1308-1309			●	●
148	07.105 SPACER; C/MBR 4JB1 ENG(RLF)	8-98081-958-0	04	1	1310-1311	●	●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10)	8-98081-958-0	04	1	1310-1311		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE)	8-98081-958-0	04	1	1310-1311		●
148	07.105 SPACER; C/MBR 4JB1-TC ENG(RDT) EXC. INDONESIA EQUIPMENT(B00)	8-98081-958-0	04	1	1310-1311	●
188	07.039 BRACKET; SUPPORT,CTR BRG 4HG1-T ENG(RDP)	8-97083-157-1	01	1	1012-	●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1012-	●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	1012-				●
344	07.012 MEMBER; CROSS,4TH 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98039-740-0	01	1	1509-	●
344	07.012 MEMBER; CROSS,4TH 4HG1-T ENG(RDP) (A)	8-98005-959-1	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) (A)	8-98005-959-1	01	1	1012-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-98005-959-1	01	1	1012-				●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1012-	●	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1012-	●	●	●	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 176 60 176 176 296 118 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-1301		●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-1301		●
40	08.155 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-1301	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-1301	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1302-1303		●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1302-1303		●
40	08.155 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1302-1303	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1302-1303	●
40	08.155 BOLT; BRKT TO FRAME 4HG1 ENG(RJH) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1302-1303	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1304-1309		●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1304-1309		●
40	08.155 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1304-1309	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1304-1309	●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) HEAVY DUTY FRAME<6WB> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1304-1309	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-1311		●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-1311		●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-1311	●
40	08.155 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-1311	●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-1311			●	●
40	08.155 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1312-		●
40	08.155 BOLT; BRKT TO FRAME 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1312-		●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1312-	●		●	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1012-1311		●	●	●
60	05.601 BOLT; MBR 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 07.039 M10X30	0-20851-030-0	04	1	1012-1311	●
60	05.601 BOLT; MBR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 07.039 M10X30	0-20851-030-0	04	1	1012-1311	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1312-	●	●	●	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1311		●	●	●
62	05.601 NUT; MBR 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1311	●
62	05.601 NUT; MBR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1311	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1312-	●	●	●	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-	●	●	●	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1012-	●			●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 03.890 (A) M10X30 FLANGE	0-28051-030-0	06	1	1302-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> 04.510 (B) M10X35 FLANGE	0-28051-035-0	02	1	1302-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) (A) M10X30 FLANGE	0-28061-030-0	06	1	1012-1301	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) (A) M10X30 FLANGE	0-28061-030-0	06	1	1302-1508	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	06	1	1302-1508	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) (A) M10X30 FLANGE	0-28061-030-0	06	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	06	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) M10X30 FLANGE	0-28061-030-0	06	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1012-1301	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1302-1508	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1302-1508	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1-T ENG(RDP) 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 07.395 (B) M10X35 FLANGE	0-28061-035-0	02	1	1509-	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C) M14X45 FLANGE	0-29261-445-0	08	1	1012-1311	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) (A) M10X30 FLANGE	0-28061-030-0	08	1	1012-1301	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH) EXC. HEAVY DUTY FRAME<6WB> (A) M10X30 FLANGE	0-28061-030-0	08	1	1302-1309	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-				●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1012-1311		●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1012-1311	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1012-1311	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1312-		●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1312-	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1312-	●
296	07.039 BOLT; 3RD C/MBR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10X30	0-20851-030-0	04	1	1012-1311	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	1012-	●	●	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	1012-	●	●	●	●

365 173 173 43 43 105 215 215 105 215 105 215 103 446 103 147 101 101 101 101 147 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	1012-			●	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	1012-			●	●
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-97034-223-1	02	1	1509-	●
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH) (B)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-98243-604-0	02	1	1310-				●
101	07.112 BRACKET; RR SPR,FRT SINGLE RR TIRE(6TD) (C)	8-98034-042-0	02	1	1012-		●
101	07.112 BRACKET; RR SPR,FRT (C)	8-98034-042-0	02	1	1012-			●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-97164-485-1	02	1	1012-1311		●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (A)	8-97164-485-1	02	1	1312-		●
101	07.112 BRACKET; RR SPR,FRT 4HG1-T ENG(RDP) (B)	8-97042-245-1	02	1	1012-	●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (B)	8-97042-245-1	02	1	1012-	●
101	07.112 BRACKET; RR SPR,FRT 4HG1 ENG(RJH) (B)	8-97034-156-1	02	1	1012-1309	●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 2400MM(24W) (B)	8-97034-156-1	02	1	1012-1309	●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-97034-156-1	02	1	1012-1309	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-97034-156-1	02	1	1012-1309				●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 2400MM(24W) (B)	8-97034-156-1	02	1	1310-1311	●
101	07.112 BRACKET; RR SPR,FRT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-97034-156-1	02	1	1310-1311	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) (B)	8-97034-156-1	02	1	1312-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	1012-	●			●
103	07.420 STOPPER; SUB SPR (A)	8-97223-750-0	02	1	1012-	●			●
105	07.112 BRACKET; RR SPR,RR 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-97184-907-0	02	1	1509-	●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (C)	8-98031-058-0	01	1	1012-		●
105	07.112 BRACKET; RR SPR,RR (C)	8-98031-058-0	01	1	1012-			●
105	07.112 BRACKET; RR SPR,RR SINGLE RR TIRE(6TD) (C)	8-98031-059-0	01	1	1012-		●
105	07.112 BRACKET; RR SPR,RR (C)	8-98031-059-0	01	1	1012-			●
105	07.112 BRACKET; RR SPR,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-97164-482-0	02	1	1012-1311		●
105	07.112 BRACKET; RR SPR,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (A)	8-97164-482-0	02	1	1312-		●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	1012-	●			●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	1012-	●			●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1012-	●			●
173	07.112 STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1012-	●			●
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH) (A)	8-98012-948-2	02	1	1012-	●
173	07.112 STIFFENER; RR SPRING 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 2400MM(24W) (A)	8-98012-948-2	02	1	1012-	●
173	07.112 STIFFENER; RR SPRING 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98012-948-2	02	1	1012-	●
173	07.112 STIFFENER; RR SPRING (A)	8-98012-948-2	02	1	1012-				●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1012-	●			●
365	07.039 REINFORCEMENT; TRUNNION 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97033-251-2	01	1	1509-	●
365	07.039 REINFORCEMENT; TRUNNION 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-97185-188-1	01	1	1509-	●
446	07.112 STIFFENER; SPRING STOPPER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00)	8-98060-184-1	02	1	1012-1311	●
446	07.112 STIFFENER; SPRING STOPPER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00)	8-98060-184-1	02	1	1312-	●
446	07.112 STIFFENER; SPRING STOPPER 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1012-1309	●
446	07.112 STIFFENER; SPRING STOPPER 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98060-184-1	01	1	1310-	●
446	07.112 STIFFENER; SPRING STOPPER 4JJ1-TCC ENG(RDU)	8-98060-184-1	01	1	1310-				●

130 130 24 165 39 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1012-	●	●	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1012-	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1012-	●	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98092-751-0	01	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98092-753-0	01	1	1012-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1012-		●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF)	8-98038-962-3	02	1	1012-	●
130	07.014 MEMBER; CROSS,END 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-94388-995-3	01	1	1509-	●
130	07.014 MEMBER; CROSS,END 4HG1-T ENG(RDP) (A)	8-98041-239-1	01	1	1012-	●
130	07.014 MEMBER; CROSS,END 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) (A)	8-98041-239-1	01	1	1012-	●
130	07.014 MEMBER; CROSS,END (A)	8-98041-239-1	01	1	1012-				●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1012-	●	●	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98322-843-0	01	1	1509-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (A)	8-98250-720-0	01	1	1308-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98237-454-0	01	1	1304-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98237-462-0	01	1	1304-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98254-647-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> (A)	8-98226-467-0	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> (A)	8-98255-006-1	01	1	1310-	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98226-468-0	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> (B)	8-98255-007-1	01	1	1310-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A)	8-98112-942-0	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (A)	8-98112-942-0	01	1	1308-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-941-0	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-941-0	01	1	1308-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1012-1301		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1012-1301		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98023-276-3	01	1	1302-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRONT STABILIZER SHAFT<F59> (A)	8-98257-662-0	01	1	1312-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00) (A)	8-98023-277-3	01	1	1012-1307		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98023-277-3	01	1	1308-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (A)	8-98257-663-0	01	1	1312-		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) SMALL DOUBLE RR TIRE(6YE) (A)	8-98023-304-3	01	1	1012-1311		●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SMALL DOUBLE RR TIRE(6YE) (A)	8-98257-664-0	01	1	1312-		●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-98112-944-0	01	1	1012-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) (B)	8-98173-101-0	01	1	1012-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (B)	8-98112-943-0	01	1	1012-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98112-945-0	01	1	1012-1311	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) HEAVY DUTY FRAME<6WB> (A)	8-98257-670-0	01	1	1312-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98023-262-4	01	1	1012-1311	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> EXC. INDONESIA EQUIPMENT(B00) (B)	8-98257-665-0	01	1	1312-	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98023-308-4	01	1	1012-1303	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98023-308-4	01	1	1304-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00) (B)	8-98023-265-4	01	1	1012-1303	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (B)	8-98023-265-4	01	1	1304-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) (A)	8-98105-286-2	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98105-286-2	01	1	1302-1309	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B)	8-98105-288-1	01	1	1012-1301	●
1	07.003 FRAME ASM 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98105-288-1	01	1	1302-1309	●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SINGLE RR TIRE(6TD) (C)	8-98072-771-3	01	1	1012-1301			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) FRONT STABILIZER SHAFT<F59> (C)	8-98072-771-3	01	1	1302-1309			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) FRONT STABILIZER SHAFT<F59> (C)	8-98254-646-1	01	1	1310-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98072-770-3	01	1	1012-1301			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98072-770-3	01	1	1302-1309			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) EXC. FRONT STABILIZER SHAFT<F59> (C)	8-98254-645-1	01	1	1310-			●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) (D)	8-98023-267-3	01	1	1012-1309				●
1	07.003 FRAME ASM 4JJ1-TCC ENG(RDU) (D)	8-98254-648-1	01	1	1310-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
