◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#78405) — 339 parça

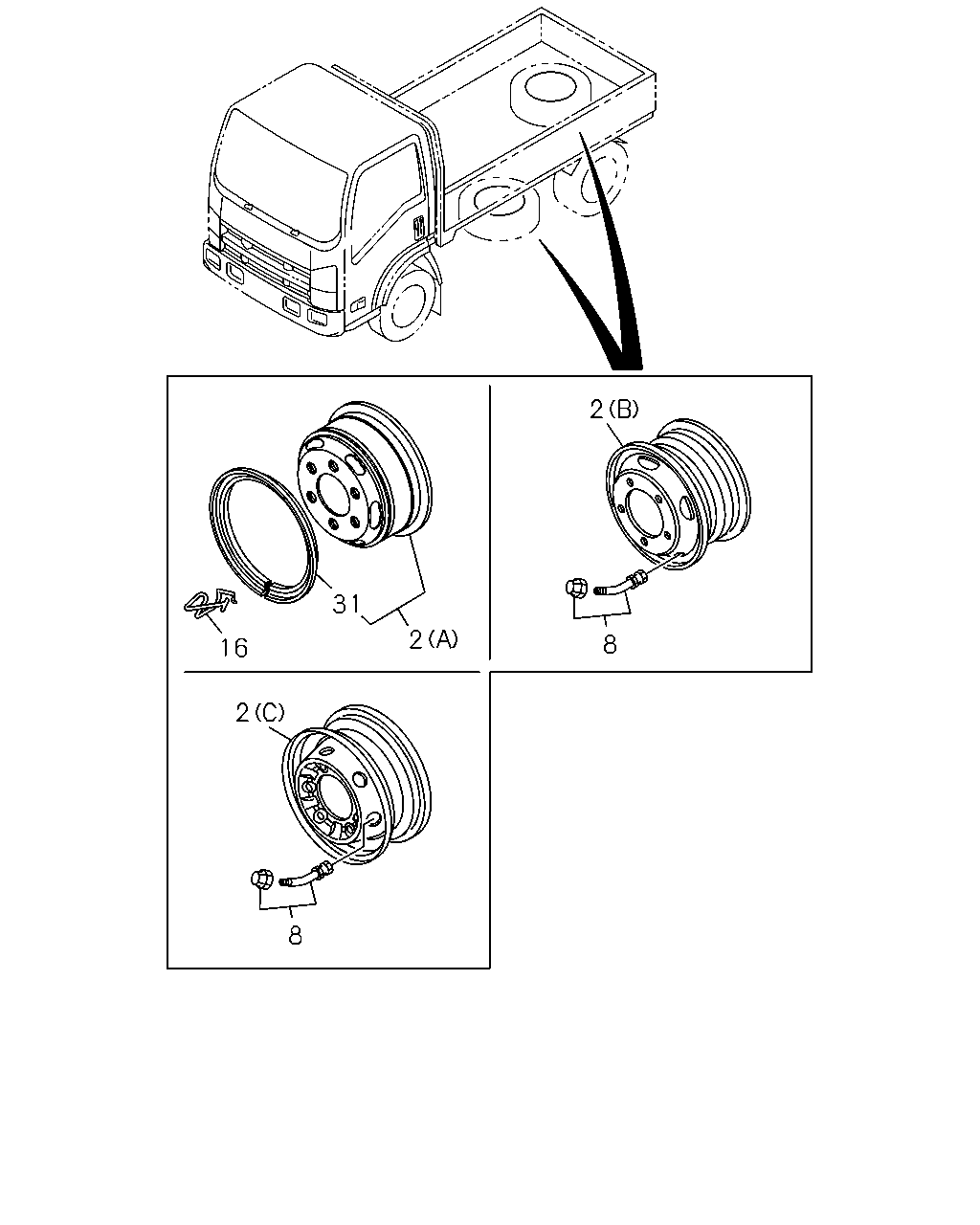

çizim 125246
2 8 2 31 16 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) REAR-REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 1309- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1101- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) SPARE-REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1012- ● ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) SPARE 		8-98221-108-0 01 1 1101- ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) REAR 		8-98221-108-0 04 1 1101- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 01 1 1309- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT7R-15-10 RR 7 .5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1012- ● ●

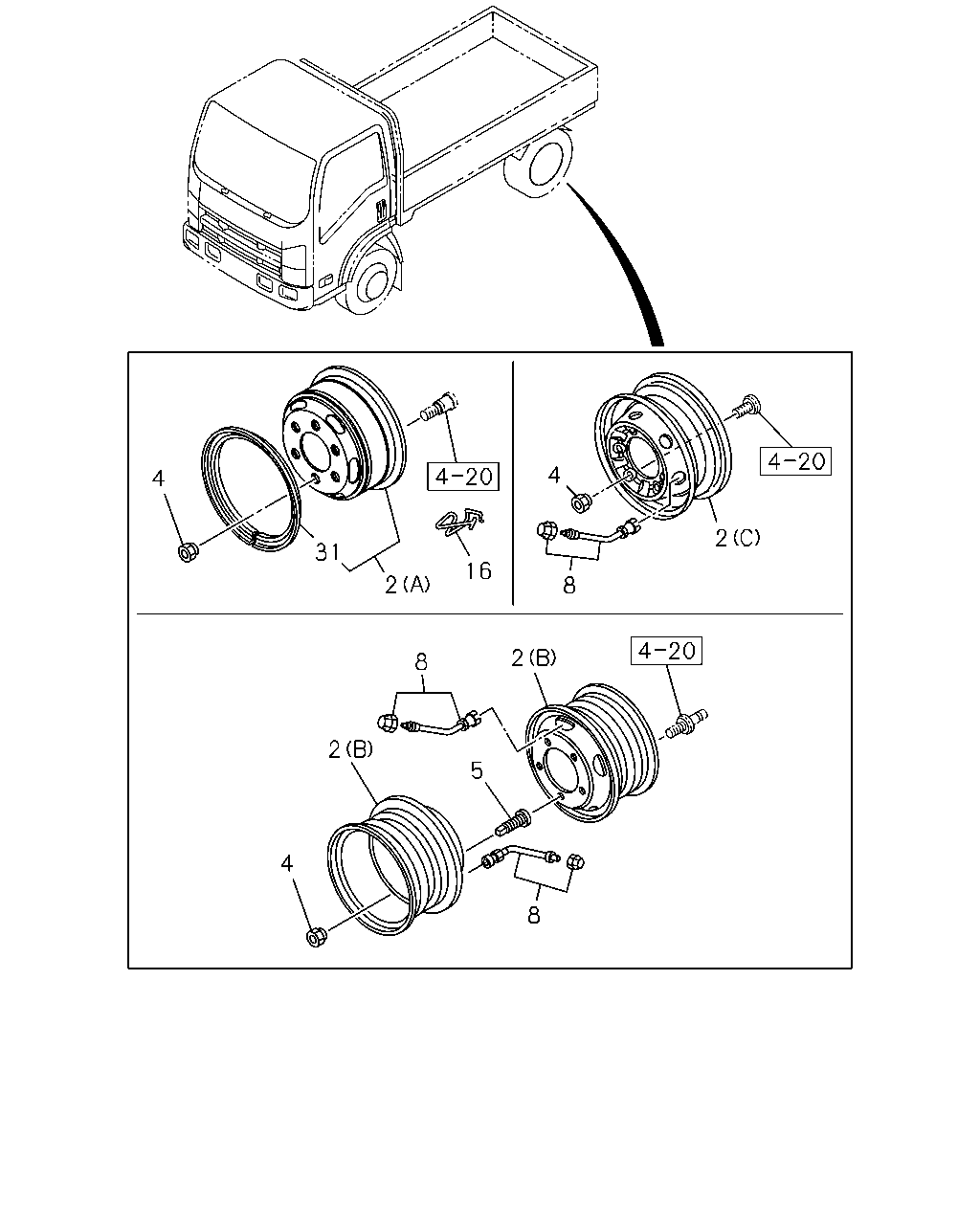

çizim 125676
4 2 8 16 2 31 4 2 8 2 8 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) REAR-REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 1309- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1101- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) SPARE-REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1012- ● ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1012-1301 ● ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1012-1301 ● ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 RH THREAD 		8-98007-830-0 06 1 1012- ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 LH THREAD 		8-98007-831-0 06 1 1012- ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 RH THREAD 		8-98007-824-0 05 1 1012-1301 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1012-1301 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-98007-824-0 05 1 1012-1301 ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 RH THREAD 		8-98007-824-0 05 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 1302- ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 LH THREAD 		8-98007-825-0 05 1 1012-1301 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1012-1301 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-98007-825-0 05 1 1012-1301 ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 LH THREAD 		8-98007-825-0 05 1 1302- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 1302- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
SMALL DOUBLE RR TIRE(6YE) OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 1012- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
SMALL DOUBLE RR TIRE(6YE) OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 1012- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1012-1301 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1012-1301 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1012-1301 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1302- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1302- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1012-1301 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1012-1301 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1012-1301 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1302- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1302- ● ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) SPARE 		8-98221-108-0 01 1 1101- ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) REAR 		8-98221-108-0 04 1 1101- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 01 1 1309- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT7R-15-10 RR 7 .5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1012- ● ●

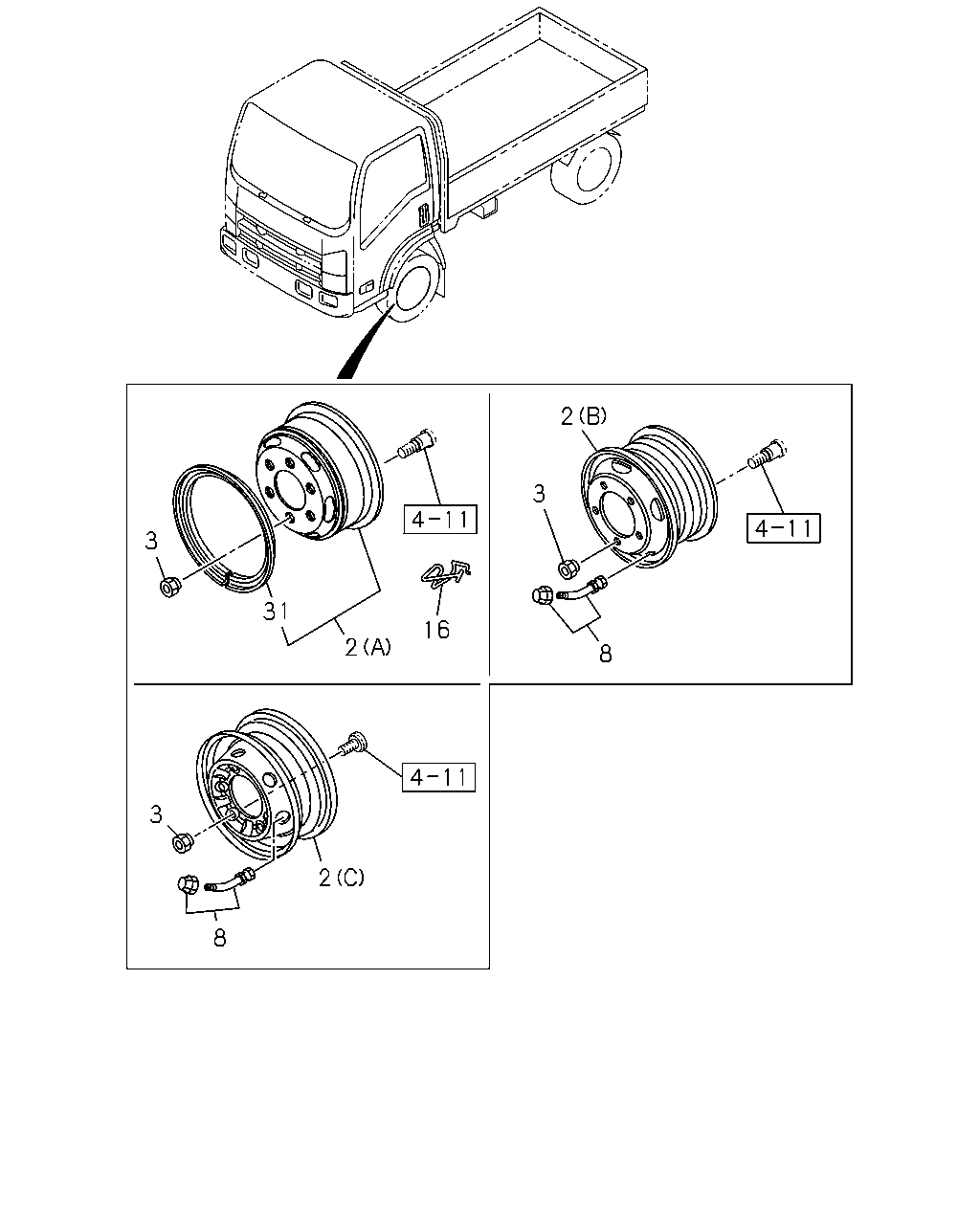

çizim 191080
2 3 8 16 2 31 3 8 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) (A) REAR-REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-1 02 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 1309- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX1 6-85(CYD) (A) FRONT,REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 1309- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1101- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE 		8-94119-944-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) SPARE-REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER 		8-97145-128-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) SPARE-FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP) (C) FRONT 15X5.5K OFFSET=30 PLATINUM SILVER 		8-97258-374-1 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE-REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1012-1301 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1101-1301 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
(A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 1302- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 1101- ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) SPARE-REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) SPARE-FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 01 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX 13-98(22V) (C) FRONT 4.5KX15 OFFSET=30 BLACK 6-HOLE 		8-94128-559-0 02 1 1012-1012 ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1012- ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 1012- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 1012- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 RH THREAD 		8-98007-905-0 06 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 RH THREAD 		8-98007-905-0 06 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 LH THREAD 		8-98007-906-0 06 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 LH THREAD 		8-98007-906-0 06 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 RH THREAD 		8-98007-907-0 05 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1012-1301 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 RH THREAD 		8-98007-907-0 05 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 RH THREAD 		8-98007-907-0 05 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 1302- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 LH THREAD 		8-98007-908-0 05 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1012-1301 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 LH THREAD 		8-98007-908-0 05 1 1012-1301 ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 LH THREAD 		8-98007-908-0 05 1 1302- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 1302- ● ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) SPARE 		8-98221-108-0 01 1 1101- ●
8 05.875 VALVE; TIRE
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) REAR 		8-98221-108-0 04 1 1101- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) SPARE 		8-98221-106-0 01 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA) FRONT,REAR 		8-98221-106-0 06 1 1012- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 01 1 1309- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC) 		8-97017-494-1 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1101-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ● ●
31 05.839 RING; SIDE,DISC WHEEL
SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 1302- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1012-1308 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT7R-15-10 RR 7 .5R-15-12 F/R DISC 5.5F-15-85(CYC) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1012-1012 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 1101- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) SPARE-REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F-15-85(CYC) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1012-1301 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1012-1301 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1302-1308 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) ,FRT&RR TIRE 7R-16-12 FRT&RR DISC 5.5FX16-85(CYD) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 1309- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 1012- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
