◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#78402) — 12 parça

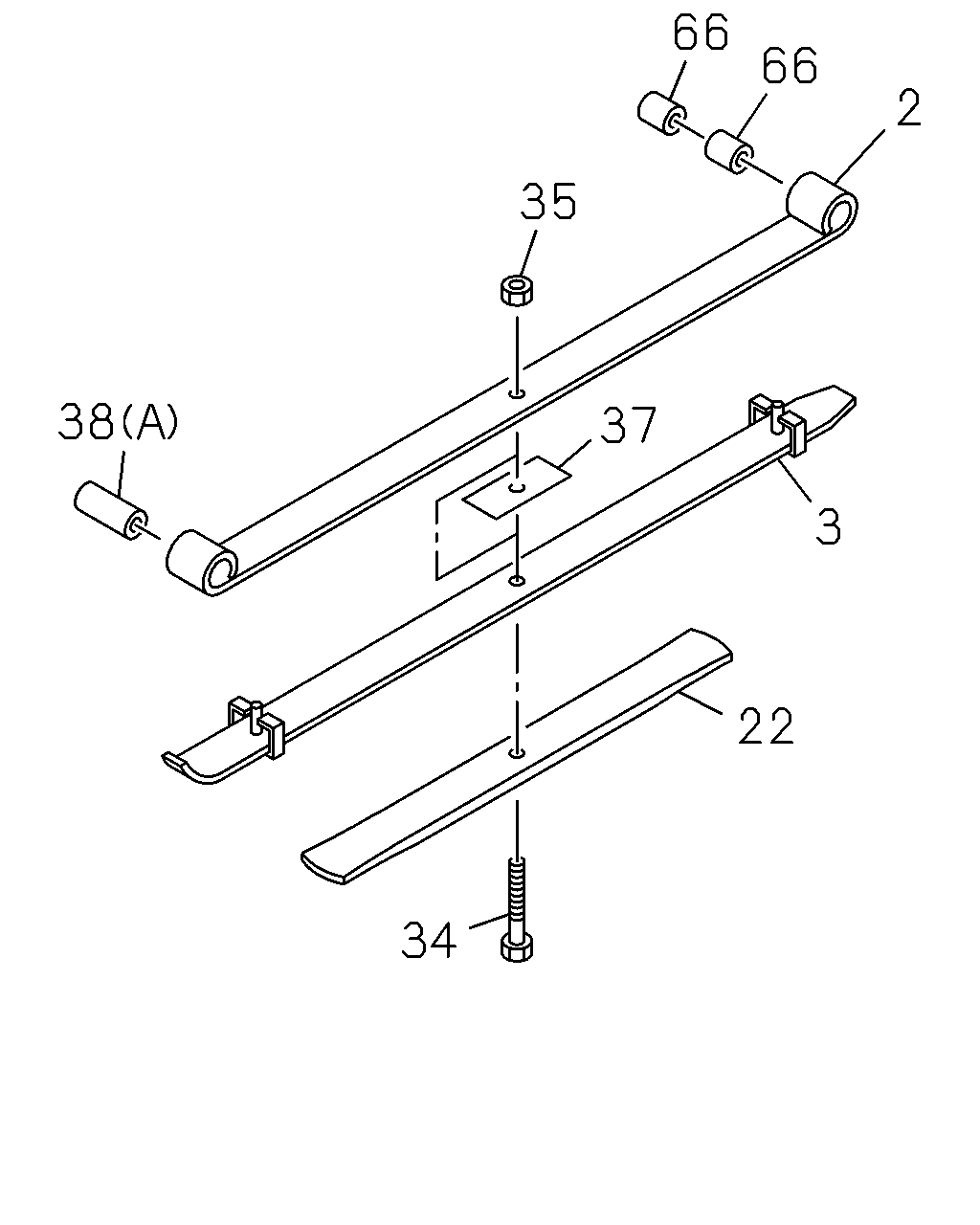

çizim 125093
22 34 38 66 35 37 3 2 66
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-543-1, 98001543 		8-98044-390-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98001-548-1, 98001548 		8-98044-405-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-543-1, 98001543 		8-98044-391-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98001-548-1, 98001548 		8-98044-406-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-543-1, 98001543 		8-98044-392-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98001-548-1, 98001548 		8-98044-407-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=60 ASM PART: A = 8-98001-543-1, 98001543, B = 8-98001-548-1, 98001548 		8-97086-030-0 01 1 -1109
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=55 ASM PART: A = 8-98001-543-1, 98001543, B = 8-98001-548-1, 98001548 		8-97226-392-0 01 1 1110-
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
05.002, M12 ASM PART: A = 8-98001-543-1, 98001543, B = 8-98001-548-1, 98001548 		9-99110-112-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
ASM PART: B = 8-98001-548-1, 98001548 		8-97086-040-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.105, (A) ASM PART: A = 8-98001-543-1, 98001543, B = 8-98001-548-1, 98001548 		8-94130-354-0 01 1 -
66 07.513 COLLAR; LEAF SPR,RR
07.524, L=35 ASM PART: A = 8-98001-543-1, 98001543, B = 8-98001-548-1, 98001548 		8-94249-427-0 02 1 -
