1 |

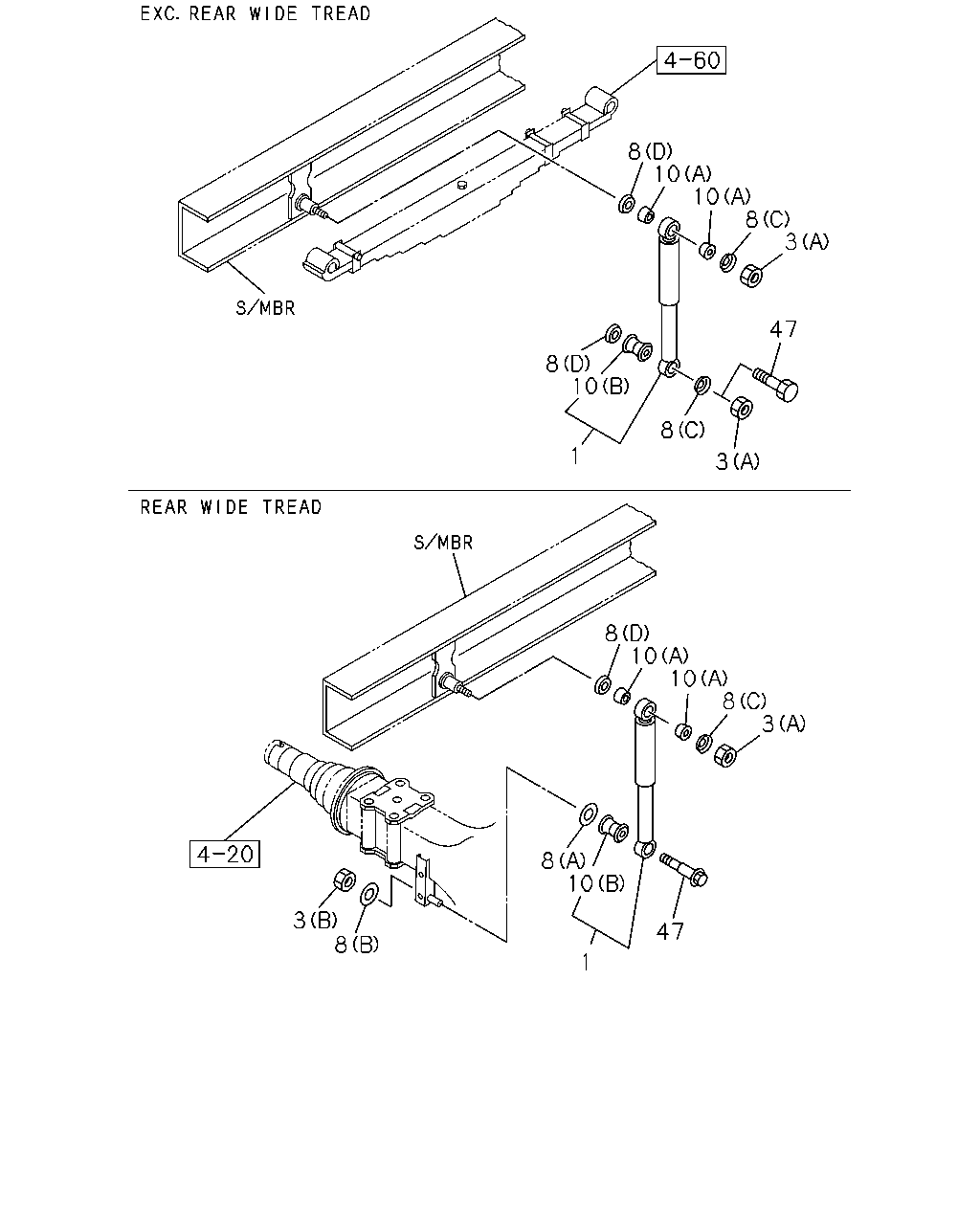

07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.5-6.0TON(RPU)
FRAME-KICK UP<7EW>
EXC. REAR WIDE TREAD(V4T)
|
8-97253-645-1 |
02 |
1 |
1506- |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T)
|
8-97253-651-2 |
02 |
1 |
1012-1111 |
● |
● |
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-97253-651-2 |
02 |
1 |
1012-1111 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ)
REAR WIDE TREAD(V4T)
|
8-97253-651-2 |
02 |
1 |
1112-1301 |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
|
8-97253-651-2 |
02 |
1 |
1112-1301 |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-97253-651-2 |
02 |
1 |
1112-1301 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
|
8-97253-651-2 |
02 |
1 |
1302-1506 |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-97253-651-2 |
02 |
1 |
1302-1506 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
SINGLE RR TIRE(6TD)
|
8-98018-780-0 |
02 |
1 |
1012-1111 |
|
● |
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
|
8-98018-780-0 |
02 |
1 |
1112-1301 |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
|
8-98018-780-0 |
02 |
1 |
1112-1301 |
|
|
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
|
8-98018-780-1 |
02 |
1 |
1302-1506 |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-98018-780-1 |
02 |
1 |
1302-1506 |
|
|
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
|
8-98316-232-0 |
02 |
1 |
1507- |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-98316-232-0 |
02 |
1 |
1507- |
|
|
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
SMALL DOUBLE RR TIRE(6YE)
|
8-97253-636-0 |
02 |
1 |
1012-1111 |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP)
SMALL DOUBLE RR TIRE(6YE)
EXC. REAR WIDE TREAD(V4T)
|
8-97253-636-1 |
02 |
1 |
1112- |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
REAR WIDE TREAD(V4T)
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1105-1111 |
● |
● |
● |
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1105-1111 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.5-4.0TON(RPQ)
REAR WIDE TREAD(V4T)
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1112-1301 |
|
● |
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1112-1301 |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1112-1301 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1302-1506 |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS
|
5-87610-132-0 |
02 |
1 |
1302-1506 |
|
|
|
● |
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
|
8-98316-233-0 |
02 |
1 |
1507- |
● |
|
|
|
| |
1 |
07.395 ABSORBER ASM; SHOCK,RR
|
8-98316-233-0 |
02 |
1 |
1507- |
|
|
|
● |
| |
3 |
07.347 NUT; S/ABS
REAR WIDE TREAD(V4T)
00.785
(B)
M16
|
0-91111-516-0 |
02 |
1 |
1012-1301 |
● |
● |
● |
|
| |
3 |
07.347 NUT; S/ABS
00.785
(B)
M16
|
0-91111-516-0 |
02 |
1 |
1012-1301 |
|
|
|
● |
| |
3 |
07.347 NUT; S/ABS
REAR WIDE TREAD(V4T)
00.785
(B)
M16
|
0-91111-516-0 |
02 |
1 |
1302- |
● |
● |
|
|
| |
3 |
07.347 NUT; S/ABS
00.785
(B)
M16
|
0-91111-516-0 |
02 |
1 |
1302- |
|
|
|
● |
| |
3 |
07.347 NUT; S/ABS
SINGLE RR TIRE(6TD)
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1012-1301 |
|
● |
● |
|
| |
3 |
07.347 NUT; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
SINGLE RR TIRE(6TD)
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
3 |
07.347 NUT; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
SINGLE RR TIRE(6TD)
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
3 |
07.347 NUT; S/ABS
05.002
(A)
M12
|
0-91110-512-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
3 |
07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1012-1301 |
● |
|
|
● |
| |
3 |
07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD)
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
3 |
07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1302-1505 |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1302-1505 |
● |
|
|
● |
| |
3 |
07.347 NUT; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1506- |
|
● |
|
|
| |
3 |
07.347 NUT; S/ABS
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1506- |
● |
|
|
● |
| |
3 |
07.347 NUT; S/ABS
FRAME-KICK UP<7EW>
07.833
(A)
M14
|
0-91110-514-0 |
02 |
1 |
1506- |
● |
|
|
|
| |
8 |
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T)
07.516
(A)
ID=16.4
|
8-97360-118-0 |
02 |
1 |
1012-1301 |
● |
● |
● |
|
| |
8 |
07.347 WASHER; S/ABS
07.516
(A)
ID=16.4
|
8-97360-118-0 |
02 |
1 |
1012-1301 |
|
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T)
07.516
(A)
ID=16.4
|
8-97360-118-0 |
02 |
1 |
1302- |
● |
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
07.516
(A)
ID=16.4
|
8-97360-118-0 |
02 |
1 |
1302- |
|
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T)
07.427
(B)
ID=16.5
|
8-98011-489-0 |
02 |
1 |
1012-1301 |
● |
● |
● |
|
| |
8 |
07.347 WASHER; S/ABS
07.427
(B)
ID=16.5
|
8-98011-489-0 |
02 |
1 |
1012-1301 |
|
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
REAR WIDE TREAD(V4T)
07.427
(B)
ID=16.5
|
8-98011-489-0 |
02 |
1 |
1302- |
● |
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
07.427
(B)
ID=16.5
|
8-98011-489-0 |
02 |
1 |
1302- |
|
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1012-1301 |
|
● |
● |
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
(D)
ID=16.5
|
9-51679-021-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1012-1301 |
|
● |
● |
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
SINGLE RR TIRE(6TD)
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1012-1301 |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD)
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1302-1505 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1302-1505 |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1506- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1506- |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
FRAME-KICK UP<7EW>
(C)
ID=15
|
8-97360-056-0 |
02 |
1 |
1506- |
● |
|
|
|
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1012-1301 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1012-1301 |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD)
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1012-1301 |
|
|
● |
|
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1302-1505 |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1302-1505 |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1506- |
|
● |
|
|
| |
8 |
07.347 WASHER; S/ABS
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1506- |
● |
|
|
● |
| |
8 |
07.347 WASHER; S/ABS
FRAME-KICK UP<7EW>
(D)
ID=20.0
|
8-97360-057-0 |
02 |
1 |
1506- |
● |
|
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1012-1111 |
● |
● |
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1012-1111 |
|
|
|
● |
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 3.5-4.0TON(RPQ)
REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1112-1301 |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1112-1301 |
● |
|
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1112-1301 |
|
|
|
● |
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1302-1505 |
● |
|
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1302-1505 |
|
|
|
● |
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 5.5-6.0TON(RPU)
FRAME-KICK UP<7EW>
EXC. REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1506- |
● |
|
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW)
REAR WIDE TREAD(V4T)
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1506- |
● |
|
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(B)
TOKICO
|
8-94382-149-0 |
02 |
1 |
1506- |
|
|
|
● |
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD)
07.347
(B)
TOKICO
|
8-94224-694-0 |
02 |
1 |
1012-1111 |
|
● |
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 3.0-3.5TON(RPP),G.V.W.
3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
07.347
(B)
TOKICO
|
8-94224-694-0 |
02 |
1 |
1112-1301 |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
07.347
(B)
TOKICO
|
8-94224-694-0 |
02 |
1 |
1112-1301 |
|
|
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
G.V.W. 3.0-3.5TON(RPP),G.V.W.
4.0-4.5TON(RPR)
SINGLE RR TIRE(6TD)
EXC. REAR WIDE TREAD(V4T)
07.347
(B)
TOKICO
|
8-94224-694-0 |
02 |
1 |
1302- |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
07.347
(B)
TOKICO
|
8-94224-694-0 |
02 |
1 |
1302- |
|
|
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
07.347
(A)
KYB
|
8-94132-727-1 |
04 |
1 |
1012-1301 |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD)
07.347
(A)
KYB
|
8-94132-727-1 |
04 |
1 |
1012-1301 |
|
|
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
07.347
(A)
KYB
|
8-94132-727-1 |
04 |
1 |
1302- |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
07.347
(A)
KYB
|
8-94132-727-1 |
04 |
1 |
1302- |
|
|
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(A)
TOKICO
|
9-51631-014-0 |
04 |
1 |
1012-1301 |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(A)
TOKICO
|
9-51631-014-0 |
04 |
1 |
1012-1301 |
● |
|
|
● |
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD)
(A)
TOKICO
|
9-51631-014-0 |
04 |
1 |
1012-1301 |
|
|
● |
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE
RR TIRE(6YE)
(A)
TOKICO
|
9-51631-014-0 |
04 |
1 |
1302- |
|
● |
|
|
| |
10 |
07.388 BUSHING; RUBBER,S/ABS
(A)
TOKICO
|
9-51631-014-0 |
04 |
1 |
1302- |
● |
|
|
● |
| |
47 |
07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T)
|
8-97316-972-0 |
02 |
1 |
1012-1301 |
● |
● |
● |
|
| |
47 |
07.347 PIN; S/ABS SETTING
|
8-97316-972-0 |
02 |
1 |
1012-1301 |
|
|
|
● |
| |
47 |
07.347 PIN; S/ABS SETTING
REAR WIDE TREAD(V4T)
|
8-97316-972-0 |
02 |
1 |
1302- |
● |
● |
|
|
| |
47 |
07.347 PIN; S/ABS SETTING
|
8-97316-972-0 |
02 |
1 |
1302- |
|
|
|
● |
| |
47 |
07.347 PIN; S/ABS SETTING
SMALL DOUBLE RR TIRE(6YE)
02.042
M12X60 FLANGE
|
0-28051-260-0 |
02 |
1 |
1012- |
|
● |
|
|
