Sayfa 4-60 - Isuzu EPC

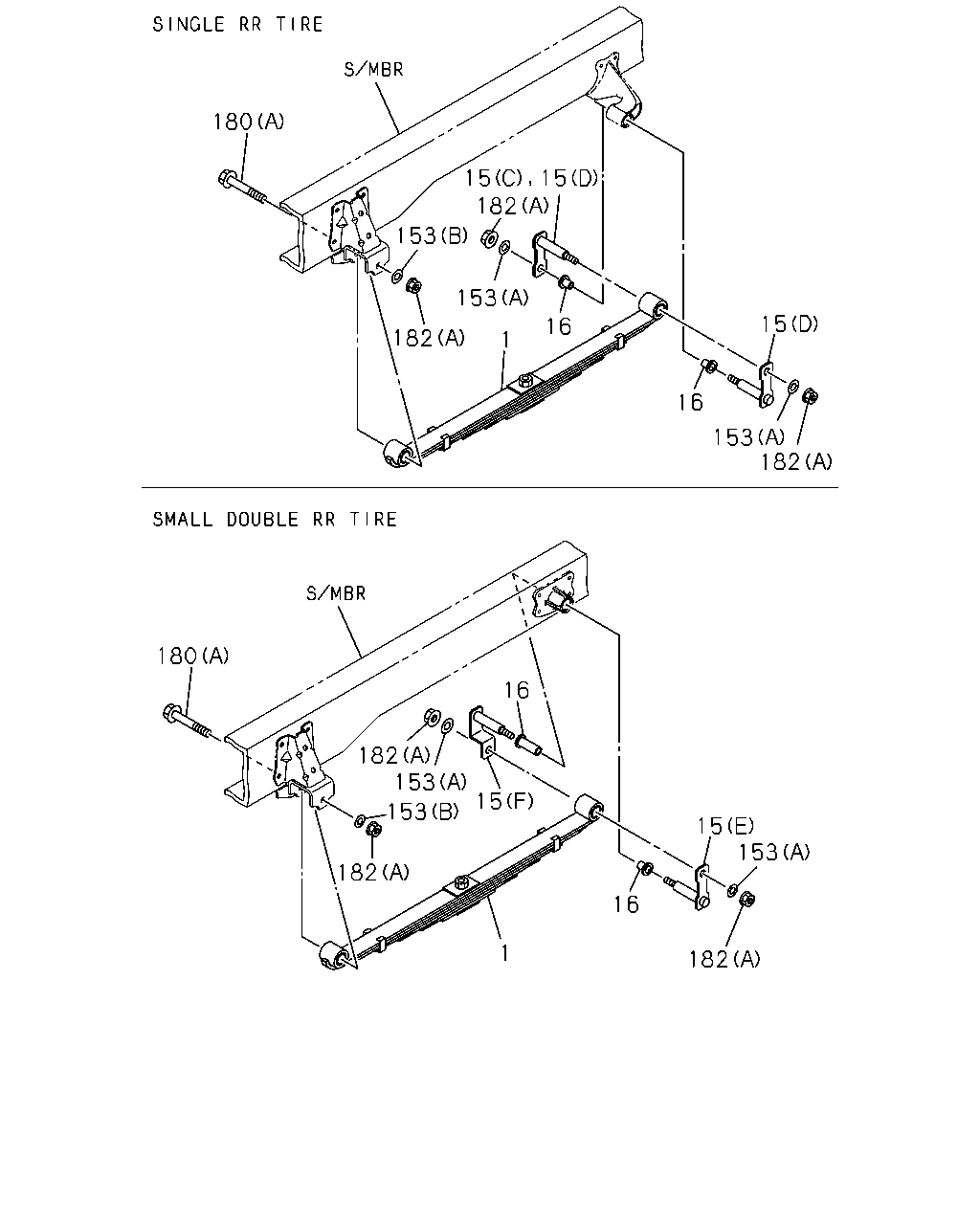

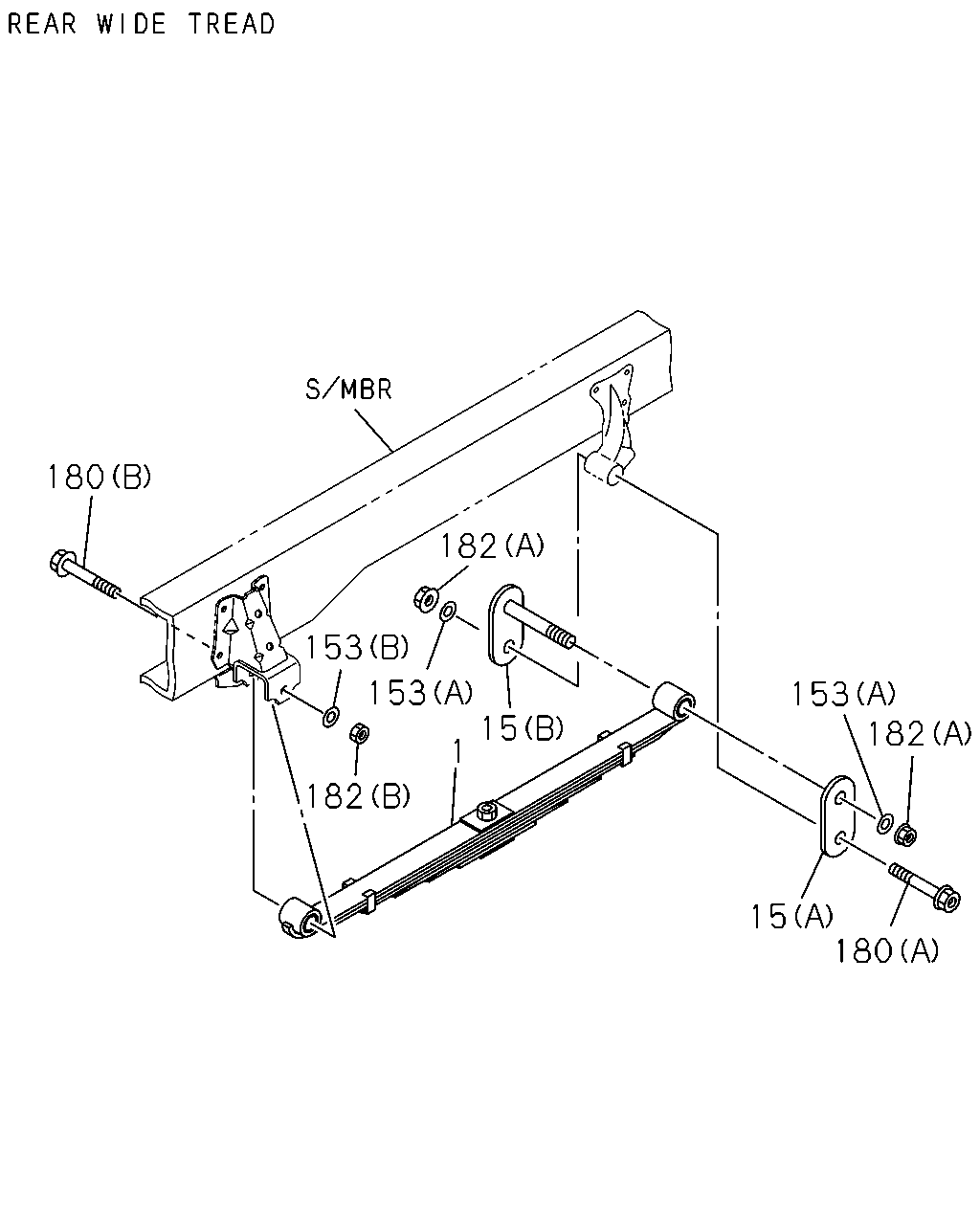

4-60 — REAR SUSPENSION (#78400) — 234 parça

180 15 182 15 153 153 15 16 182 1 16 153 182 180 16 182 153 15 153 15 153 182 16 1 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1012-1301		●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1012-1505				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1506-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-374-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-374-0	02	1	1506-	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E)	8-97169-264-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301		●	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (D)	8-94113-322-3	02	1	1302-			●
15	07.523 SHACKLE; RR SPR (D)	8-94113-322-3	02	1	1302-			●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C)	8-97033-966-1	02	1	1012-1301		●	●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C)	8-97033-966-1	02	1	1302-		●
15	07.523 SHACKLE; RR SPR SMALL DOUBLE RR TIRE(6YE) (F)	8-97162-959-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-94118-511-3	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1012-1301	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (A)	8-94118-511-3	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-94118-511-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1302-	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-97360-011-0	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1012-1301	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (B)	8-97360-011-0	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-97360-011-0	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1302-	●			●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-1301		●	●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-94113-323-2	04	1	1012-1301		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-1301		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-1301			●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1302-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-94113-323-2	04	1	1302-		●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1302-			●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1302-			●
16	07.524 BUSHING; SHACKLE,RR SPR SMALL DOUBLE RR TIRE(6YE)	8-97166-028-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-1301		●	●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-160-0	04	1	1012-1301		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-1301		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-1301			●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1302-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-160-0	04	1	1302-		●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1302-			●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1302-			●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	04	1	1012-	●	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-1301		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-1301			●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1302-		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	02	1	1302-			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1012-1301		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1012-1301	●			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD) (B) ID=19	8-97360-119-0	02	1	1012-1301			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1302-		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1302-	●			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1012-1301		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1012-1301	●			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130	8-98011-488-0	02	1	1012-1301			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1302-		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1302-	●			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301	●			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1302-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1302-	●			●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) M16	0-91110-516-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	02	1	1302-			●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1302-			●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1012-1301	●			●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD) (B) M18	0-91110-518-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1302-	●			●

180 182 153 153 15 153 182 1 182 15 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1012-1301		●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1012-1505				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1506-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-374-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-374-0	02	1	1506-	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E)	8-97169-264-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301		●	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) (D)	8-94113-322-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (D)	8-94113-322-3	02	1	1302-			●
15	07.523 SHACKLE; RR SPR (D)	8-94113-322-3	02	1	1302-			●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C)	8-97033-966-1	02	1	1012-1301		●	●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (C)	8-97033-966-1	02	1	1302-		●
15	07.523 SHACKLE; RR SPR SMALL DOUBLE RR TIRE(6YE) (F)	8-97162-959-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-94118-511-3	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1012-1301	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (A)	8-94118-511-3	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-94118-511-3	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	1302-	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-97360-011-0	02	1	1012-1301		●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1012-1301	●			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD) (B)	8-97360-011-0	02	1	1012-1301			●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B)	8-97360-011-0	02	1	1302-		●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	1302-	●			●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	04	1	1012-	●	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-1301		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-1301			●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1302-		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	02	1	1302-			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1012-1301		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1012-1301	●			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD) (B) ID=19	8-97360-119-0	02	1	1012-1301			●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1302-		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1302-	●			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1012-1301		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1012-1301	●			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130	8-98011-488-0	02	1	1012-1301			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1302-		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1302-	●			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301	●			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-1301			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1302-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1302-	●			●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) M16	0-91110-516-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	02	1	1302-			●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1302-			●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1012-1301		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1012-1301	●			●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD) (B) M18	0-91110-518-0	02	1	1012-1301			●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1302-		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1302-	●			●

465 227 230 225 225 264 4 502 1 155 502 6 5

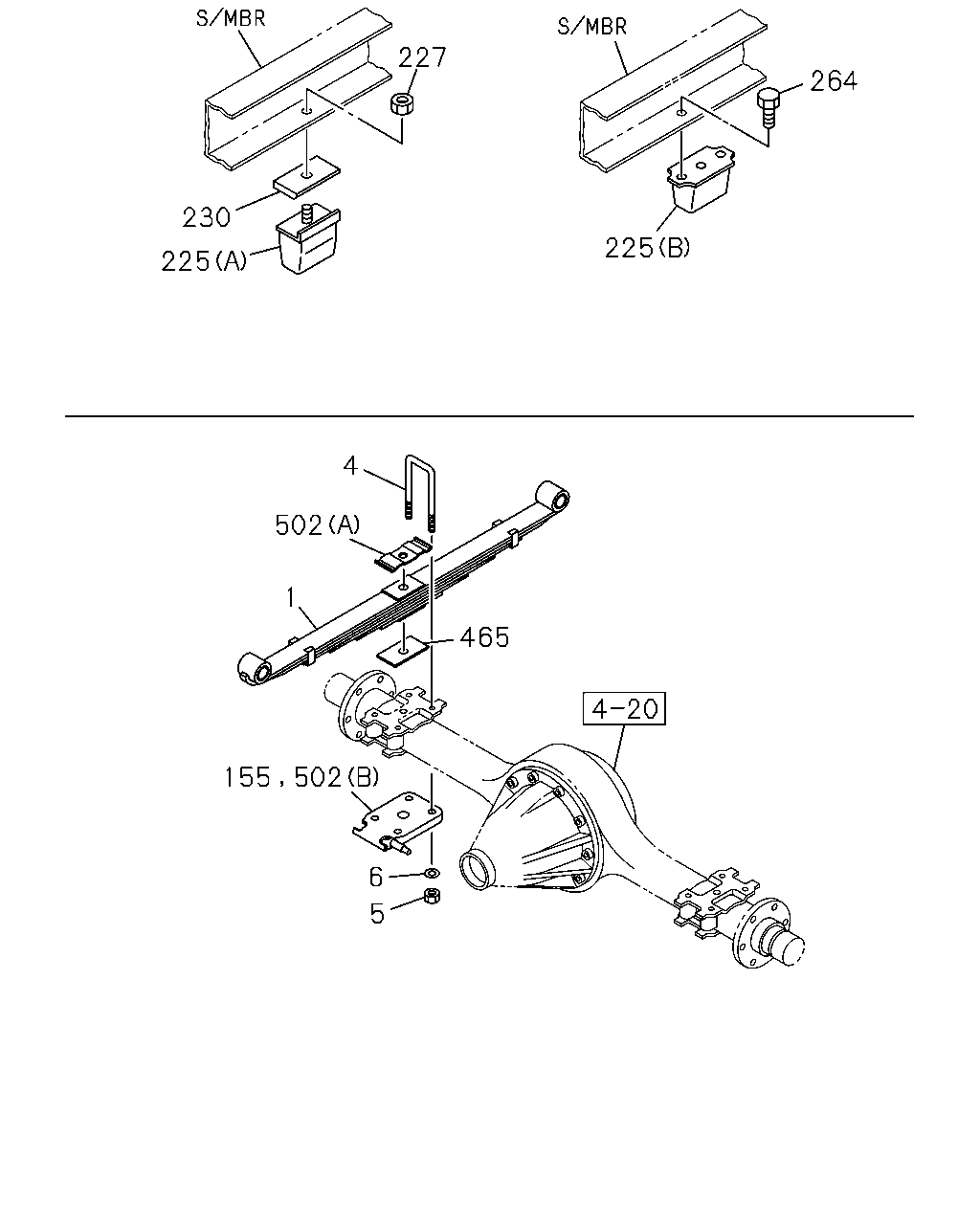

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1012-1301			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1012-1301		●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. RR BODY FLAT BED(RS6) 5-LEAF	8-98001-551-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1012-1505				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	8-98022-373-0	02	1	1506-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 10-LEAF	8-98022-374-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 10-LEAF	8-98022-374-0	02	1	1506-	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1506-	●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) L=205	8-94127-917-3	04	1	1012-1301		●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) L=205	8-94127-917-3	04	1	1012-1301		●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) L=205	8-94127-917-3	04	1	1012-1301			●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) L=205	8-94127-917-3	04	1	1302-		●
4	07.516 U-BOLT; RR SPR L=205	8-94127-917-3	04	1	1302-			●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) L=245	8-94127-921-3	04	1	1012-1301		●	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) L=245	8-94127-921-3	04	1	1302-		●
4	07.516 U-BOLT; RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=265	8-94127-923-3	04	1	1012-	●
4	07.516 U-BOLT; RR SPR L=265	8-94127-923-3	04	1	1012-				●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) L=285	8-97141-874-0	04	1	1012-	●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	1012-	●	●	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	1012-	●	●	●	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-360-4	01	1	1012-1301		●	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-360-4	01	1	1302-		●
155	07.380 BRACKET; S/ABS	8-94128-360-4	01	1	1302-			●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-361-4	01	1	1012-1301		●	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-361-4	01	1	1302-		●
155	07.380 BRACKET; S/ABS	8-94128-361-4	01	1	1302-			●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) (B)	8-97035-815-1	02	1	1506-	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) (A)	8-94258-734-2	02	1	1012-1103		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) (A)	8-98187-341-0	02	1	1104-		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (A)	8-98002-085-1	02	1	1012-1301		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (A)	8-98002-085-1	02	1	1012-1301			●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) (A)	8-98002-085-1	02	1	1302-		●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98002-085-1	02	1	1302-			●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) (A)	8-98021-554-0	02	1	1012-1505	●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98021-554-0	02	1	1012-1505				●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (A)	8-98021-554-0	02	1	1506-	●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98021-554-0	02	1	1506-				●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	1012-1505	●	●	●	●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	1506-		●	●	●
227	07.535 NUT; CUSHION RUBBER EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE	0-91180-112-0	02	1	1506-	●
230	07.518 SPACER; CUSHION RUBBER G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-97136-853-0	02	1	1012-1301		●	●
230	07.518 SPACER; CUSHION RUBBER G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-97136-853-0	02	1	1302-		●
230	07.518 SPACER; CUSHION RUBBER REAR WIDE TREAD(V4T)	8-97136-852-0	02	1	1012-1301	●	●	●
230	07.518 SPACER; CUSHION RUBBER	8-97136-852-0	02	1	1012-1301				●
230	07.518 SPACER; CUSHION RUBBER REAR WIDE TREAD(V4T)	8-97136-852-0	02	1	1302-	●	●
230	07.518 SPACER; CUSHION RUBBER	8-97136-852-0	02	1	1302-				●
264	07.529 BOLT; CUSHION RUBBER TO BRKT FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1506-	●
465	07.518 SHIM; ADJ RR BODY FLAT BED(RS6)	8-97072-589-0	AR	1	1012-		●	●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.380 (B)	8-94128-362-3	01	1	1506-	●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.380 (B)	8-94128-363-3	01	1	1506-	●
502	07.506 CLAMP; RR LEAF SPR SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-1301		●	●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-1301		●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-1301	●
502	07.506 CLAMP; RR LEAF SPR REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-1301			●
502	07.506 CLAMP; RR LEAF SPR 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-1301				●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1302-		●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1302-		●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1302-	●
502	07.506 CLAMP; RR LEAF SPR 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1302-			●	●
502	07.506 CLAMP; RR LEAF SPR SMALL DOUBLE RR TIRE(6YE) 07.518 (A) L=130 T=6	8-94165-555-1	02	1	1012-1505		●
502	07.506 CLAMP; RR LEAF SPR SMALL DOUBLE RR TIRE(6YE) 07.518 (A) L=130 T=6	8-94165-555-1	02	1	1506-		●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.518 (A) L=130 T=6	8-94165-555-1	02	1	1506-	●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 320MM(6CP) REAR WIDE TREAD(V4T) 07.518 (A) L=140 T=4.5	8-94118-509-1	02	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
