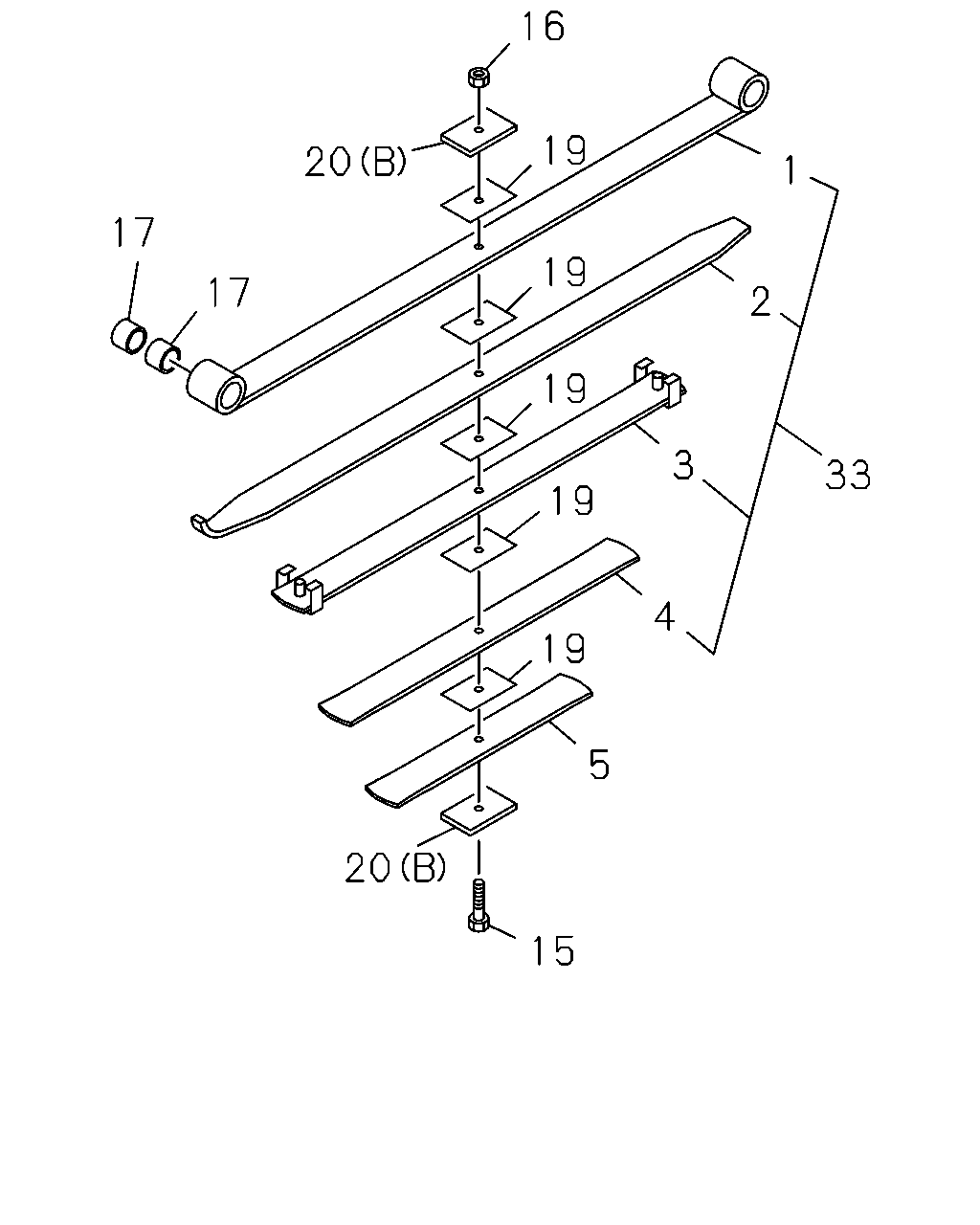

4-55A — FRONT LEAF SPRING (#78398) — 32 parça

17 16 17 20 1 19 2 17 3 17 4 5 6 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-372-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-378-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-373-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-379-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-374-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-380-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-375-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-381-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-376-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-382-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98041-353-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98040-327-0	04	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-94478-008-1	05	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98040-316-0	02	1	-

1 16 19 19 19 19 19 5 15 20 17 17 2 3 4 33 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-372-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-378-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-373-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-379-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-374-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-380-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-375-0	01	1	-
4	07.415 SPRING; LEAF,NO 4,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-381-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: A = 8-98079-897-0, 98079897	8-98094-376-0	01	1	-
5	07.415 SPRING; LEAF,NO 5,FRT ASM PART: B = 8-98079-898-0, 98079898	8-98094-382-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=80 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98041-353-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT OD=43.25 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98040-327-0	04	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-94478-008-1	05	1	-
20	07.425 SEAT; LEAF SPR,FRT (B) ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898	8-98040-316-0	02	1	-
33	07.415 SPRING ASM; LEAF,FRT MAIN ASM PART: A = 8-98079-897-0, 98079897	8-98094-371-0	01	1	-
33	07.415 SPRING ASM; LEAF,FRT MAIN ASM PART: B = 8-98079-898-0, 98079898	8-98094-377-0	01	1	-
