4-50 — FRONT SUSPENSION (#78397) — 86 parça

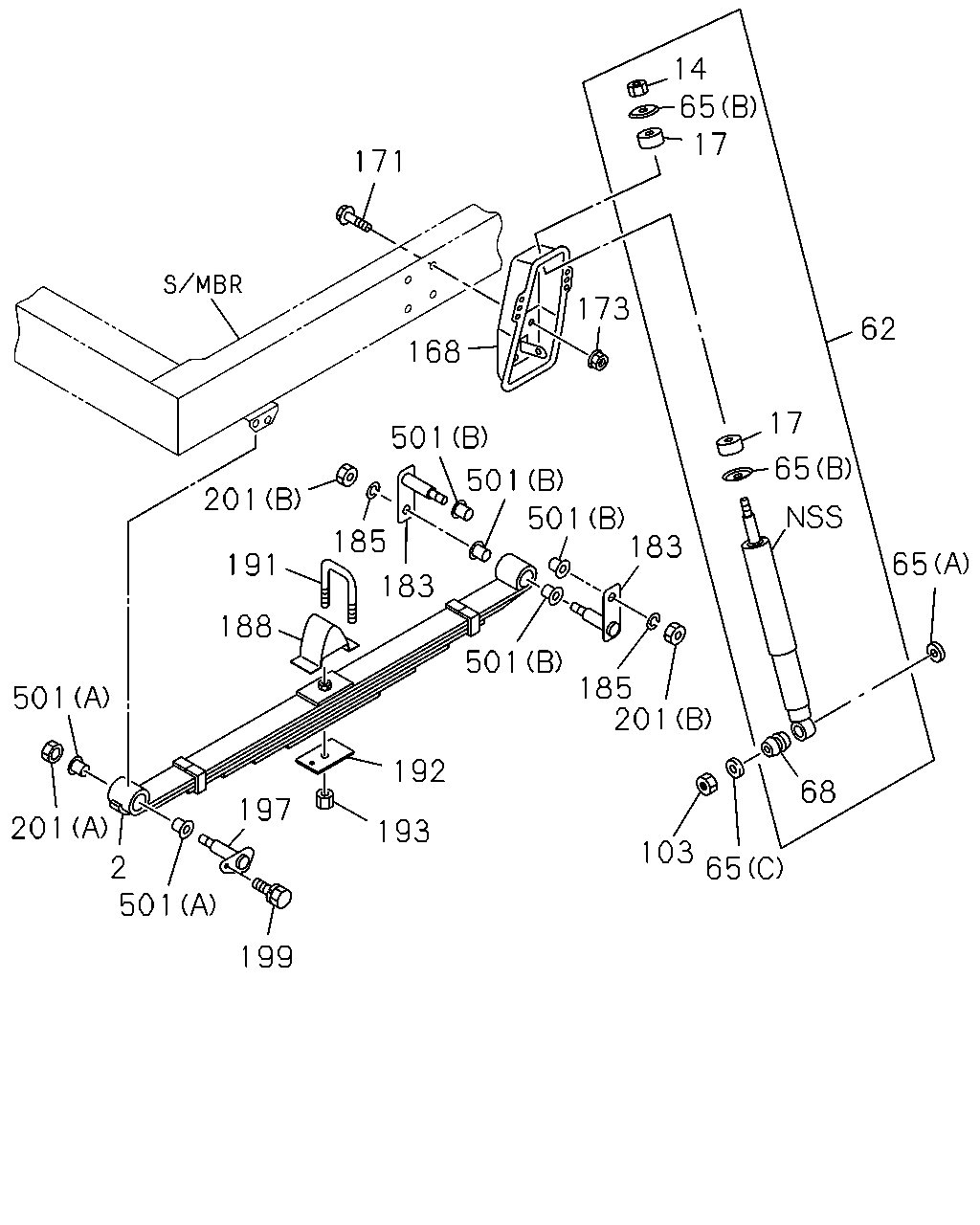

çizim 124149
14 65 17 171 173 62 168 17 501 65 501 501 183 201 185 65 191 183 188 501 185 201 501 192 68 197 201 193 103 65 2 501 199
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> 5-LEAF 		8-98079-897-0 01 1 1506- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> 5-LEAF 		8-98079-898-0 01 1 1506- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) 6-LEAF 		8-98173-083-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) 6-LEAF 		8-98173-084-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1101-1101 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1101-1101 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-885-0 01 1 1302- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1101-1101 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1101-1101 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 6-LEAF 		8-98079-887-0 01 1 1302- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98001-533-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98001-533-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 6-LEAF 		8-98001-533-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98001-533-0 01 1 1302-1505 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 1302-1505 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. FRAME-KICK UP<7EW> 6-LEAF 		8-98001-533-0 01 1 1506- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 1506- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98079-881-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 1012-1012 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98079-881-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-881-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 1101-1301 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 6-LEAF 		8-98079-881-0 01 1 1302-1505 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 1302-1505 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. FRAME-KICK UP<7EW> 6-LEAF 		8-98079-881-0 01 1 1506- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 1506- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 9-LEAF 		8-98079-889-0 01 1 1012-1505 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRAME-KICK UP<7EW> 9-LEAF 		8-98079-889-0 01 1 1506- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 9-LEAF 		8-98079-890-0 01 1 1012-1505 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRAME-KICK UP<7EW> 9-LEAF 		8-98079-890-0 01 1 1506- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 1012- ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1012- ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-709-1 02 1 1012-1506 ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-159-0 02 1 1304-1506 ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98316-235-0 02 1 1507- ● ● ● ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 1012- ● ● ● ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1012- ● ● ● ●
65 07.347 WASHER; S/ABS
07.529 (A) ID=17 OD=32 		9-09164-616-0 02 1 1012-1012 ● ● ● ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ● ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 1012- ● ● ● ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1012- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 1012- ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98039-597-0 01 1 1012- ● ● ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1012- ● ● ● ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1012- ● ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1012- ● ● ● ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1012- ● ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 1012- ● ● ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) L=105 		8-97304-074-1 02 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) L=105 		8-97304-074-1 02 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) L=105 		8-97304-074-1 02 1 1302-1505 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 02 1 1302-1505 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 02 1 1506- ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) L=115 		8-97304-075-1 02 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) L=115 		8-97304-075-1 02 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) L=115 		8-97304-075-1 02 1 1302- ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=115 		8-97304-075-1 02 1 1302- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105 		8-97304-074-1 04 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 1012-1301 ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1302- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105 		8-97304-074-1 04 1 1302- ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1302- ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 1302- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 6.5-7.0TON(RPW) L=125 		8-97304-076-1 04 1 1012- ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.425 		8-94249-413-1 02 1 1012-1301 ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD) 07.425 		8-94249-413-1 02 1 1012-1301 ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.425 		8-94249-413-1 02 1 1302- ●
192 07.436 PIECE; DIST
07.425 		8-94249-413-1 02 1 1302- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1012- ● ● ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1012- ● ● ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1012- ● ● ● ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 1012- ● ● ● ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 1012- ● ● ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (A) 		8-97081-531-0 04 1 1012-1301 ● ● ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (A) 		8-97081-531-0 12 1 1302- ● ● ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 (B) 		8-97081-531-0 08 1 1012-1301 ● ● ● ●
