Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#78396) — 289 parça

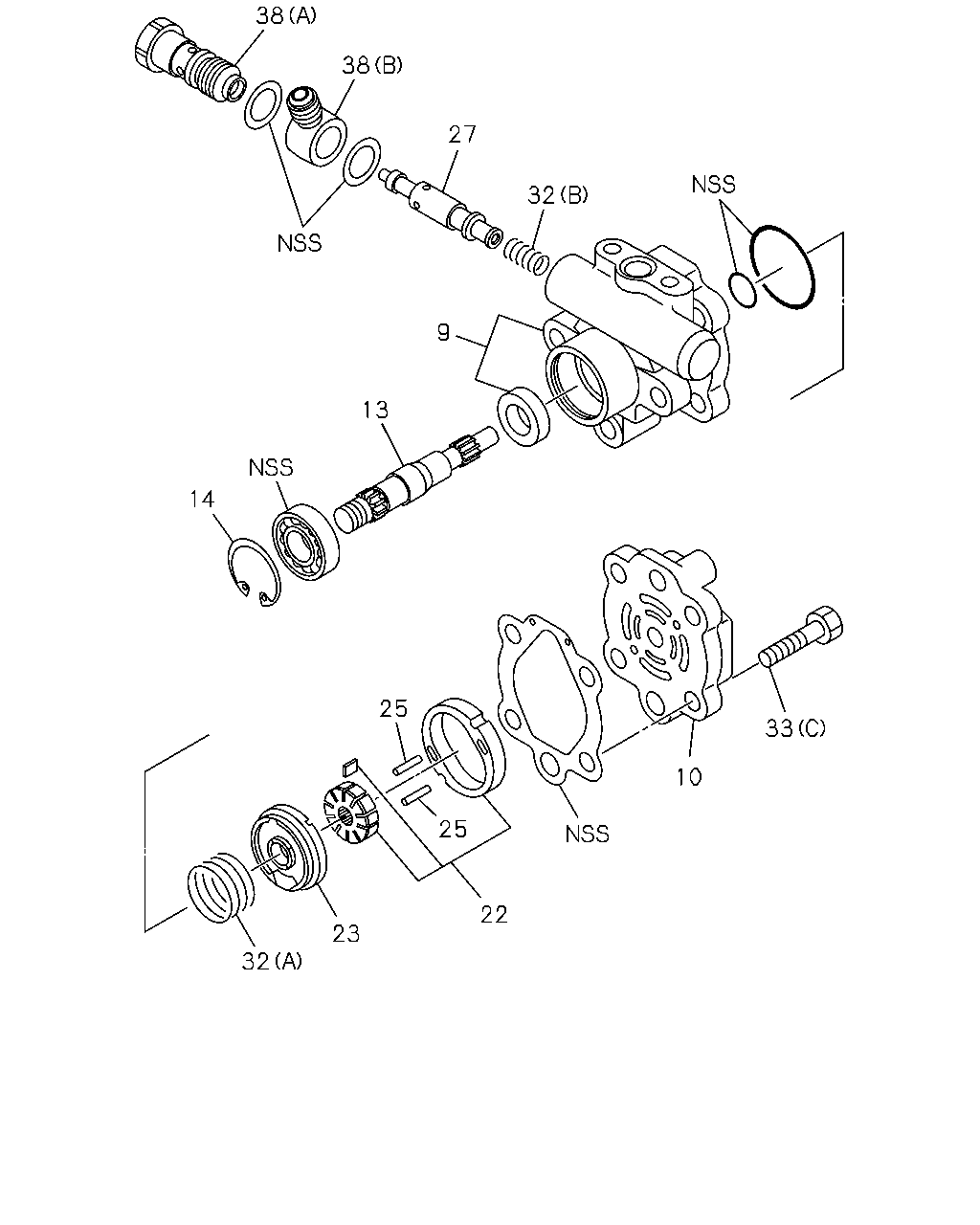

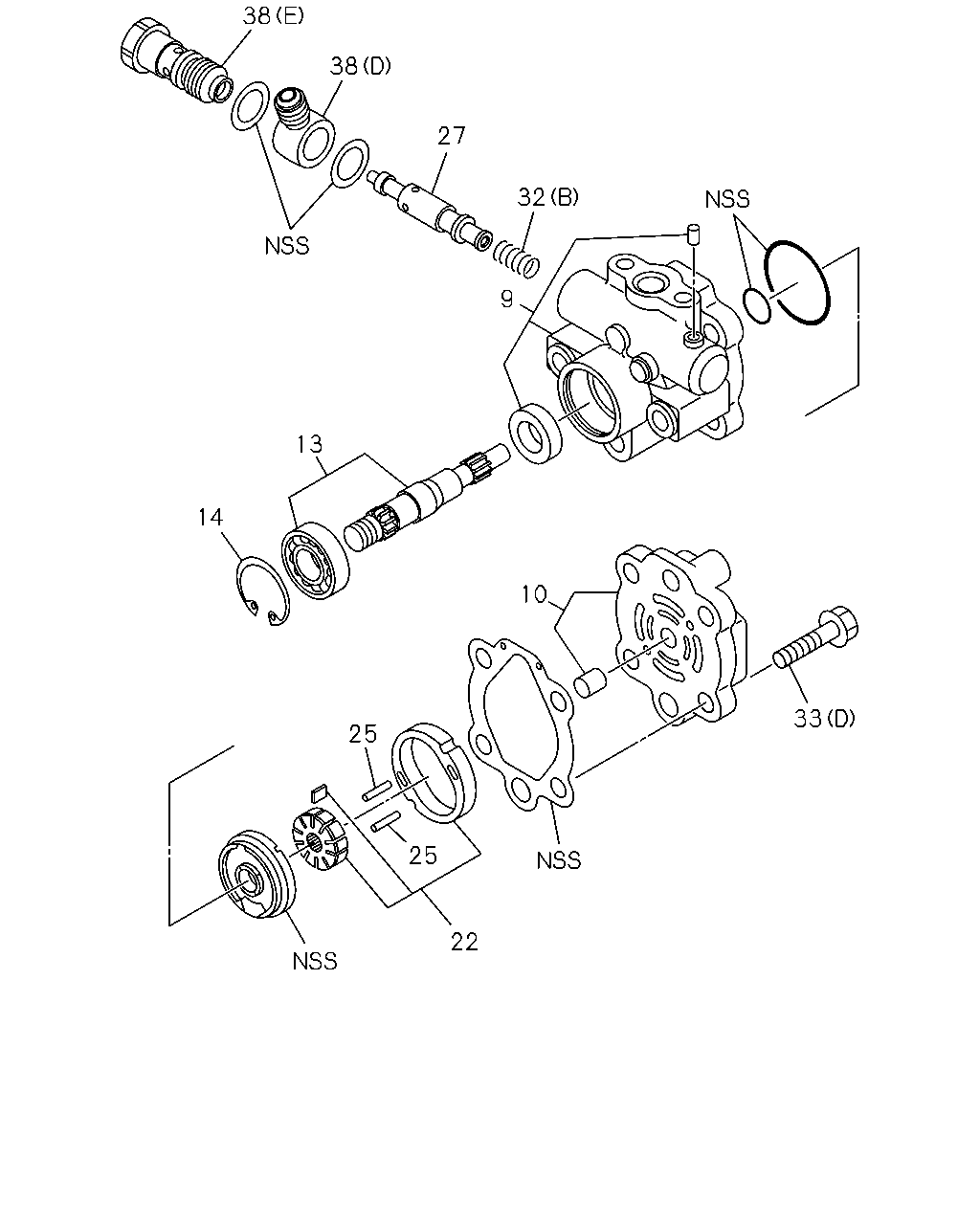

33 22 25 25 10 13 14 32 9 27 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: E = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1106
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1107-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98216-517-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98065-060-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: D = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98114-577-3, 98114577	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98114-577-3, 98114577	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: D = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98114-577-3, 98114577	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: E = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

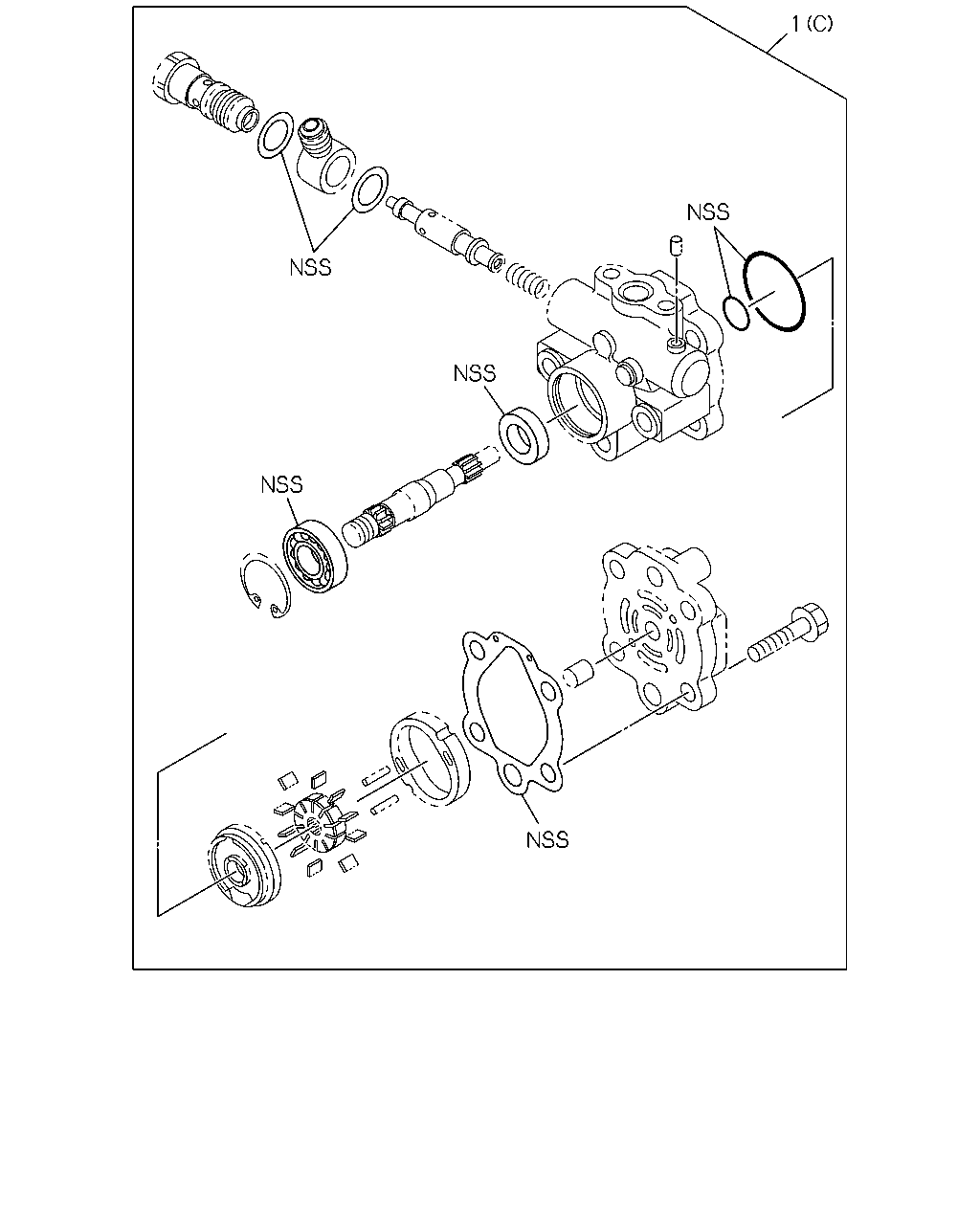

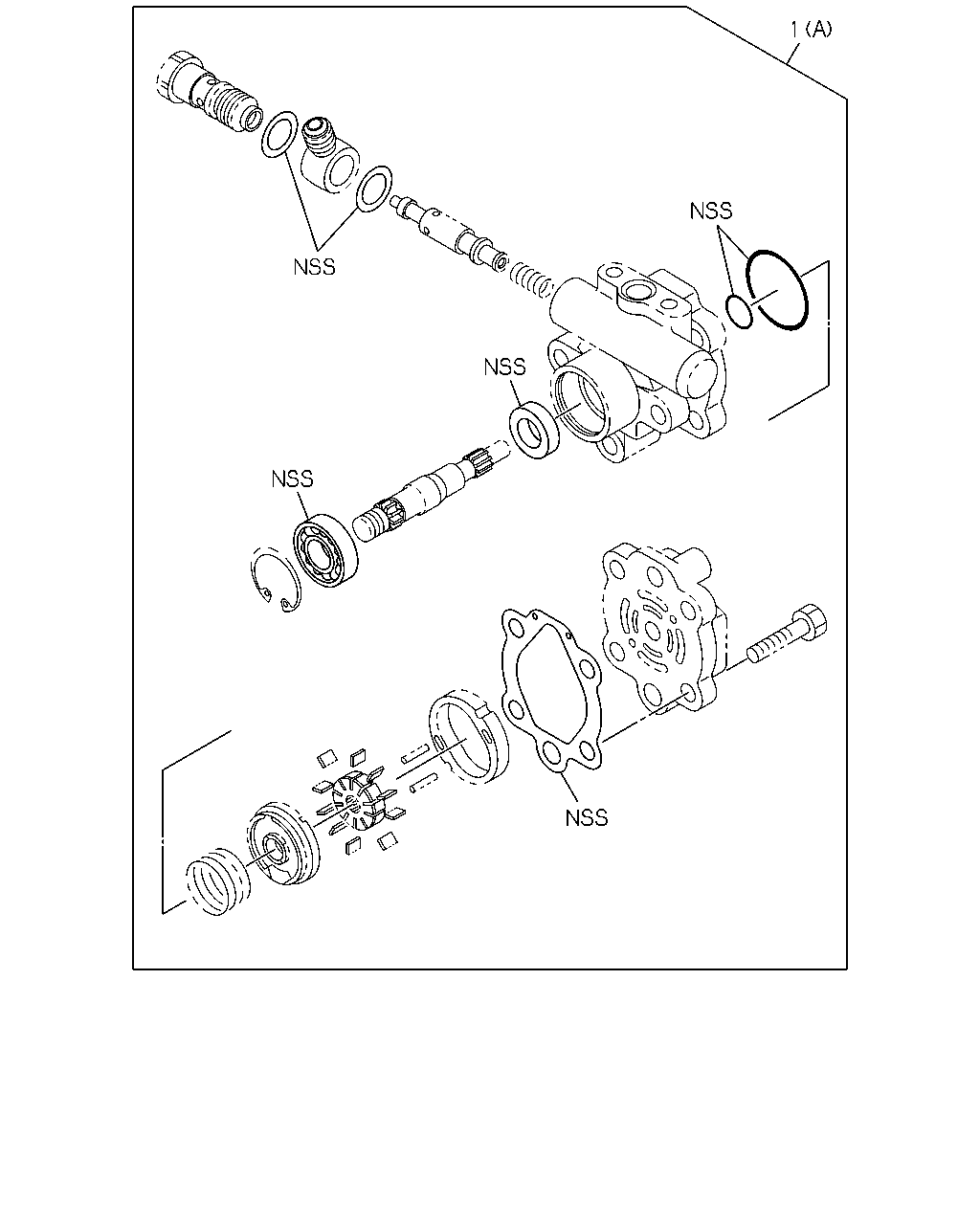

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

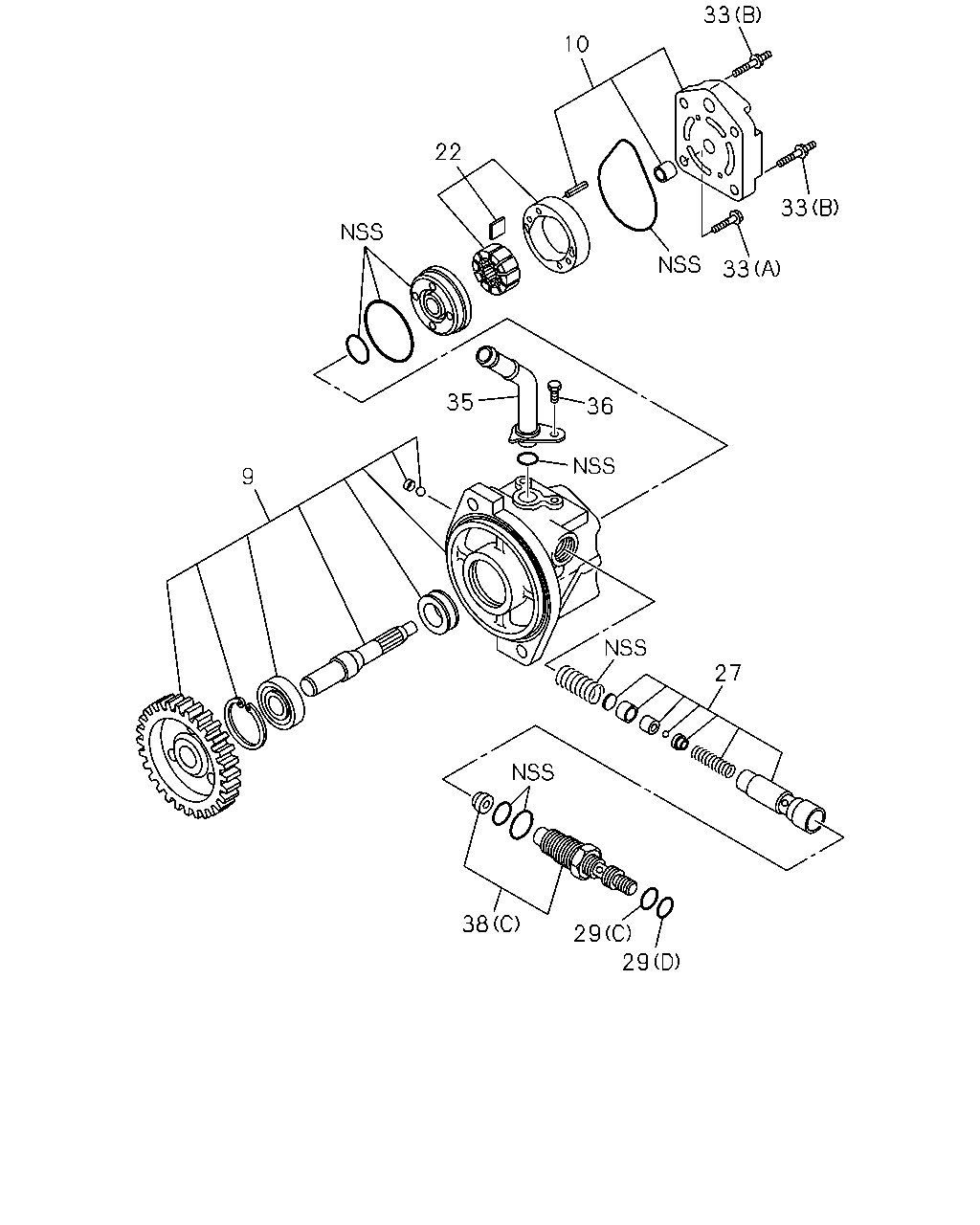

29 29 38 27 36 35 22 33 33 33 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1106
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1107-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98216-517-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98065-060-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: D = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98114-577-3, 98114577	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98114-577-3, 98114577	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: D = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-419-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-205-4, 98043205	8-98061-418-0	02	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98114-577-3, 98114577	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: E = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

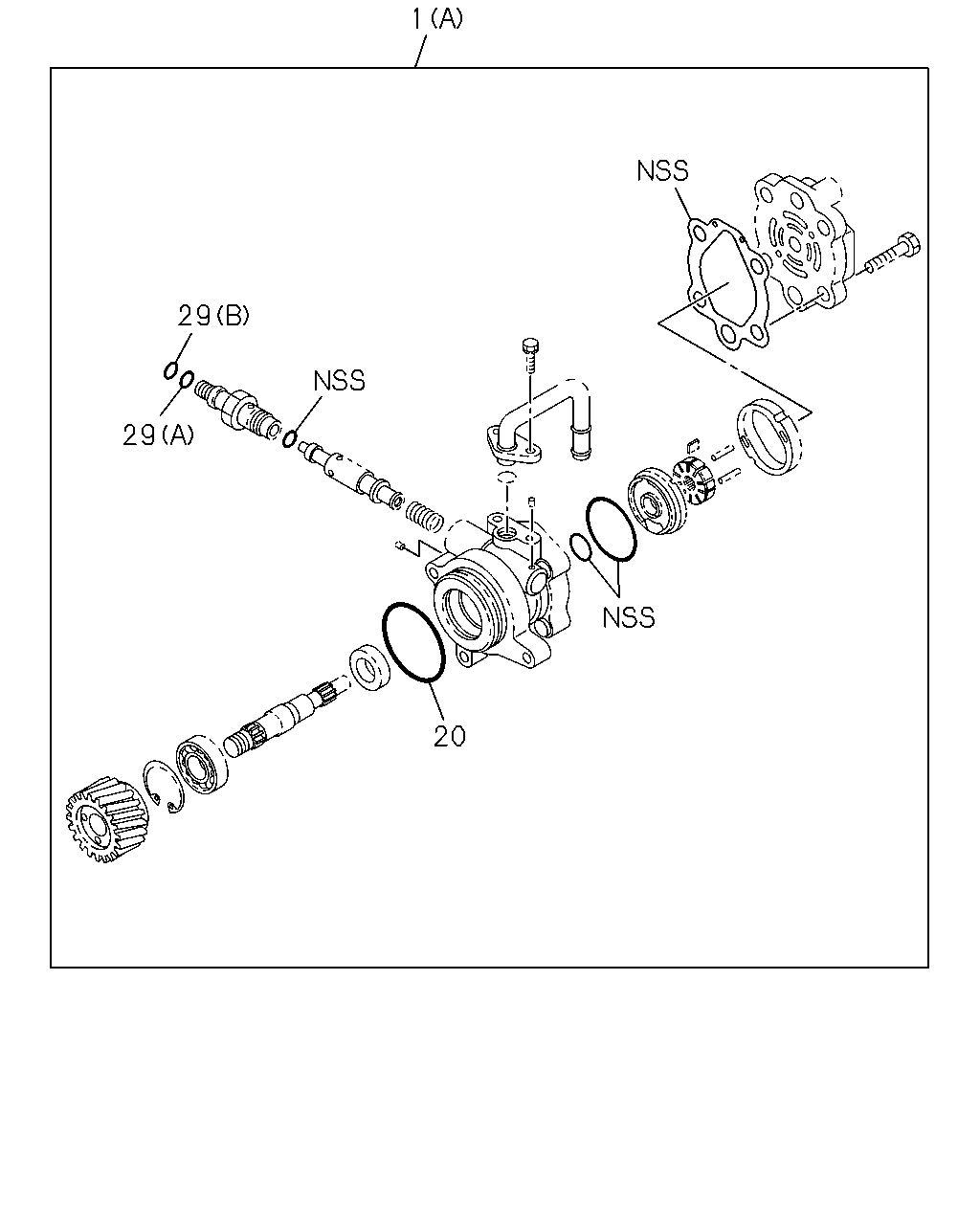

29 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-

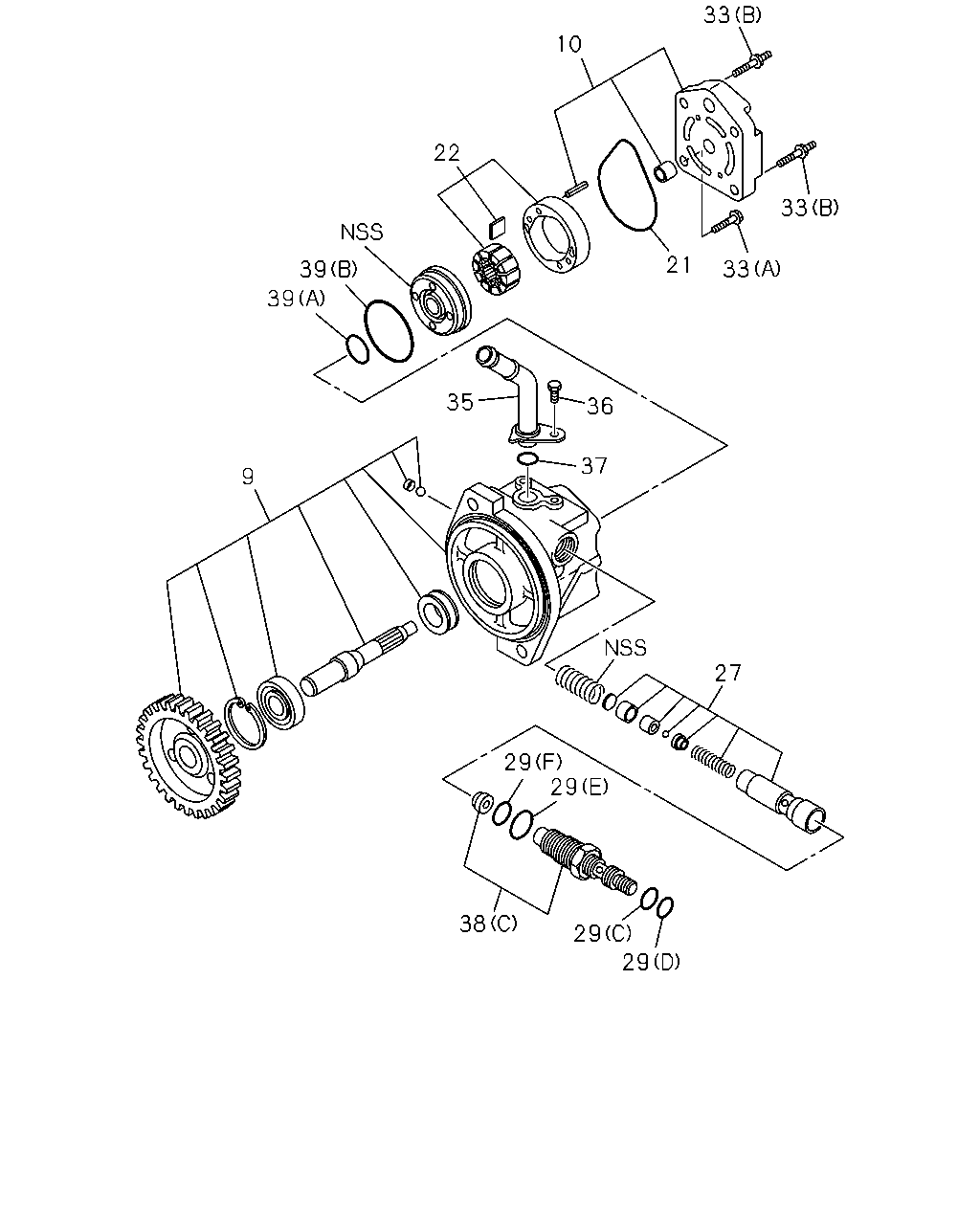

29 29 38 29 29 27 37 36 35 21 33 33 10 22 39 39 9 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1106
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1107-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98216-517-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98065-060-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: D = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98114-577-3, 98114577	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98114-577-3, 98114577	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: D = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-419-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-205-4, 98043205	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98114-577-3, 98114577	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: E = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: D = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

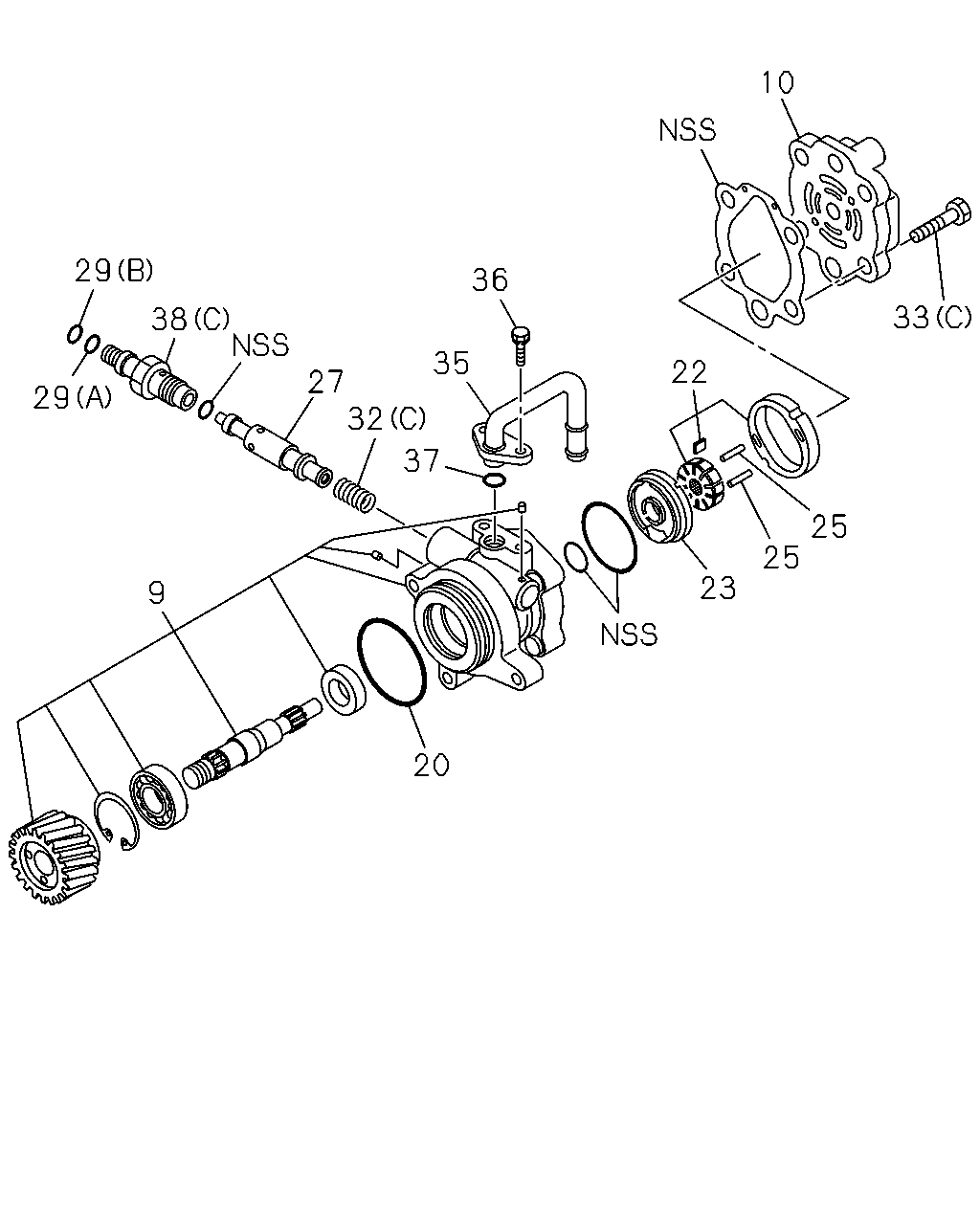

10 29 36 33 38 35 22 27 32 29 37 25 25 23 9 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-424-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1106
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1107-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98216-517-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98065-060-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: D = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98114-577-3, 98114577	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98114-577-3, 98114577	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: D = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98058-094-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-419-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98043-205-4, 98043205	8-98061-418-0	02	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-417-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98114-577-3, 98114577	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: E = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

38 38 27 32 9 13 14 25 33 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-933-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-428-1	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97102-294-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: B = 8-98043-205-4, 98043205	8-98159-587-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97354-730-1, 97354730	8-97354-935-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: E = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98058-088-0	01	1	-1106
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-406-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98216-517-0	01	1	1107-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98216-517-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97354-679-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-404-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98043-205-4, 98043205	8-98061-412-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97354-730-1, 97354730	8-97094-142-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-409-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-98114-577-3, 98114577	8-98065-060-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97064-982-0	01	1	-
32	06.606 SPRING; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730, E = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
32	06.606 SPRING; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-411-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: A = 8-97354-730-1, 97354730	8-97064-979-0	04	1	-
33	06.606 BOLT; COVER (D) ASM PART: E = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: D = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-98114-577-3, 98114577	8-97184-761-0	02	1	-
33	06.606 BOLT; COVER (B) ASM PART: C = 8-98114-577-3, 98114577	8-97184-762-0	02	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-385-0	04	1	-
33	06.606 BOLT; COVER (B) ASM PART: D = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: C = 8-98114-577-3, 98114577	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-941-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97354-730-1, 97354730	8-97354-943-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: B = 8-98043-205-4, 98043205	8-98061-407-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: D = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (E) ASM PART: E = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

1 29 29 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
20	06.635 GASKET; FRT,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-424-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

29 29 37 1 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-417-0	01	1	-

29 29 29 29 37 39 39 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97354-730-1, 97354730	8-97354-944-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98043-205-4, 98043205	8-98159-585-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: E = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: D = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (E) ASM PART: D = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (F) ASM PART: D = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: C = 8-98114-577-3, 98114577, D = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: B = 8-98043-205-4, 98043205	8-98061-421-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: B = 8-98043-205-4, 98043205	8-98061-422-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: D = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98043-205-4, 98043205	8-98061-417-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: D = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: D = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
