◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#78395) — 36 parça
çizim 124292
35 72 132 14 23 24 8 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98101-305-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-665-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98061-392-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-685-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-676-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-98101-297-3, 98101297 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-673-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-679-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98112-931-3 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-98101-297-3, 98101297 		8-98036-336-0 04 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-97076-372-0 01 1 -

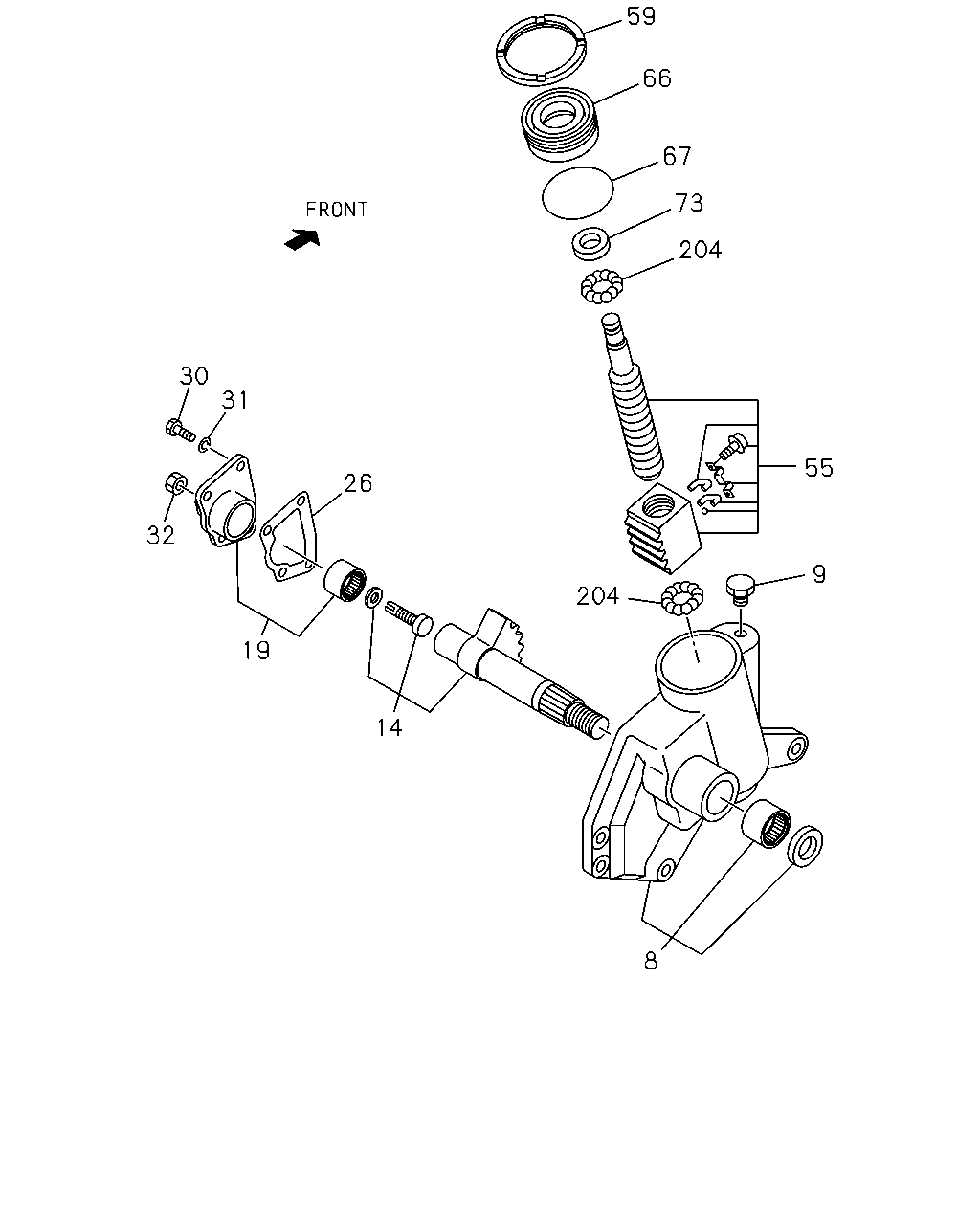

çizim 124335
59 66 67 73 204 30 31 55 26 32 9 204 19 14 8
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98101-305-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-665-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-700-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98061-392-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-685-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-333-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-676-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-666-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-336-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-673-0 04 1 -
31 06.809 WASHER; COVER STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-711-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-98036-337-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-679-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-696-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-703-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-705-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-706-0 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-704-0 01 1 -
204 06.524 BALL; WORM SHAFT,STRG UNIT
ASM PART: B = 8-98165-268-0, 98165268 		8-98177-691-0 20 1 -

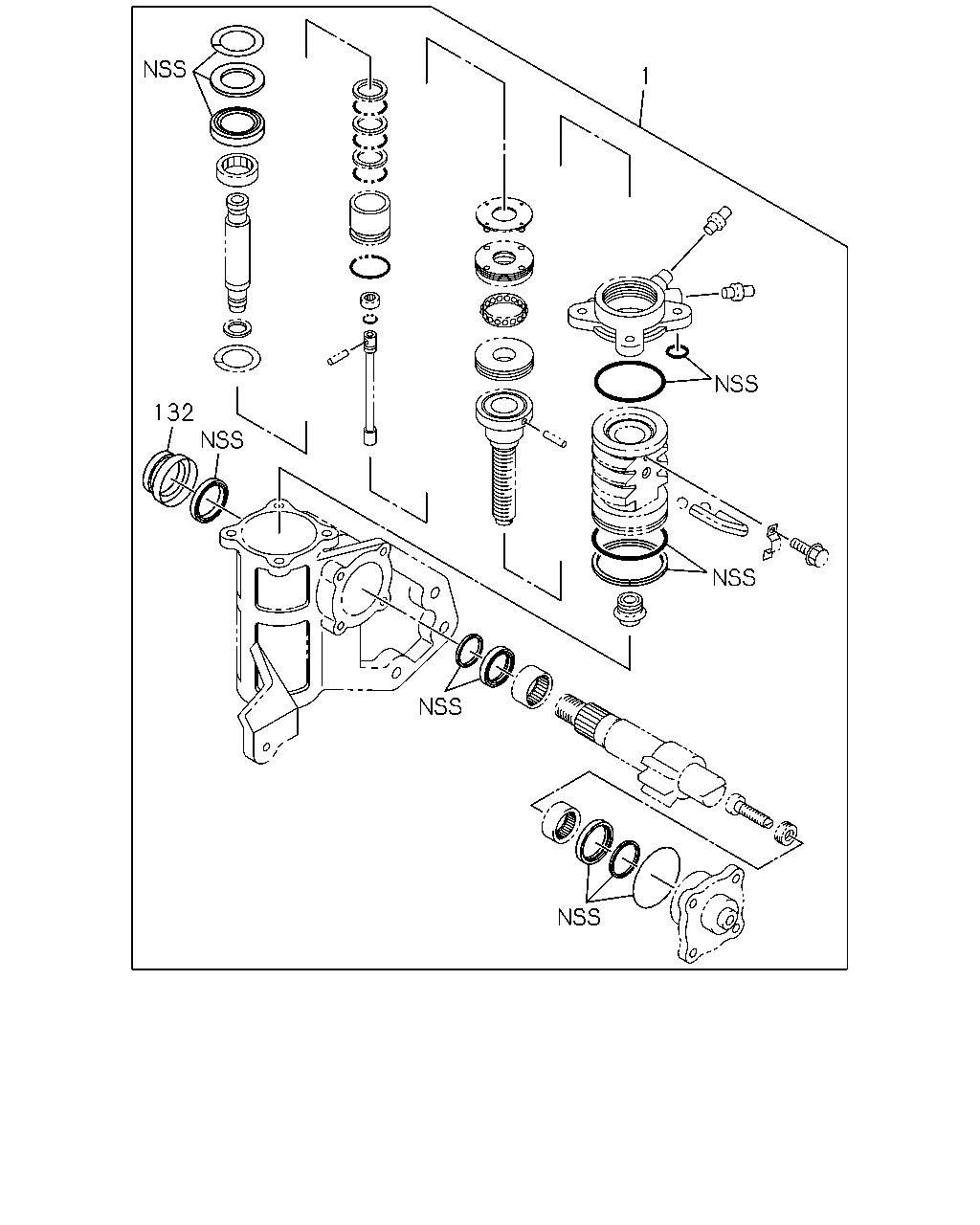

çizim 191077
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-98101-297-3, 98101297 		8-98171-736-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: A = 8-98101-297-3, 98101297 		8-97076-372-0 01 1 -
