4-36 — POWER STEERING CONTROL; ENGINE SIDE (#78394) — 67 parça

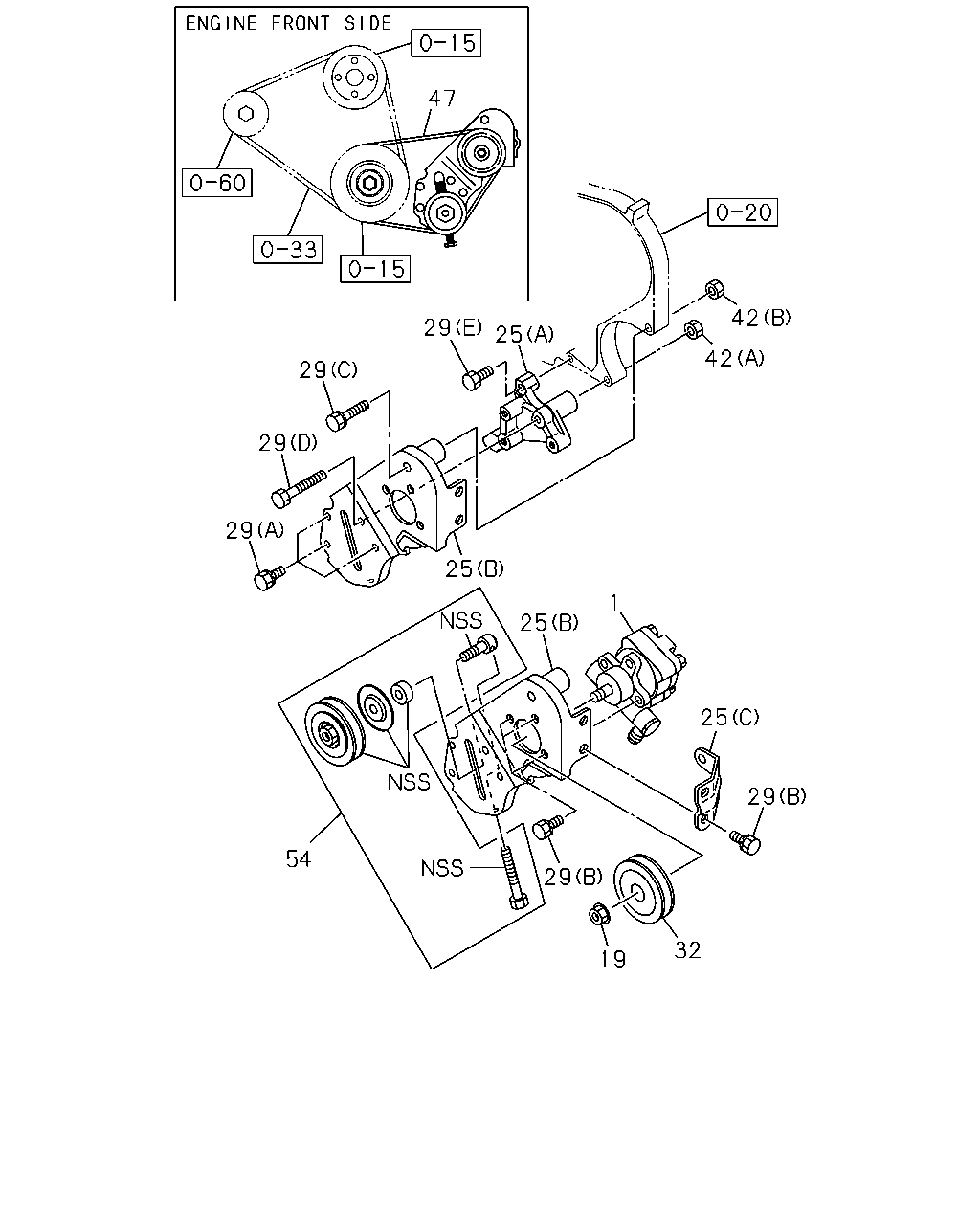

42 42 25 29 29 29 29 25 1 25 29 32 19 29 54 25 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP)	8-98138-130-2	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH)	8-98114-577-3	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-97354-730-1	01	1	1012-1303	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-98217-772-0	01	1	1304-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) EXC. MANUAL STEERING<N51>	8-98043-205-4	01	1	1012-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU)	8-98043-205-4	01	1	1012-			●	●
19	07.874 NUT; PULLEY,OIL PUMP 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 07.395 M12	8-97360-126-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) (B)	8-97065-974-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (B)	8-97065-974-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) (A)	8-97107-869-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (A)	8-97107-869-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1-TC ENG(RDT) (C)	8-97107-872-0	01	1	1012-	●	●
25	06.606 BRACKET; P/S PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (C)	8-97107-872-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (F) M14X20 FLANGE	0-28851-420-0	01	1	1012-	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE	0-28651-020-0	05	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 02.343 (B) M10X20 FLANGE	0-28651-020-0	05	1	1012-	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-97084-332-2	01	1	1012-1303	●	●
32	06.665 PULLEY; IDLER,P/S 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-98217-771-0	01	1	1304-	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT)	8-97085-131-0	01	1	1012-	●	●
47	01.066 BELT; P/S PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-97085-131-0	01	1	1012-	●	●
47	01.066 BELT; P/S PUMP 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-096-0	01	1	1012-	●	●
47	01.066 BELT; P/S PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> BEST VALUE PARTS	5-87610-096-0	01	1	1012-	●	●
54	06.655 IDLER ASM; P/S OIL PUMP 4JB1-TC ENG(RDT)	8-94128-866-0	01	1	1012-	●	●
54	06.655 IDLER ASM; P/S OIL PUMP 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-94128-866-0	01	1	1012-	●	●

36 42 29 29 1 7 36 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP)	8-98138-130-2	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH)	8-98114-577-3	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-97354-730-1	01	1	1012-1303	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-98217-772-0	01	1	1304-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) EXC. MANUAL STEERING<N51>	8-98043-205-4	01	1	1012-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU)	8-98043-205-4	01	1	1012-			●	●
7	09.181 BOLT; OIL PUMP,P/S 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1012-	●
29	09.171 BOLT; BRKT,POWER STRG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (F) M14X20 FLANGE	0-28851-420-0	01	1	1012-	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 02.343 (B) M10X20 FLANGE	0-28651-020-0	05	1	1012-	●	●
29	09.171 BOLT; BRKT,POWER STRG 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 02.343 (B) M10X20 FLANGE	0-28651-020-0	05	1	1012-	●	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HG1-T ENG(RDP) (A)	8-97112-866-0	01	1	1012-	●
36	06.606 BRACKET; PLATE,P/S PUMP 4HG1 ENG(RJH) (B)	8-98036-532-0	01	1	1012-	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
42	06.672 NUT; ADJ PLATE 4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●

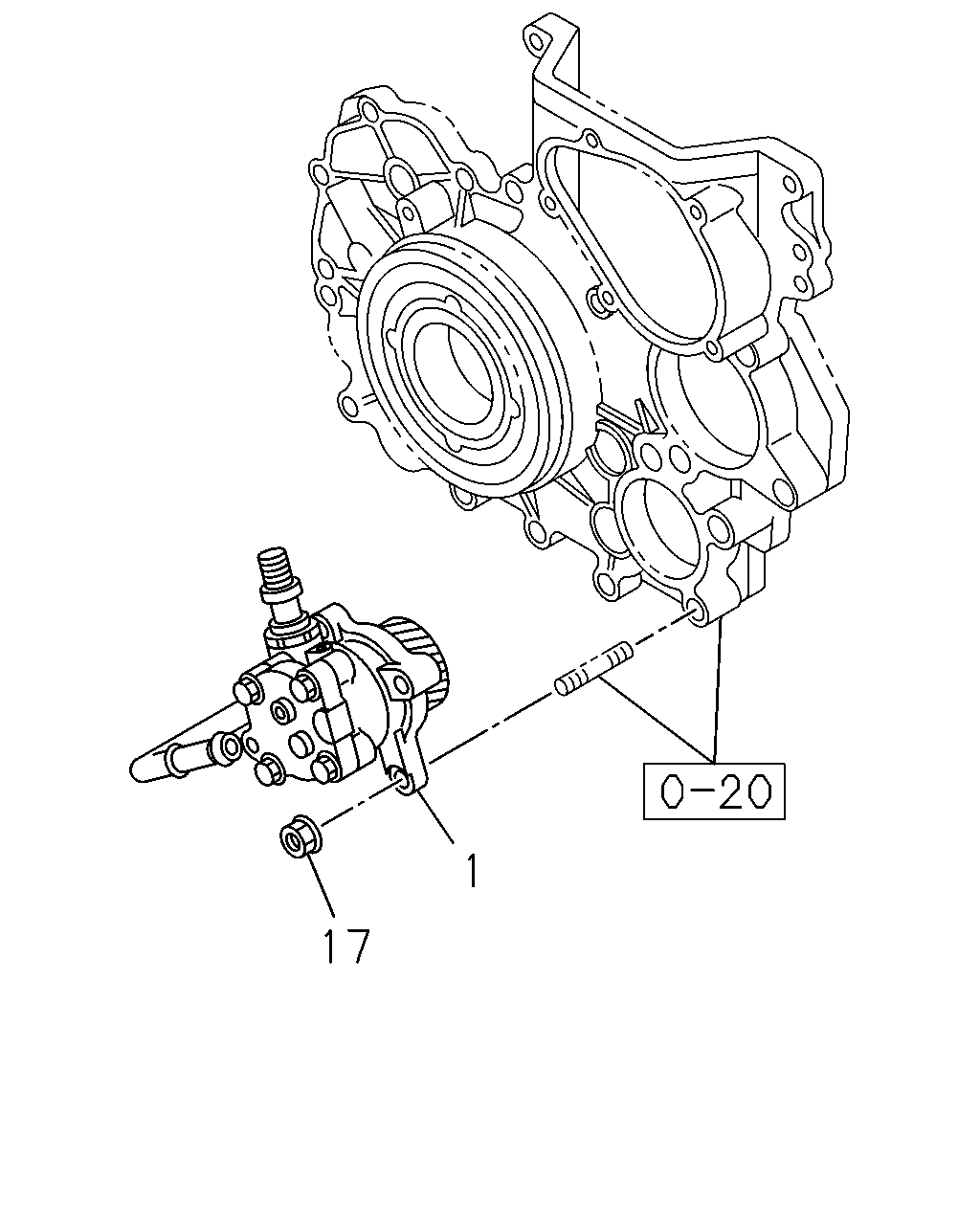

1 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1-T ENG(RDP)	8-98138-130-2	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4HG1 ENG(RJH)	8-98114-577-3	01	1	1012-	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-97354-730-1	01	1	1012-1303	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51>	8-98217-772-0	01	1	1304-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) EXC. MANUAL STEERING<N51>	8-98043-205-4	01	1	1012-	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU)	8-98043-205-4	01	1	1012-			●	●
17	06.606 NUT; POWER STRG PUMP 4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE	0-91180-208-0	03	1	1012-	●	●	●	●
