2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#7839) — 56 parça

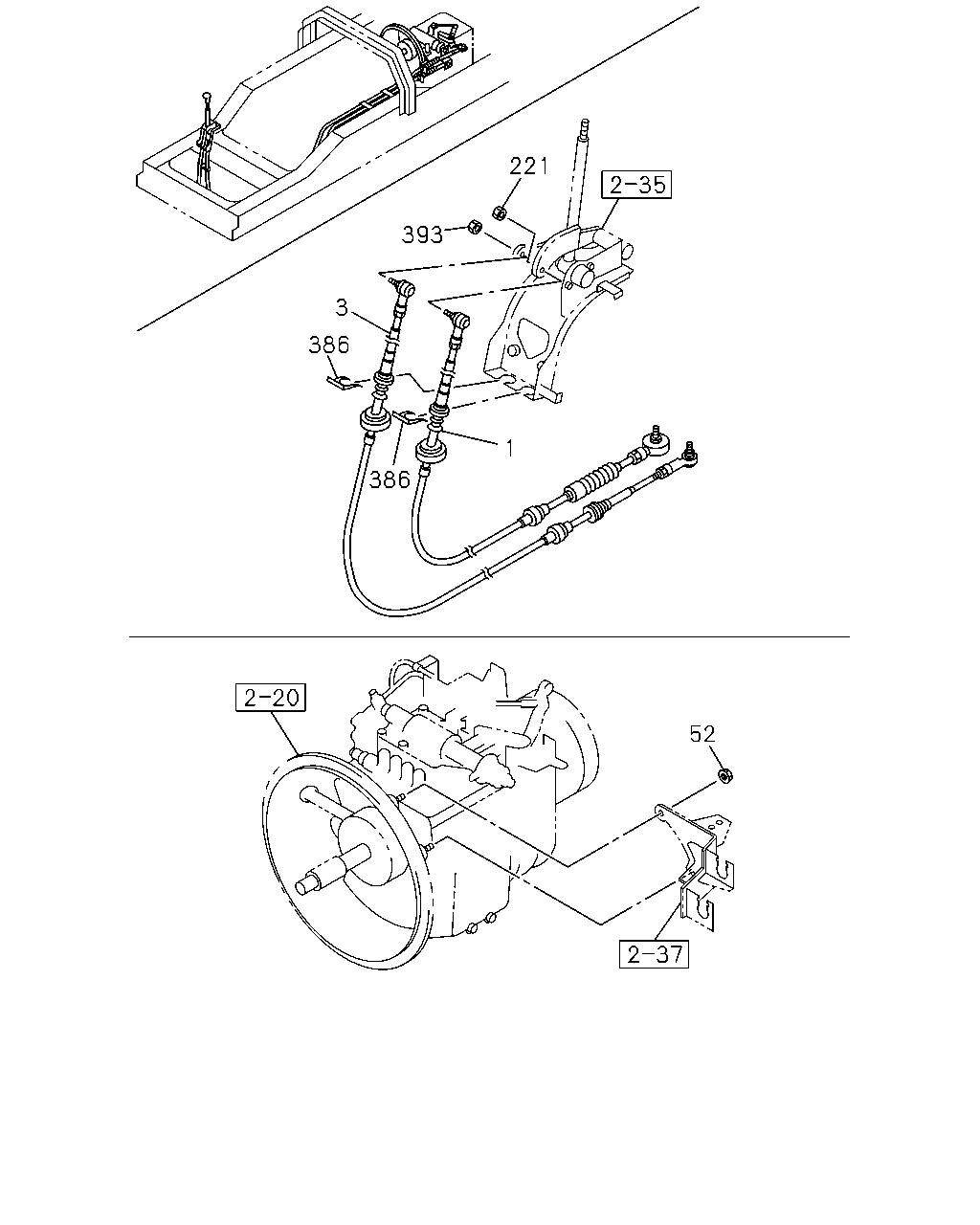

221 393 3 386 1 386 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT FTR(FT****) L=3390	1-33671-831-0	01	1	0302-	●
1	CABLE; SHIFT,TRANS CONT FRR(FR****) L=3330	1-33671-494-1	01	1	9905-9907	●
1	CABLE; SHIFT,TRANS CONT FRR(FR****) L=3485	1-33671-589-0	01	1	9908-0301	●
1	CABLE; SHIFT,TRANS CONT FRR(FR****) L=3485	1-33671-589-0	01	1	0302-	●
1	CABLE; SHIFT,TRANS CONT FSR(FS****) L=3280	1-33671-507-0	01	1	9905-9907	●
1	CABLE; SHIFT,TRANS CONT FSR(FS****) L=3435	1-33671-587-0	01	1	9908-	●
1	CABLE; SHIFT,TRANS CONT L=3355	1-33671-509-0	01	1	9905-9907		●
1	CABLE; SHIFT,TRANS CONT L=3510	1-33671-583-0	01	1	9908-		●
3	CABLE; SELECT,TRANS CONT FTR(FT****) L=3390	1-33671-832-0	01	1	0302-	●
3	CABLE; SELECT,TRANS CONT FRR(FR****) L=3390	1-33671-493-1	01	1	9905-9907	●
3	CABLE; SELECT,TRANS CONT FRR(FR****) L=3525	1-33671-588-1	01	1	9908-0301	●
3	CABLE; SELECT,TRANS CONT FRR(FR****) L=3525	1-33671-588-1	01	1	0302-	●
3	CABLE; SELECT,TRANS CONT FSR(FS****) L=3365	1-33671-508-0	01	1	9905-9907	●
3	CABLE; SELECT,TRANS CONT FSR(FS****) L=3500	1-33671-586-1	01	1	9908-	●
3	CABLE; SELECT,TRANS CONT L=3445	1-33671-510-0	01	1	9905-9907		●
3	CABLE; SELECT,TRANS CONT L=3580	1-33671-582-1	01	1	9908-		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-0602	●	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9905-	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	9905-	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9905-	●	●

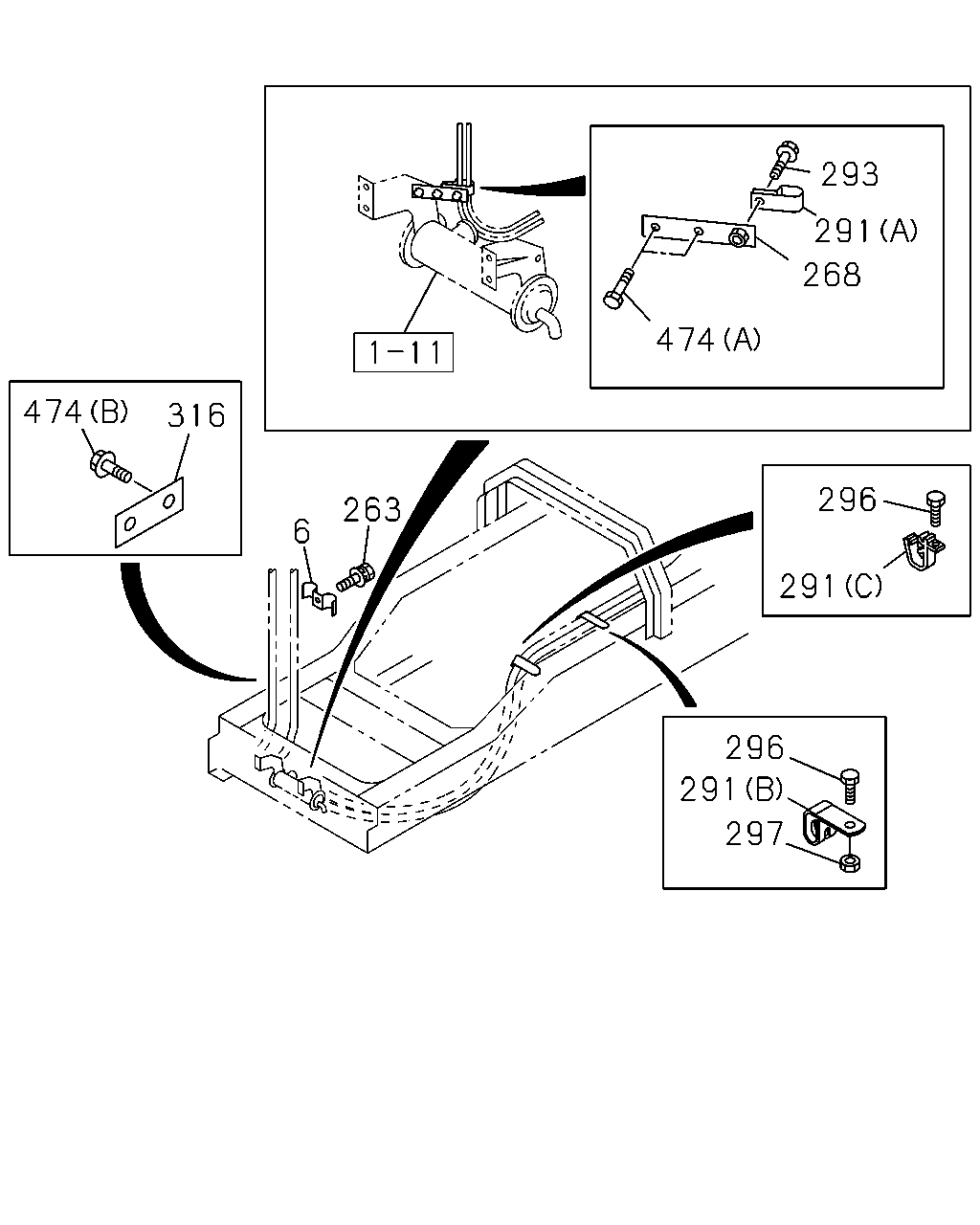

293 291 268 474 474 316 296 263 6 291 296 291 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9905-	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
268	BRACKET; LINK ROD	1-36183-202-0	01	1	9905-9907	●	●
268	BRACKET; LINK ROD	1-36183-216-0	01	1	9908-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A)	1-09701-220-0	01	1	9905-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	02	1	9905-9907	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	9908-0506	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=11X2 L=16	9-09535-026-0	01	1	9905-0606	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=11X2 L=16	0-95325-026-0	01	1	0607-	●	●
293	BOLT; CLIP,SHIFT TO SELECT FTR(FT****) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0302-0302	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	9905-0301	●	●
293	BOLT; CLIP,SHIFT TO SELECT FRR(FR**) FSR(FS**) M8X16 FLANGE	0-28080-816-0	01	1	0302-0302	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0302-0302		●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
296	BOLT; CLIP,SHIFT & SELECT FTR(FT****) M8X25 FLANGE	0-28080-825-0	02	1	0302-0302	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	03	1	9905-0006	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0007-0301	●	●
296	BOLT; CLIP,SHIFT & SELECT FRR(FR**) FSR(FS**) M8X20 FLANGE	0-28080-820-0	02	1	0302-0302	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0302-0302		●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0303-0512	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9905-0301	●	●
297	NUT; CLIP FRR(FR**) FSR(FS**) M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0302-0602		●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
316	BRACKET; CLIP	1-36183-203-0	01	1	9905-0301	●	●
316	BRACKET; CLIP FRR(FR**) FSR(FS**)	1-36183-203-0	01	1	0302-	●
316	BRACKET; CLIP	1-36183-203-0	01	1	0302-		●
474	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	01	1	9905-0301	●	●
474	BOLT; BRKT FRR(FR**) FSR(FS**) (B) M8X20 FLANGE	0-28080-820-0	01	1	0302-0512	●
474	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	01	1	0302-0512		●
474	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
474	BOLT; BRKT (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9905-	●	●
