Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#78388) — 620 parça

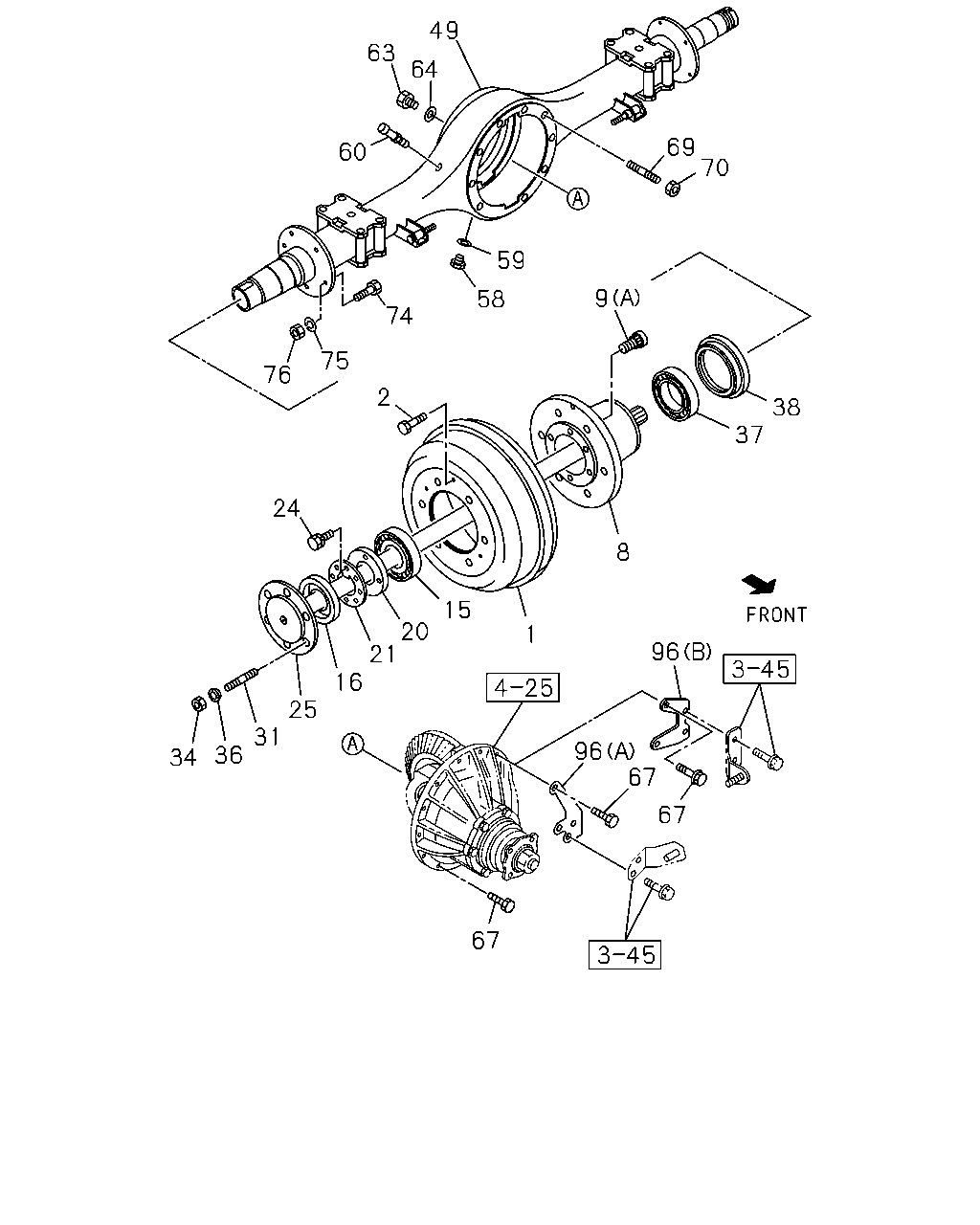

49 63 64 69 70 60 59 9 58 74 75 76 2 38 37 24 8 15 20 21 16 1 96 25 31 96 67 36 34 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-97032-891-3	02	1	1309-1402	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-98260-757-0	02	1	1403-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1012		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1308		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1309-		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	5-42315-041-4	02	1	1012-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. INDONESIA EQUIPMENT(B00)	8-94382-884-4	02	1	1012-			●
1	05.809 DRUM; BRK,RR	8-94382-884-4	02	1	1012-				●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-97036-367-1	02	1	1012-			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-97034-770-3	02	1	1012-1310			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-98248-900-0	02	1	1311-			●
2	05.812 BOLT; BRK DRUM REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 04.012 M6X18	0-20800-618-0	02	1	1012-1012	●
2	05.812 BOLT; BRK DRUM REAR AXLE HEAVY DUTY 292MM(G73) 04.012 M6X18	0-20800-618-0	02	1	1012-1012	●
2	05.812 BOLT; BRK DRUM 04.012 M6X18	0-20800-618-0	02	1	1012-1012		●
2	05.812 BOLT; BRK DRUM REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 04.012 M6X18	0-20800-618-0	02	1	1012-1402	●
2	05.812 BOLT; BRK DRUM REAR AXLE HEAVY DUTY 292MM(G73) 04.012 M6X18	0-20800-618-0	02	1	1012-1402	●
2	05.812 BOLT; BRK DRUM 04.012 M6X18	0-20800-618-0	02	1	1012-1402		●
2	05.812 BOLT; BRK DRUM REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 04.012 M6X18	0-20800-618-0	02	1	1403-	●
2	05.812 BOLT; BRK DRUM REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V) 04.012 M6X18	0-20800-618-0	02	1	1403-	●
2	05.812 BOLT; BRK DRUM 04.012 M6X18	0-20800-618-0	02	1	1403-		●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-94335-927-4	02	1	1309-	●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	5-42311-009-3	02	1	1012-1012	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-42311-009-3	02	1	1012-1012	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1012-1012		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	5-42311-009-3	02	1	1012-1308	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-42311-009-3	02	1	1012-1308	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1012-1308		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	5-42311-009-3	02	1	1309-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V)	5-42311-009-3	02	1	1309-	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1309-		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97032-606-3	02	1	1012-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97026-139-3	02	1	1012-			●
8	05.809 HUB; RR AXLE	8-97026-139-3	02	1	1012-				●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97122-626-0	02	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29,M20X55 RH THREAD	8-97017-043-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-				●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-				●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	1012-1012	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-082-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NSK	9-00093-082-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1012-1012		●		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1012-	●	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-607-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012		●		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1012-	●	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-139-0	02	1	1012-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1207	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-98202-911-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1106	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1106			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-317-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-98202-912-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-960-1	02	1	1012-1106			●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	1012-1012	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) M52	8-97137-092-0	02	1	1012-1012	●
20	05.830 NUT; BRG,RR HUB REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) M52	8-97137-092-0	02	1	1012-1012	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1012-1012		●		●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1012-1303	●	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	1012-1303			●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-98236-850-0	02	1	1304-			●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM(6CP) M55	8-97137-094-0	02	1	1012-			●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-0	02	1	1012-1012	●		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) ID=52	9-09853-214-0	02	1	1012-1012	●
21	05.830 WASHER; LK,BRG NUT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) ID=52	9-09853-214-0	02	1	1012-1012	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1012-1012		●		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1012-	●	●		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-1	02	1	1012-			●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM(6CP) ID=55	9-09653-002-1	02	1	1012-			●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER REAR AXLE HEAVY DUTY 292MM(G73) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012		●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1508	●	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97032-495-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-1012		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-94341-978-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	04	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-496-0	02	1	1012-1505			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1012-1505				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-496-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1506-				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-98098-425-0	02	1	1012-			●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE HEAVY DUTY 292MM(G73) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1012-1012		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1012-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1012-			●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-	●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1012-			●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1012-1012		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1012-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1012-			●	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1012-			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97258-241-1	01	1	1506-			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-98061-921-0	01	1	1012-	●
49	05.387 CASE; RR AXLE	8-98061-921-0	01	1	1012-		●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97205-145-3	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-97205-144-1	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-97205-144-1	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-98173-264-0	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-861-5	01	1	1012-1505			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1012-1505				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-861-5	01	1	1506-			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1506-				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97122-348-4	01	1	1012-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1012-	●	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1012-	●	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1012-	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1012-	●	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1012-	●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-	●		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-		●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M10X100	0-10956-000-0	01	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1012-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1012-	●	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-	●	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-98007-877-0	12	1	1012-1012	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	8-98007-877-0	12	1	1012-1012	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1012-1012		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-98007-877-0	12	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	8-98007-877-0	12	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1012-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12X32	8-97359-819-0	08	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1012-			●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 02.277 ID=10.2	0-91510-810-0	12	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 02.277 ID=10.2	0-91510-810-0	12	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1012-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 07.347 ID=12.2	0-91510-812-0	08	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1012-			●	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 00.833 M10	0-91110-510-0	12	1	1012-1012	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 00.833 M10	0-91110-510-0	12	1	1012-1012	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1012-1012		●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 00.833 M10	0-91110-510-0	12	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 00.833 M10	0-91110-510-0	12	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1012-		●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12	0-91110-512-0	08	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1012-			●	●

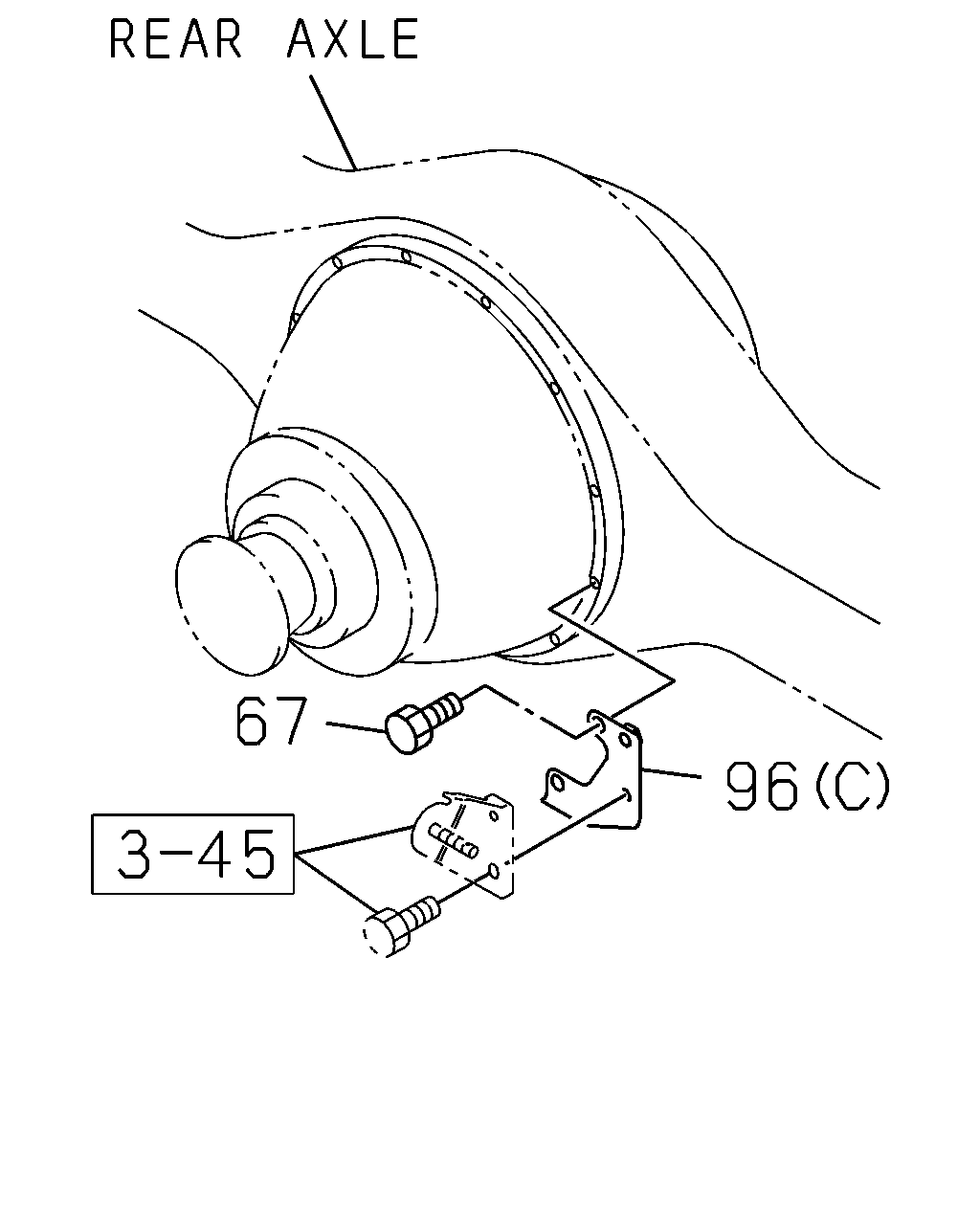

96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-98030-956-0	01	1	1012-	●
96	04.730 BRACKET; LSPV,AXLE CASE (A)	8-98030-956-0	01	1	1012-		●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (C)	8-97205-277-1	01	1	1012-	●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (B)	8-94368-449-2	01	1	1012-	●

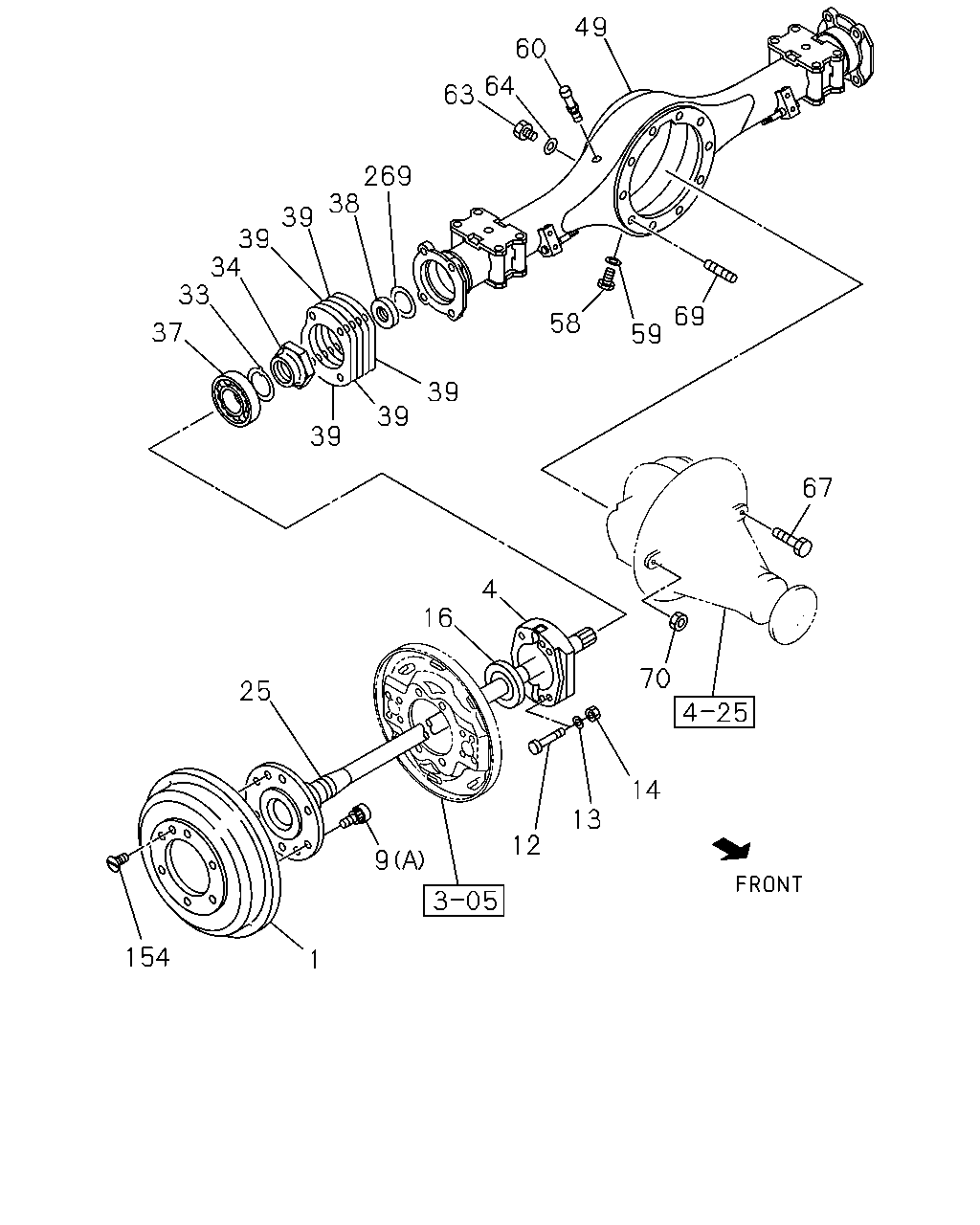

49 60 64 63 269 38 39 39 34 33 69 58 37 59 39 39 39 67 4 16 70 25 14 13 12 9 154 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-97032-891-3	02	1	1309-1402	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-98260-757-0	02	1	1403-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1012		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1308		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1309-		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	5-42315-041-4	02	1	1012-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. INDONESIA EQUIPMENT(B00)	8-94382-884-4	02	1	1012-			●
1	05.809 DRUM; BRK,RR	8-94382-884-4	02	1	1012-				●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-97036-367-1	02	1	1012-			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-97034-770-3	02	1	1012-1310			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-98248-900-0	02	1	1311-			●
4	05.816 HOLDER; BRG,AXLE SHAFT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97324-241-0	02	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29,M20X55 RH THREAD	8-97017-043-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-				●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-				●
12	05.816 BOLT; BRG HOLDER TO CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) M12X72	8-94477-674-2	04	1	1012-1012	●
12	05.816 BOLT; BRG HOLDER TO CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) M12X69 REAMER	9-42119-603-2	04	1	1012-1012	●
13	05.816 WASHER; LK,BRG HOLDER TO CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 07.347 ID=12.2	0-91510-812-0	08	1	1012-1012	●
14	05.816 NUT; BRG HOLDER TO CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.002 M12	0-91110-512-0	08	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1207	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-98202-911-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1106	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1106			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-317-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-98202-912-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-960-1	02	1	1012-1106			●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97032-495-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-1012		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-94341-978-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	04	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-496-0	02	1	1012-1505			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1012-1505				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-496-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1506-				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-98098-425-0	02	1	1012-			●
33	05.422 WASHER; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97086-472-0	02	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-	●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1012-			●	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1012-			●
39	05.816 SHIM; BRG HOLDER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) T=1.000	9-42119-616-0	AR	1	1012-1012	●
39	05.816 SHIM; BRG HOLDER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) T=0.500	9-42119-617-0	AR	1	1012-1012	●
39	05.816 SHIM; BRG HOLDER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) T=0.13	9-42119-618-0	AR	1	1012-1012	●
39	05.816 SHIM; BRG HOLDER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) T=0.076	9-42119-619-0	AR	1	1012-1012	●
39	05.816 SHIM; BRG HOLDER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) T=0.050	9-42119-620-0	AR	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97258-241-1	01	1	1506-			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-98061-921-0	01	1	1012-	●
49	05.387 CASE; RR AXLE	8-98061-921-0	01	1	1012-		●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97205-145-3	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-97205-144-1	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-97205-144-1	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-98173-264-0	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-861-5	01	1	1012-1505			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1012-1505				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-861-5	01	1	1506-			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1506-				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97122-348-4	01	1	1012-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1012-	●	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1012-	●	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1012-	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1012-	●	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1012-	●	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-	●		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-		●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M10X100	0-10956-000-0	01	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1012-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1012-	●	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-	●	●	●	●
154	04.665 SCREW; SLOTTED REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD) 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1403-	●
154	04.665 SCREW; SLOTTED REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.812 M6X16 CK-HEAD	0-36410-616-0	02	1	1012-1012	●
269	05.387 GASKET; REAR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.822	9-09720-517-0	02	1	1012-1012	●

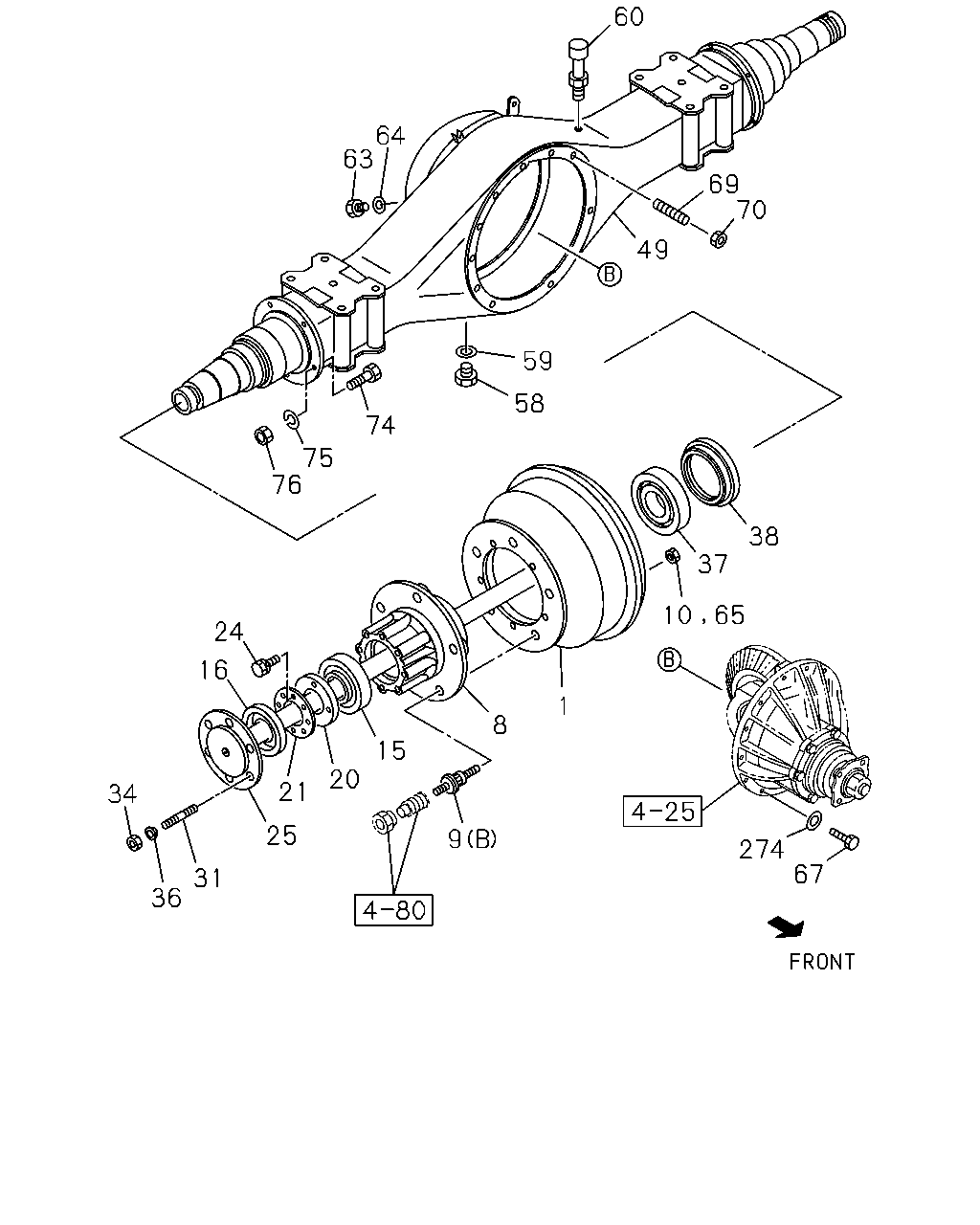

60 64 63 69 70 49 59 58 74 75 76 38 37 24 16 1 8 15 20 21 34 25 9 274 67 31 36 10 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-97032-891-3	02	1	1309-1402	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-98260-757-0	02	1	1403-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1012		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94455-285-2	02	1	1012-1308	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1012-1308		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V)	8-94455-285-2	02	1	1309-	●
1	05.809 DRUM; BRK,RR	8-94455-285-2	02	1	1309-		●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	5-42315-041-4	02	1	1012-	●
1	05.809 DRUM; BRK,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1012-1012	●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. INDONESIA EQUIPMENT(B00)	8-94382-884-4	02	1	1012-			●
1	05.809 DRUM; BRK,RR	8-94382-884-4	02	1	1012-				●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-97036-367-1	02	1	1012-			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-97034-770-3	02	1	1012-1310			●
1	05.809 DRUM; BRK,RR REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00)	8-98248-900-0	02	1	1311-			●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FRT7R-15-10 RR 7.5R-15-12 F/R DISC 5.5F -15-85(CYC),FRT&RR TIRE 7R-16-12 FRT&RRDISC 5.5FX16-85(CYD)	8-94335-927-4	02	1	1309-	●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	5-42311-009-3	02	1	1012-1012	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-42311-009-3	02	1	1012-1012	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1012-1012		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	5-42311-009-3	02	1	1012-1308	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	5-42311-009-3	02	1	1012-1308	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1012-1308		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	5-42311-009-3	02	1	1309-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/ DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15- 10 5.5FX15-25(09V)	5-42311-009-3	02	1	1309-	●
8	05.809 HUB; RR AXLE	5-42311-009-3	02	1	1309-		●
8	05.809 HUB; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97032-606-3	02	1	1012-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97026-139-3	02	1	1012-			●
8	05.809 HUB; RR AXLE	8-97026-139-3	02	1	1012-				●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97122-626-0	02	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29,M20X55 RH THREAD	8-97017-043-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) (B) M18X29 LH THREAD,M20X55 RH THREAD	8-97017-044-2	10	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 RH THREAD	9-42331-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-1012		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE (A) M14X50 LH THREAD	9-42332-605-5	06	1	1012-		●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26,M16X37 RH THREAD	8-98000-404-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) M16X26 LH THREAD,M16X37 RH THREAD	8-98000-406-1	06	1	1012-	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	12	1	1012-1012	●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1012-				●
9	05.812 PIN; WHEEL,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-			●
9	05.812 PIN; WHEEL,RR AXLE (B) M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1012-				●
10	05.813 NUT; WHEEL PIN,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) 05.812 M20	0-91110-520-0	20	1	1012-			●
10	05.813 NUT; WHEEL PIN,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) 05.812 M20	0-91110-520-0	10	1	1012-			●
10	05.813 NUT; WHEEL PIN,RR AXLE 05.812 M20	0-91110-520-0	10	1	1012-				●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	1012-1012	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-082-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NSK	9-00093-082-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1012-1012		●		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1012-	●	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-082-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-607-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1012-1012		●		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1012-	●	●		●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-140-0	02	1	1012-			●
15	05.855 BEARING; HUB OUTER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-139-0	02	1	1012-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-315-2	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER TKK	8-94336-315-2	02	1	1012-1207	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-315-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1208-	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-98202-911-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1012	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-961-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1012		●		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-94367-961-1	02	1	1012-1106	●	●		●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-961-1	02	1	1012-1106			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1012-1012	●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-317-2	02	1	1012-1207			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-98202-912-0	02	1	1208-			●
16	05.822 SEAL; OIL,RR HUB,OUTER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-960-1	02	1	1012-1106			●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	1012-1012	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) M52	8-97137-092-0	02	1	1012-1012	●
20	05.830 NUT; BRG,RR HUB REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) M52	8-97137-092-0	02	1	1012-1012	●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1012-1012		●		●
20	05.830 NUT; BRG,RR HUB M52	8-97137-092-0	02	1	1012-1303	●	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-97137-092-0	02	1	1012-1303			●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1304-	●	●		●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 292MM(G73) M52	8-98236-850-0	02	1	1304-			●
20	05.830 NUT; BRG,RR HUB REAR AXLE HEAVY DUTY 320MM(6CP) M55	8-97137-094-0	02	1	1012-			●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-0	02	1	1012-1012	●		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) ID=52	9-09853-214-0	02	1	1012-1012	●
21	05.830 WASHER; LK,BRG NUT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) ID=52	9-09853-214-0	02	1	1012-1012	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-0	02	1	1012-1012		●		●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1012-	●	●		●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 292MM(G73) ID=52	9-09853-214-1	02	1	1012-			●
21	05.830 WASHER; LK,BRG NUT REAR AXLE HEAVY DUTY 320MM(6CP) ID=55	9-09653-002-1	02	1	1012-			●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER REAR AXLE HEAVY DUTY 292MM(G73) 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1012		●	●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1012-1508	●	●	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97032-495-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-1012		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-94366-192-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR	8-94366-192-0	02	1	1012-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-94341-978-0	02	1	1012-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	04	1	1012-1012	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-496-0	02	1	1012-1505			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1012-1505				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-496-0	02	1	1506-			●
25	05.420 SHAFT; AXLE,RR	8-97032-496-0	02	1	1506-				●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP)	8-98098-425-0	02	1	1012-			●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB REAR AXLE HEAVY DUTY 292MM(G73) M10X30 L=49	8-97359-803-0	12	1	1012-1012	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1012-1012		●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	12	1	1012-	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1012-			●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-1012		●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-	●	●
34	05.387 NUT; AXLE SHAFT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1012-1012	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1012-			●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT REAR AXLE HEAVY DUTY 292MM(G73) ID=10.5	8-97360-004-0	12	1	1012-1012	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1012-1012		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	12	1	1012-	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1012-			●	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NSK	9-00093-081-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-081-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012	●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-1012		●		●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1012-	●	●		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS	5-87610-142-0	02	1	1012-			●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) TKK	8-94336-314-1	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER TKK	8-94336-314-1	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) TKK	8-94336-314-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-1012	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) NOK	8-94367-959-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-1012		●		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-94367-959-0	02	1	1012-	●	●		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 292MM(G73) NOK	8-94367-959-0	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1012-1012	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1012-			●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1012-			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) DUMP CHASSIS(V4D)	8-97258-241-1	01	1	1506-			●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-98061-921-0	01	1	1012-	●
49	05.387 CASE; RR AXLE	8-98061-921-0	01	1	1012-		●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97205-145-3	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-97205-144-1	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-97205-144-1	01	1	1012-	●
49	05.387 CASE; RR AXLE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) SINGLE RR TIRE(6TD) G.V.W. 3.0-3.5TON(RPP)	8-98173-264-0	01	1	1012-1012	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73)	8-97032-861-5	01	1	1012-1505			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1012-1505				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) EXC. DUMP CHASSIS(V4D)	8-97032-861-5	01	1	1506-			●
49	05.387 CASE; RR AXLE	8-97032-861-5	01	1	1506-				●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97122-348-4	01	1	1012-			●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1012-	●	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1012-	●	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1012-	●	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1012-	●	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1012-	●	●	●	●
65	05.387 NUT REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 05.586 M16 FLANGE	1-09449-065-0	12	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-	●		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-		●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M10X100	0-10956-000-0	01	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1012-			●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1012-	●	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1012-	●	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR)	8-98007-877-0	12	1	1012-1012	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	8-98007-877-0	12	1	1012-1012	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1012-1012		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-98007-877-0	12	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73)	8-98007-877-0	12	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1012-		●
74	05.002 BOLT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12X32	8-97359-819-0	08	1	1012-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1012-			●	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1012-1012		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 02.277 ID=10.2	0-91510-810-0	12	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 02.277 ID=10.2	0-91510-810-0	12	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 02.277 ID=10.2	0-91510-810-0	12	1	1012-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 07.347 ID=12.2	0-91510-812-0	08	1	1012-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING 07.347 ID=12.2	0-91510-812-0	12	1	1012-			●	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 00.833 M10	0-91110-510-0	12	1	1012-1012	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 00.833 M10	0-91110-510-0	12	1	1012-1012	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1012-1012		●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 00.833 M10	0-91110-510-0	12	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE HEAVY DUTY 292MM(G73) 00.833 M10	0-91110-510-0	12	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1012-		●
76	05.002 NUT; RR BRK ASM SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12	0-91110-512-0	08	1	1012-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1012-			●	●
274	05.822 WASHER; HSG REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 02.277 ID=10.2	0-91510-810-0	01	1	1012-	●

67 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-	●		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1012-		●		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M10X100	0-10956-000-0	01	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1012-			●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1012-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1012-			●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-98030-956-0	01	1	1012-	●
96	04.730 BRACKET; LSPV,AXLE CASE (A)	8-98030-956-0	01	1	1012-		●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (C)	8-97205-277-1	01	1	1012-	●
96	04.730 BRACKET; LSPV,AXLE CASE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (B)	8-94368-449-2	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
