Sayfa 4-01 - Isuzu EPC

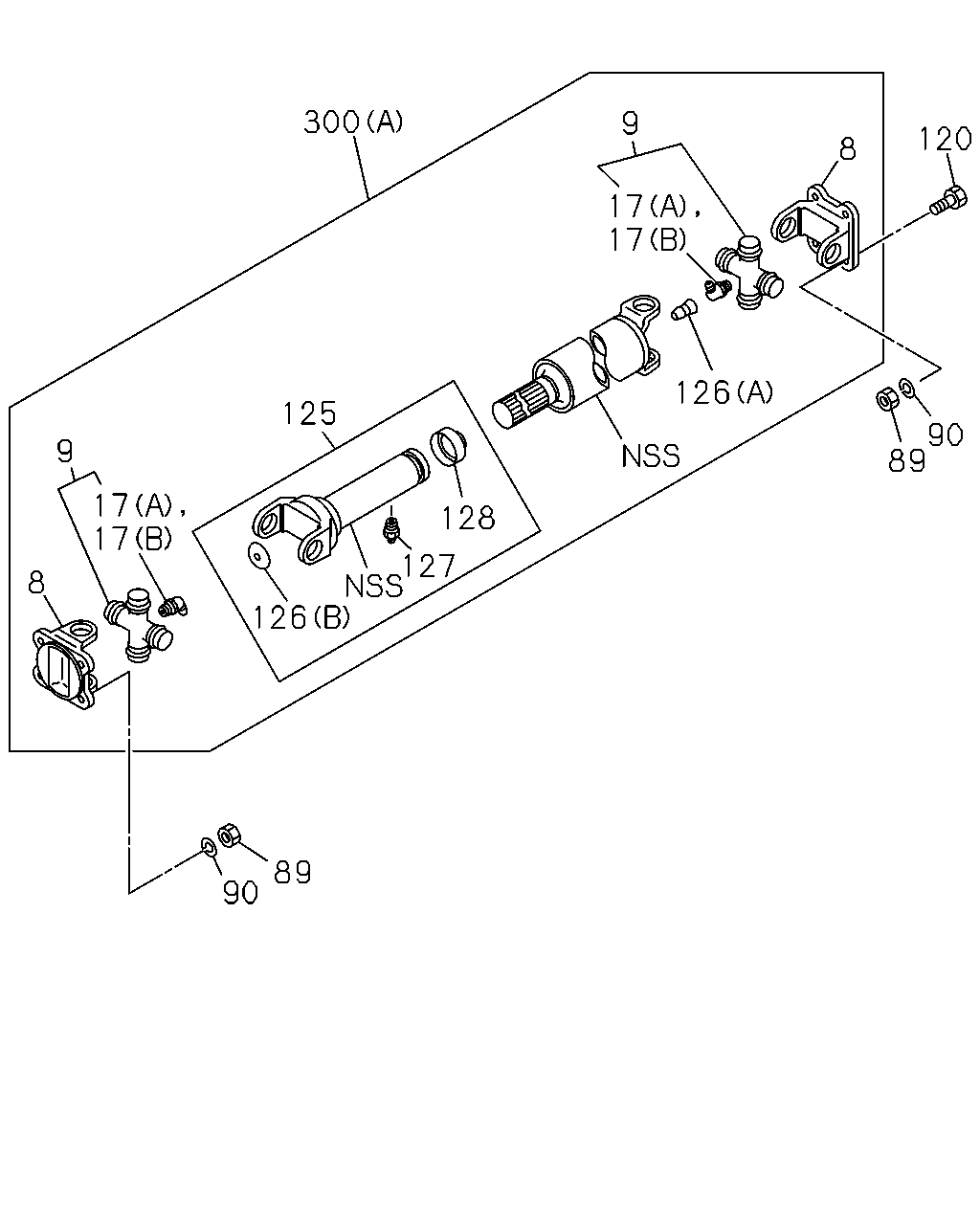

4-01 — PROPELLER SHAFT (#78385) — 284 parça

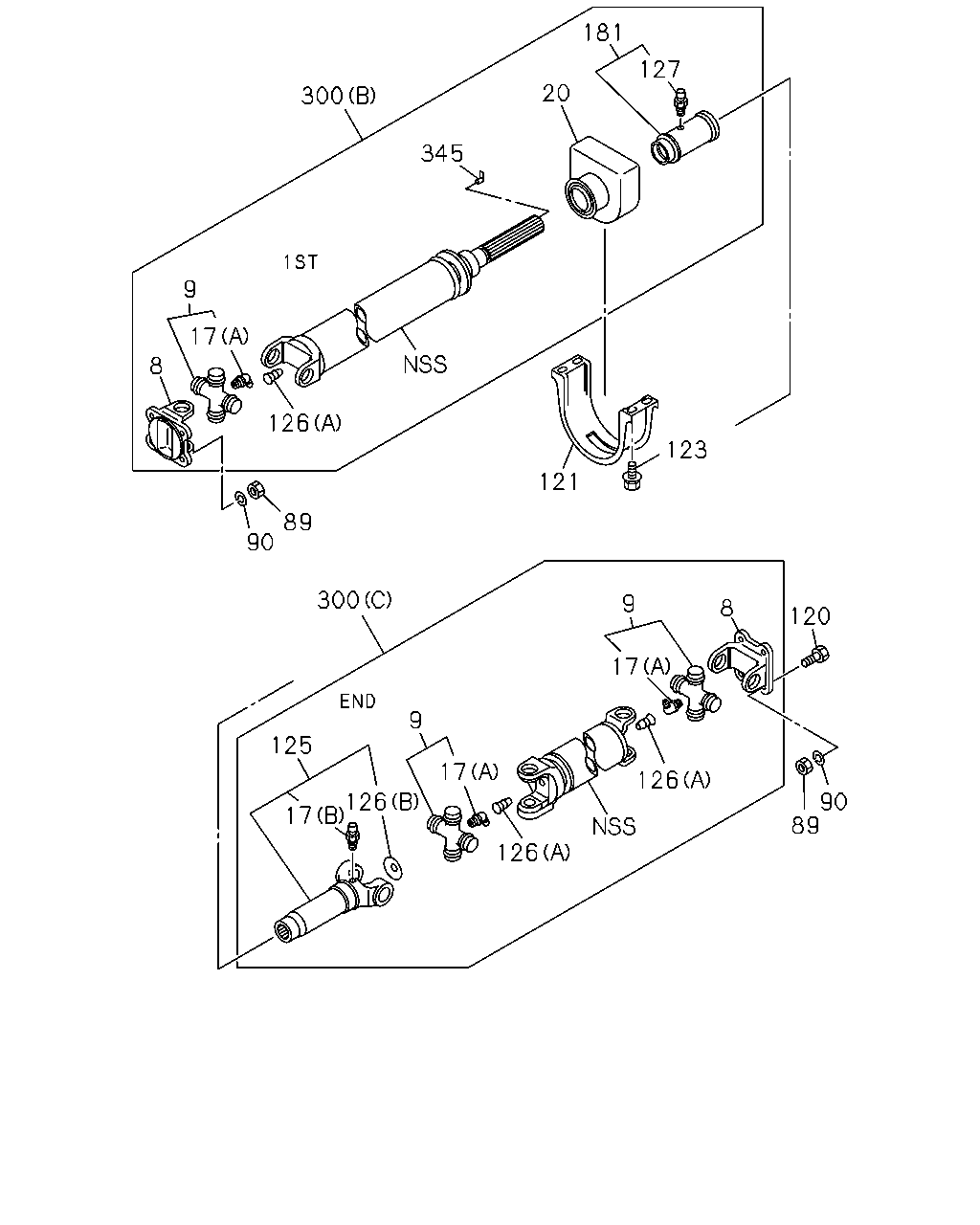

181 127 20 300 345 9 17 8 126 123 121 89 90 300 9 8 120 17 9 125 17 126 126 17 90 89 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-116-0	01	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1012-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-135-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-135-0	01	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1302-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1302-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-1301	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1302-	●	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-				●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	1012-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1012-1301	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1012-1301				●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1302-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1302-				●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10	8-98056-949-0	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10	8-98056-949-0	12	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12	8-97365-450-1	08	1	1012-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) 00.002 ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	12	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 07.347 ID=12.2	0-91510-812-0	08	1	1012-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10X29	8-98056-948-0	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	08	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12X35	8-97365-451-1	04	1	1012-	●	●	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1012-1301	●	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1012-1301				●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1302-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1302-				●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301	●	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301				●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) L=177	8-97211-131-0	01	1	1012-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1012-1301	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1012-1301				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1302-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1302-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1012-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	1012-1301	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1012-1301				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	1302-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1302-			●	●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1012-1301	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1012-1301				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1302-	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1302-				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	1-09600-023-0	01	1	1012-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-				●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-	●	●	●	●
181	05.586 COVER; BRG,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1012-1301	●	●	●
181	05.586 COVER; BRG,PROP SHAFT	8-98046-526-0	01	1	1012-1301				●
181	05.586 COVER; BRG,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1302-	●	●
181	05.586 COVER; BRG,PROP SHAFT	8-98046-526-0	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=964	8-97383-846-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1044	8-98002-488-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=1094	8-98023-318-0	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE STANDARD 244MM(R39) WHEEL BASE 2400MM(24W) (A) L=1084	8-98002-490-0	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) (B) L=914	8-97211-669-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1302-1505	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1302-1505			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=969	8-98001-994-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1506-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1012-1301	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1302-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	1012-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=989	8-98105-689-1	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=989	8-98105-689-1	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=845	8-98039-649-1	01	1	1012-		●
345	05.600 PLUG; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1012-1301	●	●	●
345	05.600 PLUG; PROP SHAFT	8-98042-692-0	01	1	1012-1301				●
345	05.600 PLUG; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1302-	●	●
345	05.600 PLUG; PROP SHAFT	8-98042-692-0	01	1	1302-				●

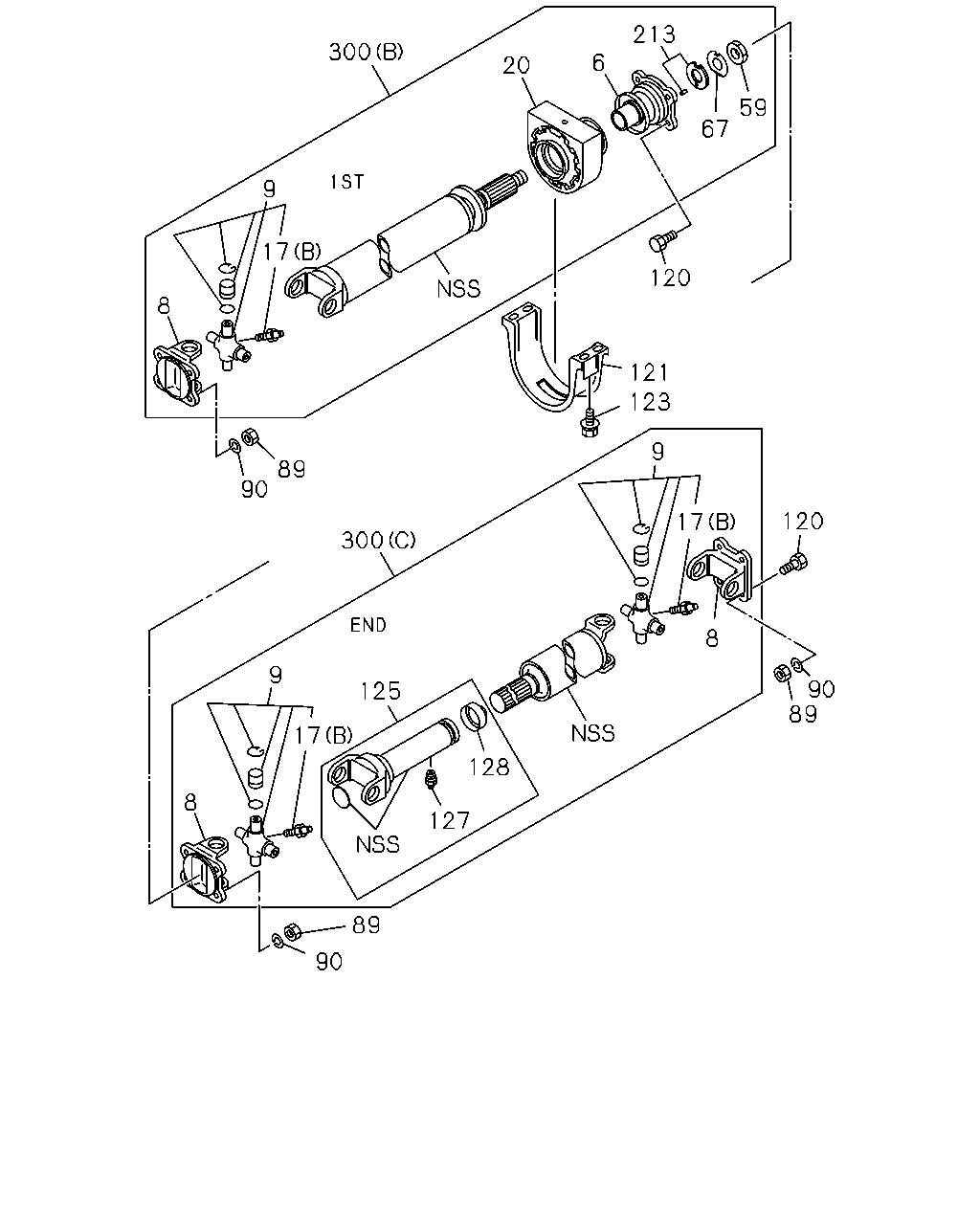

213 300 6 20 59 67 9 17 120 8 121 123 9 89 90 120 17 300 8 9 90 89 125 17 128 8 127 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-94258-907-1	01	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-116-0	01	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1012-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-135-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-135-0	01	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1302-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1302-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-1301	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1302-	●	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-				●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	1012-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1012-1301	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1012-1301				●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1302-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98033-936-0	01	1	1302-				●
59	05.586 NUT; RET TO SUPPORT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) ID=20	9-09841-038-0	01	1	1012-	●	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10	8-98056-949-0	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10	8-98056-949-0	12	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12	8-97365-450-1	08	1	1012-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) 00.002 ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	12	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 07.347 ID=12.2	0-91510-812-0	08	1	1012-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10X29	8-98056-948-0	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	08	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12X35	8-97365-451-1	04	1	1012-	●	●	●	●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1012-1301	●	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1012-1301				●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1302-	●	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1302-				●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301	●	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301				●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-	●	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) L=177	8-97211-131-0	01	1	1012-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1012-1301	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1012-1301				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1302-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1302-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1012-	●	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-	●	●	●	●
128	05.586 SEAL; SLEEVE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 05.545	8-97020-597-1	01	1	1012-	●	●
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	1012-	●	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	9-09855-212-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=964	8-97383-846-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1044	8-98002-488-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=1094	8-98023-318-0	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE STANDARD 244MM(R39) WHEEL BASE 2400MM(24W) (A) L=1084	8-98002-490-0	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) (B) L=914	8-97211-669-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1302-1505	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1302-1505			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=969	8-98001-994-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1506-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1012-1301	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1302-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	1012-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=989	8-98105-689-1	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=989	8-98105-689-1	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=845	8-98039-649-1	01	1	1012-		●

300 9 120 8 17 17 126 125 90 89 9 17 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-116-0	02	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-116-0	01	1	1012-	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1012-	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	8-97322-663-0	01	1	1012-				●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	1012-	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97211-135-0	02	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W)	8-97211-135-0	01	1	1012-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98033-605-1	02	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1302-			●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1012-1301	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1012-1301				●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1302-	●	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	01	1	1302-				●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1012-1301	●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1302-	●	●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1302-			●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1012-1301				●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-				●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10	8-98056-949-0	08	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10	8-98056-949-0	12	1	1012-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12	8-97365-450-1	08	1	1012-	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) 00.002 ID=10.2	0-91510-610-0	08	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) 00.002 ID=10.2	0-91510-610-0	12	1	1012-	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 07.347 ID=12.2	0-91510-812-0	08	1	1012-	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) M10X29	8-98056-948-0	04	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) M10X29	8-98056-948-0	08	1	1012-	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) M12X35	8-97365-451-1	04	1	1012-	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) L=177	8-97211-131-0	01	1	1012-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1012-1301	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1012-1301				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1302-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=183	8-98033-647-2	01	1	1302-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	1012-	●	●	●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	1012-1301	●	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1012-1301				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	1302-	●	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1302-			●	●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1012-1301	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1012-1301				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1302-	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	02	1	1302-				●
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	1-09600-023-0	01	1	1012-	●	●	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1012-				●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1012-	●	●	●	●
128	05.586 SEAL; SLEEVE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 05.545	8-97020-597-1	01	1	1012-	●	●
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	1012-	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=964	8-97383-846-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1044	8-98002-488-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=1094	8-98023-318-0	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=1094	8-98023-318-0	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) REAR AXLE STANDARD 244MM(R39) WHEEL BASE 2400MM(24W) (A) L=1084	8-98002-490-0	01	1	1012-	●
300	05.544 SHAFT ASM; PROP,RR 4JB1-TC ENG(RDT),4JB1 ENG(RLF) WHEEL BASE 3300MM(33W) (B) L=914	8-97211-669-0	01	1	1012-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	1302-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) (C) L=1076	8-97383-854-4	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1012-1301			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1302-1505	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1302-1505			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=969	8-98001-994-2	01	1	1506-	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=969	8-98001-994-2	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (A) L=969	8-98001-994-2	01	1	1506-			●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1012-1301	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1012-1301				●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=830	8-98039-644-1	01	1	1302-	●	●
300	05.544 SHAFT ASM; PROP,RR 4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) (B) L=830	8-98039-644-1	01	1	1302-				●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (C) L=1066	8-97387-806-4	01	1	1012-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) (A) L=989	8-98105-689-1	01	1	1012-1505		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=989	8-98105-689-1	01	1	1506-		●
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (B) L=845	8-98039-649-1	01	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
