3-58 — FIXING PARTS; OIL PIPING (#78383) — 136 parça

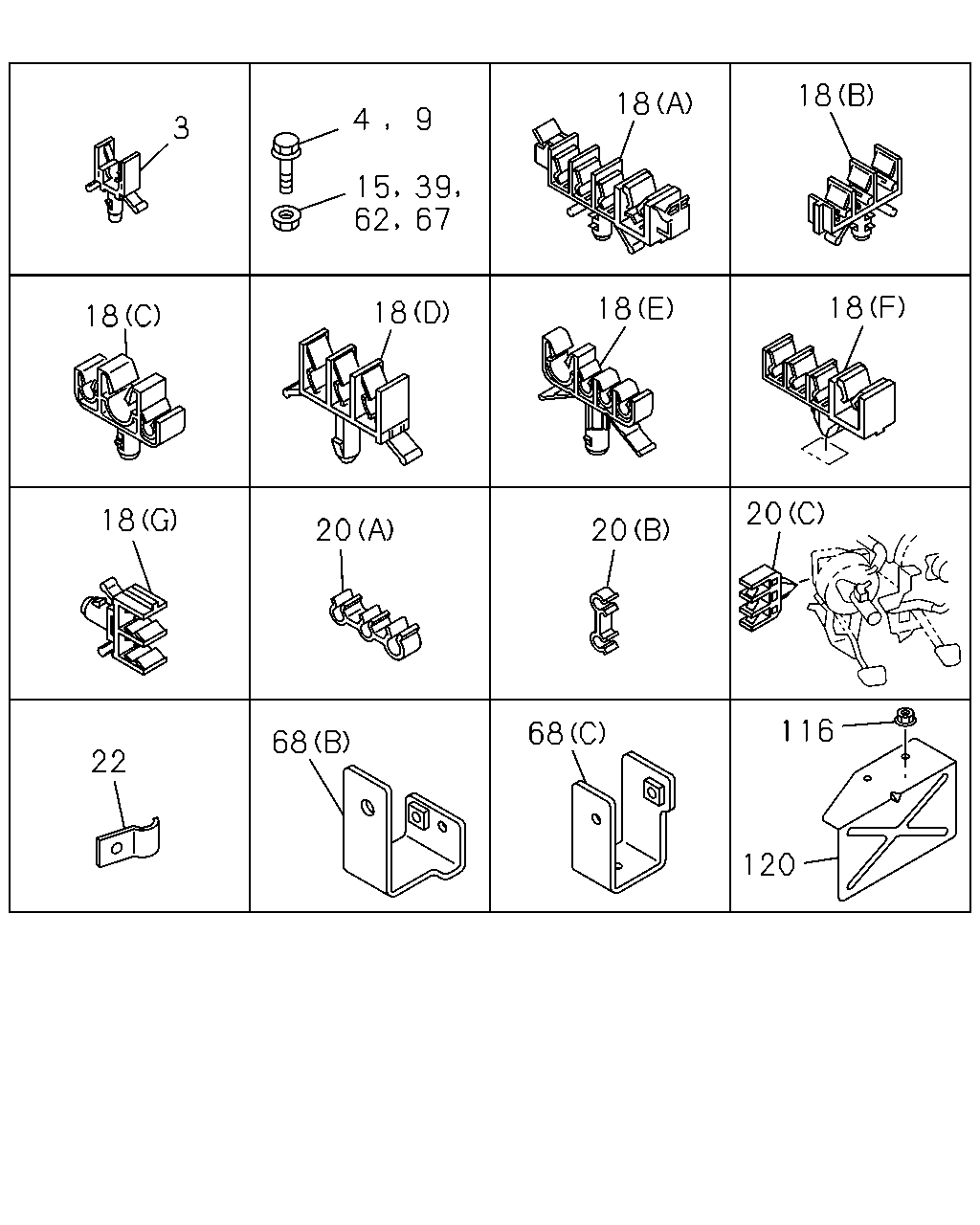

çizim 121676
3 4 9 39 67 62 15 18 18 18 18 18 18 18 20 20 20 116 120 68 68 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1012-1301 ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1302-1311 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 ID=10 H=40 		8-94462-219-0 01 1 1302-1311 ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1302-1311 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1302-1311 ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1302-1311 ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),EXHAUST BRAKE<NF8>, HEAVYDUTY FRAME<6WB> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1312- ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 ID=10 H=40 		8-94462-219-0 01 1 1312- ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1312- ●
3 04.685 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1312- ●
3 04.685 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8>,HEAVY DUTY FRAME<6WB> 04.930 ID=10 H=40 		8-94462-219-0 01 1 1312- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
4 04.686 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
9 04.686 BOLT; BRKT
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1301 ●
9 04.686 BOLT; BRKT
SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1301 ●
9 04.686 BOLT; BRKT
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1302- ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-1301 ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-1301 ● ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1012-1301 ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1302-1505 ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1302-1505 ● ●
9 04.686 BOLT; BRKT
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ●
9 04.686 BOLT; BRKT
EXC. FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1506- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
FRAME-KICK UP<7EW> (G) ID=4.8X2 		8-94316-410-0 02 1 1506- ●
18 04.686 CLIP; BRK PIPE
FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3 		8-97168-819-0 09 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012-1301 ● ●
18 04.686 CLIP; BRK PIPE
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1012-1301 ●
18 04.686 CLIP; BRK PIPE
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302-1309 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302-1309 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302-1309 ●
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1302-1309 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-1505 ● ●
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-1505 ● ●
18 04.686 CLIP; BRK PIPE
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-1505 ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1310-1505 ● ●
18 04.686 CLIP; BRK PIPE
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) (D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1012- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1012- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1012- ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 1012- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1506- ● ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1012-1301 ● ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1012-1301 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1302-1505 ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1302-1505 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1506- ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1506- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME-KICK UP<7EW> (E) ID=10 & 4.76X3 		8-97168-820-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1506- ● ● ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1506- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME-KICK UP<7EW> (A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1506- ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1012- ● ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 07 1 1012-1505 ● ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 07 1 1506- ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME-KICK UP<7EW> (F) ID=10 & 4.76X3 		8-97168-819-0 07 1 1506- ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1012- ● ● ● ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 03 1 1012-1505 ●
18 04.686 CLIP; BRK PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME-KICK UP<7EW> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1506- ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1012- ● ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1012- ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) 		8-94338-104-0 01 1 1012- ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 1012- ● ● ● ●
39 04.686 NUT; BRKT FIX
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1301 ●
39 04.686 NUT; BRKT FIX
SINGLE RR TIRE(6TD) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1301 ●
39 04.686 NUT; BRKT FIX
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1302- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1302- ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1301 ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1301 ● ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1301 ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1302-1505 ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 1302-1505 ● ●
39 04.686 NUT; BRKT FIX
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ●
39 04.686 NUT; BRKT FIX
EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ●
62 04.686 NUT
EXHAUST BRAKE<NF8> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1012 ● ●
62 04.686 NUT
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) EXHAUST BRAKE<NF8> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1101-1505 ●
62 04.686 NUT
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1101-1505 ●
62 04.686 NUT
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4JB1ENG(RLF) EXHAUST BRAKE<NF8> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ●
62 04.686 NUT
4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98178-046-0 01 1 1012- ● ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) 		8-98178-046-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (C) 		8-98178-046-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (C) 		8-98178-046-0 01 1 1012- ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1012- ● ● ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 1012- ● ● ● ●
116 04.686 NUT; PROTECTOR
4HG1 ENG(RJH) FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506- ●
120 04.686 PROTECTOR; HEAT
4HG1 ENG(RJH) FRAME-KICK UP<7EW> 		8-98081-354-1 01 1 1506- ●
çizim 191183
19 67 68 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
4 04.686 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1012- ● ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98178-046-0 01 1 1012- ● ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) 		8-98178-046-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (C) 		8-98178-046-0 01 1 1012- ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) (C) 		8-98178-046-0 01 1 1012- ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 1012- ● ● ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 1012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
