3-55 — BRAKE PIPING; OIL,REAR (#78382) — 62 parça

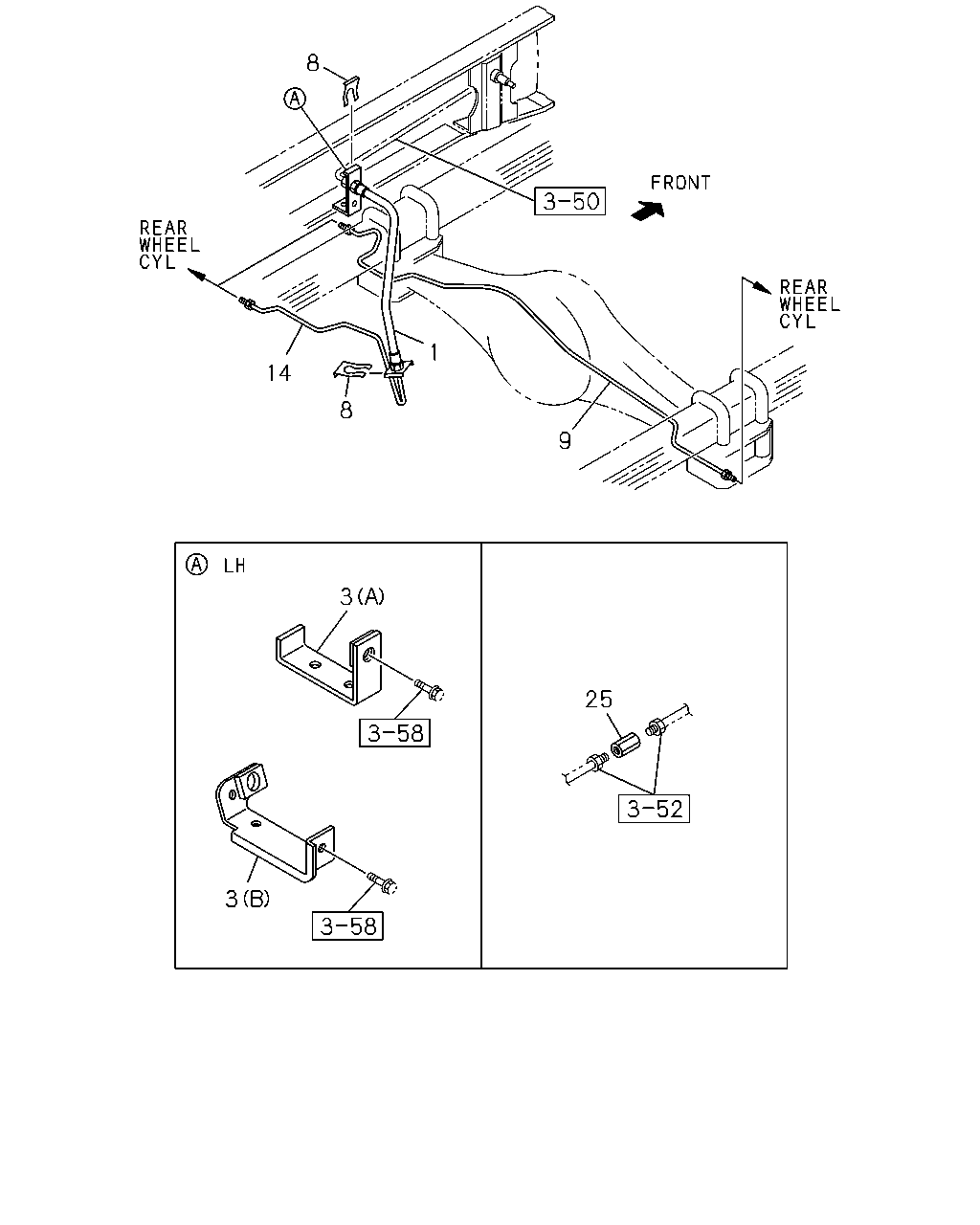

çizim 119778
8 1 14 8 9 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 1012- ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-97251-436-0 01 1 1012-1301 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD) (B) 		8-97251-436-0 01 1 1012-1301 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-97251-436-0 01 1 1302- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97251-436-0 01 1 1302- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 1012-1301 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1012-1301 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1012-1301 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 1302-1505 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1302-1505 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME-KICK UP<7EW> (A) 		8-97205-198-0 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1506- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012- ● ● ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. INDONESIA EQUIPMENT(B00),REAR WIDETREAD(V4T) 		8-98021-868-0 01 1 1506- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-864-0 01 1 1302- ●
9 04.685 PIPE; BRK,RR AXLE 8-98021-864-0 01 1 1302- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-97035-850-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-97105-827-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) 		8-98039-610-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-97089-922-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-97089-922-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-97089-922-0 01 1 1302- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98021-870-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 		8-98021-870-0 01 1 1309-1505 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-870-0 01 1 1506- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00) 		8-98067-256-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE 8-98067-256-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) 		8-98067-256-0 01 1 1309-1505 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00) 		8-98067-256-0 01 1 1309-1505 ●
9 04.685 PIPE; BRK,RR AXLE 8-98067-256-0 01 1 1309-1505 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) 		8-98067-256-0 01 1 1506- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00),DUMP CHASSIS(V4D) 		8-98067-256-0 01 1 1506- ●
9 04.685 PIPE; BRK,RR AXLE 8-98067-256-0 01 1 1506- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 		8-98021-873-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 		8-98021-873-0 01 1 1309-1505 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-873-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. INDONESIA EQUIPMENT(B00),REAR WIDETREAD(V4T) 		8-98021-867-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98021-860-0 01 1 1302- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-860-0 01 1 1302- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T) 		8-98039-607-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98039-608-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98039-608-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98039-608-0 01 1 1302- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) 		8-98021-869-0 01 1 1012-1505 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00) 		8-98021-869-0 01 1 1012-1505 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1012-1505 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. INDONESIA EQUIPMENT(B00),DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) INDONESIA EQUIPMENT(B00) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) 		8-98021-872-0 01 1 1012-1505 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) INDONESIA EQUIPMENT(B00) G.V.W. 6.5-7.0TON(RPW) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-872-0 01 1 1506- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012- ● ●
