◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#78381) — 89 parça

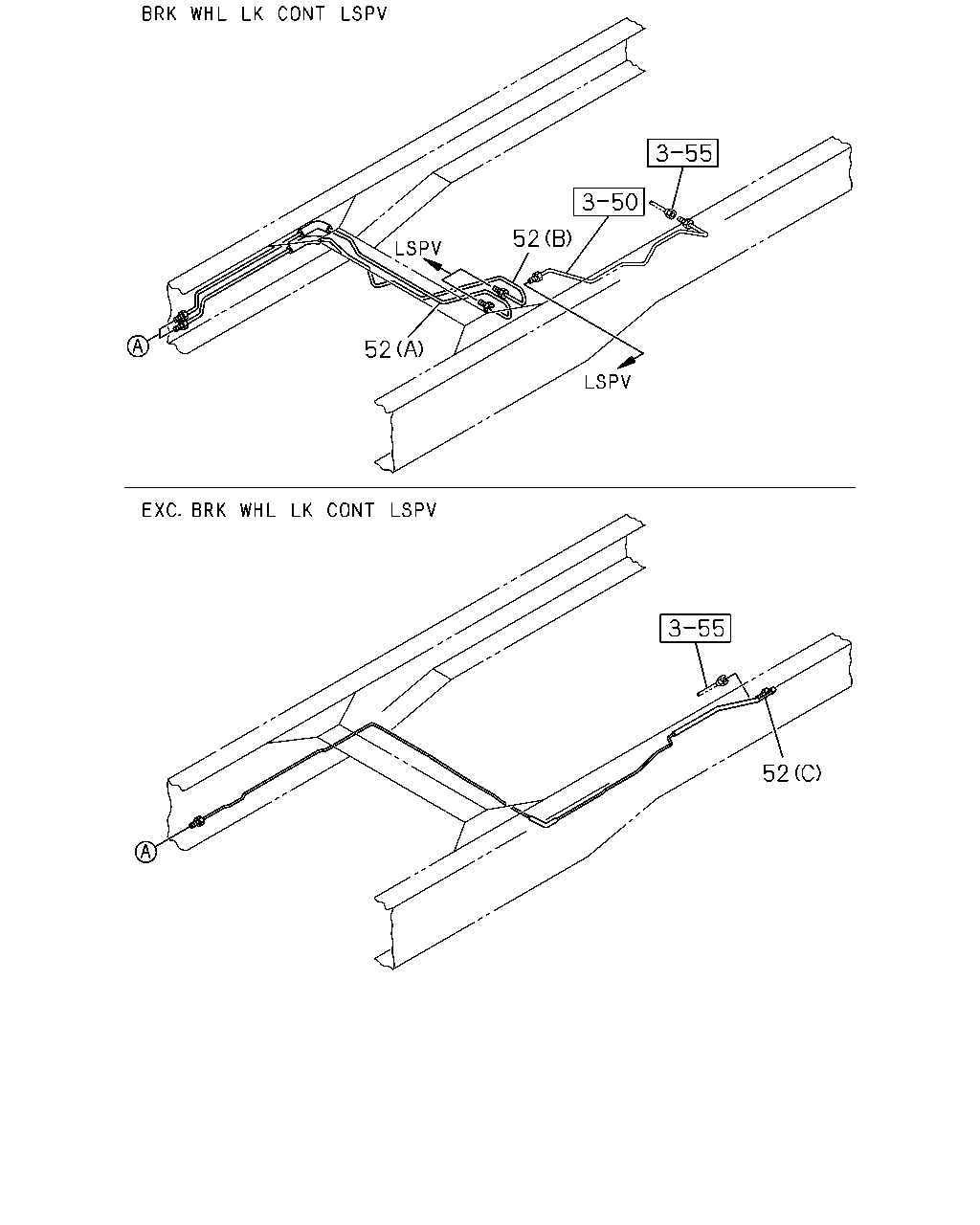

çizim 119668
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98063-432-0 01 1 1506- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1302- ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1302- ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012-1301 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1302- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) (C) 2WAY TO REAR 		8-98054-694-0 01 1 1012-1505 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 1506- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1505 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1505 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 1506- ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1506- ●

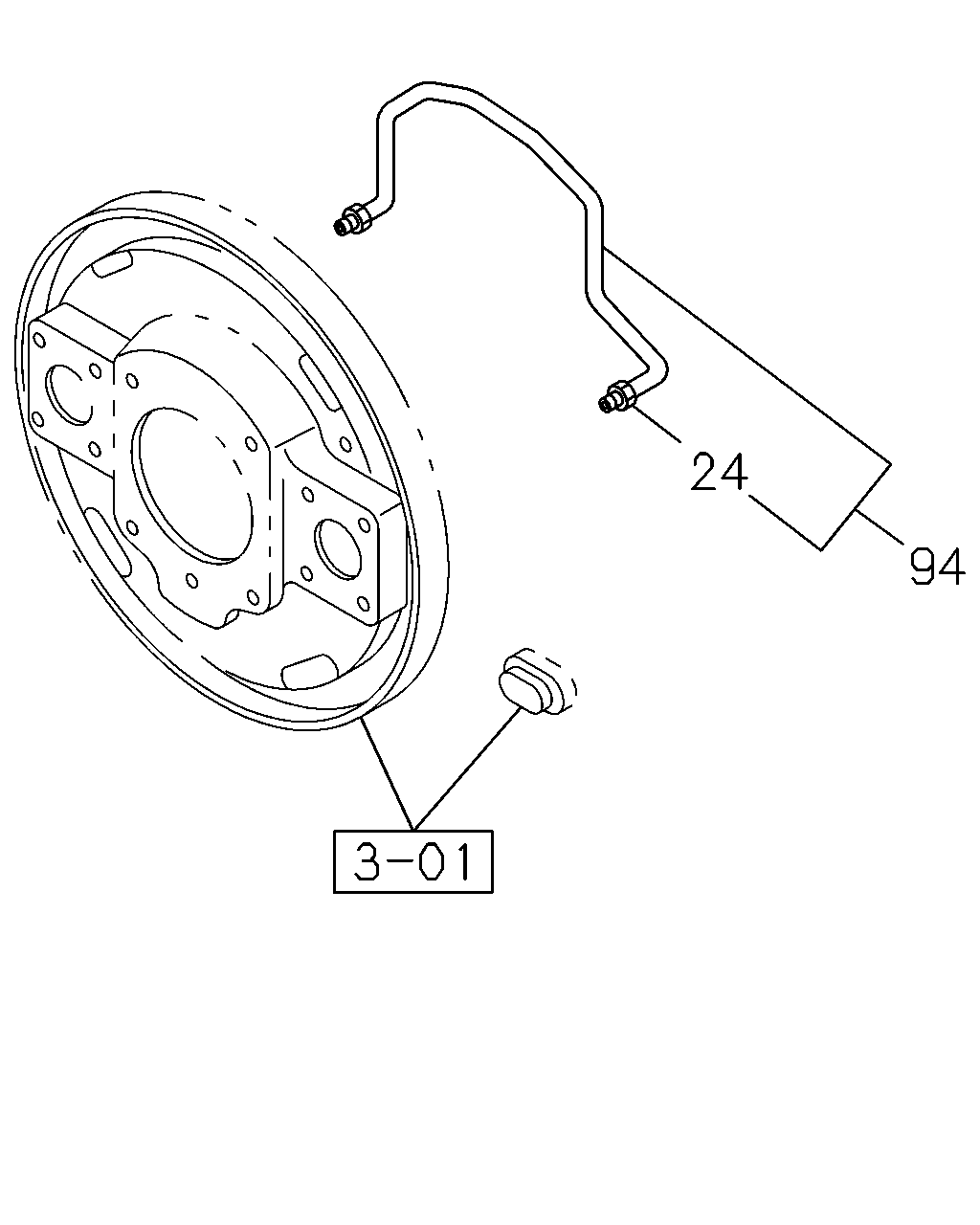

çizim 119870
24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1012- ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) 		8-97081-151-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) 		8-97081-184-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97019-222-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97019-222-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1012-1012 ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1012- ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97019-223-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 		8-97019-223-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1012-1012 ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1012- ● ● ● ●

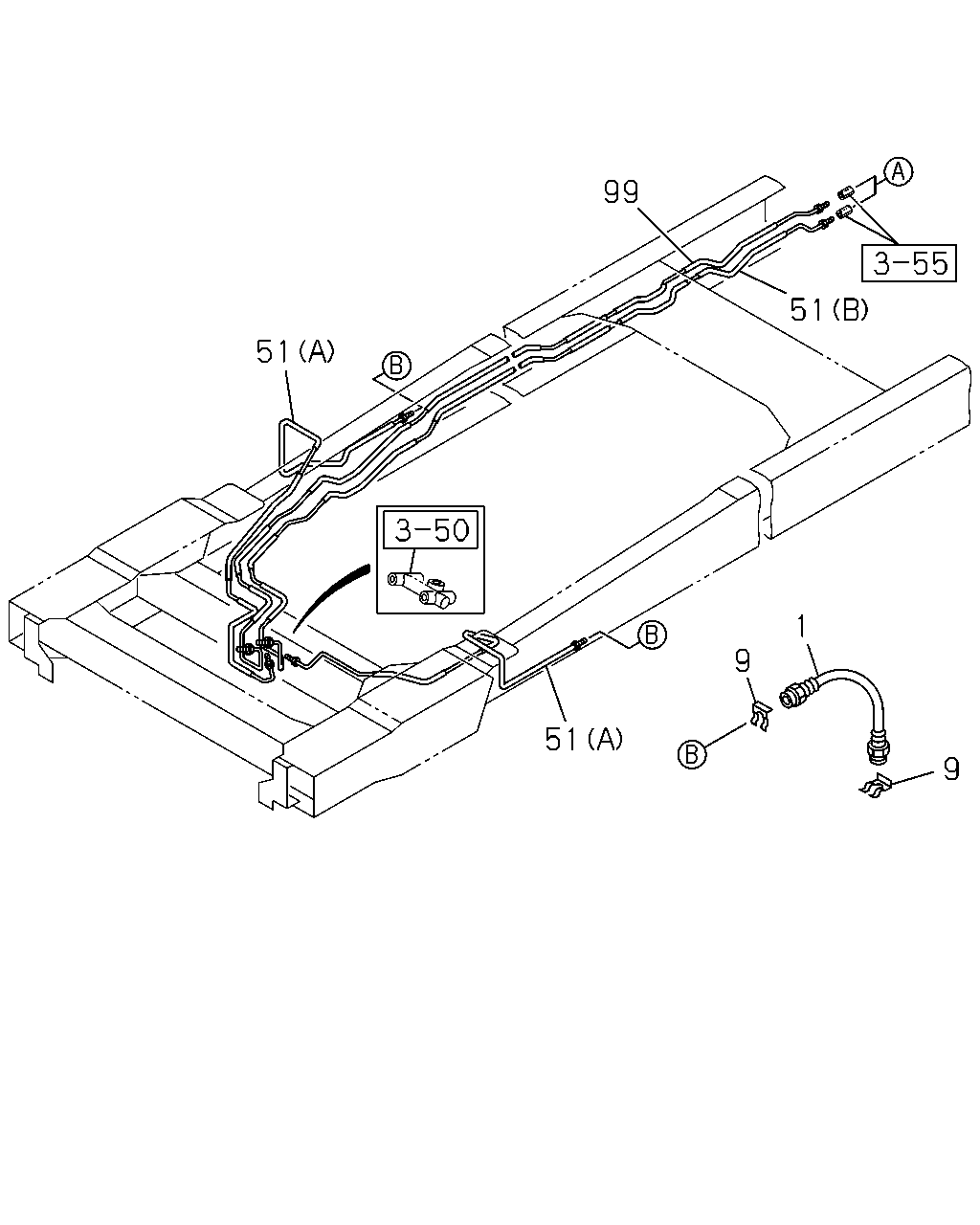

çizim 191184
99 51 51 1 9 51 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 3.0-3.5TON(RPP) L=310 		8-97035-063-1 02 1 1012-1012 ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97042-976-0 02 1 1012-1012 ●
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1012-1012 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1012- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1309 ●
51 04.685 PIPE; BRK
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1309 ●
51 04.685 PIPE; BRK
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310- ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310- ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310- ●
51 04.685 PIPE; BRK
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98054-530-0 01 1 1012- ● ● ● ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98054-531-1 01 1 1012- ● ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-98063-431-0 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98051-512-1 01 1 1012-1301 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98051-512-1 01 1 1012-1301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98051-512-1 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) 		8-98051-512-1 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1310-1505 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1310-1505 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98051-512-1 01 1 1310-1505 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1310-1505 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) 		8-98051-512-1 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> 		8-98051-512-1 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1506- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98131-078-0 01 1 1012-1301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) 		8-98131-078-0 01 1 1012-1301 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00) 		8-98131-078-0 01 1 1012-1301 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1012-1301 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98131-078-0 01 1 1302-1302 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00) 		8-98131-078-0 01 1 1302-1302 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1302-1302 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) 		8-98131-078-0 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1302-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1302-1309 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1310-1505 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1310-1505 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1506- ●
