3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#78380) — 62 parça

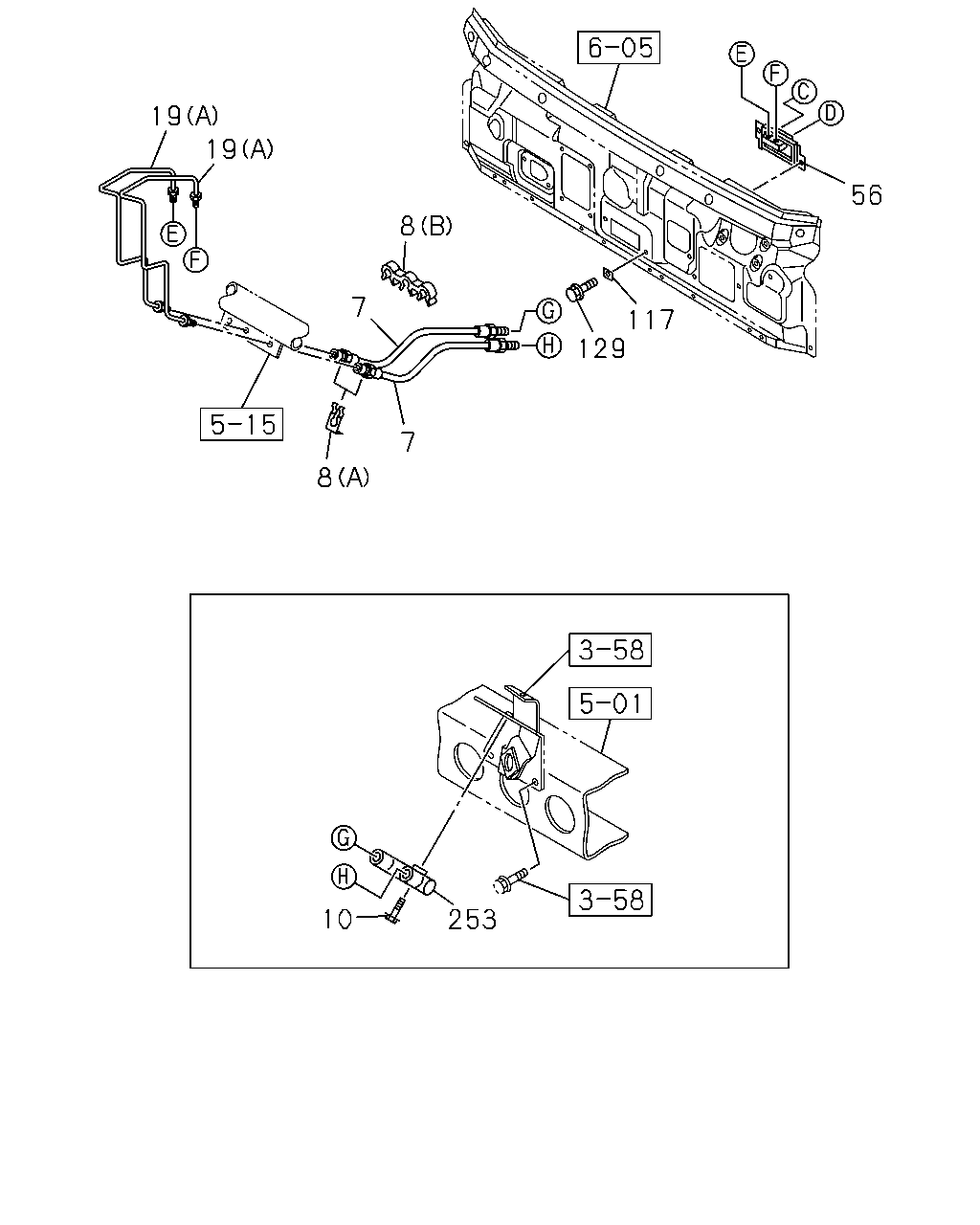

çizim 119743
19 19 56 8 7 117 129 7 8 10 253
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 1012- ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1012- ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1012- ● ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1012- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 1012- ● ● ● ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1012- ● ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1012- ● ● ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ● ● ●
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 1012- ● ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 1012- ● ●

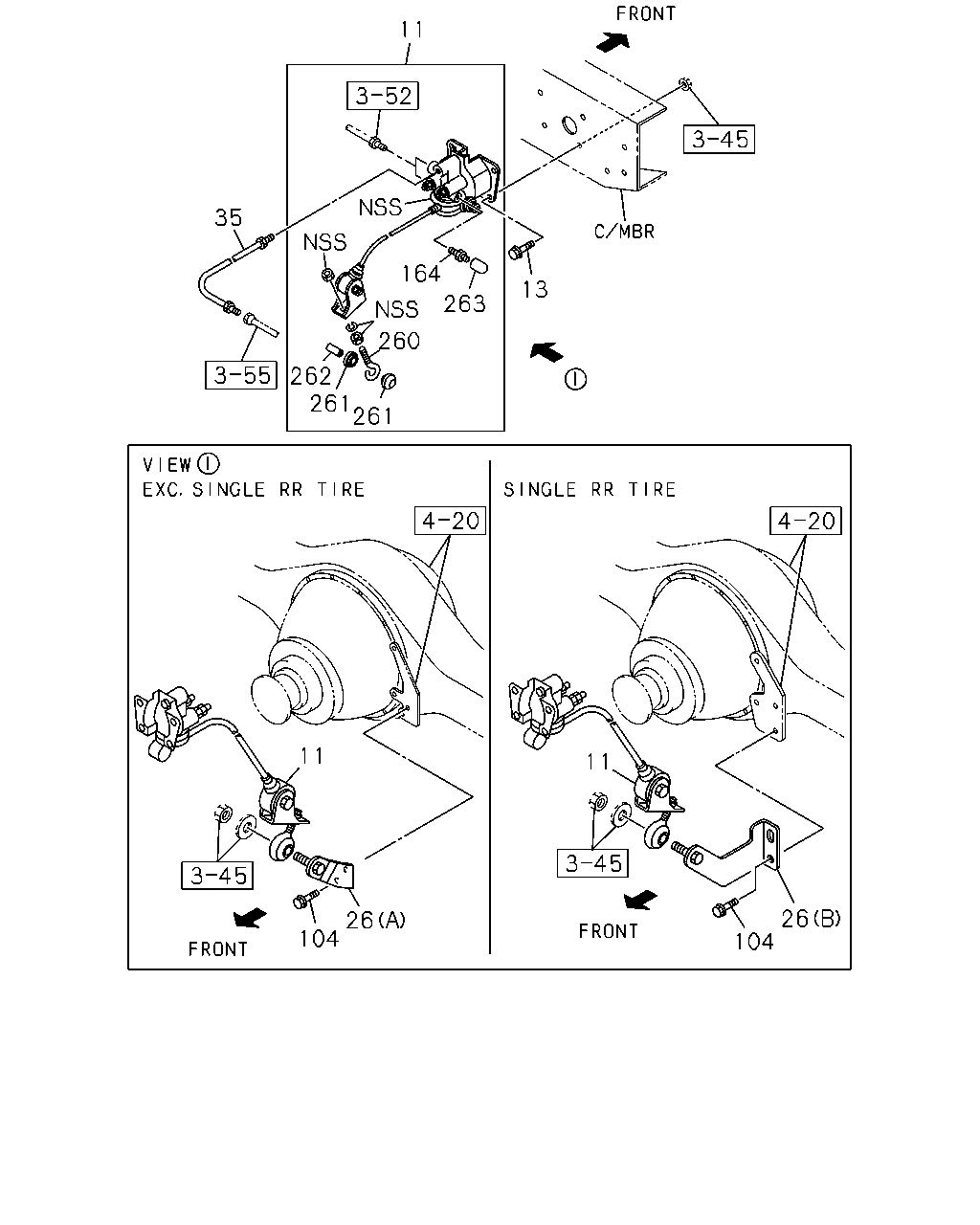

çizim 119845
11 35 164 13 263 260 262 261 261 11 11 26 104 26 104
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 04.686 VALVE; BRK CONT
SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 1012-1301 ● ●
11 04.686 VALVE; BRK CONT
SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 1302- ●
11 04.686 VALVE; BRK CONT
04.730 		8-94368-455-2 01 1 1302- ●
11 04.686 VALVE; BRK CONT
EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 1012-1301 ● ●
11 04.686 VALVE; BRK CONT
EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 1302- ●
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) (A) 		8-98029-821-0 01 1 1012-1301 ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98029-821-0 01 1 1012-1301 ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. SINGLE RR TIRE(6TD) (A) 		8-98029-821-0 01 1 1012-1301 ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) SMALL DOUBLE RR TIRE(6YE) (A) 		8-98029-821-0 01 1 1302- ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-98029-821-0 01 1 1302- ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (B) 		8-98029-822-0 01 1 1012-1301 ●
26 04.730 BRACKET; PROPORTIONING VLV
SINGLE RR TIRE(6TD) (B) 		8-98029-822-0 01 1 1012-1301 ●
26 04.730 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73),REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) (B) 		8-98029-822-0 01 1 1302- ●
26 04.730 BRACKET; PROPORTIONING VLV
(B) 		8-98029-822-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98064-716-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD) 		8-98064-716-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98064-716-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97389-540-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97389-540-0 01 1 1302- ●
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 1012- ● ●
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 1012- ● ●
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 1012- ● ●
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 1012- ● ●
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 1012- ● ●

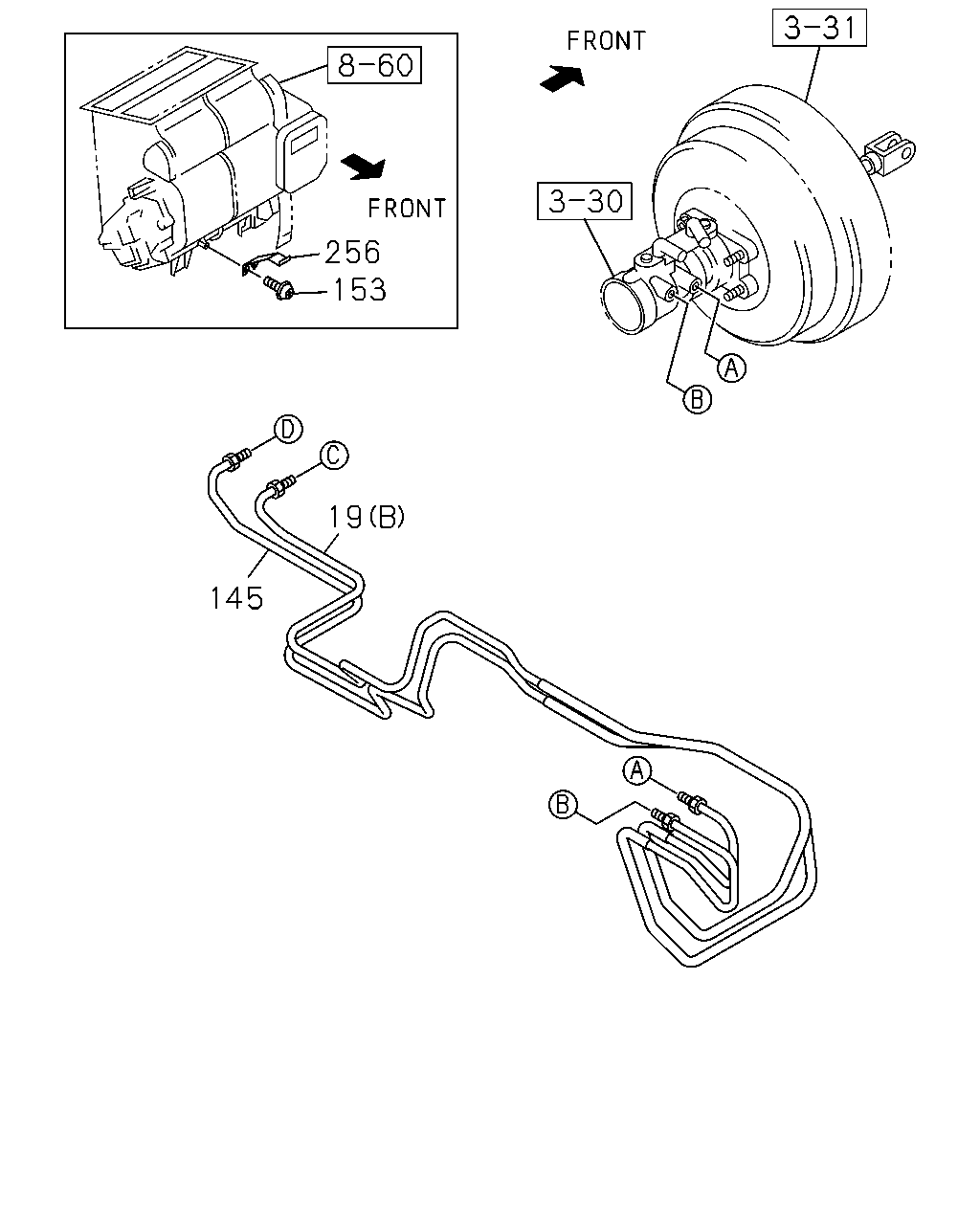

çizim 191079
256 153 19 145
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 1012- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 1012- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 1012- ● ● ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012-1301 ● ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012-1301 ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1302- ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1302- ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012-1301 ● ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012-1301 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1302- ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1302- ● ●
çizim 191182
35 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 04.686 VALVE; BRK CONT
SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 1012-1301 ● ●
11 04.686 VALVE; BRK CONT
SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 1302- ●
11 04.686 VALVE; BRK CONT
04.730 		8-94368-455-2 01 1 1302- ●
11 04.686 VALVE; BRK CONT
EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 1012-1301 ● ●
11 04.686 VALVE; BRK CONT
EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98064-716-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD) 		8-98064-716-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98064-716-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1302- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97389-540-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 1012-1301 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-97389-540-0 01 1 1302- ●
