Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#78366) — 243 parça

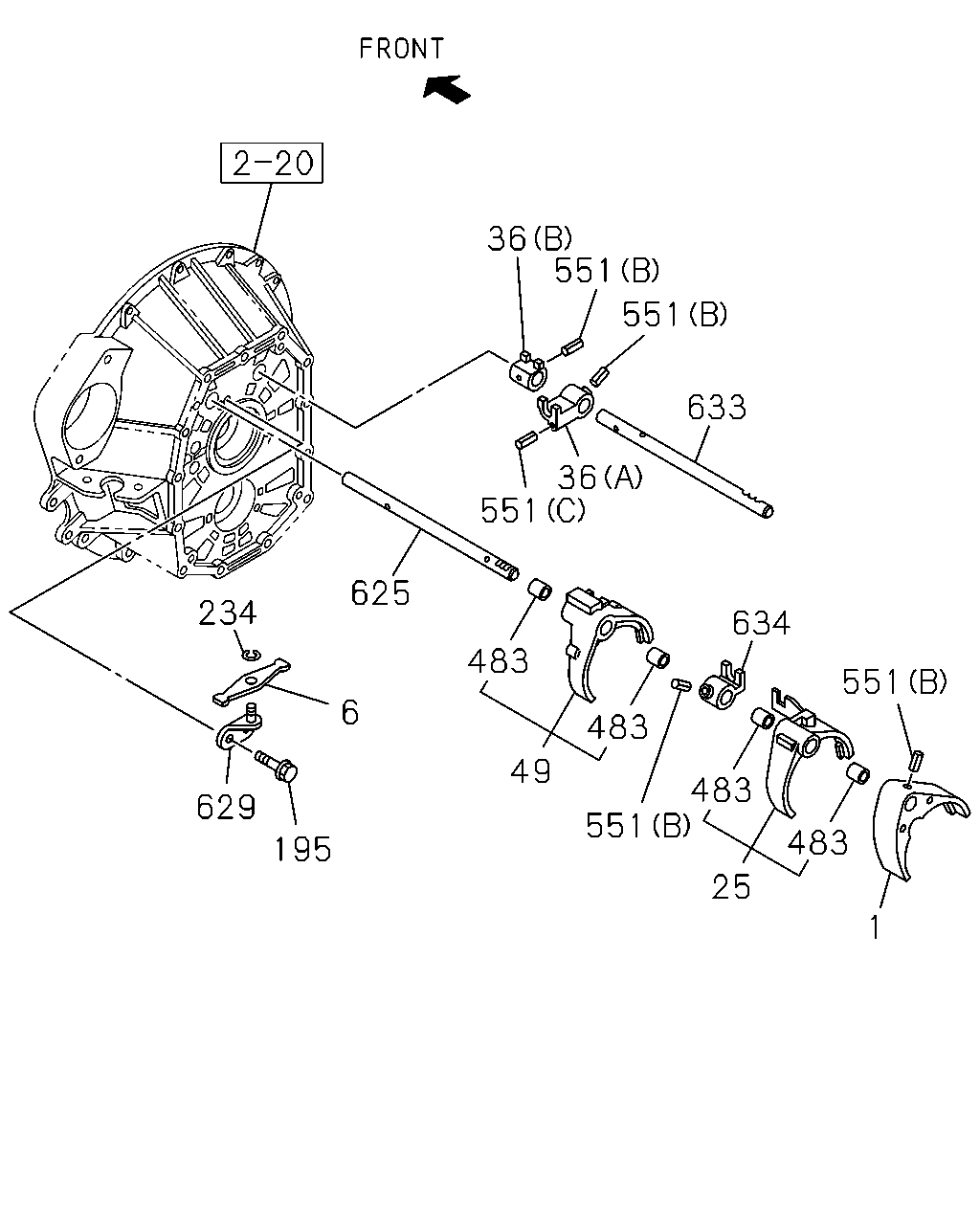

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	04.302 ARM; SHIFT,1ST & REV	8-97241-320-2	01	1	1012-	●
6	04.302 LEVER; RELAY	8-97241-344-0	01	1	1012-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97362-731-2	01	1	1012-1407	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-98255-926-1	01	1	1408-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (A)	8-97241-329-1	01	1	1012-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH (B)	8-97241-330-0	01	1	1012-	●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-716-0	01	1	1012-	●
195	04.105 BOLT M10X28 FLANGE REAMER	8-97365-375-0	02	1	1012-	●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	01	1	1012-	●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	1012-	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1012-	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1012-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1012-	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97362-741-0	01	1	1012-	●
629	04.555 BRIDGE; LEVER	8-97237-107-1	01	1	1012-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH	8-97362-743-0	01	1	1012-	●
634	04.303 BLOCK; SHIFT,LOW,REV	8-97241-327-1	01	1	1012-	●

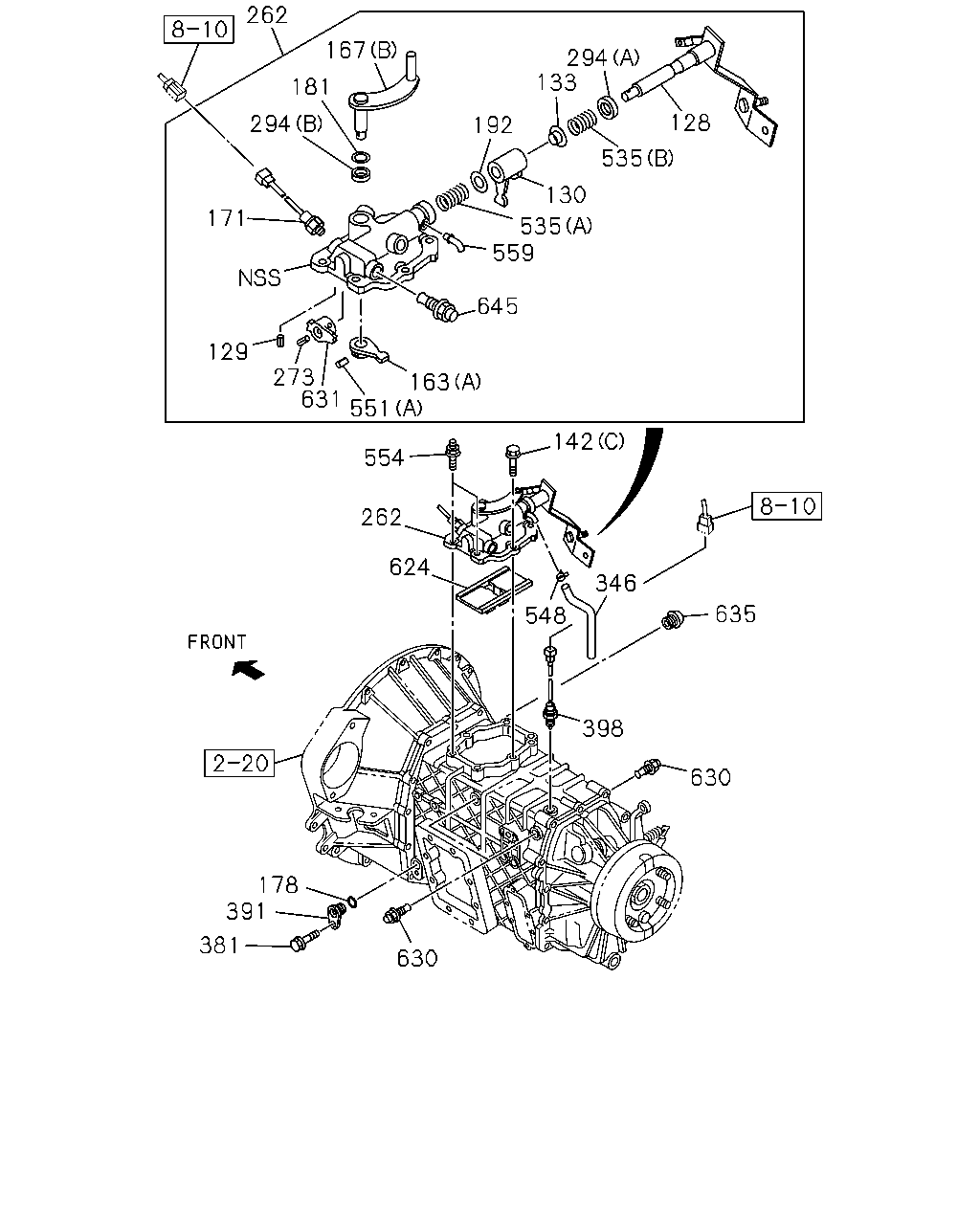

262 167 181 294 171 129 273 631 551 163 645 559 535 130 535 128 294 133 192 554 262 624 142 346 548 635 398 630 630 381 391 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	1012-	●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1012-	●
130	04.302 LEVER; SHIFT,INTERNAL INDONESIA EQUIPMENT(B00)	8-98190-340-0	01	1	1210-1210		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-98190-340-0	01	1	1211-		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	1012-1209		●	●
130	04.302 LEVER; SHIFT,INTERNAL EXC. INDONESIA EQUIPMENT(B00)	8-94105-141-2	01	1	1210-1210		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1012-	●
133	04.027 SEAT; SPR	8-97305-667-0	01	1	1012-	●
142	04.012 BOLT; QUAD BOX INDONESIA EQUIPMENT(B00) 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1211-		●	●
142	04.012 BOLT; QUAD BOX INDONESIA EQUIPMENT(B00) 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1211-		●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	1012-1209		●	●
142	04.012 BOLT; QUAD BOX EXC. INDONESIA EQUIPMENT(B00) 04.105 (A) M8X25	8-94128-786-0	08	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	1012-1209		●	●
142	04.012 BOLT; QUAD BOX EXC. INDONESIA EQUIPMENT(B00) 04.105 (B) M8X30	8-97029-705-0	02	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 04.356 (C) M8X22 FLANGE	8-97365-376-0	04	1	1012-	●
163	04.302 LEVER; SELECT,INTERNAL INDONESIA EQUIPMENT(B00) (B)	8-98190-302-0	01	1	1210-1210		●	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-98190-302-0	01	1	1211-		●	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-94159-268-1	01	1	1012-1209		●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. INDONESIA EQUIPMENT(B00) (B)	8-94159-268-1	01	1	1210-1210		●	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	1012-	●
167	04.302 LEVER; SELECT,EXTERNAL INDONESIA EQUIPMENT(B00) (A)	8-98190-276-0	01	1	1210-1210		●	●
167	04.302 LEVER; SELECT,EXTERNAL (A)	8-98190-276-0	01	1	1211-		●	●
167	04.302 LEVER; SELECT,EXTERNAL (A)	8-97035-560-1	01	1	1012-1209		●	●
167	04.302 LEVER; SELECT,EXTERNAL EXC. INDONESIA EQUIPMENT(B00) (A)	8-97035-560-1	01	1	1210-1210		●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1-TCC ENG(RDU) (B)	8-98039-436-0	01	1	1012-	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-98039-434-0	01	1	1012-	●
171	04.054 SWITCH; NEUTRAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98190-415-0	01	1	1210-1210			●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98190-415-0	01	1	1211-		●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	1012-1209		●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98112-227-0	01	1	1210-1210		●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	1012-1312	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1012-	●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1012-	●
192	04.309 WASHER; PL	8-97305-661-0	01	1	1012-	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCC ENG(RDU)	8-97362-753-2	01	1	1012-1312	●
262	04.105 BOX ASM; SHIFT CONT 4JJ1-TCC ENG(RDU)	8-98241-002-2	01	1	1401-	●
262	04.105 BOX ASM; SHIFT CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97362-750-2	01	1	1012-1312	●
262	04.105 BOX ASM; SHIFT CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98240-999-2	01	1	1401-	●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	1012-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	1012-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	1012-	●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	1012-	●
381	04.105 BOLT 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1012-	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	1012-	●
398	02.698 SWITCH; REV LAMP INDONESIA EQUIPMENT(B00)	8-98190-417-0	01	1	1210-1210		●	●
398	02.698 SWITCH; REV LAMP	8-98190-417-0	01	1	1211-		●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCC ENG(RDU)	8-98186-003-0	01	1	1107-1311	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCC ENG(RDU)	8-98256-418-0	01	1	1312-	●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	1012-1209		●	●
398	02.698 SWITCH; REV LAMP EXC. INDONESIA EQUIPMENT(B00)	8-98112-229-0	01	1	1210-1210		●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	1012-1106	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98023-050-0	01	1	1107-1312	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98242-173-1	01	1	1401-	●
535	04.302 SPRING; LEVER (A)	8-97323-771-0	01	1	1012-	●
535	04.302 SPRING; LEVER (B)	8-97323-772-0	01	1	1012-	●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	1012-	●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	1012-	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	1012-	●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	1012-	●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1012-	●
559	04.302 PIPE; BREATHER 04.510	8-97358-318-0	01	1	1012-	●
624	04.105 PLATE; INTER LOCK	8-97241-317-3	01	1	1012-	●
630	04.307 DETENT ASM	8-98019-536-0	03	1	1012-	●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	1012-	●
635	04.309 PLUG; DETENT 00.206	8-97380-892-0	01	1	1012-	●
645	04.311 DETENT ASM 04.307	8-98019-536-0	01	1	1012-	●

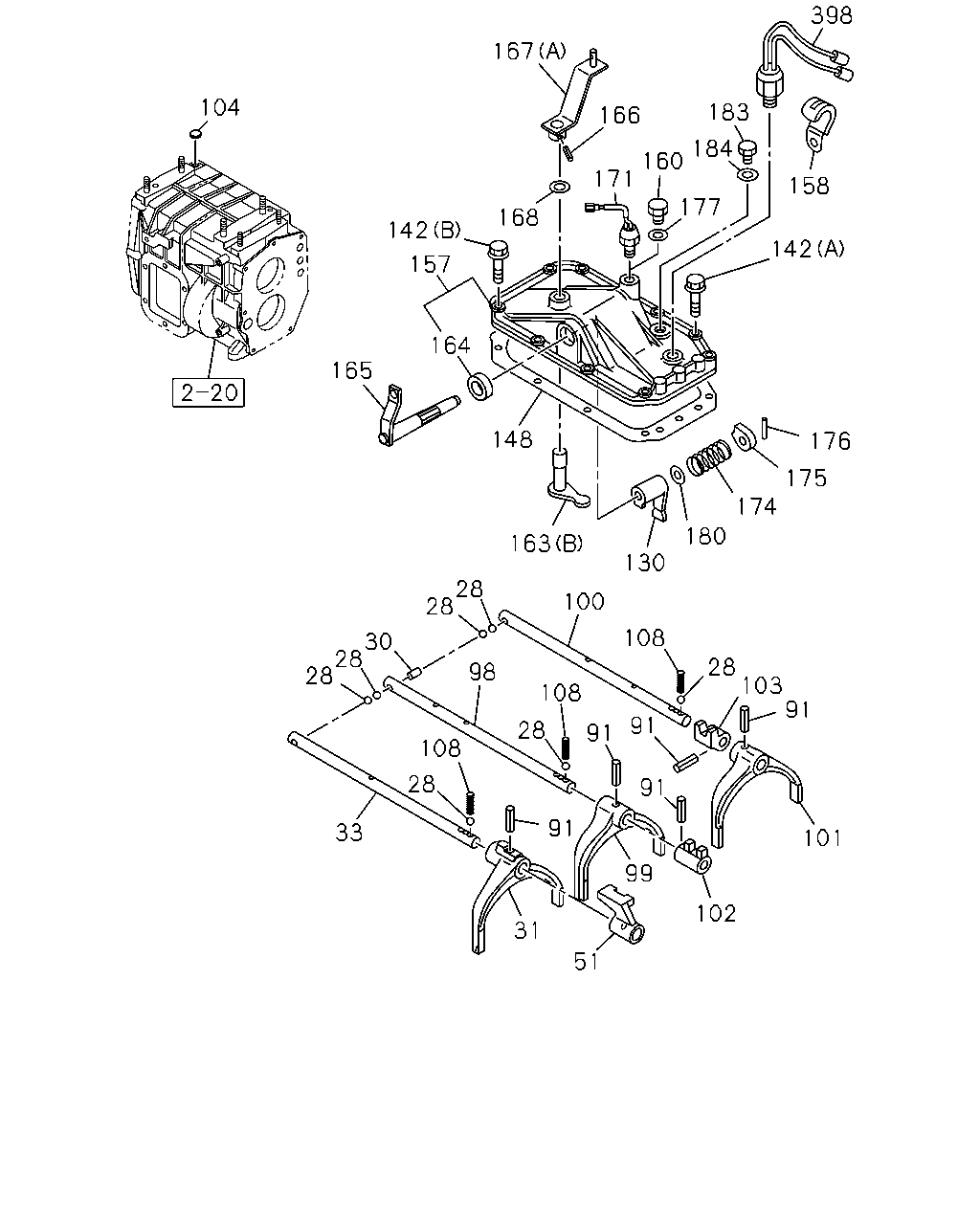

104 167 142 157 165 164 168 171 166 160 184 183 398 158 142 177 176 175 174 180 130 163 148 28 100 108 28 103 91 101 102 99 51 31 91 91 91 91 108 28 98 28 30 28 28 108 28 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	1012-		●	●
30	04.307 PIN; INTER LK INDONESIA EQUIPMENT(B00)	8-98189-971-0	01	1	1210-1210		●	●
30	04.307 PIN; INTER LK	8-98189-971-0	01	1	1211-		●	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	1012-1209		●	●
30	04.307 PIN; INTER LK EXC. INDONESIA EQUIPMENT(B00) 04.311	5-33534-001-0	01	1	1210-1210		●	●
31	04.302 ARM; SHIFT,LOW & 2ND INDONESIA EQUIPMENT(B00)	8-98190-300-0	01	1	1210-1210		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-98190-300-0	01	1	1211-		●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	1012-1209		●	●
31	04.302 ARM; SHIFT,LOW & 2ND EXC. INDONESIA EQUIPMENT(B00)	8-97011-365-1	01	1	1210-1210		●	●
33	04.309 ROD; SHIFT,LOW & 2ND INDONESIA EQUIPMENT(B00)	8-98188-591-0	01	1	1210-1210		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98188-591-0	01	1	1211-		●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	1012-1209		●	●
33	04.309 ROD; SHIFT,LOW & 2ND EXC. INDONESIA EQUIPMENT(B00)	8-97011-370-1	01	1	1210-1210		●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND INDONESIA EQUIPMENT(B00)	8-98188-589-0	01	1	1210-1210		●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-98188-589-0	01	1	1211-		●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	1012-1209		●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND EXC. INDONESIA EQUIPMENT(B00)	8-97022-837-2	01	1	1210-1210		●	●
91	04.302 PIN; SPR,SHIFT ARM INDONESIA EQUIPMENT(B00) 04.303 L=25 OD=5	1-09748-032-0	06	1	1210-1210		●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	1-09748-032-0	06	1	1211-		●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	1012-1209		●	●
91	04.302 PIN; SPR,SHIFT ARM EXC. INDONESIA EQUIPMENT(B00) 04.303 L=25 OD=5	8-94135-771-0	06	1	1210-1210		●	●
98	04.309 ROD; SHIFT,TOP & 3RD INDONESIA EQUIPMENT(B00)	8-98188-590-0	01	1	1210-1210		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-98188-590-0	01	1	1211-		●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	1012-1209		●	●
98	04.309 ROD; SHIFT,TOP & 3RD EXC. INDONESIA EQUIPMENT(B00)	8-97011-371-1	01	1	1210-1210		●	●
99	04.302 ARM; SHIFT,4TH & 3RD INDONESIA EQUIPMENT(B00)	8-98190-301-0	01	1	1210-1210		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-98190-301-0	01	1	1211-		●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	1012-1209		●	●
99	04.302 ARM; SHIFT,4TH & 3RD EXC. INDONESIA EQUIPMENT(B00)	8-97011-366-1	01	1	1210-1210		●	●
100	04.309 ROD; SHIFT,REV & 5TH INDONESIA EQUIPMENT(B00)	8-98188-592-0	01	1	1210-1210		●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-98188-592-0	01	1	1211-		●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	1012-1209		●	●
100	04.309 ROD; SHIFT,REV & 5TH EXC. INDONESIA EQUIPMENT(B00)	8-94316-923-0	01	1	1210-1210		●	●
101	04.302 ARM; SHIFT,REV & 5TH INDONESIA EQUIPMENT(B00)	8-98190-303-0	01	1	1210-1210		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-98190-303-0	01	1	1211-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	1012-1209		●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. INDONESIA EQUIPMENT(B00)	8-97107-545-0	01	1	1210-1210		●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH INDONESIA EQUIPMENT(B00)	8-98188-588-0	01	1	1210-1210		●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-98188-588-0	01	1	1211-		●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	1012-1209		●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH EXC. INDONESIA EQUIPMENT(B00)	8-97017-573-1	01	1	1210-1210		●	●
103	04.303 BLOCK; SHIFT,REV TO OD INDONESIA EQUIPMENT(B00)	8-98188-587-0	01	1	1210-1210		●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-98188-587-0	01	1	1211-		●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	1012-1209		●	●
103	04.303 BLOCK; SHIFT,REV TO OD EXC. INDONESIA EQUIPMENT(B00)	8-94135-719-4	01	1	1210-1210		●	●
104	04.311 PLUG; PLATE INDONESIA EQUIPMENT(B00) OD=16	0-92001-416-0	01	1	1210-1210		●	●
104	04.311 PLUG; PLATE OD=16	0-92001-416-0	01	1	1211-		●	●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	1012-1209		●	●
104	04.311 PLUG; PLATE EXC. INDONESIA EQUIPMENT(B00) 04.105 OD=16	9-09201-316-0	01	1	1210-1210		●	●
108	04.311 SPRING; LOCK BALL INDONESIA EQUIPMENT(B00) OD=6.8 L=31.6	8-98188-917-0	03	1	1210-1210		●	●
108	04.311 SPRING; LOCK BALL OD=6.8 L=31.6	8-98188-917-0	03	1	1211-		●	●
108	04.311 SPRING; LOCK BALL OD=6.8 L=31.6	9-09740-114-0	03	1	1012-1209		●	●
108	04.311 SPRING; LOCK BALL EXC. INDONESIA EQUIPMENT(B00) OD=6.8 L=31.6	9-09740-114-0	03	1	1210-1210		●	●
130	04.302 LEVER; SHIFT,INTERNAL INDONESIA EQUIPMENT(B00)	8-98190-340-0	01	1	1210-1210		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-98190-340-0	01	1	1211-		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	1012-1209		●	●
130	04.302 LEVER; SHIFT,INTERNAL EXC. INDONESIA EQUIPMENT(B00)	8-94105-141-2	01	1	1210-1210		●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1012-	●
142	04.012 BOLT; QUAD BOX INDONESIA EQUIPMENT(B00) 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 03.275 (A) M8X25 FLANGE	0-28050-825-0	08	1	1211-		●	●
142	04.012 BOLT; QUAD BOX INDONESIA EQUIPMENT(B00) 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 00.206 (B) M8X30 FLANGE	0-28050-830-0	02	1	1211-		●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	1012-1209		●	●
142	04.012 BOLT; QUAD BOX EXC. INDONESIA EQUIPMENT(B00) 04.105 (A) M8X25	8-94128-786-0	08	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	1012-1209		●	●
142	04.012 BOLT; QUAD BOX EXC. INDONESIA EQUIPMENT(B00) 04.105 (B) M8X30	8-97029-705-0	02	1	1210-1210		●	●
142	04.012 BOLT; QUAD BOX 04.356 (C) M8X22 FLANGE	8-97365-376-0	04	1	1012-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). INDONESIA EQUIPMENT(B00)	8-98189-273-0	01	1	1210-1210		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98189-273-0	01	1	1211-		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	1012-1209		●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. INDONESIA EQUIPMENT(B00) 04.012	8-94257-162-0	01	1	1210-1210		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98190-265-0	01	1	1210-1210			●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-98190-265-0	01	1	1211-		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-98190-265-0	01	1	1211-		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	1012-1209		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-94340-145-0	01	1	1012-1209		●	●
157	04.105 BOX; QUAD,TRANS EXC. INDONESIA EQUIPMENT(B00)	8-94340-145-0	01	1	1210-1210		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	1012-1209		●	●
157	04.105 BOX; QUAD,TRANS 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>	8-98190-266-0	01	1	1210-		●	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-		●	●
160	04.105 PLUG; BLIND EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> M14X9	8-98042-944-0	01	1	1012-		●	●
163	04.302 LEVER; SELECT,INTERNAL INDONESIA EQUIPMENT(B00) (B)	8-98190-302-0	01	1	1210-1210		●	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-98190-302-0	01	1	1211-		●	●
163	04.302 LEVER; SELECT,INTERNAL (B)	8-94159-268-1	01	1	1012-1209		●	●
163	04.302 LEVER; SELECT,INTERNAL EXC. INDONESIA EQUIPMENT(B00) (B)	8-94159-268-1	01	1	1210-1210		●	●
163	04.302 LEVER; SELECT,INTERNAL (A)	8-97305-663-0	01	1	1012-	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). OD=27	8-97304-068-0	02	1	1012-		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98190-282-0	01	1	1210-1210			●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-98190-282-0	01	1	1211-		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-98190-282-0	01	1	1211-		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	1012-1209		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-97036-221-0	01	1	1012-1209		●	●
165	04.302 LEVER; SHIFT EXC. INDONESIA EQUIPMENT(B00)	8-97036-221-0	01	1	1210-1210		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	1012-1209		●	●
165	04.302 LEVER; SHIFT 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8>	8-98190-273-0	01	1	1210-		●	●
166	04.302 PIN; SPR,SELECT LEVER INDONESIA EQUIPMENT(B00) 04.303 L=25 OD=5	1-09748-032-0	01	1	1210-1210		●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	1-09748-032-0	01	1	1211-		●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	1012-1209		●	●
166	04.302 PIN; SPR,SELECT LEVER EXC. INDONESIA EQUIPMENT(B00) 04.303 L=25 OD=5	8-94135-771-0	01	1	1210-1210		●	●
167	04.302 LEVER; SELECT,EXTERNAL INDONESIA EQUIPMENT(B00) (A)	8-98190-276-0	01	1	1210-1210		●	●
167	04.302 LEVER; SELECT,EXTERNAL (A)	8-98190-276-0	01	1	1211-		●	●
167	04.302 LEVER; SELECT,EXTERNAL (A)	8-97035-560-1	01	1	1012-1209		●	●
167	04.302 LEVER; SELECT,EXTERNAL EXC. INDONESIA EQUIPMENT(B00) (A)	8-97035-560-1	01	1	1210-1210		●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1-TCC ENG(RDU) (B)	8-98039-436-0	01	1	1012-	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-98039-434-0	01	1	1012-	●
168	04.302 WASHER; LK,SELECT LEVER INDONESIA EQUIPMENT(B00)	8-98190-433-0	01	1	1210-1210		●	●
168	04.302 WASHER; LK,SELECT LEVER	8-98190-433-0	01	1	1211-		●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	1012-1209		●	●
168	04.302 WASHER; LK,SELECT LEVER EXC. INDONESIA EQUIPMENT(B00)	8-94249-250-1	01	1	1210-1210		●	●
171	04.054 SWITCH; NEUTRAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98190-415-0	01	1	1210-1210			●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98190-415-0	01	1	1211-		●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-98112-227-0	01	1	1012-1209		●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98112-227-0	01	1	1210-1210		●	●
171	04.054 SWITCH; NEUTRAL 02.698	8-98023-050-0	01	1	1012-1312	●
171	04.054 SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●
171	04.054 SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●
174	04.307 SPRING; REV INDONESIA EQUIPMENT(B00)	8-98190-419-0	01	1	1210-1210		●	●
174	04.307 SPRING; REV	8-98190-419-0	01	1	1211-		●	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	1012-1209		●	●
174	04.307 SPRING; REV EXC. INDONESIA EQUIPMENT(B00)	8-97031-927-0	01	1	1210-1210		●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00)	8-98190-338-0	01	1	1210-1210			●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-98190-338-0	01	1	1211-		●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-98190-338-0	01	1	1211-		●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	1012-1209		●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00)	8-94249-048-2	01	1	1012-1209		●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXC. INDONESIA EQUIPMENT(B00)	8-94249-048-2	01	1	1210-1210		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) 04.027 L=30 OD=4	1-09748-031-0	02	1	1210-1210			●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> 04.027 L=30 OD=4	1-09748-031-0	02	1	1211-		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00) 04.027 L=30 OD=4	1-09748-031-0	02	1	1211-		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	1012-1209		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. INDONESIA EQUIPMENT(B00) 04.555 L=30 OD=4	9-09678-549-0	02	1	1012-1209		●	●
176	04.302 PIN; SPR,STOPPER EXC. INDONESIA EQUIPMENT(B00) 04.555 L=30 OD=4	9-09678-549-0	02	1	1210-1210		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	1012-1209		●	●
176	04.302 PIN; SPR,STOPPER 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00) EXC. EXHAUST BRAKE<NF8> 04.027 L=30 OD=4	1-09748-031-0	01	1	1210-		●	●
177	04.105 GASKET; CONT BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. INDONESIA EQUIPMENT(B00),EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1012-		●	●
180	04.302 WASHER; REV STOP SPRING INDONESIA EQUIPMENT(B00)	8-98190-423-0	01	1	1210-1210		●	●
180	04.302 WASHER; REV STOP SPRING	8-98190-423-0	01	1	1211-		●	●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	1012-1209		●	●
180	04.302 WASHER; REV STOP SPRING EXC. INDONESIA EQUIPMENT(B00) 04.307	8-94249-244-0	01	1	1210-1210		●	●
183	04.105 PLUG; SCREW,OIL FILTER INDONESIA EQUIPMENT(B00) M18	8-98190-432-0	01	1	1210-1210		●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-98190-432-0	01	1	1211-		●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	1012-1209		●	●
183	04.105 PLUG; SCREW,OIL FILTER EXC. INDONESIA EQUIPMENT(B00) M18	8-94337-946-1	01	1	1210-1210		●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). INDONESIA EQUIPMENT(B00) ID=15.5	8-98189-969-0	01	1	1210-1210		●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1211-		●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	1012-1209		●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. INDONESIA EQUIPMENT(B00) 04.422 ID=15.3	8-94336-511-0	01	1	1210-1210		●	●
398	02.698 SWITCH; REV LAMP INDONESIA EQUIPMENT(B00)	8-98190-417-0	01	1	1210-1210		●	●
398	02.698 SWITCH; REV LAMP	8-98190-417-0	01	1	1211-		●	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCC ENG(RDU)	8-98186-003-0	01	1	1107-1311	●
398	02.698 SWITCH; REV LAMP 4JJ1-TCC ENG(RDU)	8-98256-418-0	01	1	1312-	●
398	02.698 SWITCH; REV LAMP	8-98112-229-0	01	1	1012-1209		●	●
398	02.698 SWITCH; REV LAMP EXC. INDONESIA EQUIPMENT(B00)	8-98112-229-0	01	1	1210-1210		●	●
398	02.698 SWITCH; REV LAMP	8-98023-050-0	01	1	1012-1106	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98023-050-0	01	1	1107-1312	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98242-173-1	01	1	1401-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
