Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#78365) — 309 parça

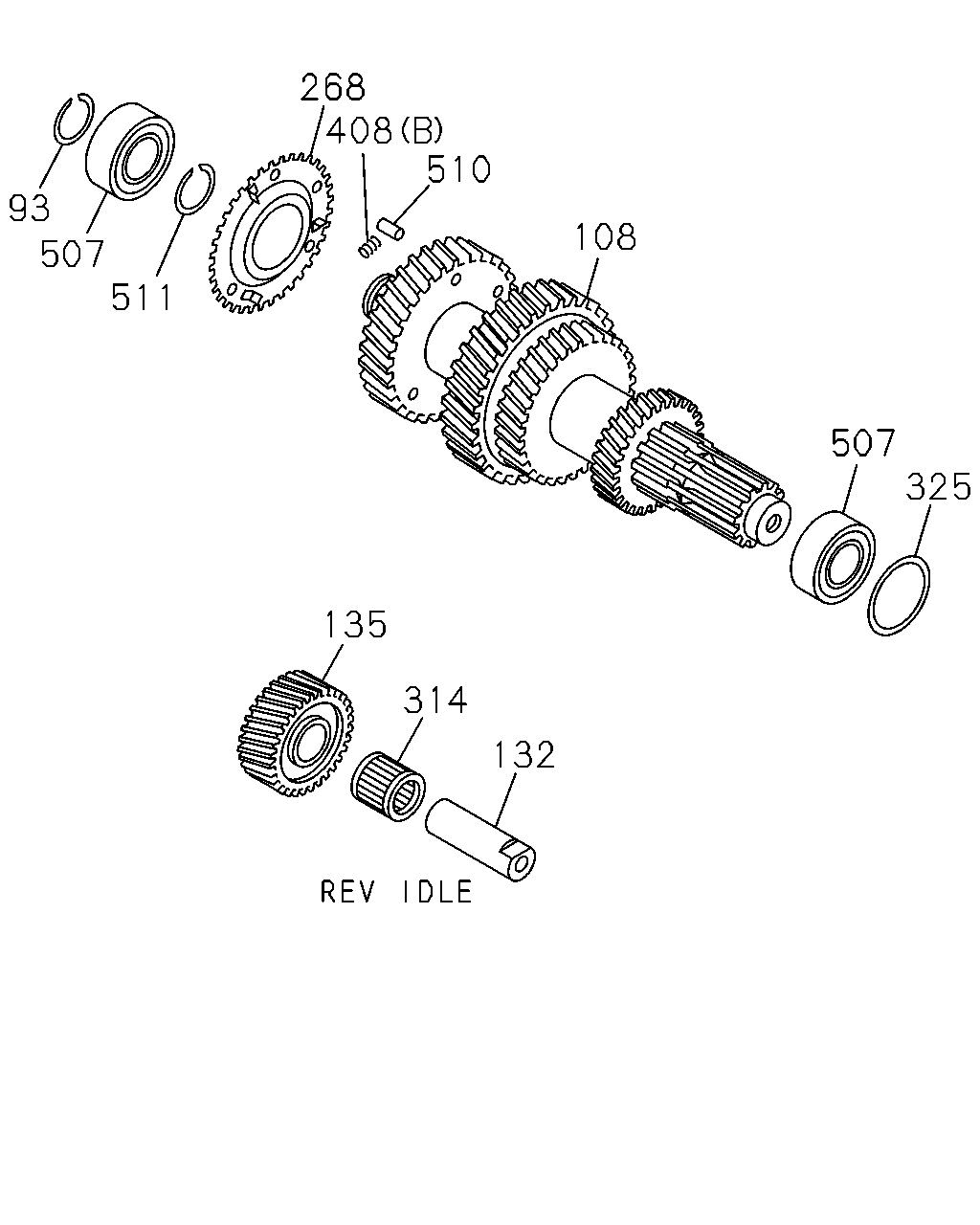

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1012-	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1012-	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1012-	●
132	04.433 SHAFT; REV INDONESIA EQUIPMENT(B00)	8-98189-378-0	01	1	1210-1210		●	●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1211-		●	●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	1012-1209		●	●
132	04.433 SHAFT; REV EXC. INDONESIA EQUIPMENT(B00)	9-33351-604-1	01	1	1210-1210		●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1012-	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1012-		●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1012-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1012-	●
314	04.419 BEARING; NEEDLE,REV GEAR INDONESIA EQUIPMENT(B00) NSK	8-98189-749-0	01	1	1210-1210		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1211-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	1012-1209		●	●
314	04.419 BEARING; NEEDLE,REV GEAR EXC. INDONESIA EQUIPMENT(B00) NSK	8-97207-174-0	01	1	1210-1210		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1012-	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1012-	●
408	04.384 SPRING INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210		●	●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	1012-1209		●	●
408	04.384 SPRING EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1012-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1012-	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1012-	●

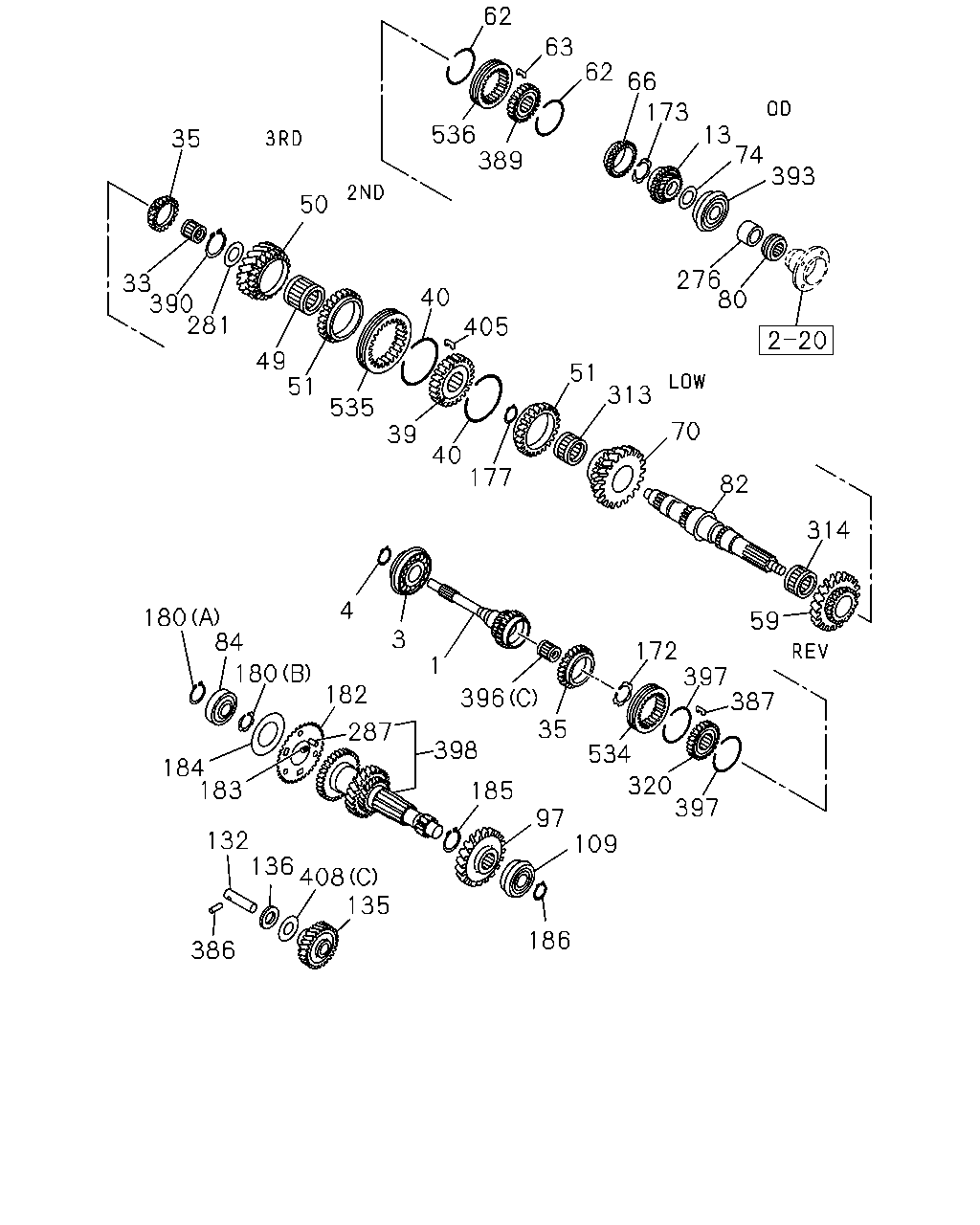

35 33 390 281 49 51 535 39 40 177 51 405 40 50 536 389 62 63 62 66 173 13 74 396 276 313 70 82 314 59 397 387 172 534 320 397 109 97 185 398 396 1 3 4 84 180 180 182 287 184 183 132 136 408 135 186 386 35 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98179-968-1	01	1	1012-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1012-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-	●
3	04.403 BEARING; TOP GEAR SHAFT INDONESIA EQUIPMENT(B00) NSK	8-98189-742-0	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1211-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	1012-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. INDONESIA EQUIPMENT(B00) 04.408 NSK	8-94178-732-2	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	1012-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. INDONESIA EQUIPMENT(B00) 04.352 JTEKT	8-94462-615-0	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1012-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 08.934 ID=37.0	9-09180-040-0	01	1	1012-		●	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=24	8-97373-008-0	01	1	1012-1209			●
13	04.415 GEAR; 5TH,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) Z=24	8-97373-008-0	01	1	1210-1210			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=24	8-97373-008-0	01	1	1211-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=25	8-97373-011-0	01	1	1012-		●
33	04.352 BEARING; NEEDLE,3RD GEAR INDONESIA EQUIPMENT(B00)	8-98189-746-0	01	1	1210-1210		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-98189-746-0	01	1	1211-		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	1012-1209		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR EXC. INDONESIA EQUIPMENT(B00)	8-94317-158-0	01	1	1210-1210		●	●
35	04.383 RING; BLOCK,4TH & 3RD INDONESIA EQUIPMENT(B00) Z=36	8-98190-426-0	02	1	1210-1210		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-98190-426-0	02	1	1211-		●	●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	1012-1209		●	●
35	04.383 RING; BLOCK,4TH & 3RD EXC. INDONESIA EQUIPMENT(B00) Z=36	8-94128-775-2	02	1	1210-1210		●	●
39	04.384 HUB; CLU,LOW & 2ND Z=42	8-97177-689-0	01	1	1012-		●	●
40	04.384 SPRING; INSERT,LOW & 2ND INDONESIA EQUIPMENT(B00)	8-98189-960-0	02	1	1210-1210		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-98189-960-0	02	1	1211-		●	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	1012-1209		●	●
40	04.384 SPRING; INSERT,LOW & 2ND EXC. INDONESIA EQUIPMENT(B00)	8-97023-708-0	02	1	1210-1210		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR INDONESIA EQUIPMENT(B00) NSK	8-98189-747-0	01	1	1210-1210		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	8-98189-747-0	01	1	1211-		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NSK	5-09811-014-0	01	1	1012-1209		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR EXC. INDONESIA EQUIPMENT(B00) 04.419 NSK	5-09811-014-0	01	1	1210-1210		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=34	8-97174-955-0	01	1	1012-1209			●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) Z=34	8-97174-955-0	01	1	1210-1210			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=34	8-97174-955-0	01	1	1211-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=36	8-97373-143-1	01	1	1012-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1012-	●
51	04.383 RING; BLOCK,LOW & 2ND INDONESIA EQUIPMENT(B00) Z=42	8-98190-428-0	02	1	1210-1210		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-98190-428-0	02	1	1211-		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	1012-1209		●	●
51	04.383 RING; BLOCK,LOW & 2ND EXC. INDONESIA EQUIPMENT(B00) Z=42	8-97074-619-3	02	1	1210-1210		●	●
59	04.417 GEAR; REV MAINSHAFT INDONESIA EQUIPMENT(B00) Z=41	8-98190-291-1	01	1	1210-1210		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1211-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	1012-1209		●	●
59	04.417 GEAR; REV MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) Z=41	8-97206-006-0	01	1	1210-1210		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1012-	●
62	04.384 SPRING; INSERT,REV & 5TH INDONESIA EQUIPMENT(B00)	8-98189-962-0	02	1	1210-1210		●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-98189-962-0	02	1	1211-		●	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	1012-1209		●	●
62	04.384 SPRING; INSERT,REV & 5TH EXC. INDONESIA EQUIPMENT(B00)	8-97023-710-0	02	1	1210-1210		●	●
63	04.384 INSERT; SYN,REV & 5TH INDONESIA EQUIPMENT(B00)	8-98190-418-0	03	1	1210-1210		●	●
63	04.384 INSERT; SYN,REV & 5TH	8-98190-418-0	03	1	1211-		●	●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	1012-1209		●	●
63	04.384 INSERT; SYN,REV & 5TH EXC. INDONESIA EQUIPMENT(B00)	9-33263-613-0	03	1	1210-1210		●	●
66	04.383 RING; BLOCK,SYN INDONESIA EQUIPMENT(B00) Z=36	8-98190-426-0	01	1	1210-1210		●	●
66	04.383 RING; BLOCK,SYN Z=36	8-98190-426-0	01	1	1211-		●	●
66	04.383 RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	1012-1209		●	●
66	04.383 RING; BLOCK,SYN EXC. INDONESIA EQUIPMENT(B00) Z=36	8-94128-775-2	01	1	1210-1210		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1012-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1012-	●
74	04.419 WASHER; THRUST,REV GEAR INDONESIA EQUIPMENT(B00)	8-98188-569-0	01	1	1210-1210		●	●
74	04.419 WASHER; THRUST,REV GEAR	8-98188-569-0	01	1	1211-		●	●
74	04.419 WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	1012-1209		●	●
74	04.419 WASHER; THRUST,REV GEAR EXC. INDONESIA EQUIPMENT(B00)	8-97207-176-0	01	1	1210-1210		●	●
80	04.343 GEAR; SPD DRIVE INDONESIA EQUIPMENT(B00) Z=4	8-98190-429-0	01	1	1210-1210		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1211-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	1012-1209		●	●
80	04.343 GEAR; SPD DRIVE EXC. INDONESIA EQUIPMENT(B00) Z=4	8-97207-146-0	01	1	1210-1210		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1012-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-	●
84	04.422 BEARING; COUNTER SHAFT,FRT INDONESIA EQUIPMENT(B00) NSK	8-98189-745-0	01	1	1210-1210		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-98189-745-0	01	1	1211-		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	1012-1209		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT EXC. INDONESIA EQUIPMENT(B00) NSK	5-09800-062-2	01	1	1210-1210		●	●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=55	8-97372-900-0	01	1	1012-1209			●
97	04.415 GEAR; 5TH,COUNTER EXC. INDONESIA EQUIPMENT(B00) Z=55	8-97372-900-0	01	1	1210-1210			●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=55	8-97372-900-0	01	1	1211-			●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=53	8-97169-511-0	01	1	1012-		●
109	04.422 BEARING; COUNTER SHAFT,RR INDONESIA EQUIPMENT(B00)	8-98189-744-0	01	1	1210-1210		●	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-98189-744-0	01	1	1211-		●	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	1012-1209		●	●
109	04.422 BEARING; COUNTER SHAFT,RR EXC. INDONESIA EQUIPMENT(B00)	8-97095-913-1	01	1	1210-1210		●	●
132	04.433 SHAFT; REV INDONESIA EQUIPMENT(B00)	8-98189-378-0	01	1	1210-1210		●	●
132	04.433 SHAFT; REV	8-98189-378-0	01	1	1211-		●	●
132	04.433 SHAFT; REV	9-33351-604-1	01	1	1012-1209		●	●
132	04.433 SHAFT; REV EXC. INDONESIA EQUIPMENT(B00)	9-33351-604-1	01	1	1210-1210		●	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1012-	●
135	04.430 GEAR; REV IDLER Z=29	8-97169-508-0	01	1	1012-		●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1012-	●
136	04.437 WASHER; THRUST,REV IDLE,RR INDONESIA EQUIPMENT(B00)	8-98188-533-0	01	1	1210-1210		●	●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-98188-533-0	01	1	1211-		●	●
136	04.437 WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	1012-1209		●	●
136	04.437 WASHER; THRUST,REV IDLE,RR EXC. INDONESIA EQUIPMENT(B00)	8-97081-579-2	01	1	1210-1210		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	1012-		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	1012-		●	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	1012-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	1012-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	1012-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	1012-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	1012-		●	●
177	04.384 RING; SNAP,CLU HUB INDONESIA EQUIPMENT(B00) ID=44.5	8-98189-990-0	01	1	1210-1210		●	●
177	04.384 RING; SNAP,CLU HUB ID=44.5	8-98189-990-0	01	1	1211-		●	●
177	04.384 RING; SNAP,CLU HUB 04.422 ID=44.5	5-09589-010-0	01	1	1012-1209		●	●
177	04.384 RING; SNAP,CLU HUB EXC. INDONESIA EQUIPMENT(B00) 04.422 ID=44.5	5-09589-010-0	01	1	1210-1210		●	●
180	04.422 RING; SNAP,CLUSTER GEAR INDONESIA EQUIPMENT(B00) (B) ID=38.5	8-98189-991-0	01	1	1210-1210		●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-98189-991-0	01	1	1211-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	1012-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	1012-1209		●	●
180	04.422 RING; SNAP,CLUSTER GEAR EXC. INDONESIA EQUIPMENT(B00) (B) ID=38.5	8-94146-483-0	01	1	1210-1210		●	●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-586-0	01	1	1210-1210			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98188-586-0	01	1	1211-			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT) INDONESIA EQUIPMENT(B00)	8-98188-585-0	01	1	1210-1210		●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98188-585-0	01	1	1211-		●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-94129-632-1	01	1	1012-1209			●
182	04.422 PLATE; CLUSTER GEAR EXC. INDONESIA EQUIPMENT(B00)	8-94129-632-1	01	1	1210-1210			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97095-984-0	01	1	1012-1209		●
182	04.422 PLATE; CLUSTER GEAR EXC. INDONESIA EQUIPMENT(B00)	8-97095-984-0	01	1	1210-1210		●
183	04.422 SPRING; PLATE,CLUSTER GEAR INDONESIA EQUIPMENT(B00)	8-98189-380-0	03	1	1210-1210		●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-98189-380-0	03	1	1211-		●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	1012-1209		●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR EXC. INDONESIA EQUIPMENT(B00)	8-94132-168-0	03	1	1210-1210		●	●
184	04.422 SPRING; CLUSTER GEAR INDONESIA EQUIPMENT(B00)	8-98189-350-0	01	1	1210-1210		●	●
184	04.422 SPRING; CLUSTER GEAR	8-98189-350-0	01	1	1211-		●	●
184	04.422 SPRING; CLUSTER GEAR	8-94128-790-1	01	1	1012-1209		●	●
184	04.422 SPRING; CLUSTER GEAR EXC. INDONESIA EQUIPMENT(B00)	8-94128-790-1	01	1	1210-1210		●	●
185	04.422 RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	1012-		●	●
186	04.422 RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	1012-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR INDONESIA EQUIPMENT(B00)	8-98188-906-0	01	1	1210-1210		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-98188-906-0	01	1	1211-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	1012-1209		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR EXC. INDONESIA EQUIPMENT(B00)	8-97207-175-0	01	1	1210-1210		●	●
281	04.419 WASHER; THRUST,MAINSHAFT INDONESIA EQUIPMENT(B00)	8-98188-466-0	01	1	1210-1210		●	●
281	04.419 WASHER; THRUST,MAINSHAFT	8-98188-466-0	01	1	1211-		●	●
281	04.419 WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	1012-1209		●	●
281	04.419 WASHER; THRUST,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00)	5-33271-007-0	01	1	1210-1210		●	●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	01	1	1012-1405		●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-94402-462-0	01	1	1012-1405			●
287	04.422 PIN; COUNTER GEAR	8-98190-445-0	03	1	1406-		●	●
287	04.422 PIN; COUNTER GEAR 4JB1 ENG(RLF)	8-94402-462-0	03	1	1012-1405			●
313	04.419 BEARING; NEEDLE,LOW GEAR INDONESIA EQUIPMENT(B00)	8-98189-748-0	01	1	1210-1210		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR	8-98189-748-0	01	1	1211-		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	1012-1209		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. INDONESIA EQUIPMENT(B00) NSK	8-94317-161-0	01	1	1210-1210		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	1012-1209		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR EXC. INDONESIA EQUIPMENT(B00) JTEKT	8-97010-547-0	01	1	1210-1210		●	●
314	04.419 BEARING; NEEDLE,REV GEAR INDONESIA EQUIPMENT(B00) NSK	8-98189-749-0	01	1	1210-1210		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-98189-749-0	01	1	1211-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	1012-1209		●	●
314	04.419 BEARING; NEEDLE,REV GEAR EXC. INDONESIA EQUIPMENT(B00) NSK	8-97207-174-0	01	1	1210-1210		●	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1012-	●
320	04.384 HUB; CLU,4TH & 3RD Z=36	8-97177-690-0	01	1	1012-		●	●
386	04.435 PIN; REV SHAFT INDONESIA EQUIPMENT(B00)	8-98190-093-0	01	1	1210-1210		●	●
386	04.435 PIN; REV SHAFT	8-98190-093-0	01	1	1211-		●	●
386	04.435 PIN; REV SHAFT	8-94128-794-0	01	1	1012-1209		●	●
386	04.435 PIN; REV SHAFT EXC. INDONESIA EQUIPMENT(B00)	8-94128-794-0	01	1	1210-1210		●	●
387	04.384 INSERT; SYN,4TH & 3RD INDONESIA EQUIPMENT(B00)	8-98189-965-0	03	1	1210-1210		●	●
387	04.384 INSERT; SYN,4TH & 3RD	8-98189-965-0	03	1	1211-		●	●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	1012-1209		●	●
387	04.384 INSERT; SYN,4TH & 3RD EXC. INDONESIA EQUIPMENT(B00)	5-33263-001-0	03	1	1210-1210		●	●
389	04.384 HUB; CLU,REV & 5TH Z=36	8-97373-144-0	01	1	1012-		●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.75	8-94151-520-0	01	1	1012-		●	●
390	04.383 RING; SNAP,CLU HUB 04.384 T=1.80	8-94151-521-0	01	1	1012-		●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.85	8-94151-522-0	01	1	1012-		●	●
390	04.383 RING; SNAP,CLU HUB 04.416 T=1.90	8-94151-523-0	01	1	1012-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT INDONESIA EQUIPMENT(B00) (C)	8-98189-970-0	01	1	1210-1210		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-98189-970-0	01	1	1211-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	1012-1209		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) (C)	8-97161-658-0	01	1	1210-1210		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1012-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-	●
397	04.384 SPRING; INSERT,4TH & 3RD INDONESIA EQUIPMENT(B00)	8-98189-962-0	02	1	1210-1210		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-98189-962-0	02	1	1211-		●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	1012-1209		●	●
397	04.384 SPRING; INSERT,4TH & 3RD EXC. INDONESIA EQUIPMENT(B00)	8-97023-710-0	02	1	1210-1210		●	●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=51-34-22-14	8-97204-104-0	01	1	1012-1209			●
398	04.421 GEAR; COUNTER EXC. INDONESIA EQUIPMENT(B00) Z=51-34-22-14	8-97204-104-0	01	1	1210-1210			●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=51-34-22-14	8-97204-104-0	01	1	1211-			●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=49-34-22-14	8-97381-658-0	01	1	1012-		●
405	04.384 INSERT; SYN,LOW & 2ND INDONESIA EQUIPMENT(B00)	8-98189-965-0	03	1	1210-1210		●	●
405	04.384 INSERT; SYN,LOW & 2ND	8-98189-965-0	03	1	1211-		●	●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	1012-1209		●	●
405	04.384 INSERT; SYN,LOW & 2ND EXC. INDONESIA EQUIPMENT(B00)	5-33263-001-0	03	1	1210-1210		●	●
408	04.384 SPRING INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210		●	●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	1012-1209		●	●
408	04.384 SPRING EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
534	04.395 SLEEVE; HUB,4TH-3RD Z=36	8-97177-134-0	01	1	1012-		●	●
535	04.395 SLEEVE; HUB,LOW-2ND Z=42	8-97177-133-0	01	1	1012-		●	●
536	04.395 SLEEVE; HUB,REV-5TH Z=36	8-97177-135-0	01	1	1012-		●	●

519 517 24 516 342 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 501 323 50 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98179-968-1	01	1	1012-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=30	8-98179-969-1	01	1	1012-		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-	●
3	04.403 BEARING; TOP GEAR SHAFT INDONESIA EQUIPMENT(B00) NSK	8-98189-742-0	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-98189-742-0	01	1	1211-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.408 NSK	8-94178-732-2	01	1	1012-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. INDONESIA EQUIPMENT(B00) 04.408 NSK	8-94178-732-2	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT 04.352 JTEKT	8-94462-615-0	01	1	1012-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT EXC. INDONESIA EQUIPMENT(B00) 04.352 JTEKT	8-94462-615-0	01	1	1210-1210		●	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1012-	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1012-	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1012-	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1012-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=34	8-97174-955-0	01	1	1012-1209			●
50	04.395 GEAR; 2ND,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) Z=34	8-97174-955-0	01	1	1210-1210			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=34	8-97174-955-0	01	1	1211-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) Z=36	8-97373-143-1	01	1	1012-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1012-	●
59	04.417 GEAR; REV MAINSHAFT INDONESIA EQUIPMENT(B00) Z=41	8-98190-291-1	01	1	1210-1210		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98190-291-1	01	1	1211-		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	1012-1209		●	●
59	04.417 GEAR; REV MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) Z=41	8-97206-006-0	01	1	1210-1210		●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1012-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-98180-095-1	01	1	1012-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1012-	●
80	04.343 GEAR; SPD DRIVE INDONESIA EQUIPMENT(B00) Z=4	8-98190-429-0	01	1	1210-1210		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-98190-429-0	01	1	1211-		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	1012-1209		●	●
80	04.343 GEAR; SPD DRIVE EXC. INDONESIA EQUIPMENT(B00) Z=4	8-97207-146-0	01	1	1210-1210		●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-37-27	8-97368-837-0	01	1	1012-		●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1012-	●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1311	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1012-	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1012-	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1012-	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1012-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1012-	●
323	04.384 INSERT	8-94448-202-2	03	1	1012-	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1012-	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1012-	●
393	04.352 BEARING; MAINSHAFT END INDONESIA EQUIPMENT(B00)	8-98189-743-0	01	1	1210-1210		●	●
393	04.352 BEARING; MAINSHAFT END	8-98189-743-0	01	1	1211-		●	●
393	04.352 BEARING; MAINSHAFT END	8-97207-512-1	01	1	1012-1209		●	●
393	04.352 BEARING; MAINSHAFT END EXC. INDONESIA EQUIPMENT(B00)	8-97207-512-1	01	1	1210-1210		●	●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1012-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT INDONESIA EQUIPMENT(B00) (C)	8-98189-970-0	01	1	1210-1210		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-98189-970-0	01	1	1211-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97161-658-0	01	1	1012-1209		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT EXC. INDONESIA EQUIPMENT(B00) (C)	8-97161-658-0	01	1	1210-1210		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1012-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-	●
408	04.384 SPRING INDONESIA EQUIPMENT(B00) (C)	8-98189-347-0	01	1	1210-1210		●	●
408	04.384 SPRING (C)	8-98189-347-0	01	1	1211-		●	●
408	04.384 SPRING (C)	8-97081-577-0	01	1	1012-1209		●	●
408	04.384 SPRING EXC. INDONESIA EQUIPMENT(B00) (C)	8-97081-577-0	01	1	1210-1210		●	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1012-	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1012-	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1012-	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1012-	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1012-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1012-	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1012-	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1012-	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1012-	●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1012-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1012-	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1012-	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1012-	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1012-	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
