2-26 — MANUAL TRANSMISSION GEAR (#7836) — 239 parça

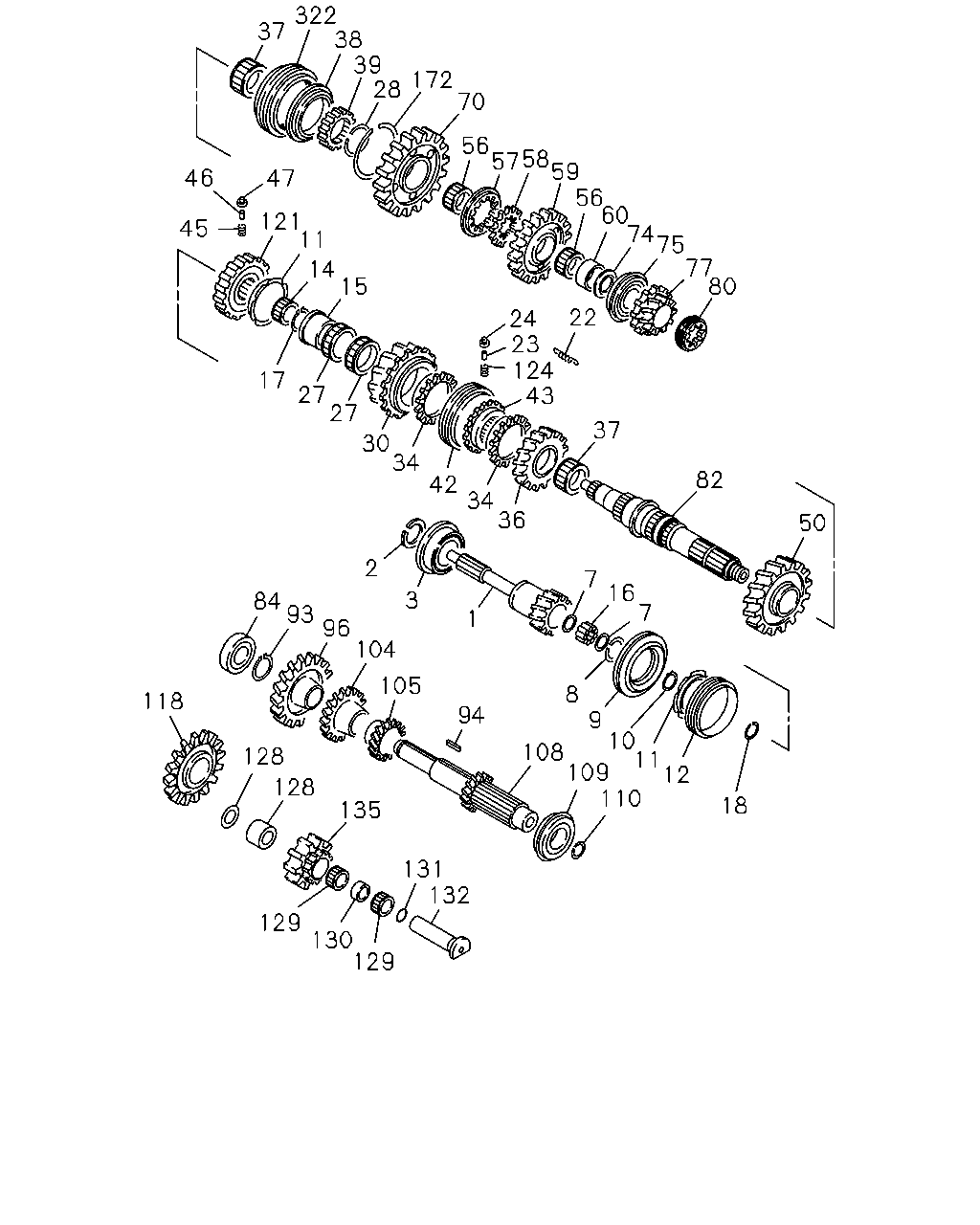

322 37 38 39 28 172 70 56 57 58 59 56 60 74 75 77 80 46 47 121 11 45 14 15 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 2 7 16 7 3 84 93 96 104 1 105 8 118 94 9 10 11 12 108 109 110 128 128 18 135 131 132 129 130 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9905-0006	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-898-0	01	1	9905-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9905-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9905-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9905-9909		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9905-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9905-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9905-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9905-	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9905-		●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9905-	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9905-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9905-	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9905-	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9905-	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9905-	●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9905-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9905-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9905-		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9905-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9905-	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9905-	●
18	RING; SNAP,CLU HUB	1-09588-196-0	01	1	9905-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9905-	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9905-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9905-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9905-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9905-	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9905-		●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9905-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9905-	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9905-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9905-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9905-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9905-0312	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9905-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9905-		●
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	9905-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9905-	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9905-0312	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9905-	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9905-	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9905-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9905-	●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9905-	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9905-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9905-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9905-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9905-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9905-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9905-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9905-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9905-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9905-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	9905-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9905-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9905-	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9905-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9905-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9905-		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9905-0009	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9905-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9905-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9905-	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9905-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9905-	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9905-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9905-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9905-	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9905-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9905-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9905-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9905-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9905-		●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	9905-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9905-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9905-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9905-	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9905-	●
94	KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9905-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9905-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9905-	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-235-0	01	1	9905-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9905-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9905-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9905-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9905-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9905-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9905-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9905-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9905-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	9905-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9905-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9905-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9905-0212	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-	●
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	9905-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9905-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9905-	●
128	WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9905-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9905-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9905-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9905-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9905-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9905-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9905-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9905-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9905-		●
132	SHAFT; REV	1-33351-017-0	01	1	9905-	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9905-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9905-	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9905-		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9905-	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9905-	●

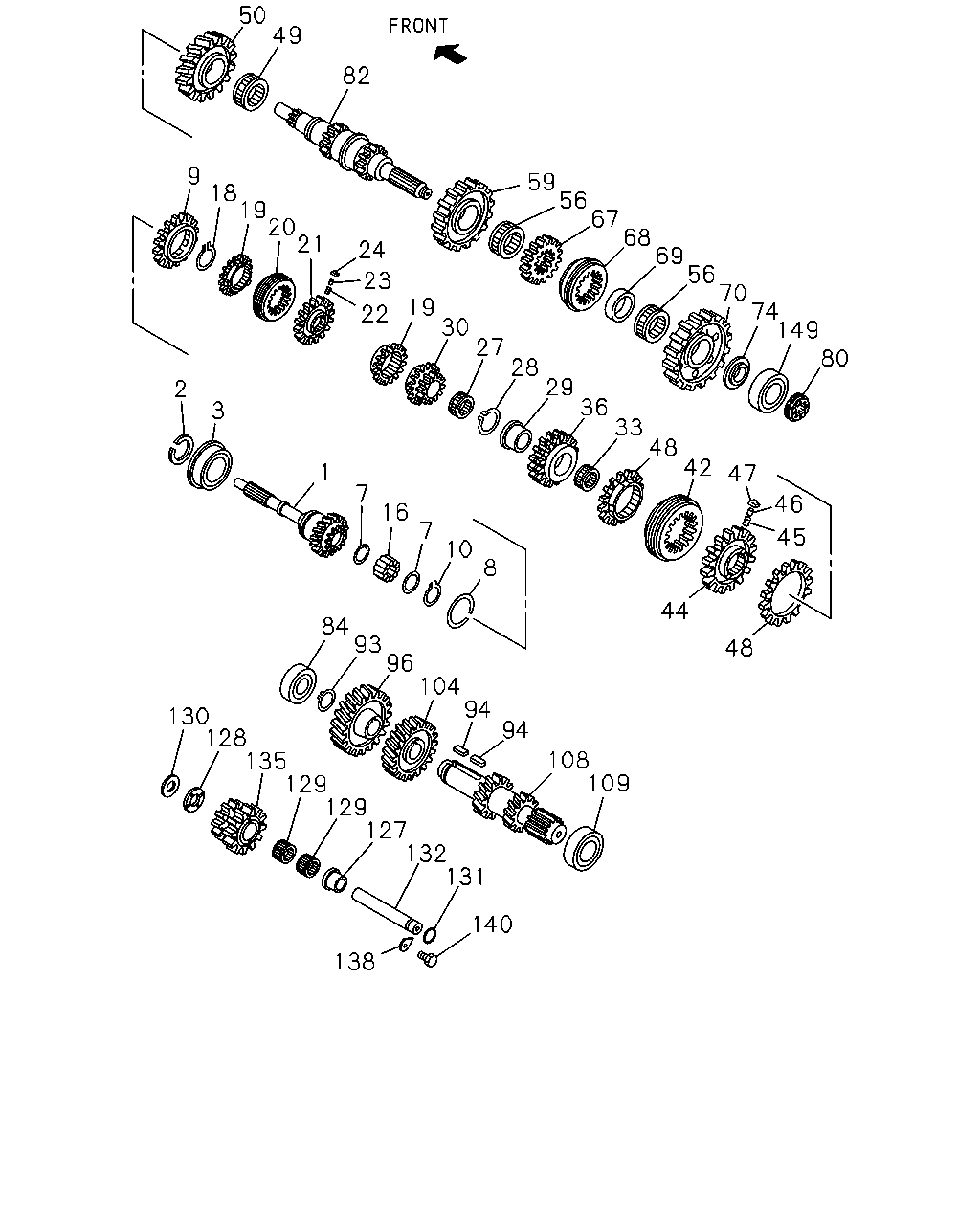

50 49 82 9 59 56 67 68 69 56 70 74 149 80 18 19 20 21 24 23 19 30 27 28 29 36 33 48 42 22 2 3 1 47 7 46 16 7 45 10 8 44 84 93 96 104 94 48 130 128 135 129 129 127 132 131 94 108 109 140 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9905-0006	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-898-0	01	1	9905-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9905-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9905-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9905-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-235-0	01	1	9905-9909		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-275-0	01	1	9910-0502		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-282-0	01	1	0503-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9905-	●
7	WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	9905-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9905-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9905-	●
9	CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	9905-		●
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	9905-	●
10	RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	9905-		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	9905-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	9905-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	9905-		●
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-023-0	14	1	9905-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9905-	●
18	RING; SNAP,CLU HUB	1-09588-196-0	01	1	9905-		●
19	RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	9905-		●
20	SLEEVE	1-33262-167-0	01	1	9905-		●
21	HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	9905-		●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9905-	●
22	SPRING; BLOCK,INSERT	1-09580-395-0	03	1	9905-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9905-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9905-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9905-	●
27	BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	9905-		●
27	BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	9905-		●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9905-	●
28	RING; SNAP,3RD GEAR	1-09588-195-0	01	1	9905-		●
29	COLLAR; 3RD GEAR	1-33234-076-0	01	1	9905-		●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9905-	●
30	GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	9905-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-370-0	01	1	9905-		●
33	BEARING; NEEDLE,3RD GEAR KOYO	1-09811-387-1	01	1	9905-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-414-0	01	1	9905-		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9905-	●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-414-0	01	1	9905-		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9905-	●
42	SLEEVE Z=45	1-33262-162-0	01	1	9905-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	9905-		●
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	9905-	●
45	SPRING; BLOCK INSERT	1-09580-395-0	03	1	9905-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9905-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9905-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9905-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9905-		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	9905-		●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	9905-		●
49	BEARING; NEEDLE,2ND GEAR KOYO	1-09811-373-0	02	1	9905-		●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9905-	●
50	GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	9905-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	9905-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	9905-		●
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-387-1	02	1	9905-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	9905-		●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9905-	●
59	GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	9905-		●
67	HUB; CLU,1ST TO REV	1-33261-192-0	01	1	9905-		●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	9905-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	9905-		●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9905-	●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	9905-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9905-	●
74	WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	9905-		●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9905-	●
80	GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	9905-		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9905-	●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-262-0	01	1	9905-9909		●
82	SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-311-0	01	1	9910-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9905-	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	9905-		●
84	BEARING; COUNTER SHAFT,FRT KOYO	1-09810-210-0	01	1	9905-		●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9905-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	9905-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9905-	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9905-	●
94	KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	9905-		●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	9905-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9905-	●
96	GEAR; COUNTER DRIVE Z=37	1-33331-235-0	01	1	9905-		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9905-	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	9905-		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9905-	●
108	SHAFT; COUNTER Z=28-22-14	1-33311-288-0	01	1	9905-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	9905-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9905-	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	9905-		●
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-212-0	01	1	9905-		●
127	COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	9905-		●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=42	1-33239-079-1	01	1	9905-	●
128	WASHER; THRUST,REV SHAFT ID=38.5 T=2	1-33363-024-1	01	1	9905-	●
128	WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	9905-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	9905-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9905-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	9905-		●
129	BEARING; NEEDLE,IDLER KOYO	1-09811-017-0	02	1	9905-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9905-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	9905-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9905-	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9905-		●
132	SHAFT; REV	1-33351-017-0	01	1	9905-	●
132	SHAFT; REV L=158	1-33351-022-1	01	1	9905-		●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9905-	●
135	GEAR; REV IDLER Z=27	1-33361-073-0	01	1	9905-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9905-		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9905-		●
149	BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	9905-		●
149	BEARING; NEEDLE,MAINSHAFT,RR KOYO	1-09810-216-0	01	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
