2-01 — CLUTCH (#78356) — 84 parça

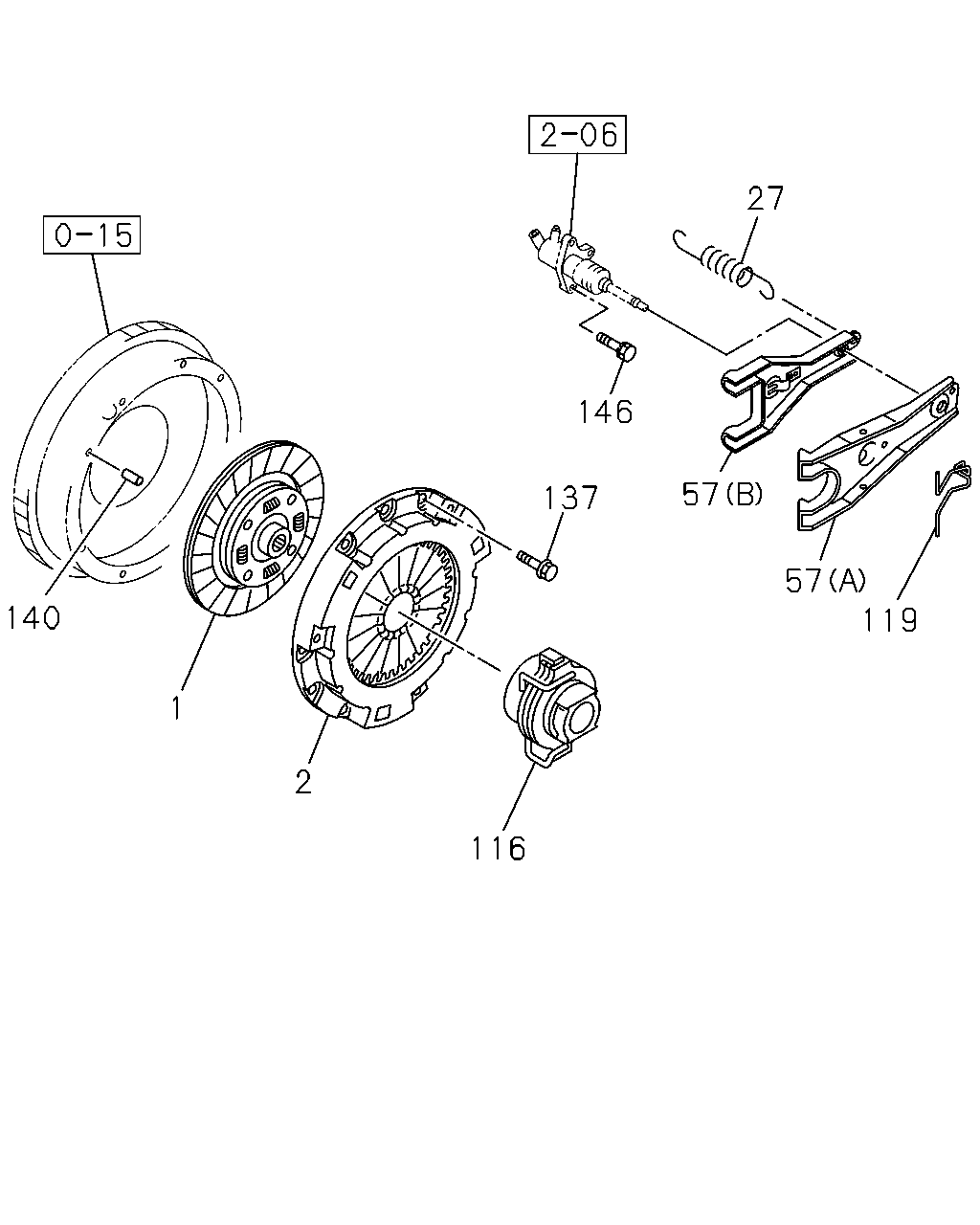

27 146 57 137 57 119 140 1 2 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-149-0	01	1	1012-1402	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98255-959-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT)	8-98080-661-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98037-004-2	01	1	1012-1401	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98255-139-1	01	1	1402-	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF)	8-97368-063-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-049-2	01	1	1012-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-083-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-0	01	1	1012-1401	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-084-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP)	8-97169-534-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH)	8-97310-796-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT)	8-97109-246-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU)	8-98040-093-0	01	1	1012-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF)	8-94259-132-1	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-091-0	01	1	1012-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-085-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP) BEST VALUE PARTS	5-87610-079-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-082-0	01	1	1012-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98025-314-0	01	1	1012-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 4JJ1-TCC ENG(RDU)	8-98025-313-0	01	1	1012-	●	●	●
57	00.795 FORK; SHIFT,CLU 4JB1-TC ENG(RDT) (B)	8-97033-701-0	01	1	1012-		●	●
57	00.795 FORK; SHIFT,CLU (C)	8-97255-303-0	01	1	1012-	●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) (A)	8-97024-528-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97316-602-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU	8-97255-313-0	01	1	1012-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF)	8-98054-657-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-116-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-109-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-110-0	01	1	1012-	●
119	00.797 SPRING; SHIFT FORK 4JB1 ENG(RLF)	5-31349-004-0	01	1	1012-		●	●
137	00.862 BOLT; CLU COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1012-	●
137	00.862 BOLT; CLU COVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1012-		●	●
140	00.862 PIN; STRAIGHT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) L=25	8-94410-361-0	02	1	1012-	●
140	00.862 PIN; STRAIGHT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) OD=6 L=24	9-09878-532-0	02	1	1012-		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●

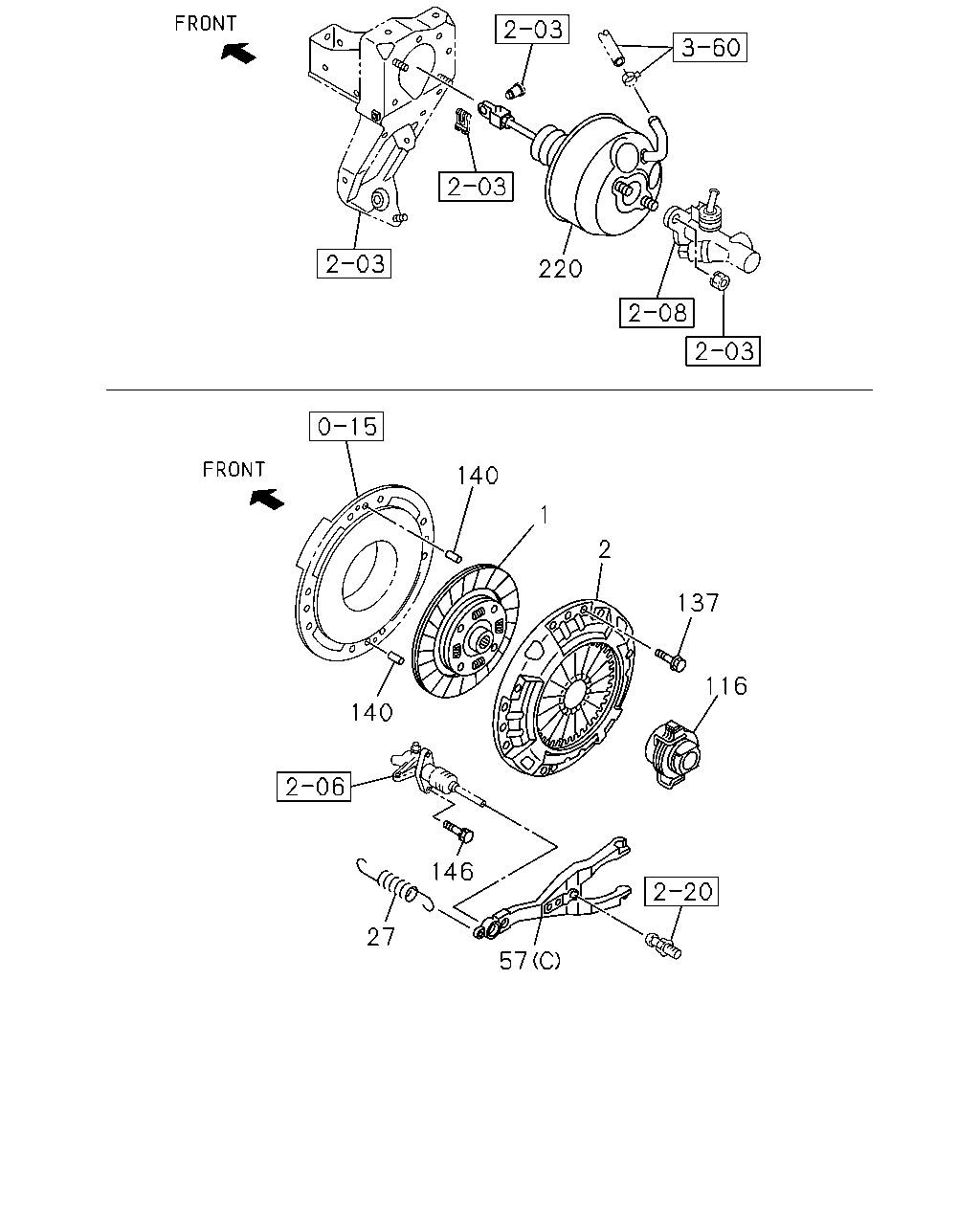

220 140 1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-149-0	01	1	1012-1402	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98255-959-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT)	8-98080-661-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98037-004-2	01	1	1012-1401	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98255-139-1	01	1	1402-	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF)	8-97368-063-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-049-2	01	1	1012-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-083-0	01	1	1012-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-0	01	1	1012-1401	●
1	00.886 DISC; CLUTCH 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-084-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP)	8-97169-534-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH)	8-97310-796-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT)	8-97109-246-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU)	8-98040-093-0	01	1	1012-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF)	8-94259-132-1	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-091-0	01	1	1012-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-085-0	01	1	1012-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP) BEST VALUE PARTS	5-87610-079-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-082-0	01	1	1012-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98025-314-0	01	1	1012-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 4JJ1-TCC ENG(RDU)	8-98025-313-0	01	1	1012-	●	●	●
57	00.795 FORK; SHIFT,CLU 4JB1-TC ENG(RDT) (B)	8-97033-701-0	01	1	1012-		●	●
57	00.795 FORK; SHIFT,CLU (C)	8-97255-303-0	01	1	1012-	●
57	00.795 FORK; SHIFT,CLU 4JB1 ENG(RLF) (A)	8-97024-528-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97316-602-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU	8-97255-313-0	01	1	1012-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF)	8-98054-657-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-116-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JB1 ENG(RLF) BEST VALUE PARTS	5-87610-109-0	01	1	1012-		●	●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-110-0	01	1	1012-	●
137	00.862 BOLT; CLU COVER 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1012-	●
137	00.862 BOLT; CLU COVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	1012-		●	●
140	00.862 PIN; STRAIGHT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) L=25	8-94410-361-0	02	1	1012-	●
140	00.862 PIN; STRAIGHT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) OD=6 L=24	9-09878-532-0	02	1	1012-		●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98043-208-0	01	1	1012-	●
