Sayfa 1-55 - Isuzu EPC

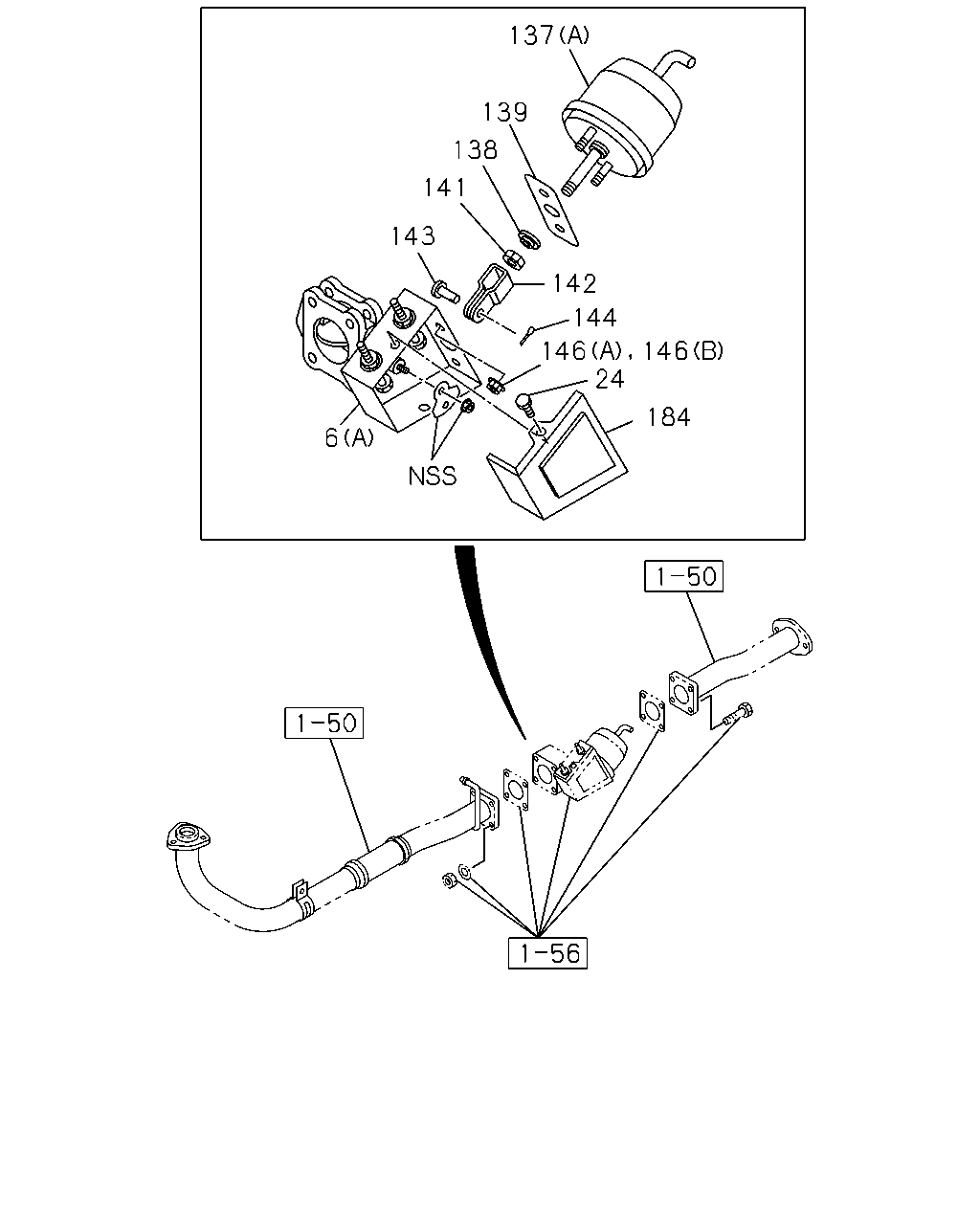

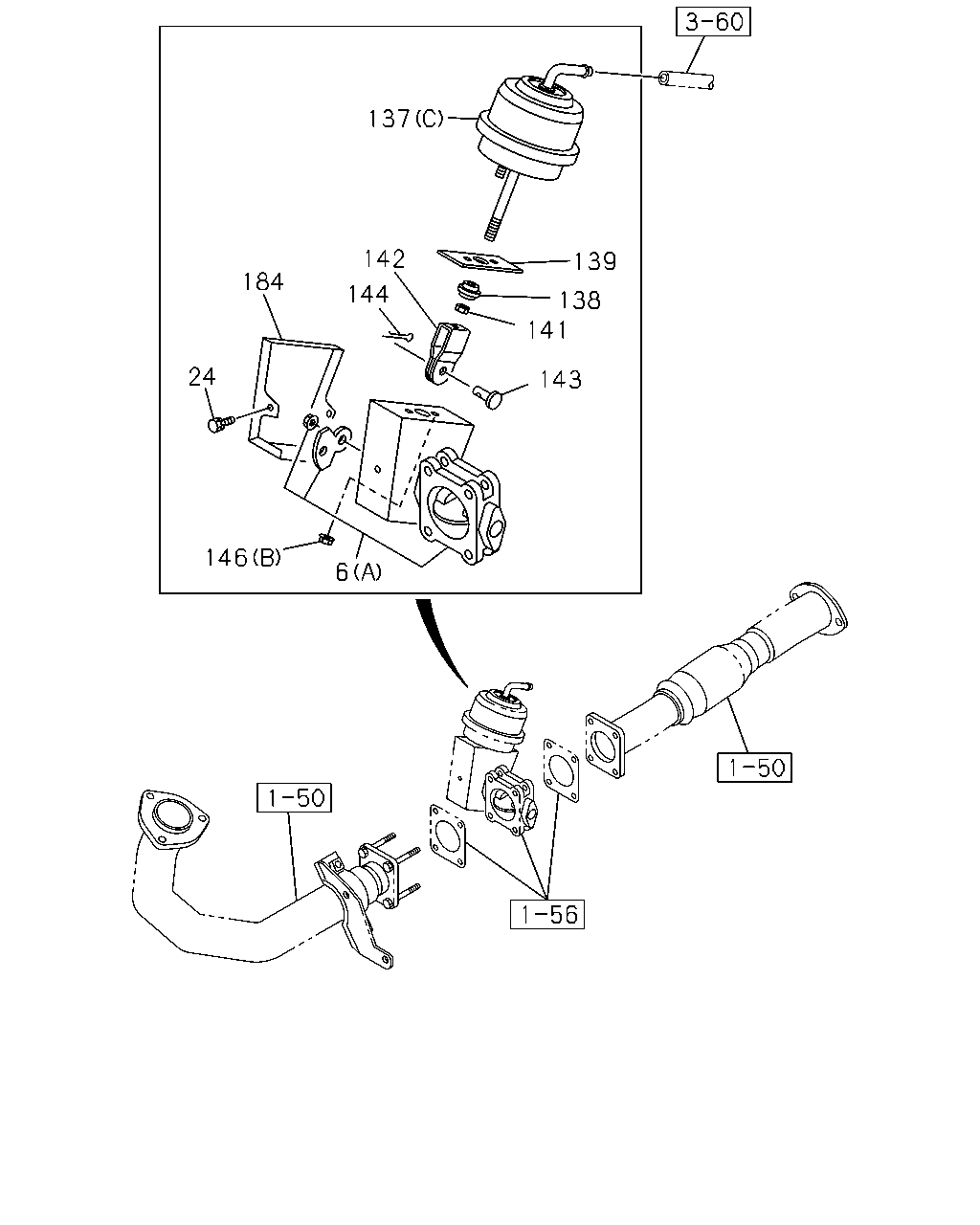

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#78354) — 149 parça

137 142 139 184 144 138 141 24 143 146 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C)	8-97173-325-1	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98100-294-0	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-97360-025-1	01	1	1012-	●	●	●	●
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-97360-025-1	01	1	1012-		●
6	03.632 VALVE; EXH BRAKE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97308-581-1	01	1	1012-		●
24	03.634 BOLT; COVER 4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1012-	●	●	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1405-		●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-98182-974-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1012-	●	●	●	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97257-279-0	01	1	1012-1401		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (B)	8-97257-279-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98122-918-0	01	1	1012-		●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-		●
184	03.634 COVER; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98070-514-0	01	1	1012-	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●	●	●	●

137 139 140 138 180 141 142 143 180 144 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C)	8-97173-325-1	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98100-294-0	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-97360-025-1	01	1	1012-	●	●	●	●
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-97360-025-1	01	1	1012-		●
6	03.632 VALVE; EXH BRAKE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97308-581-1	01	1	1012-		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1405-		●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-98182-974-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1012-	●	●	●	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97257-279-0	01	1	1012-1401		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (B)	8-97257-279-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98122-918-0	01	1	1012-		●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	1012-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	1012-		●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-		●
180	03.640 COLLAR; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97018-597-0	02	1	1012-	●	●

137 139 140 142 184 144 138 141 24 143 6 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C)	8-97173-325-1	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98100-294-0	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-97360-025-1	01	1	1012-	●	●	●	●
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-97360-025-1	01	1	1012-		●
6	03.632 VALVE; EXH BRAKE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97308-581-1	01	1	1012-		●
24	03.634 BOLT; COVER 4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1012-	●	●	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1405-		●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-98182-974-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1012-	●	●	●	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97257-279-0	01	1	1012-1401		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (B)	8-97257-279-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98122-918-0	01	1	1012-		●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	1012-	●	●
140	03.634 INSULATOR; EXH BRK VLV 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	1012-		●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-		●
184	03.634 COVER; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98070-514-0	01	1	1012-	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●	●	●	●

137 139 138 141 143 142 144 146 24 146 184 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.632 VALVE; EXH BRAKE 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (C)	8-97173-325-1	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98100-294-0	01	1	1012-	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1-TCC ENG(RDU) (A)	8-97360-025-1	01	1	1012-	●	●	●	●
6	03.632 VALVE; EXH BRAKE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A)	8-97360-025-1	01	1	1012-		●
6	03.632 VALVE; EXH BRAKE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97308-581-1	01	1	1012-		●
24	03.634 BOLT; COVER 4JJ1-TCC ENG(RDU) 03.444	8-97065-029-0	02	1	1012-	●	●	●	●
24	03.634 BOLT; COVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(B00) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-98269-461-0	01	1	1405-		●
137	03.634 CHAMBER; POWER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D)	8-98182-974-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4JJ1-TCC ENG(RDU) (A)	8-98043-596-0	01	1	1012-	●	●	●	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98043-596-0	01	1	1012-	●	●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (B)	8-97257-279-0	01	1	1012-1401		●
137	03.634 CHAMBER; POWER 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. INDONESIA EQUIPMENT(B00) (B)	8-97257-279-0	01	1	1402-1404		●
137	03.634 CHAMBER; POWER 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C)	8-98122-918-0	01	1	1012-		●
138	03.634 BEARING; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1012-	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1-TCC ENG(RDU) 03.440	8-94311-446-0	01	1	1012-	●	●	●	●
138	03.634 BEARING; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1012-	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94328-234-0	01	1	1012-	●	●	●	●
139	03.634 GASKET; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1012-	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1-TCC ENG(RDU)	9-88510-009-0	01	1	1012-	●	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1012-	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97177-311-0	01	1	1012-	●	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1012-	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-94311-452-0	01	1	1012-	●	●	●	●
143	03.636 PIN; EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1012-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1-TCC ENG(RDU)	8-97029-428-0	01	1	1012-	●	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JB1-TC ENG(RDT),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●	●	●	●
146	03.634 NUT; EXH BRK VLV 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-	●
146	03.634 NUT; EXH BRK VLV 4HG1-T ENG(RDP),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	1012-		●
184	03.634 COVER; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98070-514-0	01	1	1012-	●	●
184	03.634 COVER; BRKT 4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1012-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
