1-11 — RADIATOR HOSE AND SUB TANK (#78346) — 88 parça

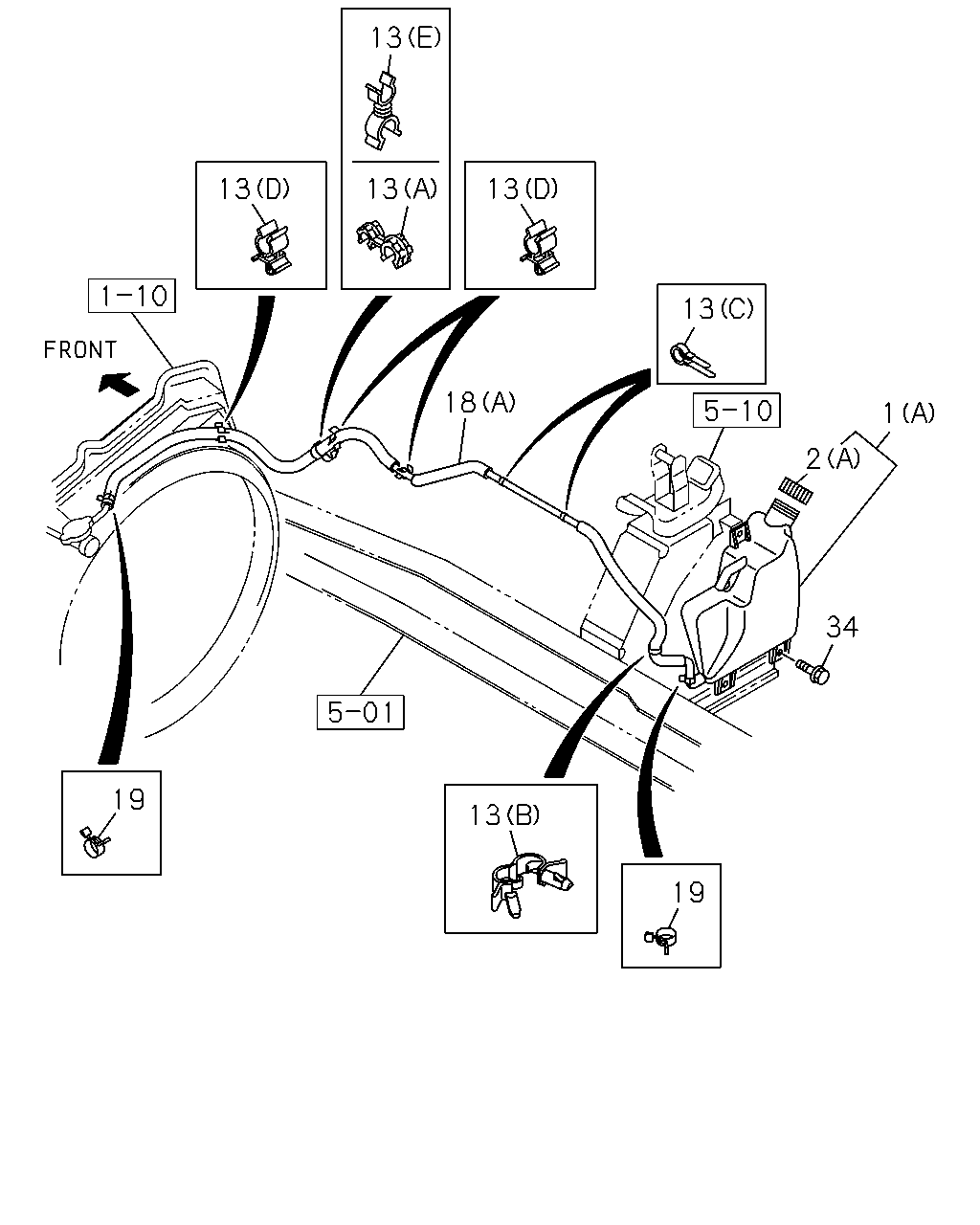

13 13 13 13 13 18 1 2 34 19 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1012-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1012-			●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1012-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1012-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> (D) ID=12	8-98029-256-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (D) ID=12	8-98029-256-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	1012-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A) ID=10 & 12	8-94416-613-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	03	1	1012-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1012-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A)	8-98183-340-0	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL STEERING<N51> (A)	8-98183-342-0	01	1	1012-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (A)	8-98039-398-1	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (A)	8-98065-255-0	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A)	8-98095-670-1	01	1	1012-1211		●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A)	8-98232-418-0	01	1	1212-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-98037-221-4	01	1	1012-			●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-	●	●	●	●

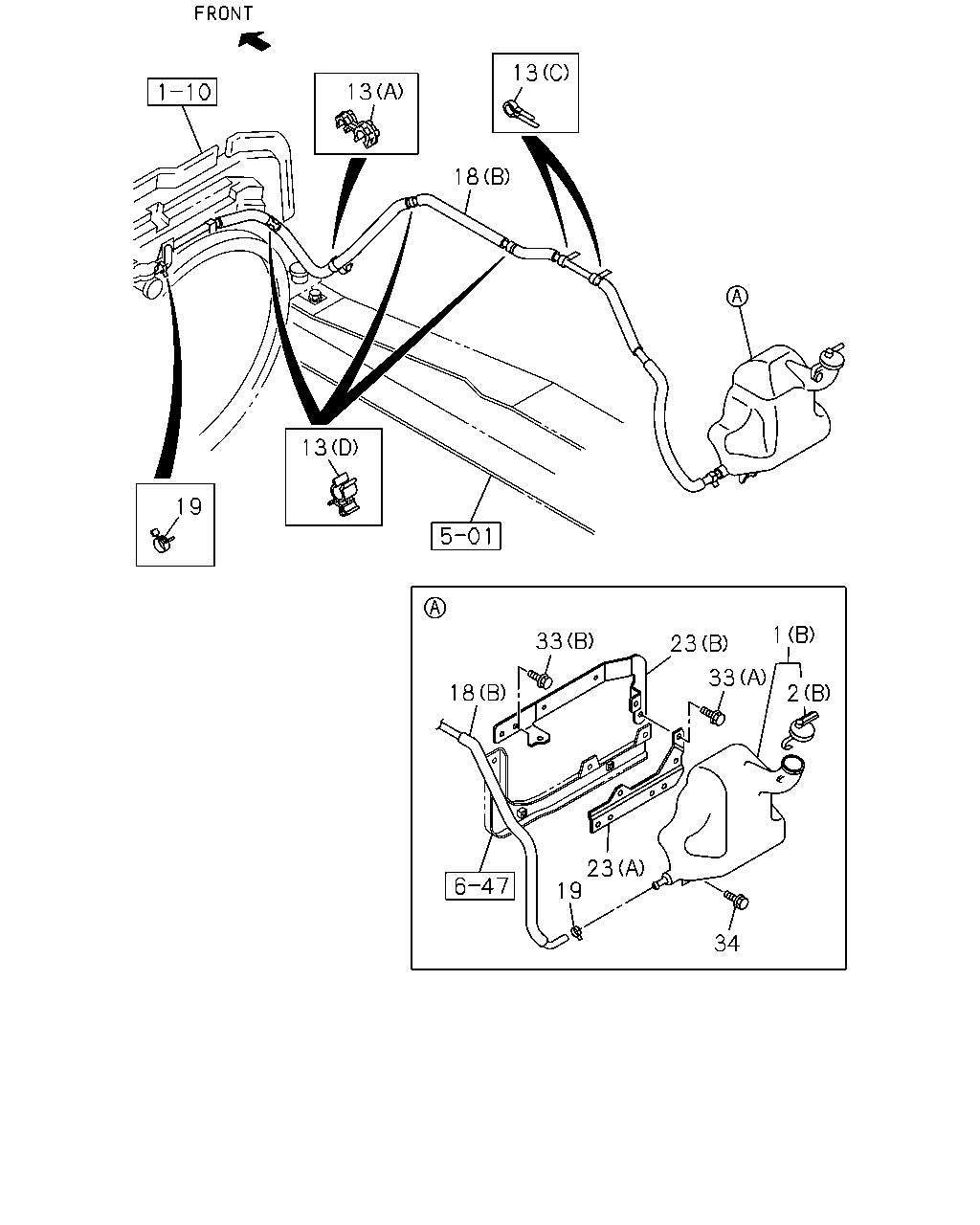

13 13 18 13 19 1 33 23 33 18 2 23 19 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1012-	●	●
1	01.219 TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1012-			●	●
2	01.203 CAP; SURGE TANK (A)	8-98178-074-0	01	1	1012-	●	●
2	01.203 CAP; SURGE TANK (B)	8-97130-964-0	01	1	1012-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> (D) ID=12	8-98029-256-0	02	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (D) ID=12	8-98029-256-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 04.104 (E) ID=12 & 16.5	8-94400-865-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (A) ID=10 & 12	8-94416-613-0	01	1	1012-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A) ID=10 & 12	8-94416-613-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) (D) ID=12	8-98029-256-0	03	1	1012-	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JJ1-TCC ENG(RDU) 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-	●	●
13	01.240 CLIP; HOSE,SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-	●
13	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-		●
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	1012-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A)	8-98183-340-0	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL STEERING<N51> (A)	8-98183-342-0	01	1	1012-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. MANUAL STEERING<N51> (A)	8-98039-398-1	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (A)	8-98065-255-0	01	1	1012-	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A)	8-98095-670-1	01	1	1012-1211		●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL STEERING<N51> (A)	8-98232-418-0	01	1	1212-		●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1-TCC ENG(RDU) (B)	8-98037-221-4	01	1	1012-			●	●
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1012-	●	●	●	●
23	01.219 BRACKET; RESERVE TANK (A)	8-98001-742-1	01	1	1012-			●	●
23	01.219 BRACKET; RESERVE TANK (B)	8-98010-501-2	01	1	1012-			●	●
33	01.277 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	1012-			●	●
33	01.277 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	1012-			●	●
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1012-	●	●	●	●

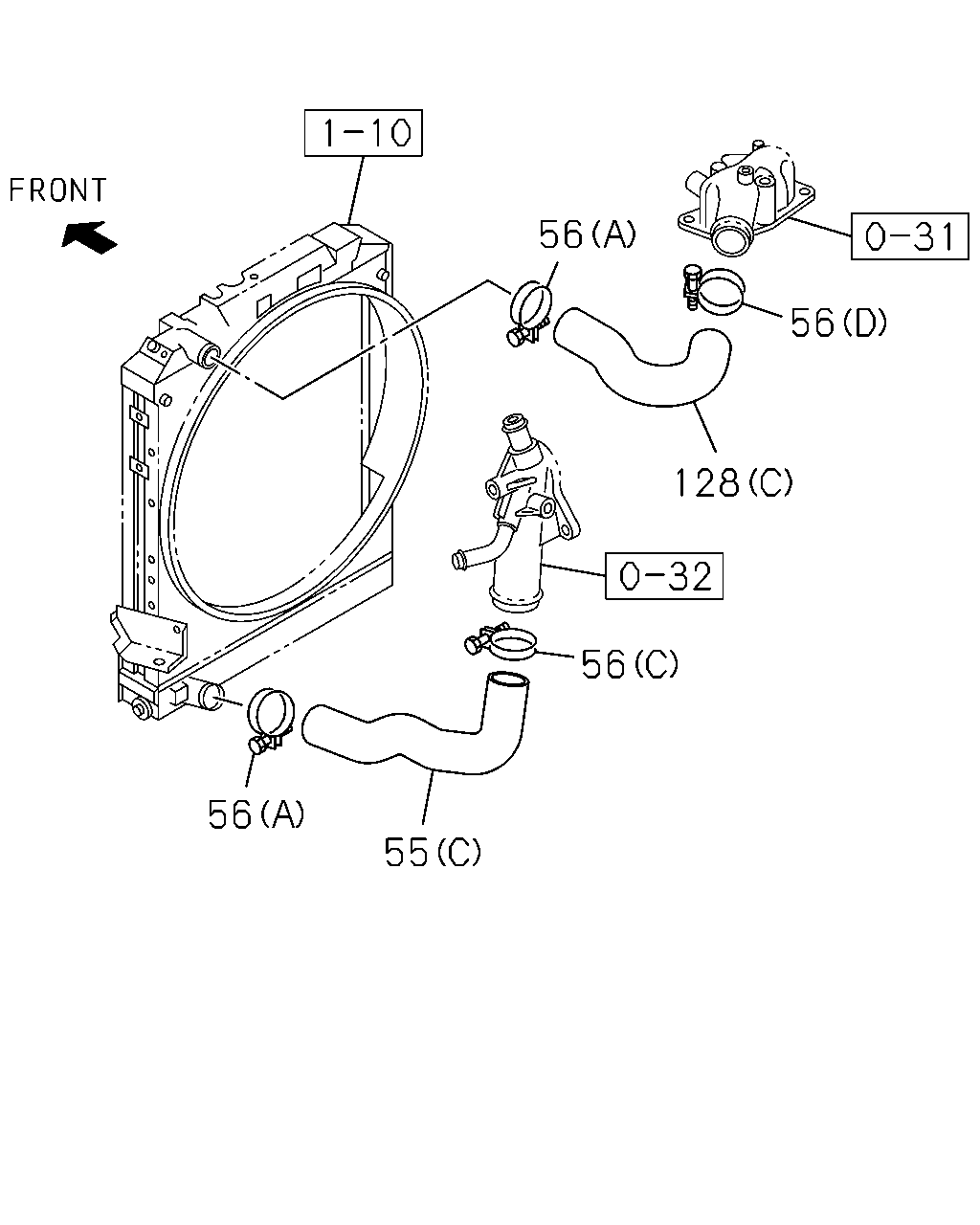

56 55 56 56 128 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-391-1	01	1	1012-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	1012-	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98086-989-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=48	8-98133-956-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=42	8-98133-958-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.413 (D) ID=52	1-09704-057-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=62	8-98133-957-0	01	1	1012-		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-390-0	01	1	1012-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	1012-	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98095-577-0	01	1	1012-		●

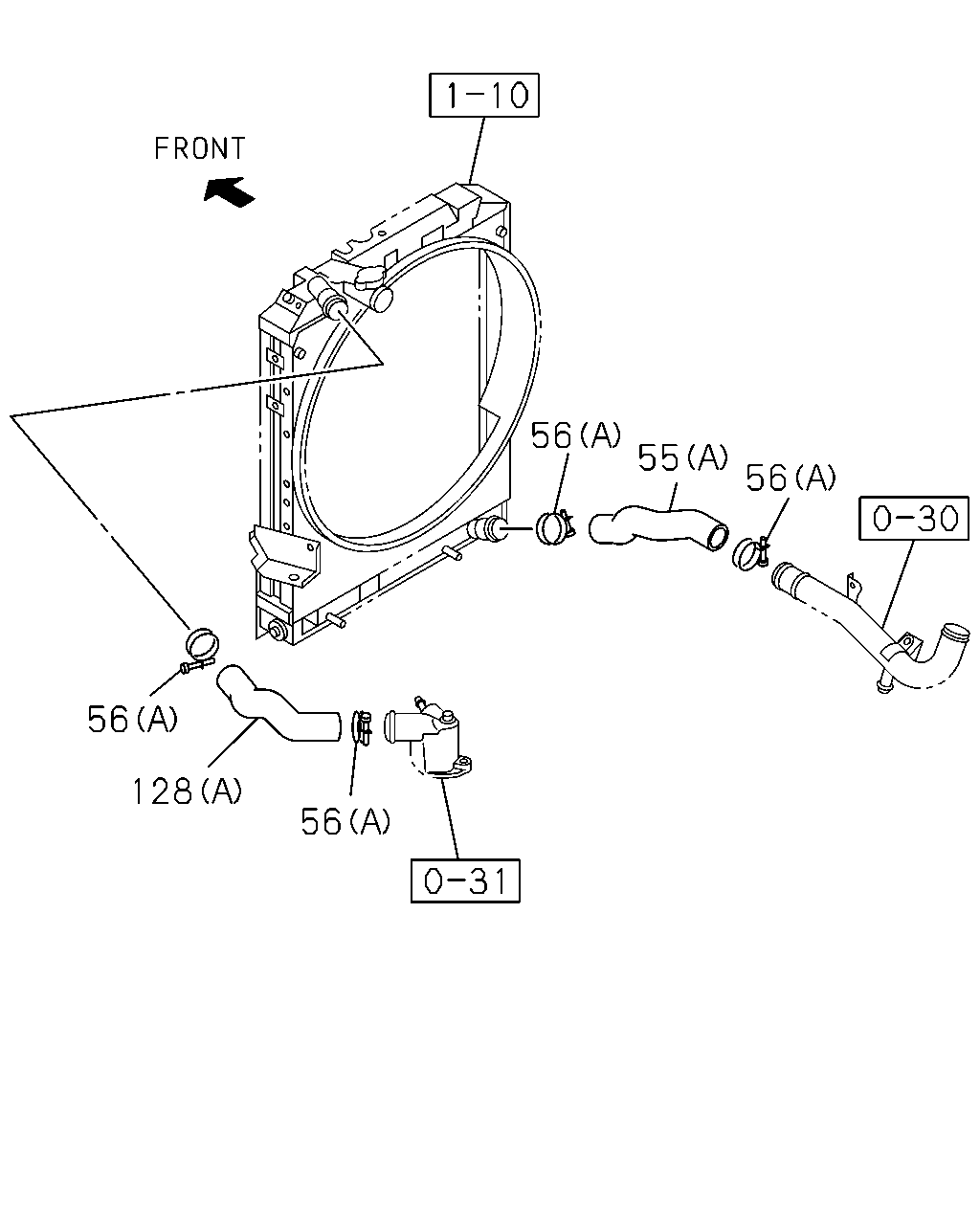

56 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-391-1	01	1	1012-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	1012-	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98086-989-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=48	8-98133-956-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=42	8-98133-958-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.413 (D) ID=52	1-09704-057-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=62	8-98133-957-0	01	1	1012-		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-390-0	01	1	1012-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	1012-	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98095-577-0	01	1	1012-		●

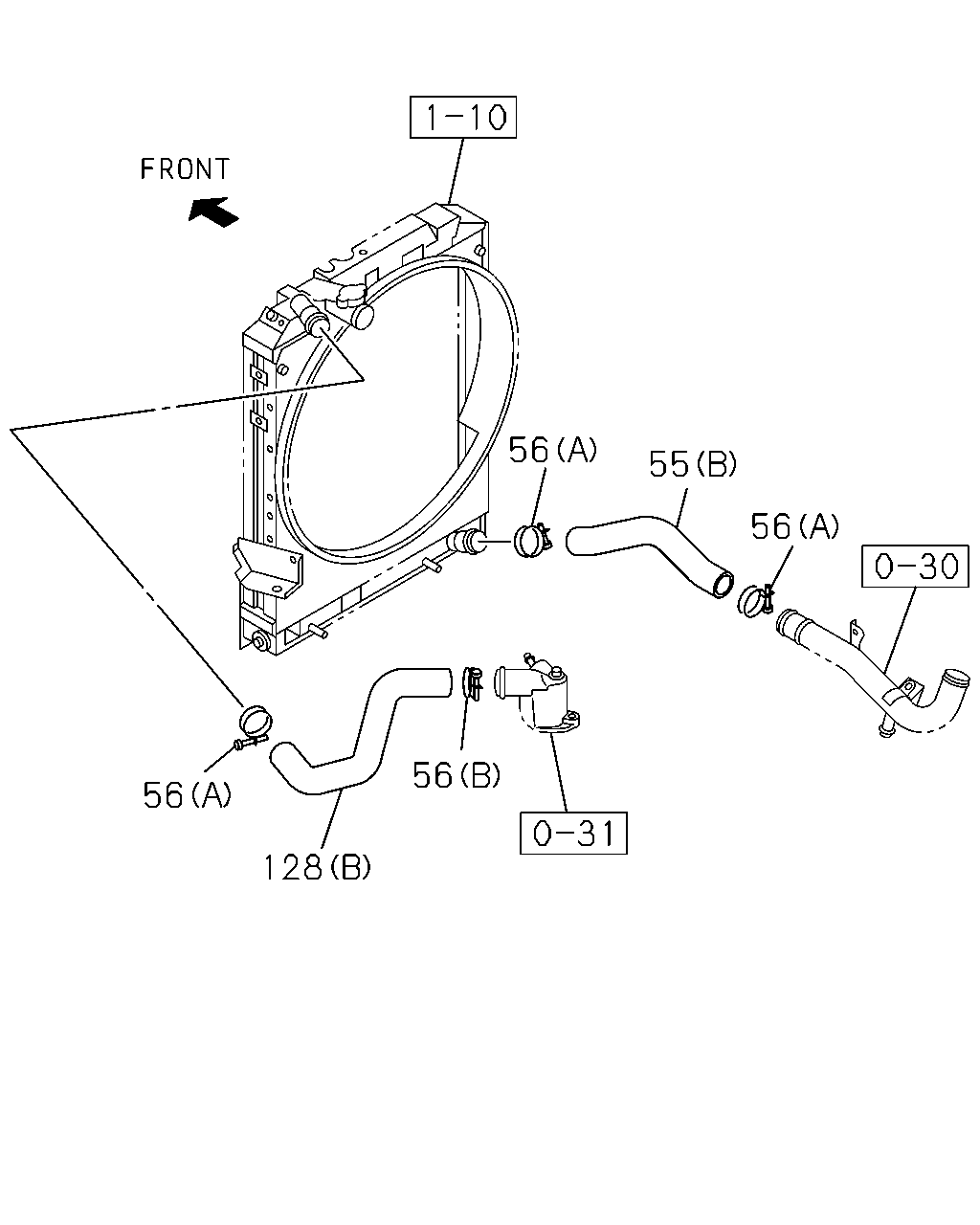

56 55 56 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-391-1	01	1	1012-	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1-TCC ENG(RDU) (A)	8-97383-814-1	01	1	1012-	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98086-989-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=48	8-98133-956-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B) ID=42	8-98133-958-0	01	1	1012-	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1-TCC ENG(RDU) (A) ID=48	8-98133-956-0	02	1	1012-	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.413 (D) ID=52	1-09704-057-0	01	1	1012-		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=62	8-98133-957-0	01	1	1012-		●
128	01.159 HOSE; WATER,RAD INL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98039-390-0	01	1	1012-	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1-TCC ENG(RDU) (A)	8-97383-812-1	01	1	1012-	●	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-98095-577-0	01	1	1012-		●
