Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#78344) — 244 parça

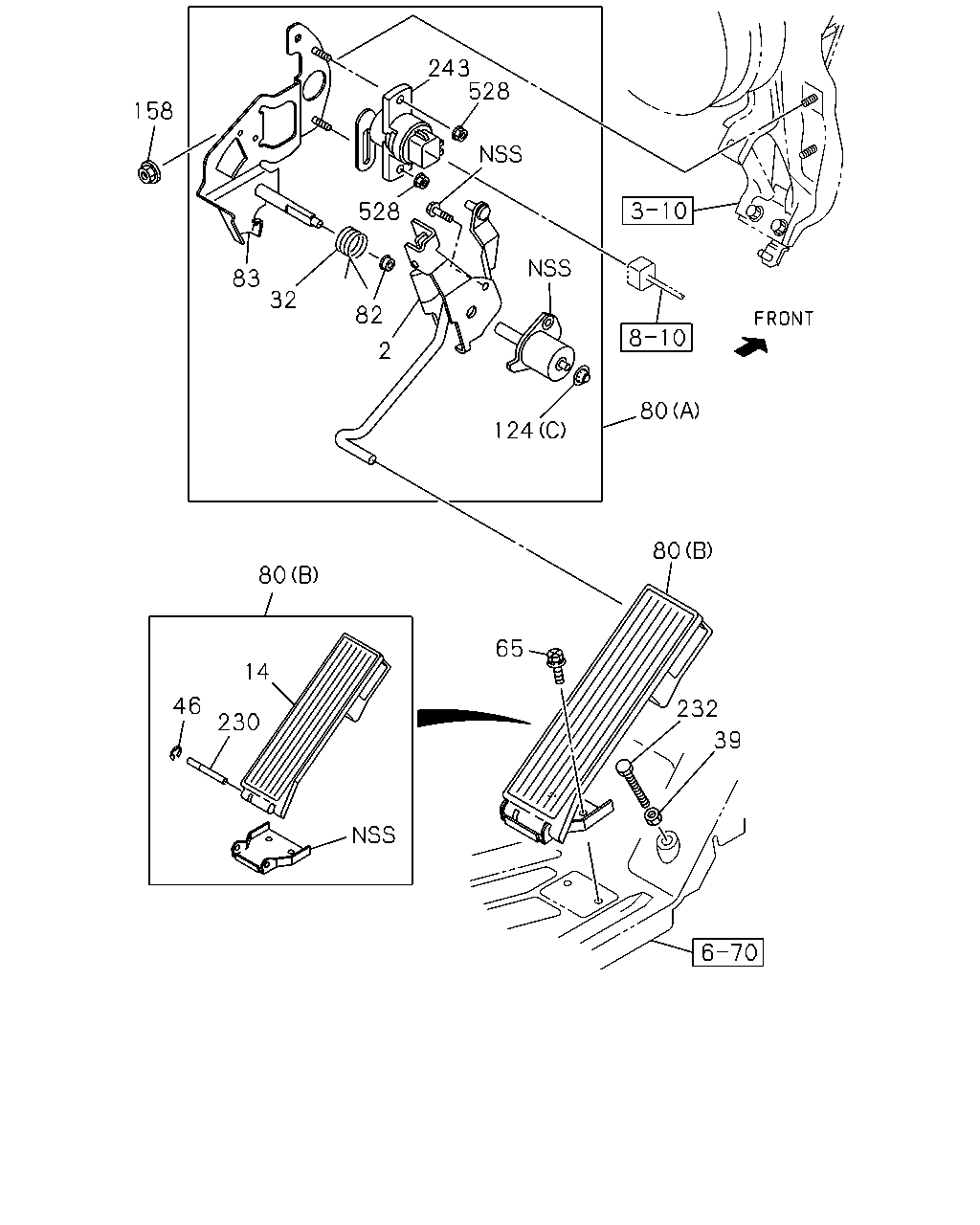

243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.454 LEVER; ENG CONT 4JJ1-TCC ENG(RDU)	8-98002-158-2	01	1	1012-	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-98031-665-0	01	1	1012-	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1012-	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98038-416-1	01	1	1012-1112	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
82	03.463 BUSHING; ENG CONT LVR 4JJ1-TCC ENG(RDU)	8-97581-053-0	01	1	1012-	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98093-900-0	01	1	1012-1112	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1012-	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1012-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1012-	●	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1-TCC ENG(RDU)	8-98131-263-0	01	1	1012-	●	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1-TCC ENG(RDU) 12.183 M5	8-94169-022-0	02	1	1012-	●	●	●	●

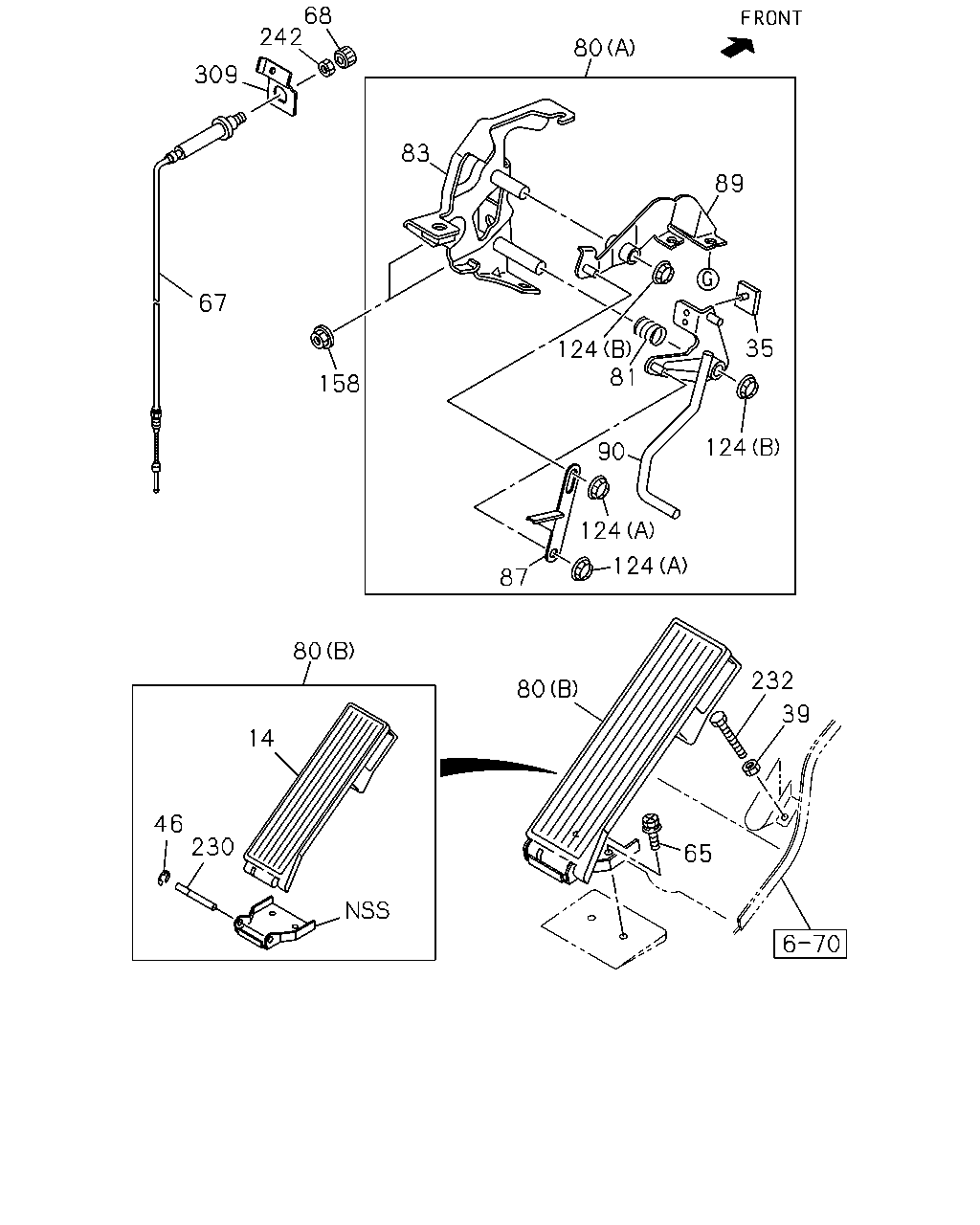

68 242 80 309 83 89 67 35 124 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97302-305-0	01	1	1012-	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-97302-305-0	01	1	1012-		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1012-	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98124-108-3	01	1	1012-	●
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98124-108-3	01	1	1012-		●
68	03.480 KNOB; IDLE CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97853-765-1	01	1	1012-	●
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-97853-765-1	01	1	1012-		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98038-416-1	01	1	1012-1112	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98031-665-0	01	1	1012-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98031-665-0	01	1	1012-		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98093-900-0	01	1	1012-1112	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1012-	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
87	03.454 LINK; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97853-204-1	01	1	1012-	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-97853-204-1	01	1	1012-		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97868-042-0	01	1	1012-1112	●	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1012-1112		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1201-1506	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1201-1506		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1507-	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1507-		●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1012-1112		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1201-1506	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1201-1506		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1507-	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1507-		●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1507-		●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98059-513-0	01	1	1012-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98059-513-0	01	1	1012-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1012-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1012-	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) M18	8-97853-233-0	01	1	1012-	●
242	03.483 NUT; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) M18	8-97853-233-0	01	1	1012-		●
309	03.483 BRACKET; IDLE CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98124-981-1	01	1	1012-	●
309	03.483 BRACKET; IDLE CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98124-981-1	01	1	1012-		●

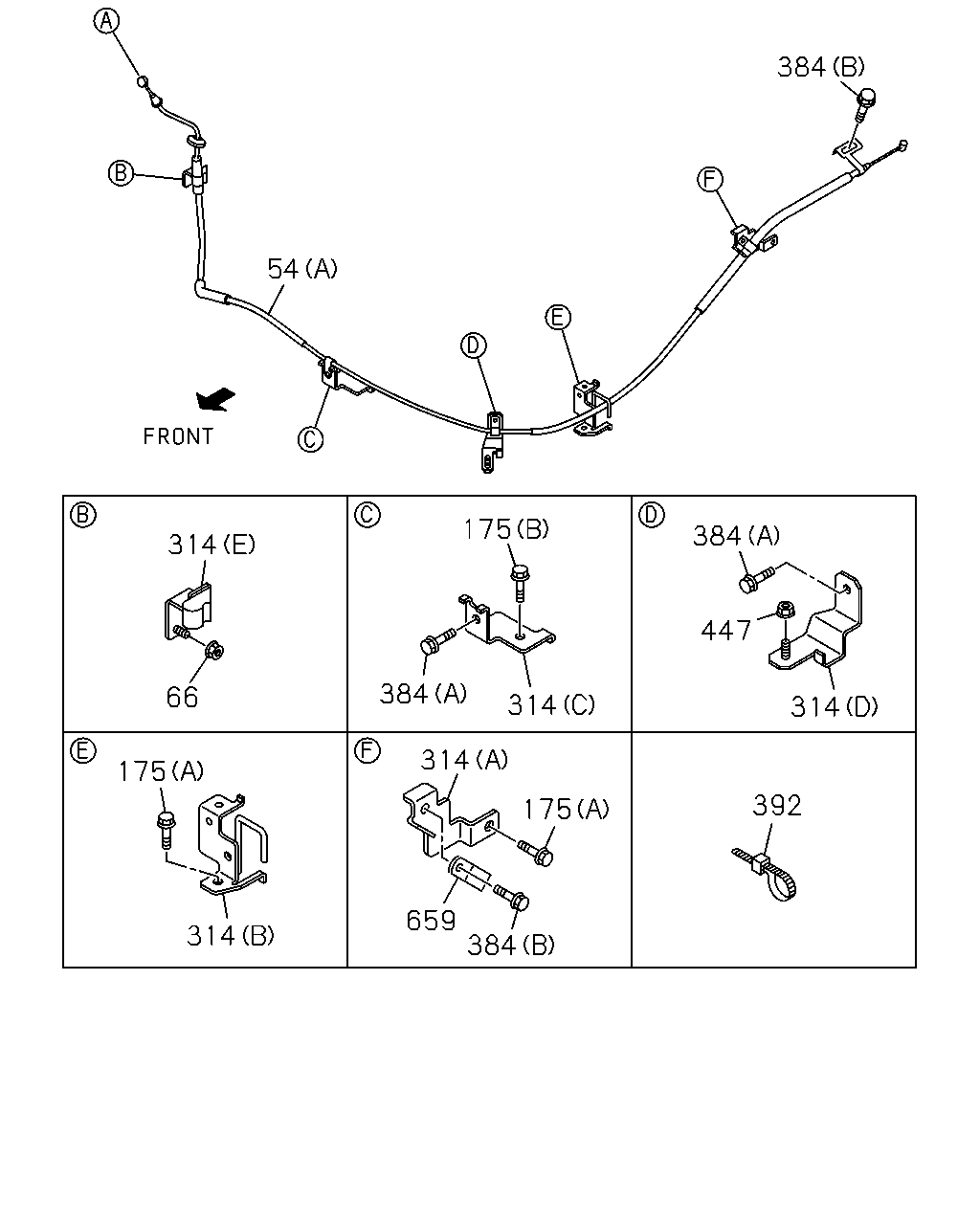

384 54 175 384 314 447 384 66 314 314 314 175 392 175 659 384 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-		●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98038-458-4	01	1	1012-	●	●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A)	8-98169-685-0	01	1	1012-		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2823	8-98099-700-3	01	1	1012-		●
66	03.452 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
66	03.452 NUT; BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (E)	8-98094-801-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (E)	8-98094-801-1	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C)	8-98131-406-0	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (C)	8-98131-406-0	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D)	8-98072-003-2	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98106-754-1	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98114-289-0	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (F)	8-98120-574-1	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-98124-144-0	01	1	1012-		●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	1012-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	1012-		●
447	03.452 NUT; BRKT,CONT WIRE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.785 ID=16 L=28	0-95235-552-0	01	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.785 ID=16 L=28	0-95235-552-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 03.162 ID=16 H=24 L=20	0-95207-315-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.785 ID=16 L=28	0-95235-552-0	02	1	1012-		●

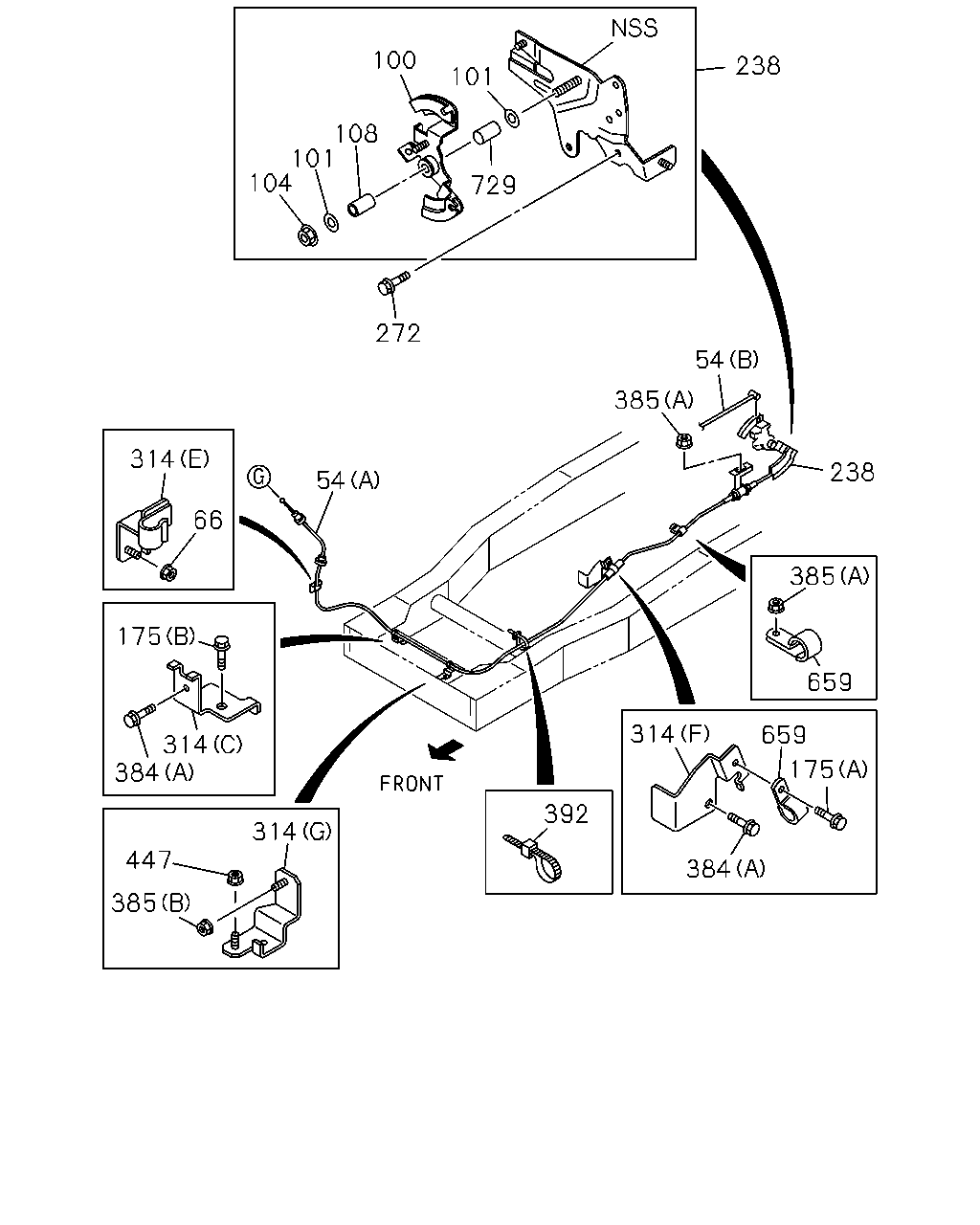

100 238 101 108 101 104 729 272 54 385 314 238 54 66 385 175 659 314 659 314 384 175 392 314 447 384 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-		●
54	03.430 CABLE; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98038-458-4	01	1	1012-	●	●
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP) (A)	8-98169-685-0	01	1	1012-		●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2823	8-98099-700-3	01	1	1012-		●
66	03.452 NUT; BRKT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
66	03.452 NUT; BRKT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	1012-		●
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	1012-		●
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	1012-		●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
175	03.483 BOLT; BRKT,ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
238	03.463 LEVER; ACCEL CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	1012-		●
272	03.454 BOLT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (E)	8-98094-801-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (E)	8-98094-801-1	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C)	8-98131-406-0	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (C)	8-98131-406-0	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (D)	8-98072-003-2	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98106-754-1	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98114-289-0	01	1	1012-	●	●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (F)	8-98120-574-1	01	1	1012-		●
314	03.481 BRACKET; ACCEL CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (G)	8-98124-144-0	01	1	1012-		●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1012-		●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-		●
385	03.481 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-		●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	1012-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	1012-		●
447	03.452 NUT; BRKT,CONT WIRE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.785 ID=16 L=28	0-95235-552-0	01	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.785 ID=16 L=28	0-95235-552-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP) 03.162 ID=16 H=24 L=20	0-95207-315-0	01	1	1012-		●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.785 ID=16 L=28	0-95235-552-0	02	1	1012-		●
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	1012-		●

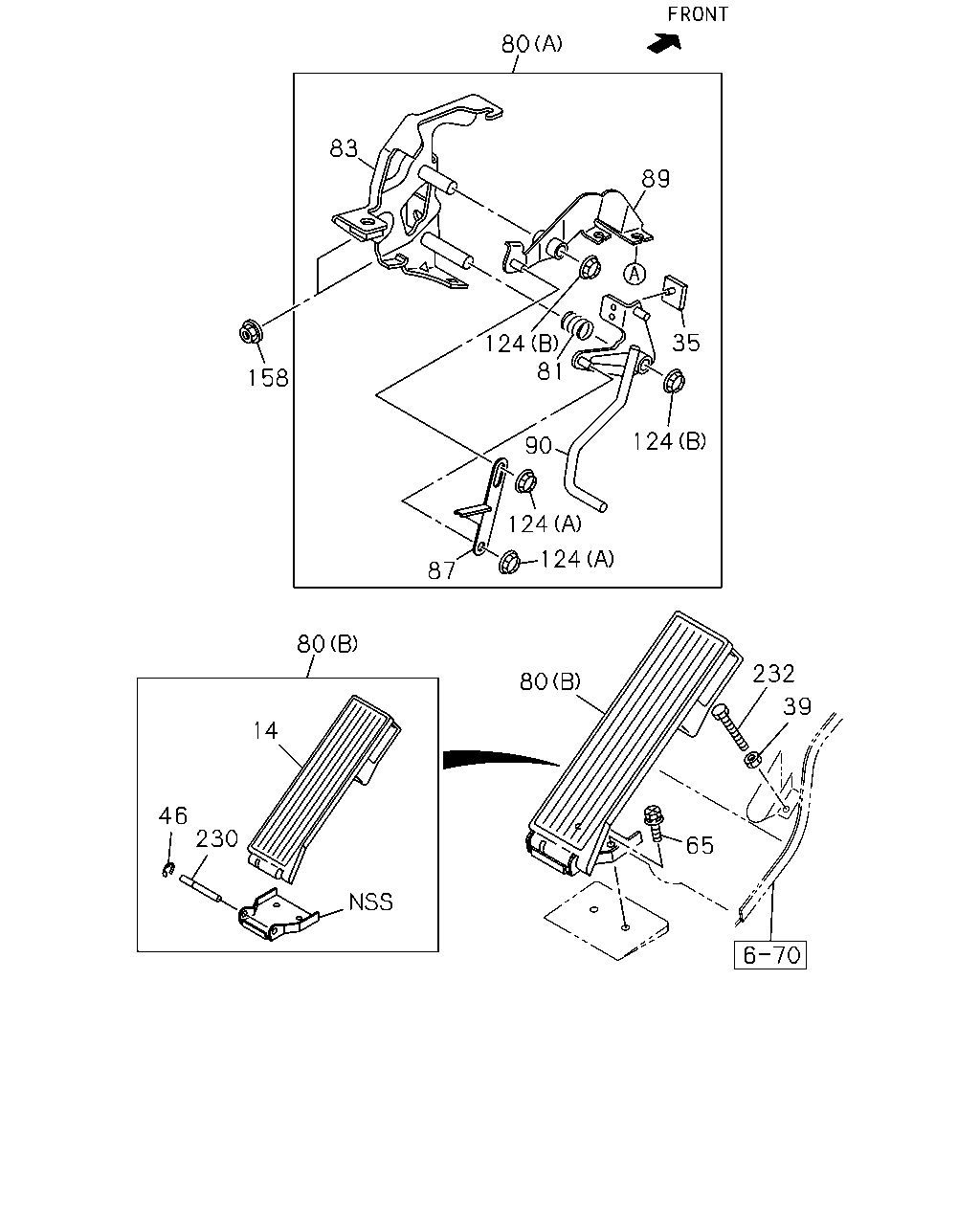

80 83 89 35 124 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97302-305-0	01	1	1012-	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-97302-305-0	01	1	1012-		●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1012-	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98038-416-1	01	1	1012-1112	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98038-416-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4JJ1-TCC ENG(RDU) (A)	8-97387-358-3	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1012-	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1012-1112		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1201-1506		●
80	03.452 LINK ASM; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) (A)	8-98124-928-1	01	1	1507-	●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98124-928-1	01	1	1507-		●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98031-665-0	01	1	1012-	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98031-665-0	01	1	1012-		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98093-900-0	01	1	1012-1112	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-98093-900-0	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4JJ1-TCC ENG(RDU)	8-98023-885-2	01	1	1012-	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1012-1112		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1201-1506		●
83	03.452 BRACKET; CONT LINK 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-931-1	01	1	1507-	●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-931-1	01	1	1507-		●
87	03.454 LINK; ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97853-204-1	01	1	1012-	●
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-97853-204-1	01	1	1012-		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97868-042-0	01	1	1012-1112	●	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1012-1112		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1201-1506	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1201-1506		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1507-	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC)	8-97868-042-0	01	1	1507-		●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1012-1112		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1201-1506	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1201-1506		●
89	03.454 LEVER; RELAY 4JB1-TC ENG(RDT),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC)	8-98124-932-0	01	1	1507-	●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1507-		●
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98124-932-0	01	1	1507-		●
90	03.454 LEVER; RELAY,ENG CONT 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98059-513-0	01	1	1012-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF)	8-98059-513-0	01	1	1012-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-		●
124	03.463 NUT; LEVER 4JJ1-TCC ENG(RDU) 03.452 (C) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1012-	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1012-	●	●	●	●

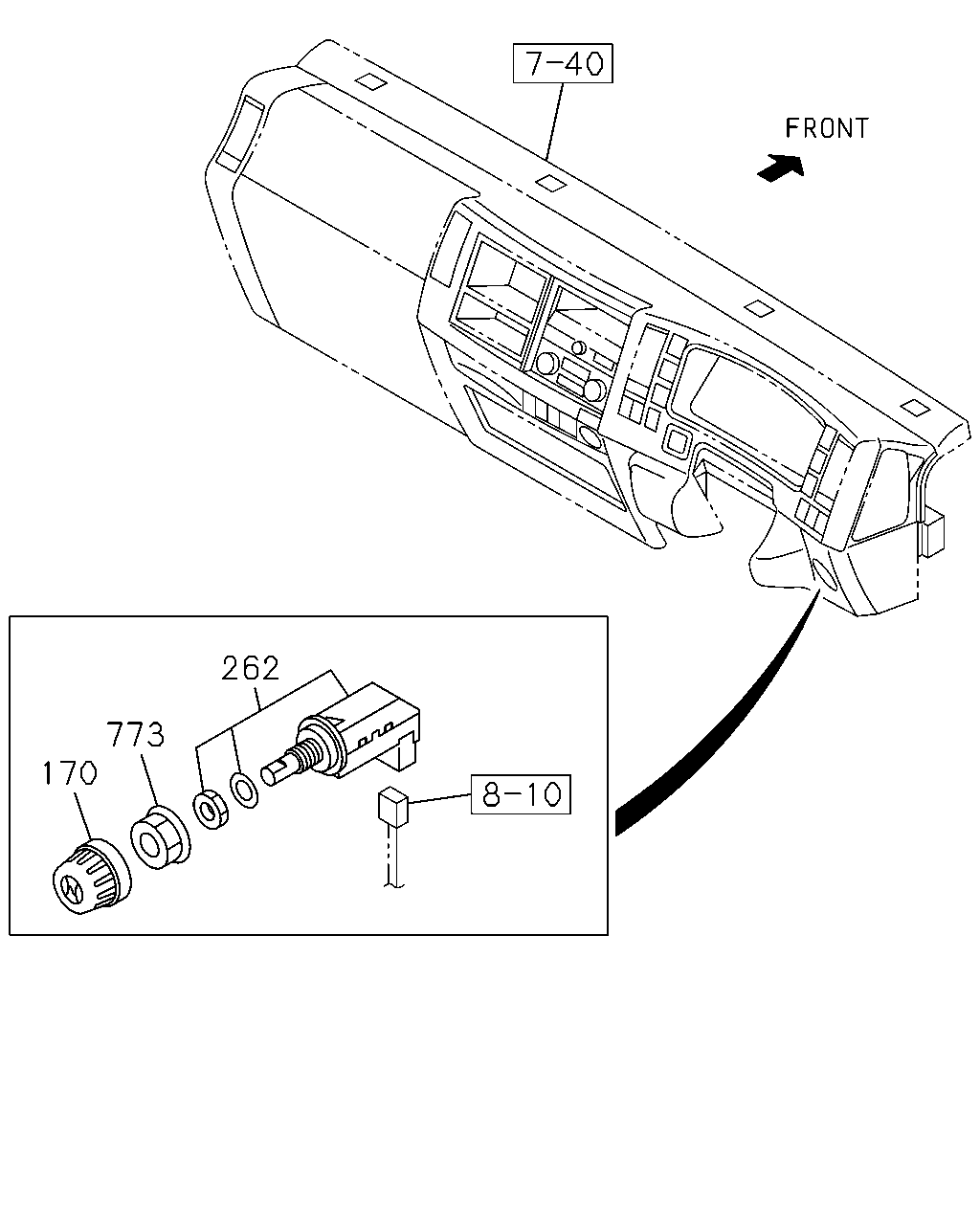

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
170	03.480 KNOB 4JJ1-TCC ENG(RDU)	8-98013-420-0	01	1	1012-	●	●	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1-TCC ENG(RDU)	8-98013-418-0	01	1	1012-	●	●	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1-TCC ENG(RDU)	8-97352-127-0	01	1	1012-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
