Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#78342) — 127 parça

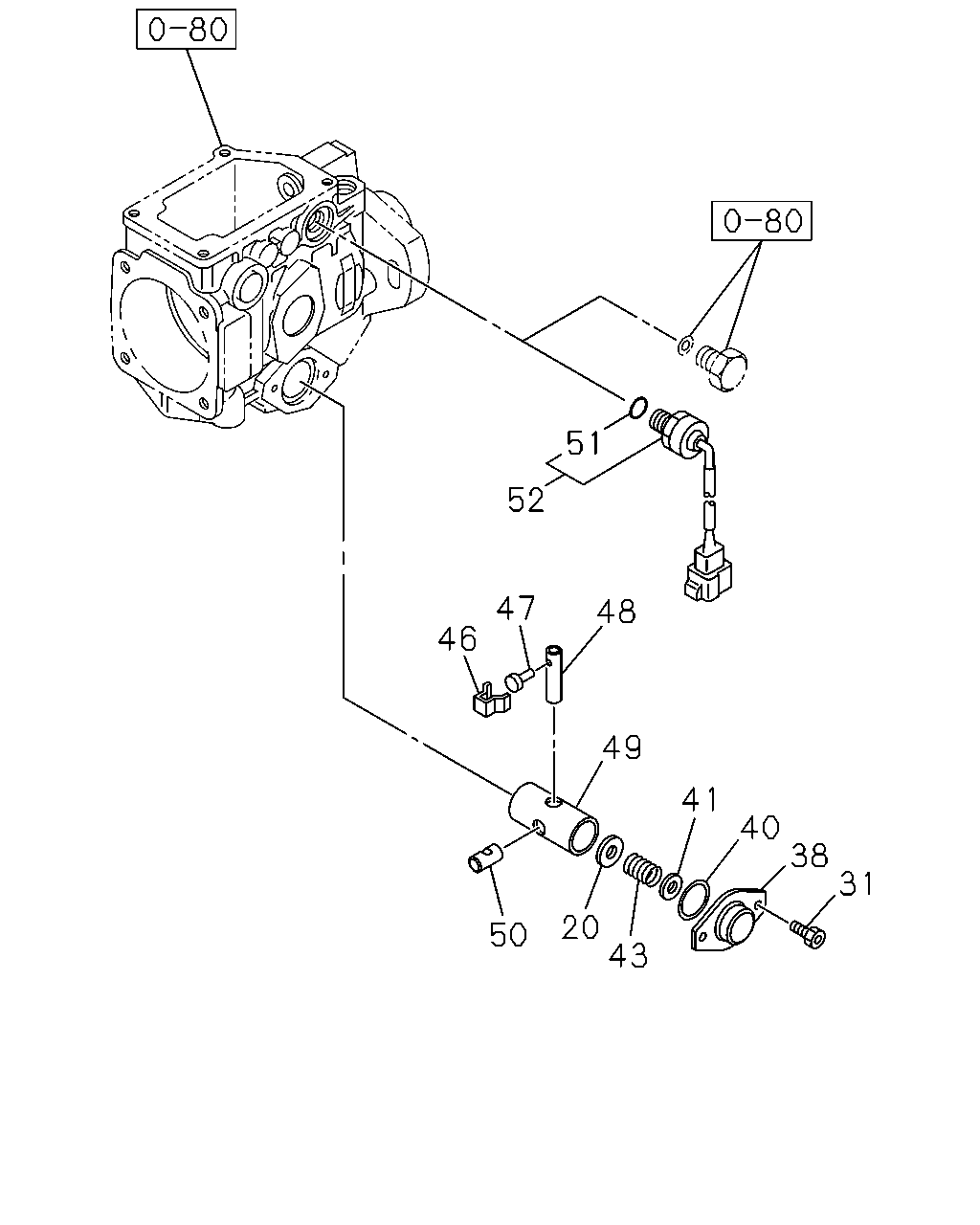

51 52 47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97178-485-5, 97178485	1-15748-013-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.80 ASM PART: C = 8-97178-485-5, 97178485	1-15748-014-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97178-485-5, 97178485	1-15748-015-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-394-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-395-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-396-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-397-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.40 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-495-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-496-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97231-933-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-037-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97383-765-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97178-485-5, 97178485	1-15748-010-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.80 ASM PART: C = 8-97178-485-5, 97178485	1-15748-011-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97178-485-5, 97178485	1-15748-012-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-390-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-391-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-392-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-393-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.40 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-493-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-494-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-499-0	AR	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=44.0 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97231-929-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=41.7 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97231-930-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=42.0 ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97231-931-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-488-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-487-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97214-493-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97231-928-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-97218-961-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-671-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94343-307-0	01	1	-

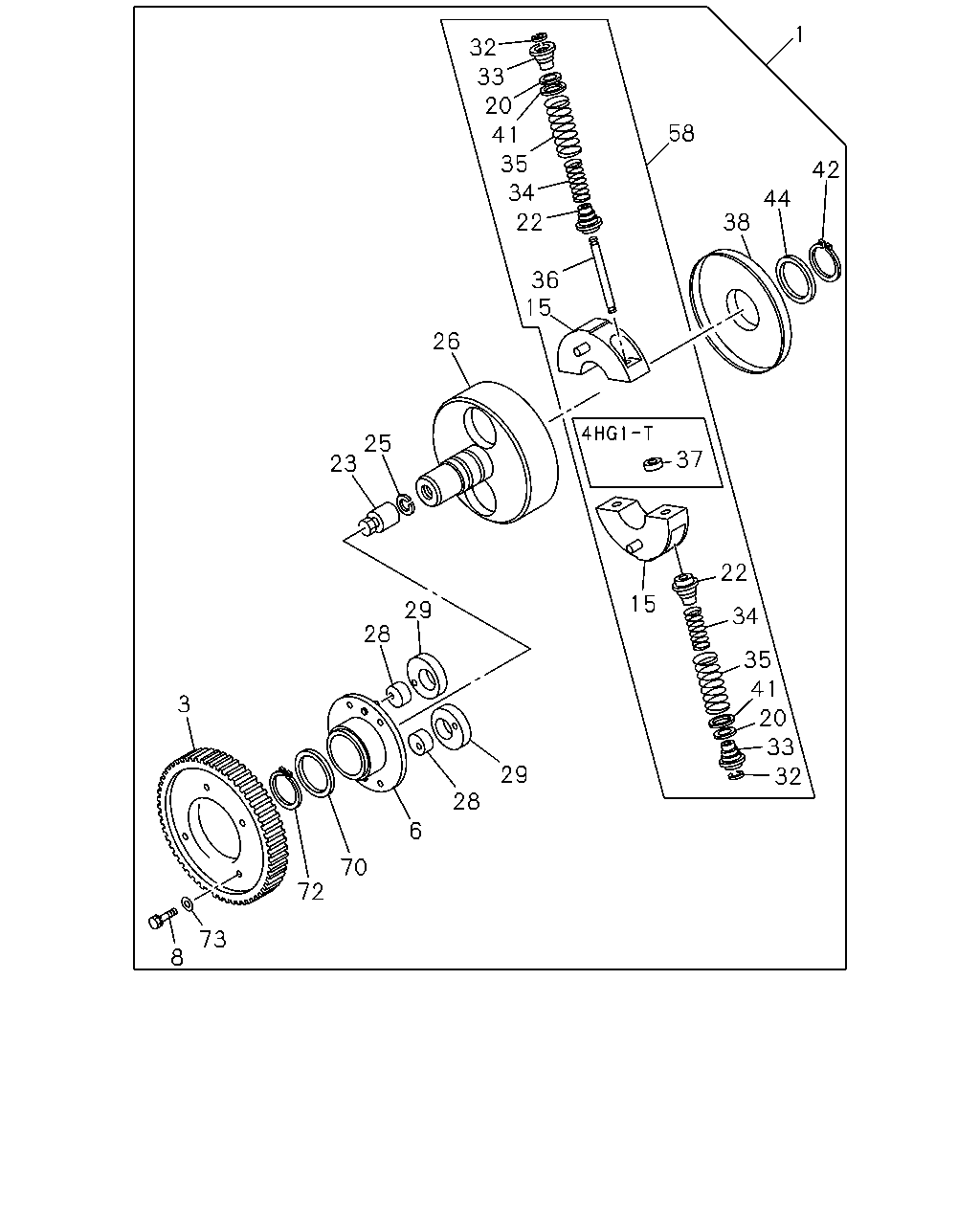

1 32 33 20 58 41 35 42 34 44 22 38 36 15 26 25 23 37 22 29 15 34 28 35 41 3 20 33 29 32 28 6 70 72 73 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.340 TIMER ASM; INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-287-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: H = 8-97385-476-0, 97385476	8-97224-397-0	01	1	-
1	03.340 TIMER ASM; INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102	8-97224-581-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97203-920-0	01	1	-
3	03.340 GEAR; DRIVE,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97214-465-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-031-0	01	1	-
6	03.340 FLANGE; DRIVE GEAR,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-409-0	01	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-049-0	04	1	-
8	03.340 BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-410-0	04	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 8-97385-476-0, 97385476	8-97121-654-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102	8-97125-962-0	02	1	-
15	03.340 FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-402-0	02	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97178-485-5, 97178485	1-15748-013-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.80 ASM PART: C = 8-97178-485-5, 97178485	1-15748-014-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97178-485-5, 97178485	1-15748-015-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-394-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-395-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-396-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-397-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.40 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-495-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-496-0	AR	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-495-0	01	1	-
22	03.340 SEAT; INNER SPRING,TIMER,INJ PUM ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-026-0	04	1	-
23	03.340 NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-144-0	01	1	-
25	03.340 WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-145-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97125-966-0	01	1	-
26	03.330 FLANGE; TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-399-0	01	1	-
28	03.330 CAM; INNER,ECCENTRIC,TIMER,INJ P ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-94172-269-0	02	1	-
29	03.330 CAM; OUTER,ECCENTRIC,TIMER,INJ P ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-030-0	02	1	-
32	03.330 RING; SNAP,SPRING SEAT,TIMER,INJ ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-159-0	04	1	-
33	03.340 SEAT; OUTER SPRING,TIMER,INJ PUM ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-026-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: H = 8-97385-476-0, 97385476	8-97121-656-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102	8-97125-963-0	04	1	-
34	03.340 SPRING; TIMER,INNER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-405-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: H = 8-97385-476-0, 97385476	8-97121-655-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102	8-97125-967-0	04	1	-
35	03.340 SPRING; TIMER,OUTER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-404-0	04	1	-
36	03.340 PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-029-0	02	1	-
37	03.340 SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	1-15749-402-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-500-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-037-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: C = 8-97178-485-5, 97178485	1-15748-010-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.80 ASM PART: C = 8-97178-485-5, 97178485	1-15748-011-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: C = 8-97178-485-5, 97178485	1-15748-012-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-390-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-391-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-392-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-393-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.40 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-493-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-494-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97120-180-1, 97120180, B = 8-97120-181-1, 97120181, D = 8-97204-201-9, 97204201, G = 8-97263-086-3, 97263086	8-94227-499-0	AR	1	-
42	03.340 RING; SNAP,TIMER COVER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-185-0	01	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-038-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-039-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-040-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-041-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-042-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-043-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-044-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-045-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-046-0	AR	1	-
44	03.340 SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-047-0	AR	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 8-97385-476-0, 97385476	8-97121-652-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102	8-97125-961-0	01	1	-
58	03.340 FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97223-400-0	01	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.20 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-032-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.30 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-033-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.40 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-034-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.50 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-035-0	AR	1	-
70	03.340 SHIM; FLANGE,TIMER T=0.80 ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	8-97085-036-0	AR	1	-
72	03.340 RING; SNAP,FLANGE TIMER ASM PART: C = 8-97178-485-5, 97178485, E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-15749-205-0	01	1	-
73	03.340 WASHER; DRIVE GEAR,INJ PUMP 00.669, ID=8 ASM PART: E = 8-97212-101-0, 97212101, F = 8-97212-102-0, 97212102, H = 8-97385-476-0, 97385476	1-14319-034-0	04	1	-
73	03.340 WASHER; DRIVE GEAR,INJ PUMP ASM PART: C = 8-97178-485-5, 97178485	8-97211-797-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
