2-20 — MANUAL TRANSMISSION ASM AND CASE (#7834) — 134 parça

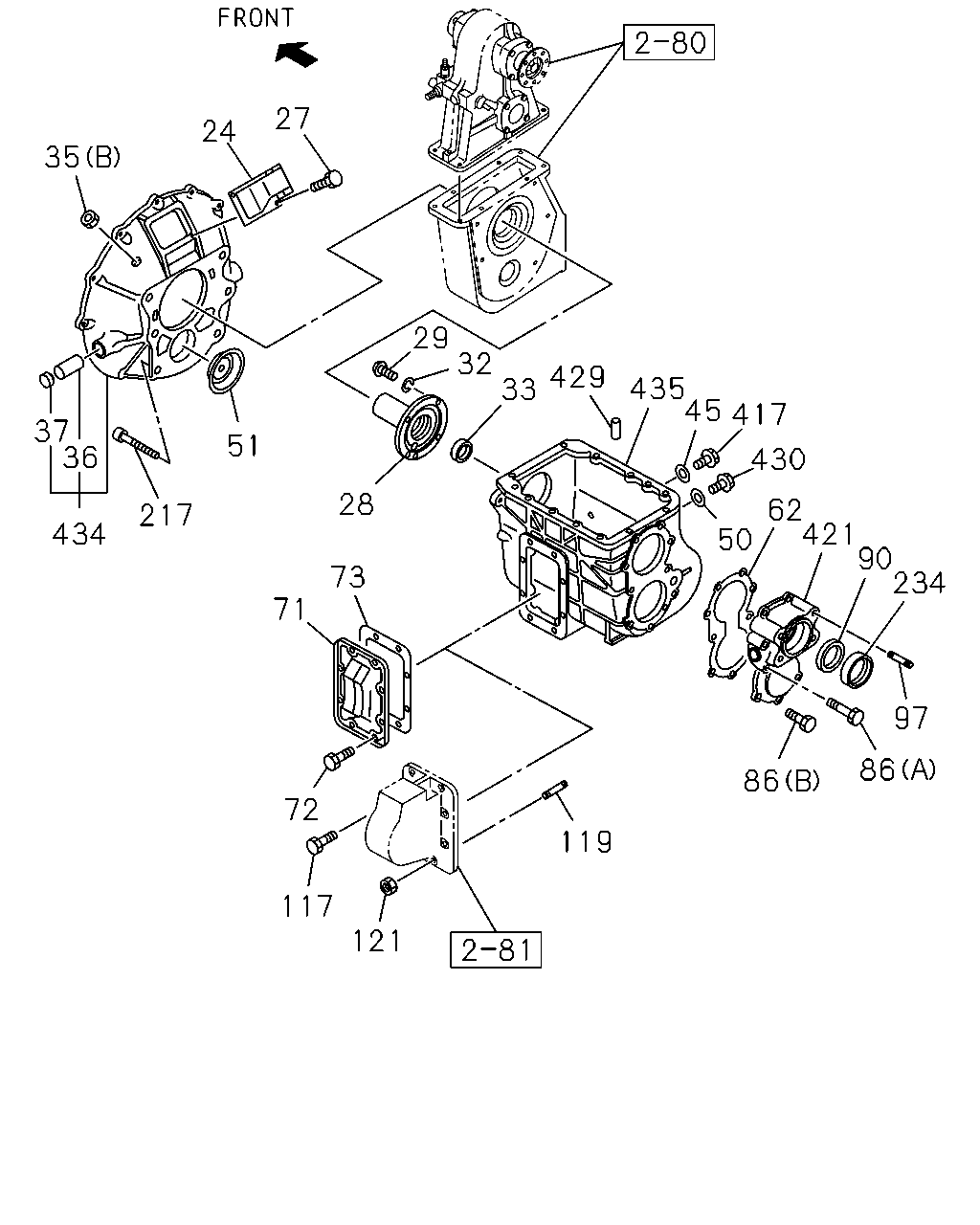

27 24 35 29 32 429 33 435 45 417 37 36 51 430 28 62 421 90 234 217 434 50 73 71 97 86 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9905-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9905-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9905-	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9905-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9905-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9905-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9905-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9905-		●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9905-	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9905-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9905-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9905-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9905-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	9905-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9905-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9905-		●
71	COVER; SIDE,TRANS CASE EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-033-0	01	1	9905-0301	●
71	COVER; SIDE,TRANS CASE FSR(FS****) EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-033-0	01	1	0302-	●
71	COVER; SIDE,TRANS CASE EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-028-0	01	1	9905-		●
72	BOLT; SIDE COVER EXC. TRANS SIDE PTO WO/LVR(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-0512	●	●
72	BOLT; SIDE COVER EXC. TRANS SIDE PTO WO/LVR(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33142-036-0	01	1	9905-	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9905-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9905-	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9905-		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9905-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9905-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9905-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9905-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9905-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	9905-		●
117	BOLT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9905-	●	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X28 L=43	9-04411-028-0	02	1	9905-9910	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X30 L=45	9-04411-030-0	02	1	9911-0604	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X30 L=45	0-44011-030-0	02	1	0605-	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X25 L=40	9-04411-025-0	02	1	9905-0604		●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-		●
121	NUT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10 FLANGE	0-91150-210-0	02	1	9905-0602	●	●
121	NUT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
217	BOLT; CLU HSG TO FRT PTO	1-09020-034-0	01	1	9905-		●
234	COVER; OIL SEAL	1-33139-001-1	01	1	9905-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9905-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9905-	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9905-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9905-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9905-	●
434	HOUSING; CLU	1-31110-154-1	01	1	9905-0203		●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-		●
435	CASE; TRANS	1-33111-235-0	01	1	9905-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-	●
435	CASE; TRANS	1-33111-239-1	01	1	9905-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0202		●
435	CASE; TRANS	1-33111-338-0	01	1	0203-0303		●
435	CASE; TRANS	1-33111-340-0	01	1	0304-		●

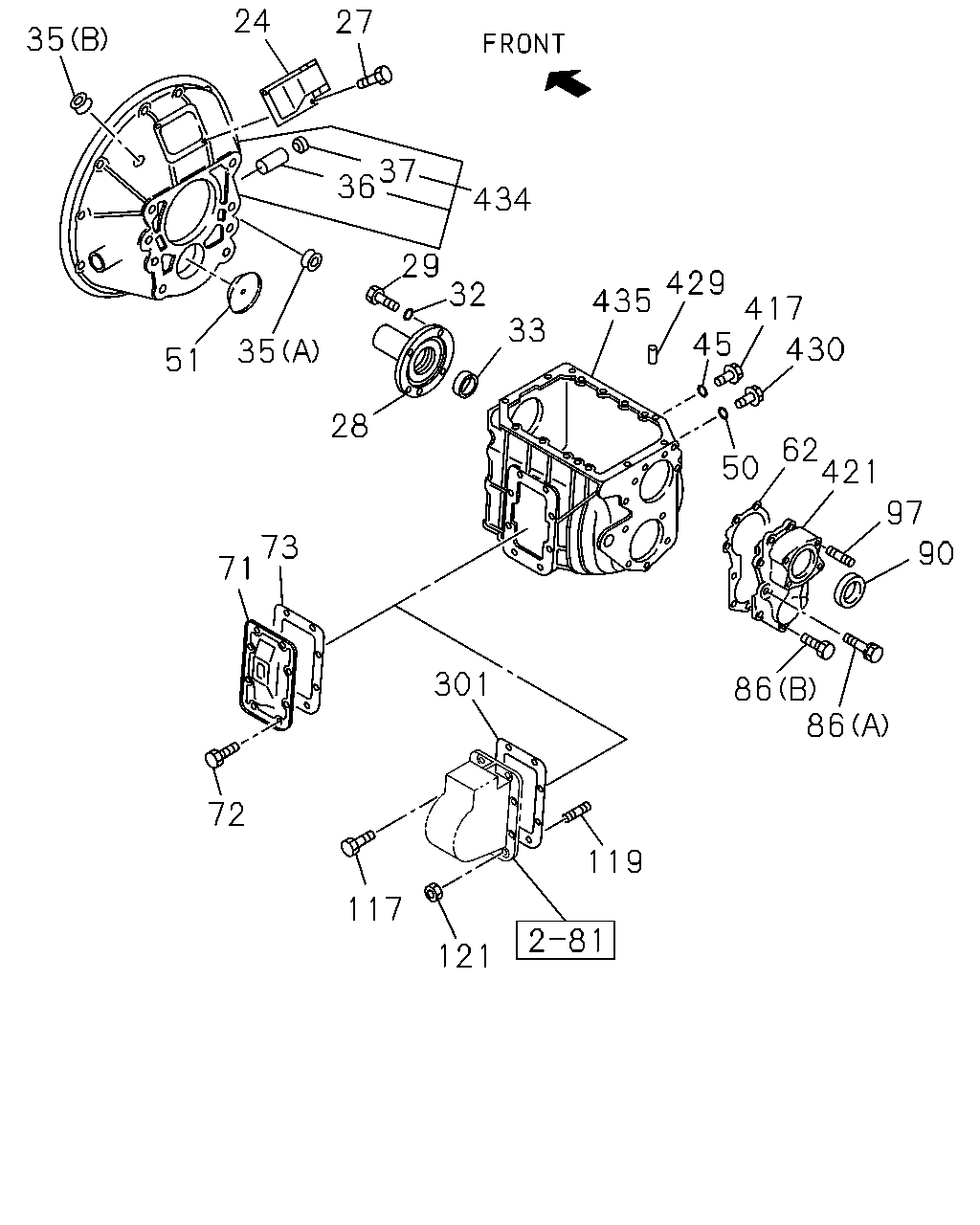

24 27 35 37 36 434 29 32 429 435 417 45 33 430 35 51 28 62 421 50 97 73 71 90 301 86 86 72 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9905-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9905-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9905-	●
28	COVER; FRT,TRANS CASE	1-33121-134-1	01	1	9905-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9905-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9905-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9905-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	9905-		●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9905-	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9905-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9905-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9905-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9905-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9905-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-056-1	01	1	9905-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9905-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-027-2	01	1	9905-		●
71	COVER; SIDE,TRANS CASE EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-033-0	01	1	9905-0301	●
71	COVER; SIDE,TRANS CASE FSR(FS****) EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-033-0	01	1	0302-	●
71	COVER; SIDE,TRANS CASE EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33141-028-0	01	1	9905-		●
72	BOLT; SIDE COVER EXC. TRANS SIDE PTO WO/LVR(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9905-0512	●	●
72	BOLT; SIDE COVER EXC. TRANS SIDE PTO WO/LVR(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33142-036-0	01	1	9905-	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9905-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9905-	●
86	BOLT; RR COVER (B) M10X25	1-09044-080-0	07	1	9905-		●
86	BOLT; RR COVER (A) M10X55	1-09044-083-0	02	1	9905-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9905-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	9905-		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	03	1	9905-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9905-	●
97	STUD; PARKING BRK M14X22.5 L=42.5	8-97365-445-0	01	1	9905-		●
117	BOLT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9905-	●	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X28 L=43	9-04411-028-0	02	1	9905-9910	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X30 L=45	9-04411-030-0	02	1	9911-0604	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X30 L=45	0-44011-030-0	02	1	0605-	●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X25 L=40	9-04411-025-0	02	1	9905-0604		●
119	STUD; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-		●
121	NUT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10 FLANGE	0-91150-210-0	02	1	9905-0602	●	●
121	NUT; PTO FIX TRANS SIDE PTO WO/LVR(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
301	PLATE; DIST,PTO TO TRANS TRANS SIDE PTO WO/LVR(SH5)	1-38119-037-0	01	1	9905-	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9905-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9905-	●
421	COVER; RR,TRANS	1-33131-058-5	01	1	9905-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9905-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9905-	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9905-	●
434	HOUSING; CLU	1-31110-154-1	01	1	9905-0203		●
434	HOUSING; CLU	1-31110-207-0	01	1	0204-		●
435	CASE; TRANS	1-33111-235-0	01	1	9905-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-	●
435	CASE; TRANS	1-33111-239-1	01	1	9905-0112		●
435	CASE; TRANS	1-33111-318-0	01	1	0201-0202		●
435	CASE; TRANS	1-33111-338-0	01	1	0203-0303		●
435	CASE; TRANS	1-33111-340-0	01	1	0304-		●

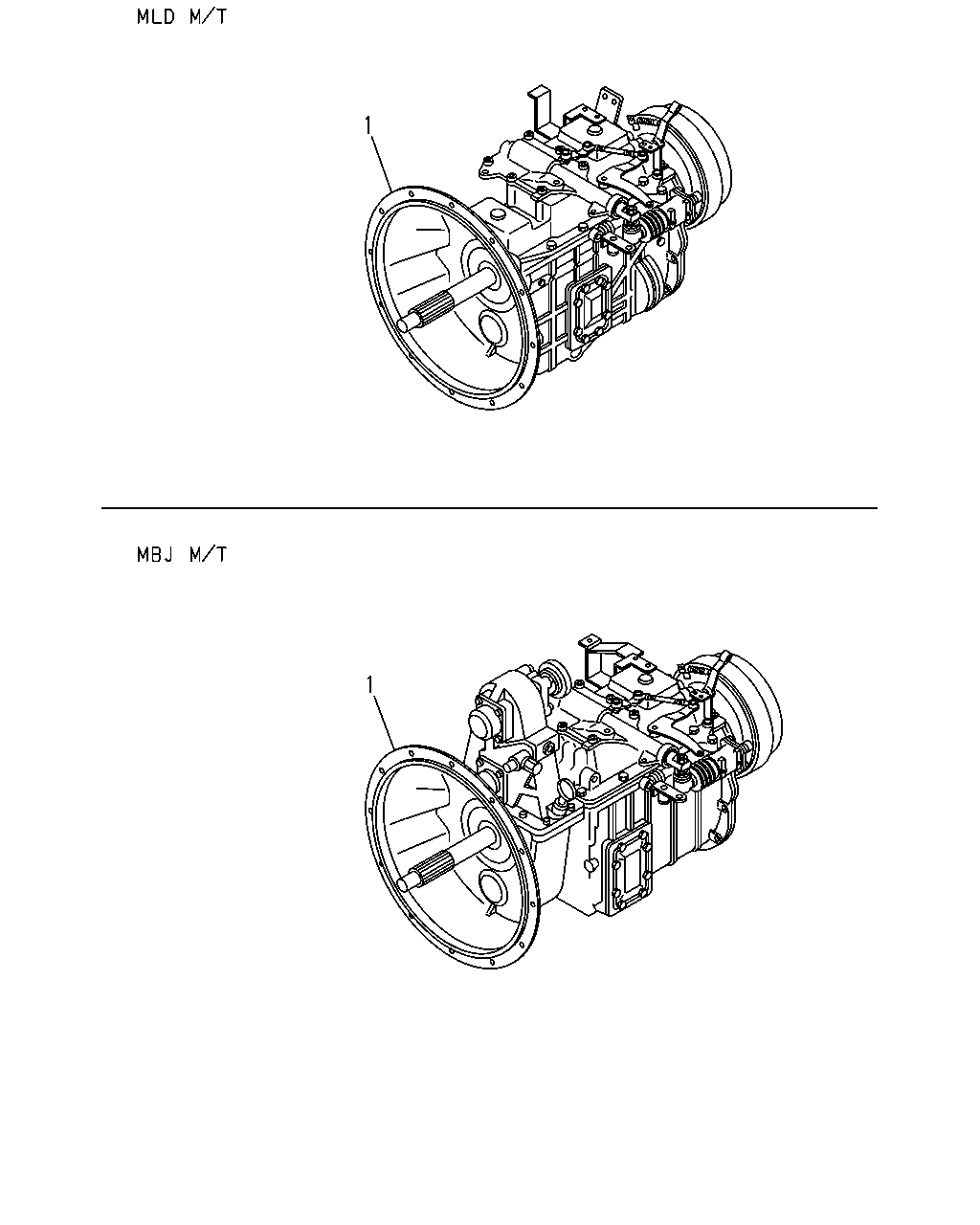

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL TRANS SIDE PTO WO/LVR(SH5)	1-33041-572-0	01	1	9905-9905	●
1	TRANSMISSION ASM; MANUAL TRANS SIDE PTO WO/LVR(SH5)	1-33042-830-0	01	1	9905-9910	●
1	TRANSMISSION ASM; MANUAL FRR(FR****) TRANS SIDE PTO WO/LVR(SH5)	1-33042-830-0	01	1	9911-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33041-566-0	01	1	9905-9905	●
1	TRANSMISSION ASM; MANUAL EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33042-829-0	01	1	9905-9910	●
1	TRANSMISSION ASM; MANUAL EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33041-566-0	01	1	9911-0301	●
1	TRANSMISSION ASM; MANUAL FSR(FS****) EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33041-566-0	01	1	0302-	●
1	TRANSMISSION ASM; MANUAL FSR(FS****) TRANS SIDE PTO WO/LVR(SH5)	1-33041-574-0	01	1	9911-0301	●
1	TRANSMISSION ASM; MANUAL FSR(FS**) FTR(FT**) TRANS SIDE PTO WO/LVR(SH5)	1-33041-574-0	01	1	0302-	●
1	TRANSMISSION ASM; MANUAL TRANS SIDE PTO WO/LVR(SH5)	1-33041-533-0	01	1	9905-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANS SIDE PTO WO/LVR(SH5)	1-33041-531-0	01	1	9905-		●
