0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#78334) — 90 parça

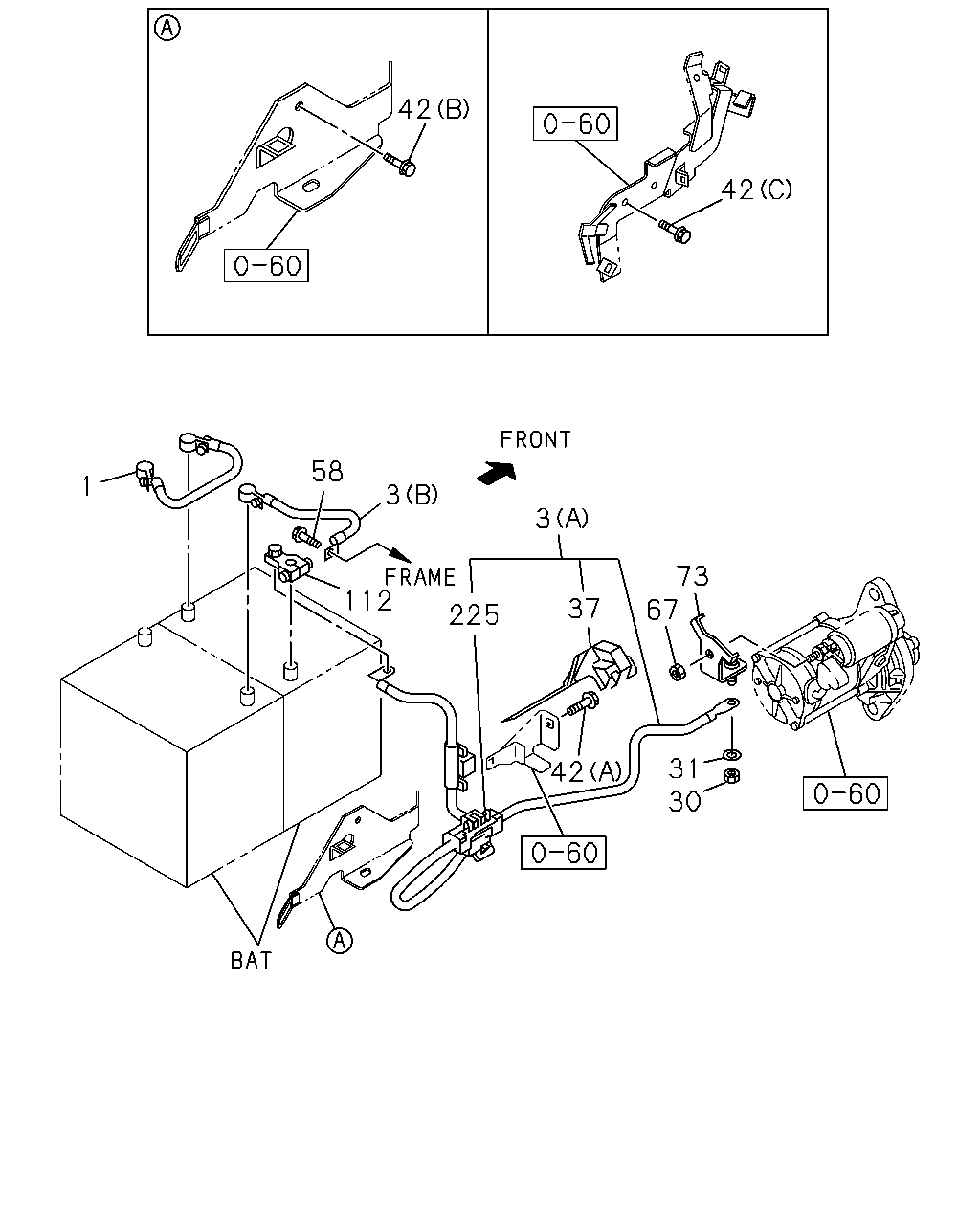

çizim 73269
42 1 58 3 3 112 225 37 42 73 67 31 30 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (A) 		8-98294-686-0 01 1 1506- ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98072-081-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(D) 		8-98108-626-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(D) 		8-98294-683-0 01 1 1410-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) (D) 		8-98294-683-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) L=200 		8-98056-337-1 01 1 1012-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (B) L=200 		8-98056-337-1 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1012-1012 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1012 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1012-1409 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1410-1505 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98294-685-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) L=250 		8-98056-338-1 01 1 1012-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=250 		8-98056-338-1 01 1 1506- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012-1012 ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012-1505 ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ● ●
67 02.183 NUT; BRKT
00.787 M10 		0-91111-510-0 01 1 1107- ● ●
73 02.333 BRACKET; BATTERY CABLE 8-98140-335-0 01 1 1107- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1012 ● ● ●
225 02.343 BLOCK; TERMINAL
WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ● ●

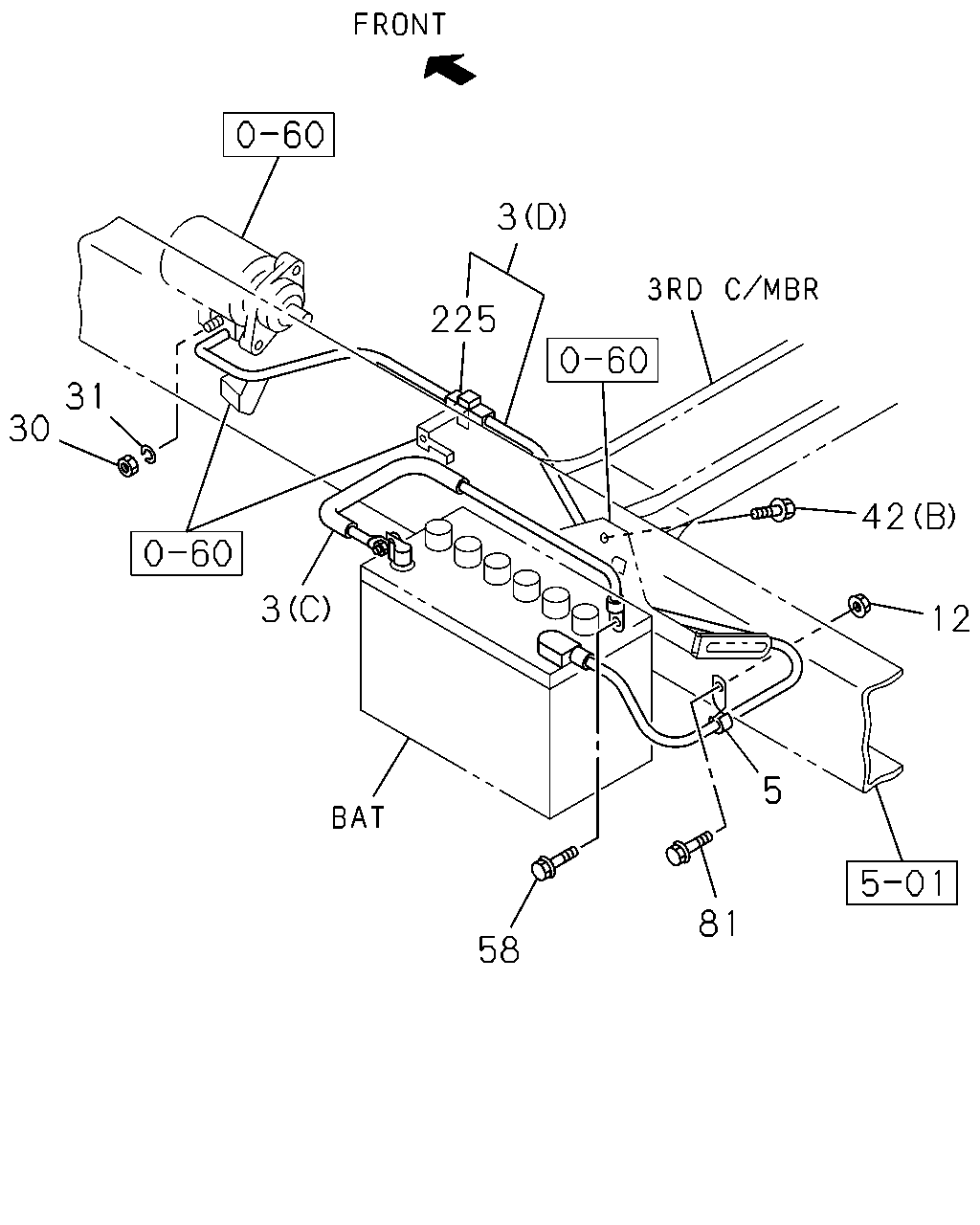

çizim 73631
3 225 31 30 42 3 12 5 81 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (A) 		8-98294-686-0 01 1 1506- ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98072-081-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(D) 		8-98108-626-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(D) 		8-98294-683-0 01 1 1410-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) (D) 		8-98294-683-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) L=200 		8-98056-337-1 01 1 1012-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (B) L=200 		8-98056-337-1 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1012-1012 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1012 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98048-439-3 01 1 1012-1409 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1410-1505 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1506- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NLR SGL CAB(NM**SE) WHEEL BASE 2400MM(24W) (A) 		8-98293-886-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410-1505 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1506- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98294-685-0 01 1 1506- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (B) L=250 		8-98056-338-1 01 1 1012-1505 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NMR SGL CAB(NM**SN) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=250 		8-98056-338-1 01 1 1506- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
ID=19 L=58 		1-09700-733-1 01 1 1012- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012-1505 ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1506- ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ● ●
81 02.559 BOLT; BATTERY CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1012 ● ● ●
225 02.343 BLOCK; TERMINAL
WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ● ●
