0-60 — ENGINE ELECTRICAL CONTROL PARTS (#78333) — 222 parça

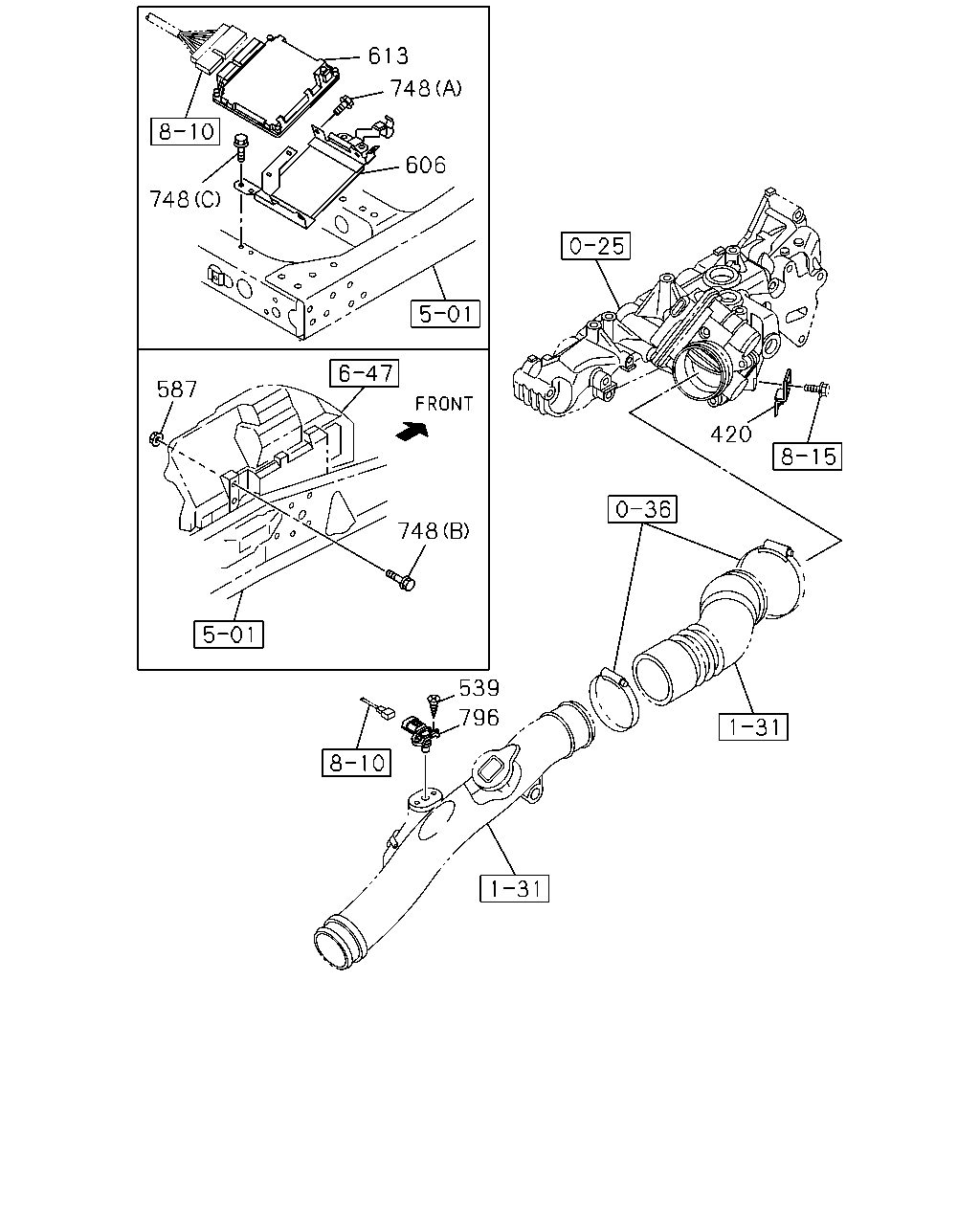

613 748 606 748 587 420 748 539 796

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
420	02.183 BRACKET; HARNESS	8-98009-094-0	01	1	1012-	●
539	02.510 SCREW; SENSOR M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●
587	03.671 NUT; RESISTOR & RELAY 04.115 M6 W/DISHED WASHER	8-98029-921-0	02	1	1012-1301	●
606	03.680 BRACKET; CONT UNIT SGL CAB(NM*S)	8-98011-948-3	01	1	1012-	●
606	03.680 BRACKET; CONT UNIT DBL CAB(NM*W)	8-98038-714-3	01	1	1012-	●
613	03.670 CONTROL UNIT; ENG M/T MYY5T(RSM) EURO2 SPECIFICATION(NT2)	8-98066-050-5	01	1	1012-1111	●
613	03.670 CONTROL UNIT; ENG M/T MYY5T(RSM) EURO2 SPECIFICATION(NT2)	8-98191-757-0	01	1	1112-	●
748	02.500 BOLT; CONT UNIT 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-	●
748	02.500 BOLT; CONT UNIT 03.162 (B) M6X20 FLANGE	0-28650-620-0	02	1	1012-1301	●
748	02.500 BOLT; CONT UNIT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●
796	01.150 SENSOR; MAP	8-98009-418-0	01	1	1012-	●

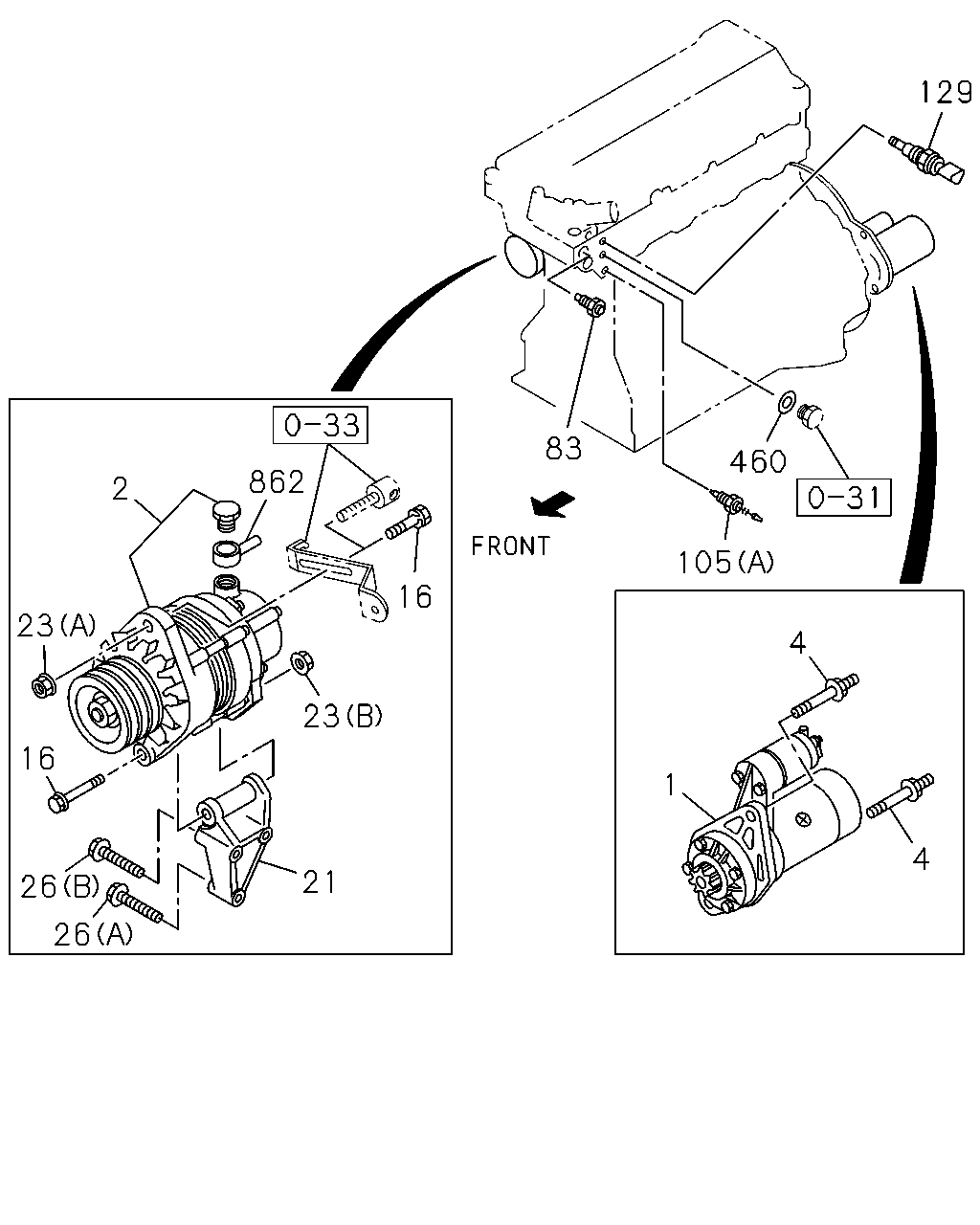

129 83 460 862 2 105 16 23 4 23 16 1 4 21 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98179-204-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98055-279-1	01	1	1012-1207	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-018-2	01	1	1208-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	1012-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI	8-97351-572-1	01	1	1012-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-98029-887-2	01	1	1012-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	1012-1301	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-2	01	1	1012-1408				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98284-007-0	01	1	1409-1505				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98300-335-0	01	1	1506-				●	●
4	02.042 BOLT; STARTER 00.685 M12X80 FLANGE	0-28051-280-0	02	1	1012-				●	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	1012-	●	●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	1012-		●	●
16	02.277 BOLT; GEN M10X120 FLANGE	0-28056-012-0	01	1	1012-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28056-013-0	01	1	1012-				●	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	1012-		●	●
23	02.277 NUT; GEN 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●
23	02.277 NUT; GEN 04.085 (B) M10 FLANGE	0-91180-210-0	01	1	1012-		●	●	●	●
26	02.277 BOLT; GEN BRKT 02.042 (A) M10X50 FLANGE	0-28151-050-0	01	1	1012-		●	●
26	02.277 BOLT; GEN BRKT (B) M10X70 FLANGE	0-28151-070-0	02	1	1012-		●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	1012-1208		●	●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	1209-			●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	1012-1208		●	●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	1209-			●	●	●
105	01.150 SWITCH; THERMO,QOS (A)	8-94121-152-1	01	1	1012-			●
105	01.150 SWITCH; THERMO,QOS (A)	8-94336-668-0	01	1	1012-				●
105	01.150 SWITCH; THERMO,QOS (B)	8-94457-511-0	01	1	1012-				●	●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	1012-		●
129	01.150 SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	1012-	●	●
460	02.363 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2	1-09630-086-0	01	1	1012-		●
862	02.313 CONNECTOR; GEN GENERATOR 24V50A(6QN)	8-97333-832-0	01	1	1012-		●	●

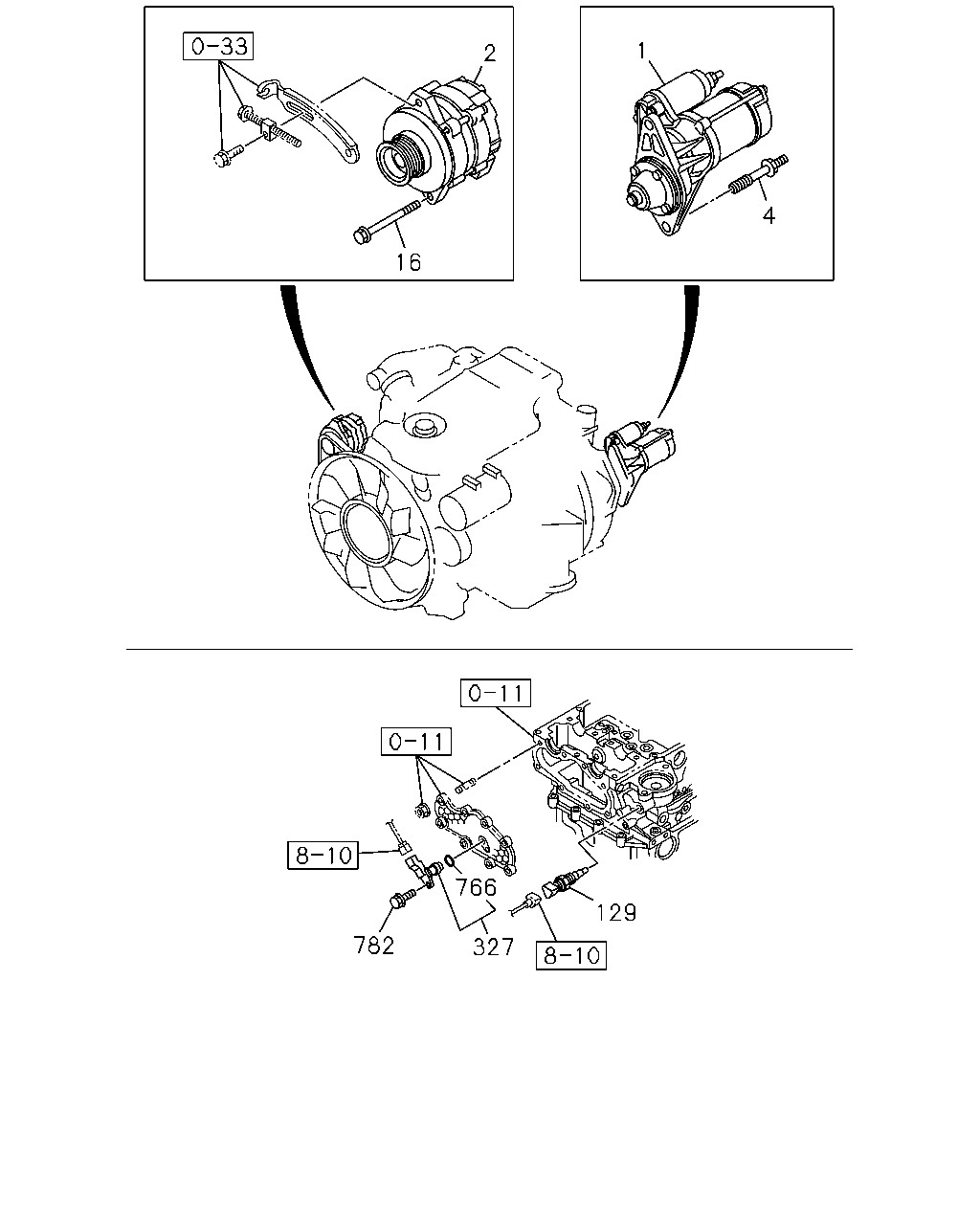

1 2 4 16 766 129 782 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98179-204-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98055-279-1	01	1	1012-1207	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-018-2	01	1	1208-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	1012-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI	8-97351-572-1	01	1	1012-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-98029-887-2	01	1	1012-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	1012-1301	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-2	01	1	1012-1408				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98284-007-0	01	1	1409-1505				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98300-335-0	01	1	1506-				●	●
4	02.042 BOLT; STARTER 00.685 M12X80 FLANGE	0-28051-280-0	02	1	1012-				●	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	1012-	●	●	●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	1012-		●	●
16	02.277 BOLT; GEN M10X120 FLANGE	0-28056-012-0	01	1	1012-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28056-013-0	01	1	1012-				●	●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	1012-		●
129	01.150 SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	1012-	●	●
327	02.361 SENSOR; CAMSHAFT POSITION	8-97312-108-1	01	1	1012-	●
766	02.363 GASKET; SENSOR 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1012-	●
782	02.510 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1012-	●

10 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	02.100 RELAY; STARTER 02.510 12V 80A	8-97173-951-0	01	1	1012-				●	●
10	02.100 RELAY; STARTER 24V 50A	8-97264-947-0	01	1	1012-	●	●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 12V 80A	8-97173-951-0	01	1	1012-				●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1012-1307	●	●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1308-	●		●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1308-		●

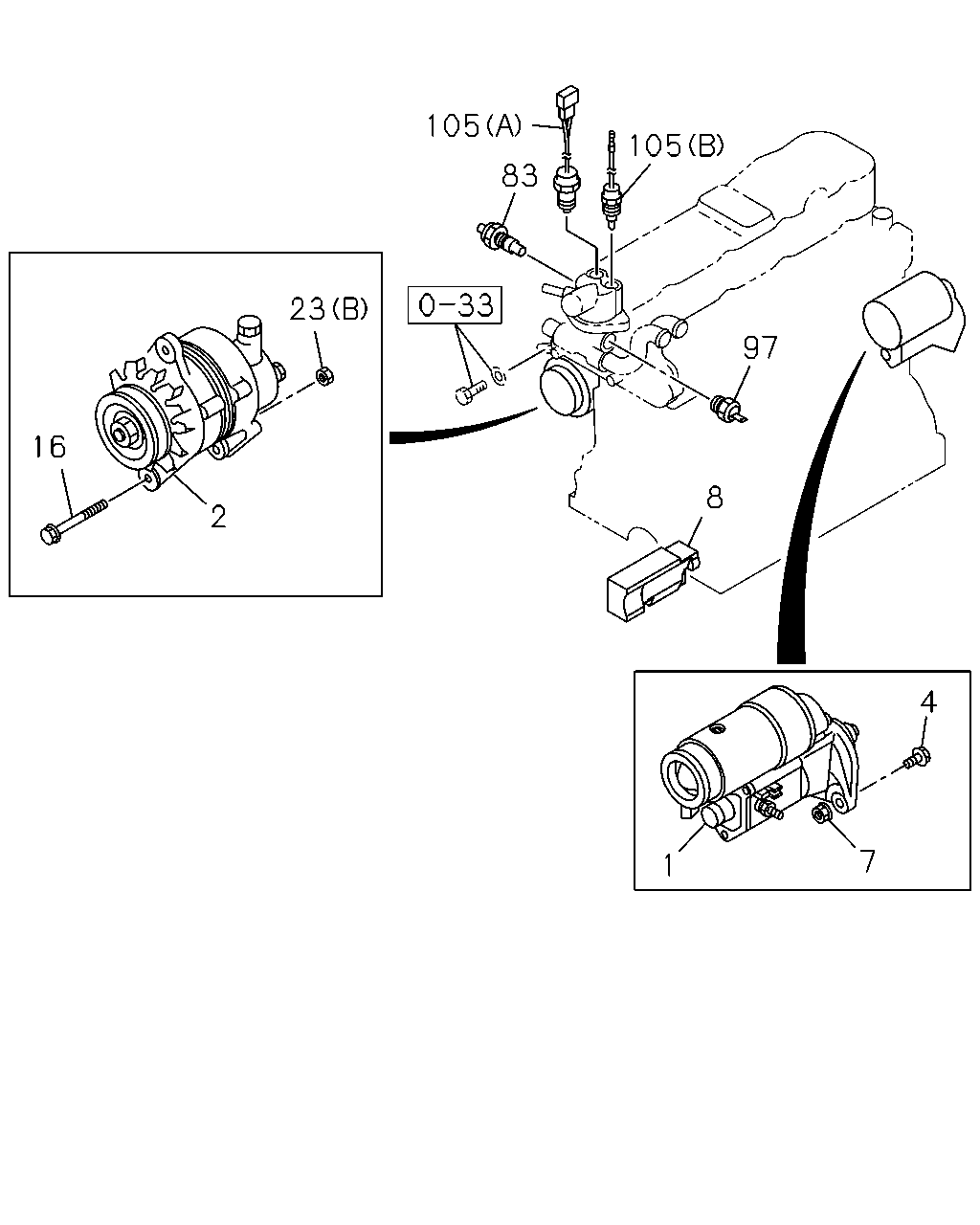

23 16 2 1 7 4 8 97 105 83 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98179-204-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98055-279-1	01	1	1012-1207	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-018-2	01	1	1208-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	1012-				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI	8-97351-572-1	01	1	1012-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-98029-887-2	01	1	1012-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A	8-98029-889-2	01	1	1012-1301	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A	8-97187-657-2	01	1	1012-1408				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98284-007-0	01	1	1409-1505				●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-98300-335-0	01	1	1506-				●	●
4	02.042 BOLT; STARTER 00.685 M12X80 FLANGE	0-28051-280-0	02	1	1012-				●	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	1012-	●	●	●
7	02.042 NUT; STARTER M12 FLANGE	0-91180-112-0	02	1	1012-				●	●
8	02.042 SPACER; STARTER NOISE PACK FOR REGULATION VAR.2<7TF>	8-97210-762-0	01	1	1302-				●
16	02.277 BOLT; GEN M10X133	8-97146-998-0	01	1	1012-		●	●
16	02.277 BOLT; GEN M10X120 FLANGE	0-28056-012-0	01	1	1012-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28056-013-0	01	1	1012-				●	●
23	02.277 NUT; GEN 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●
23	02.277 NUT; GEN 04.085 (B) M10 FLANGE	0-91180-210-0	01	1	1012-		●	●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	1012-1208		●	●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	1209-			●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	1012-1208		●	●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	1209-			●	●	●
97	01.150 SWITCH; THERMO,EGR CONT MALAYSIA EQUIPMENT(B10)	8-94368-591-0	01	1	1405-				●
97	01.150 SWITCH; THERMO,EGR CONT	8-94368-591-0	01	1	1012-1012				●
105	01.150 SWITCH; THERMO,QOS (A)	8-94121-152-1	01	1	1012-			●
105	01.150 SWITCH; THERMO,QOS (A)	8-94336-668-0	01	1	1012-				●
105	01.150 SWITCH; THERMO,QOS (B)	8-94457-511-0	01	1	1012-				●	●

46 10 718

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	02.100 RELAY; STARTER 02.510 12V 80A	8-97173-951-0	01	1	1012-				●	●
10	02.100 RELAY; STARTER 24V 50A	8-97264-947-0	01	1	1012-	●	●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 12V 80A	8-97173-951-0	01	1	1012-				●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1012-1307	●	●	●
46	02.510 RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1308-	●		●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1308-		●
718	02.483 RELAY; FUEL HTR FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A	8-97173-037-1	01	1	1012-				●	●
718	02.483 RELAY; FUEL HTR FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●	●

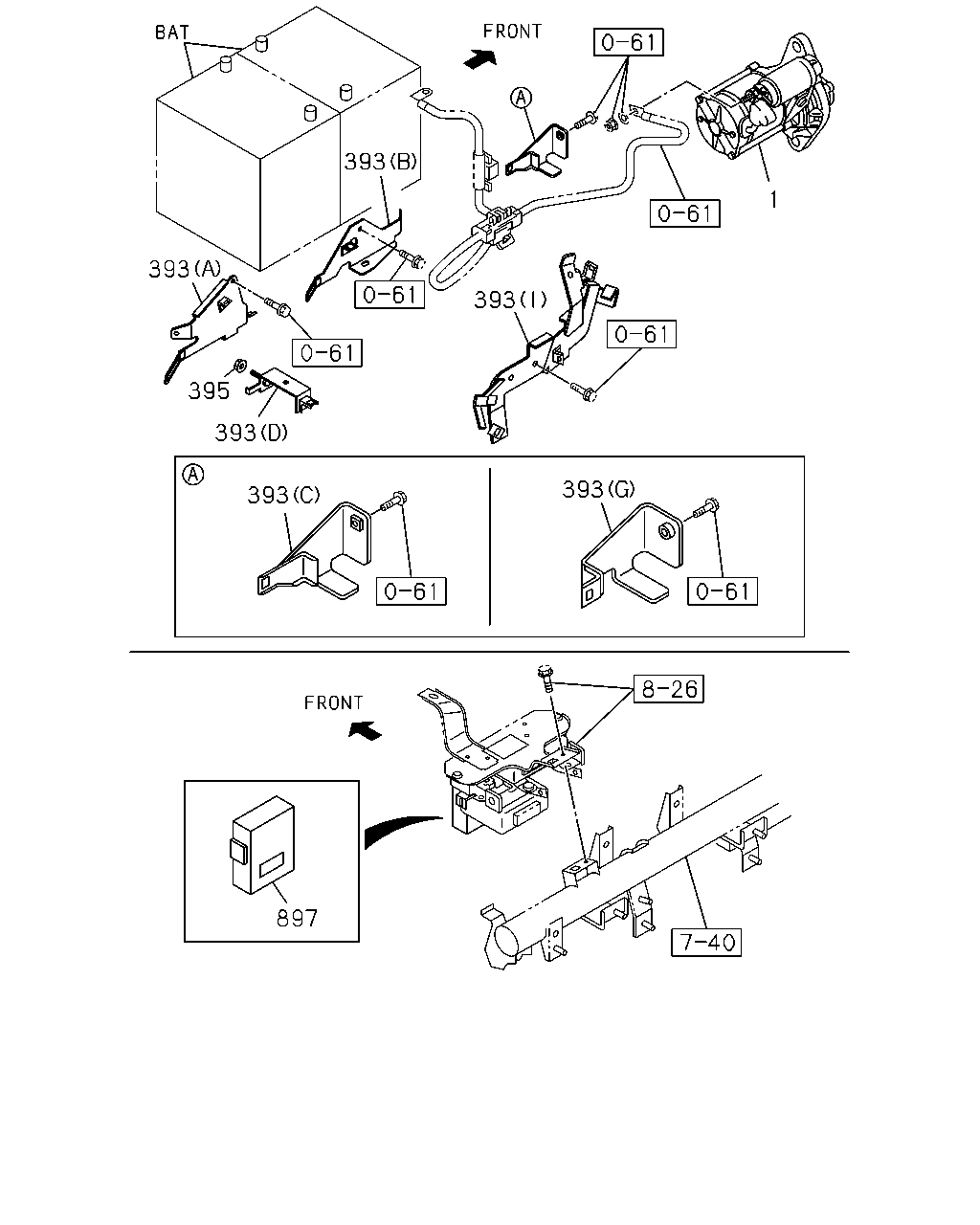

393 393 393 393 395 393 393 897 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98179-204-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98222-021-0	01	1	1208-1310		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-98245-258-0	01	1	1311-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98055-279-1	01	1	1012-1207	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1012-1207		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-018-2	01	1	1208-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. NMR SGL CAB(NM**SN) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98222-018-2	01	1	1208-		●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	1012-				●	●
393	02.343 BRACKET; HARNESS TO BODY FRAME-KICK UP<7EW> (I)	8-98137-320-0	01	1	1506-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1312-				●	●
393	02.343 BRACKET; HARNESS TO BODY (A)	8-98124-190-0	01	1	1012-1505		●	●
393	02.343 BRACKET; HARNESS TO BODY NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (A)	8-98124-190-0	01	1	1506-		●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1012-1308	●	●	●
393	02.343 BRACKET; HARNESS TO BODY 02.483 (D)	8-98018-251-1	01	1	1012-1308				●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1309-1311	●	●	●
393	02.343 BRACKET; HARNESS TO BODY MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY EXC. INDONESIA EQUIPMENT(B00),MANUAL TILT CAB<RWZ>,HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MANUAL TILT CAB<RWZ> EXC. INDONESIA EQUIPMENT(B00),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1312-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10) 02.483 (D)	8-98018-251-1	01	1	1312-				●	●
393	02.343 BRACKET; HARNESS TO BODY (E)	8-97262-964-0	01	1	1012-				●	●
393	02.343 BRACKET; HARNESS TO BODY (F)	8-98092-304-2	01	1	1012-				●	●
393	02.343 BRACKET; HARNESS TO BODY (B)	8-98028-601-3	01	1	1012-1505	●
393	02.343 BRACKET; HARNESS TO BODY NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (B)	8-98028-601-3	01	1	1506-	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (C)	8-98018-903-0	01	1	1012-1103	●	●	●
393	02.343 BRACKET; HARNESS TO BODY DBL CAB(NM*W) (C)	8-98018-903-0	01	1	1012-1103	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (G)	8-98123-872-0	01	1	1104-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY DBL CAB(NM*W) (G)	8-98123-872-0	01	1	1104-	●
395	02.343 NUT; BRKT FIX SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●	●
395	02.343 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-				●	●
897	02.510 DRM	8-98082-814-7	01	1	1012-	●

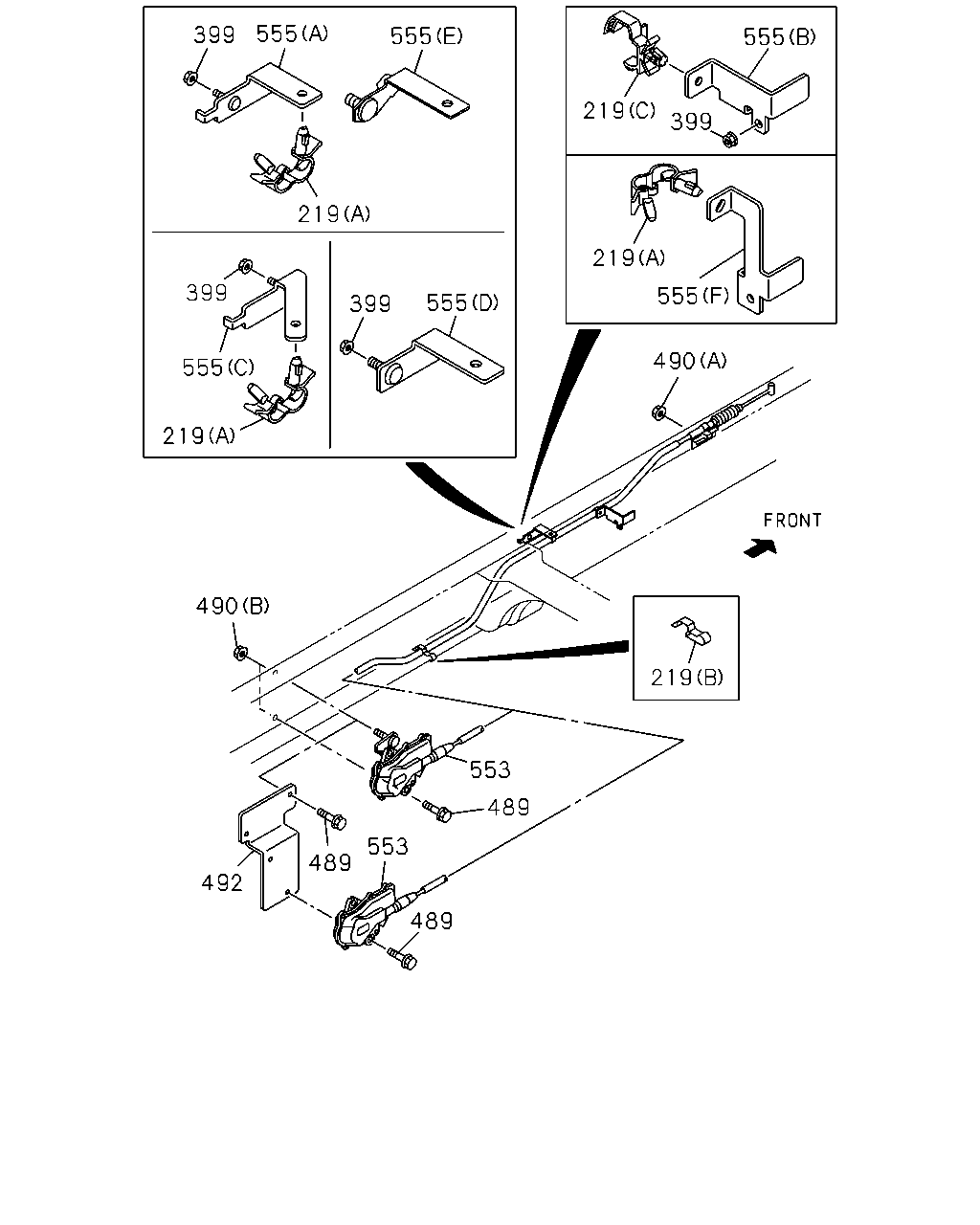

399 555 555 219 399 399 555 555 219 490 492 489 489 553 489 553 219 490 555 219 219 555 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
219	03.483 CLIP; ENG STOP CABLE FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	03	1	1506-	●	●
219	03.483 CLIP; ENG STOP CABLE 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1012-1505	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1506-	●	●
219	03.483 CLIP; ENG STOP CABLE 02.559 (C) ID=16	8-97040-812-0	01	1	1012-1505	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME-KICK UP<7EW> 02.559 (C) ID=16	8-97040-812-0	01	1	1506-	●	●
219	03.483 CLIP; ENG STOP CABLE 02.559 (B) T=4.5 & 9	8-97371-947-0	01	1	1012-1505	●	●
219	03.483 CLIP; ENG STOP CABLE EXC. FRAME-KICK UP<7EW> 02.559 (B) T=4.5 & 9	8-97371-947-0	01	1	1506-	●	●
399	02.559 NUT; CLIP 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1505	●	●
399	02.559 NUT; CLIP 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1505	●	●
399	02.559 NUT; CLIP 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
399	02.559 NUT; CLIP NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
489	03.483 BOLT; ENG STOPPER FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1506-	●	●
489	03.483 BOLT; ENG STOPPER 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1012-1505	●	●
489	03.483 BOLT; ENG STOPPER EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●
490	03.485 NUT; ENG STOP 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
490	03.485 NUT; ENG STOP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1012-1505	●	●
490	03.485 NUT; ENG STOP EXC. FRAME-KICK UP<7EW> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
492	03.483 BRACKET; ENG STOPPER FRAME-KICK UP<7EW>	8-98105-747-0	01	1	1506-	●	●
553	03.485 MOTOR ASM; ENG STOP FRAME-KICK UP<7EW>	8-98100-512-5	01	1	1506-	●	●
553	03.485 MOTOR ASM; ENG STOP	8-98100-511-4	01	1	1012-1505	●	●
553	03.485 MOTOR ASM; ENG STOP EXC. FRAME-KICK UP<7EW>	8-98100-511-4	01	1	1506-	●	●
555	03.485 BRACKET; ENG STOP FRAME-KICK UP<7EW> (F)	8-98124-698-1	01	1	1506-	●	●
555	03.485 BRACKET; ENG STOP HEAVY DUTY FRAME<6WB> (D)	8-98226-332-0	01	1	1302-1411	●	●
555	03.485 BRACKET; ENG STOP (B)	8-98124-697-0	01	1	1012-1505	●	●
555	03.485 BRACKET; ENG STOP EXC. FRAME-KICK UP<7EW> (B)	8-98124-697-0	01	1	1506-	●	●
555	03.485 BRACKET; ENG STOP G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (A)	8-98124-696-0	01	1	1012-1301	●	●
555	03.485 BRACKET; ENG STOP G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. HEAVY DUTY FRAME<6WB> (A)	8-98124-696-0	01	1	1302-1411	●	●
555	03.485 BRACKET; ENG STOP G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) (E)	8-98290-900-0	01	1	1412-1505	●	●
555	03.485 BRACKET; ENG STOP NMR SGL CAB(NM**SN) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. FRAME-KICK UP<7EW> (E)	8-98290-900-0	01	1	1506-	●	●
555	03.485 BRACKET; ENG STOP G.V.W. 6.5-7.0TON(RPW) (C)	8-98172-454-0	01	1	1012-1301	●	●
555	03.485 BRACKET; ENG STOP G.V.W. 6.5-7.0TON(RPW) EXC. HEAVY DUTY FRAME<6WB> (C)	8-98172-454-0	01	1	1302-1505	●	●
555	03.485 BRACKET; ENG STOP NMR SGL CAB(NM**SN) G.V.W. 6.5-7.0TON(RPW) EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C)	8-98172-454-0	01	1	1506-	●	●

130 132 641 643

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
130	02.510 CONTROLLER; EGR MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2)	8-97201-734-3	01	1	1405-			●
130	02.510 CONTROLLER; EGR	8-98170-223-2	01	1	1012-	●
132	03.675 NUT; CONTROLLER 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1404	●
132	03.675 NUT; CONTROLLER 01.062 M6 FLANGE	0-91180-106-0	02	1	1405-	●
132	03.675 NUT; CONTROLLER MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	1405-			●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97361-318-3	01	1	1012-		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6>	8-97361-317-3	01	1	1012-			●	●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1509		●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1509			●	●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE	0-91180-106-0	02	1	1510-		●	●	●

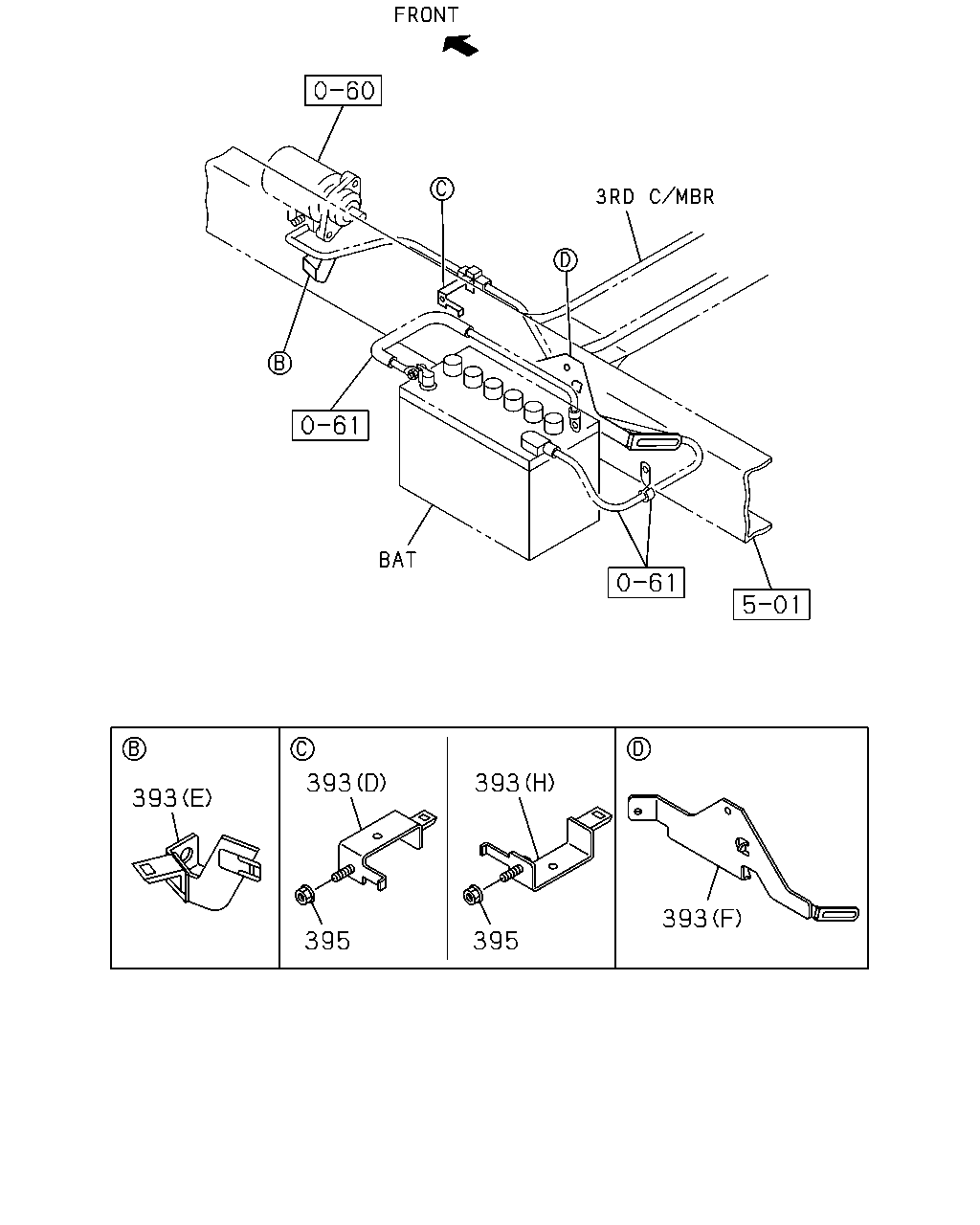

393 393 395 393 395 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
393	02.343 BRACKET; HARNESS TO BODY FRAME-KICK UP<7EW> (I)	8-98137-320-0	01	1	1506-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY INDONESIA EQUIPMENT(B00) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EXC. HEAVY DUTY FRAME<6WB> (H)	8-98247-840-0	01	1	1312-				●	●
393	02.343 BRACKET; HARNESS TO BODY (A)	8-98124-190-0	01	1	1012-1505		●	●
393	02.343 BRACKET; HARNESS TO BODY NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (A)	8-98124-190-0	01	1	1506-		●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1012-1308	●	●	●
393	02.343 BRACKET; HARNESS TO BODY 02.483 (D)	8-98018-251-1	01	1	1012-1308				●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1309-1311	●	●	●
393	02.343 BRACKET; HARNESS TO BODY MALAYSIA EQUIPMENT(B10) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY EXC. INDONESIA EQUIPMENT(B00),MANUAL TILT CAB<RWZ>,HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MANUAL TILT CAB<RWZ> EXC. INDONESIA EQUIPMENT(B00),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY MANUAL TILT CAB<RWZ> SINGLE RR TIRE(6TD) EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10),HEAVY DUTY FRAME<6WB> 02.483 (D)	8-98018-251-1	01	1	1309-1311				●	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 02.483 (D)	8-98018-251-1	01	1	1312-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10) 02.483 (D)	8-98018-251-1	01	1	1312-				●	●
393	02.343 BRACKET; HARNESS TO BODY (E)	8-97262-964-0	01	1	1012-				●	●
393	02.343 BRACKET; HARNESS TO BODY (F)	8-98092-304-2	01	1	1012-				●	●
393	02.343 BRACKET; HARNESS TO BODY (B)	8-98028-601-3	01	1	1012-1505	●
393	02.343 BRACKET; HARNESS TO BODY NMR SGL CAB(NM**SN) EXC. FRAME-KICK UP<7EW> (B)	8-98028-601-3	01	1	1506-	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (C)	8-98018-903-0	01	1	1012-1103	●	●	●
393	02.343 BRACKET; HARNESS TO BODY DBL CAB(NM*W) (C)	8-98018-903-0	01	1	1012-1103	●
393	02.343 BRACKET; HARNESS TO BODY SGL CAB(NM*S) WHEEL BASE 2400MM(24W) (G)	8-98123-872-0	01	1	1104-	●	●	●
393	02.343 BRACKET; HARNESS TO BODY DBL CAB(NM*W) (G)	8-98123-872-0	01	1	1104-	●
395	02.343 NUT; BRKT FIX SGL CAB(NM*S) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●	●
395	02.343 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-				●	●

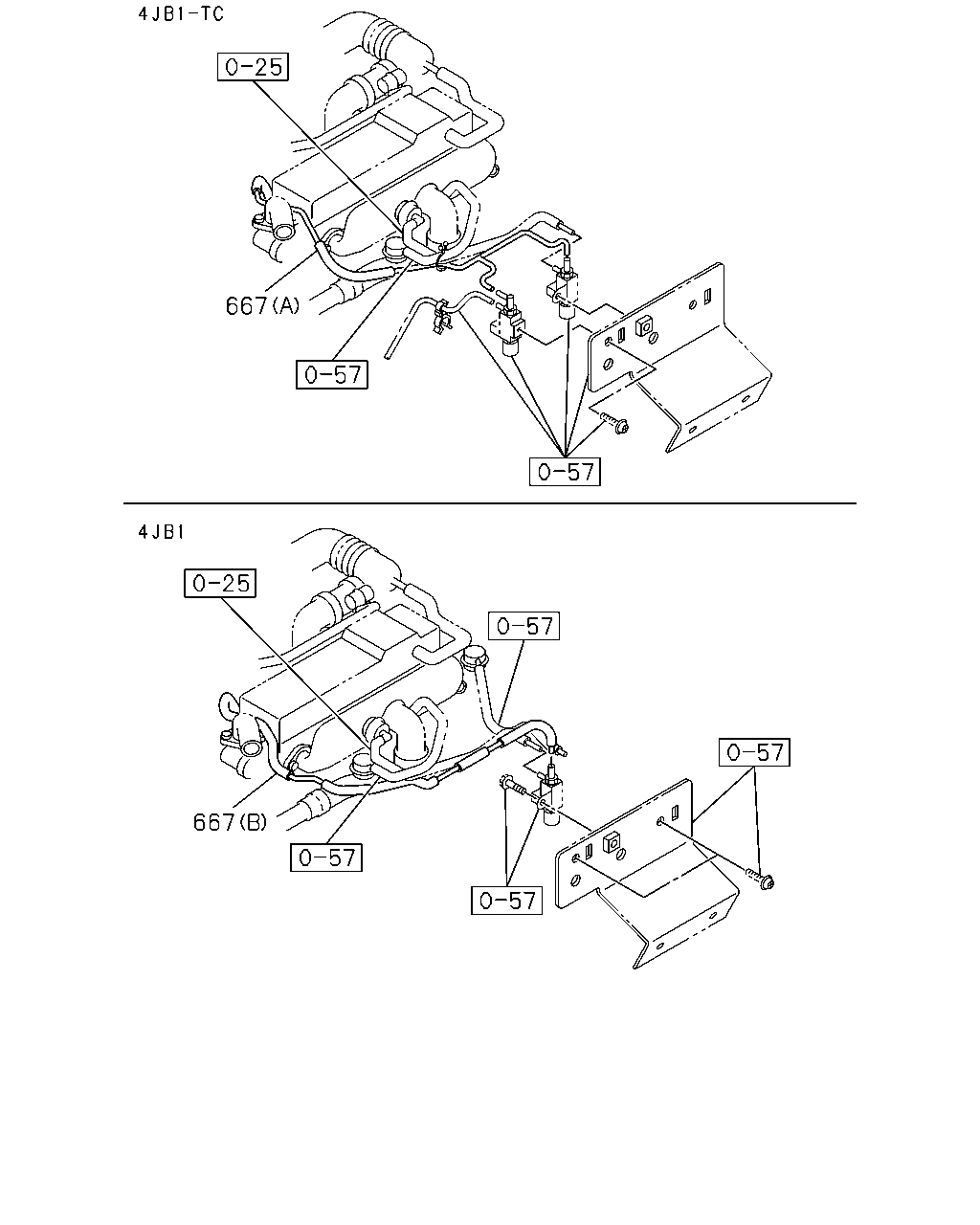

667 667

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E
667	03.280 HOSE; VAC,PUMP TO VSV MALAYSIA EQUIPMENT(B10) (A)	8-98281-404-0	01	1	1405-	●
667	03.280 HOSE; VAC,PUMP TO VSV EXHAUST BRAKE<NF8> (B)	8-98167-191-2	01	1	1012-		●
667	03.280 HOSE; VAC,PUMP TO VSV (A)	8-98088-020-2	01	1	1012-1404	●
667	03.280 HOSE; VAC,PUMP TO VSV EXC. EURO2 SPECIFICATION(NT2) (A)	8-98088-020-2	01	1	1405-	●
667	03.280 HOSE; VAC,PUMP TO VSV EURO2 SPECIFICATION(NT2) EXC. MALAYSIA EQUIPMENT(B10) (A)	8-98088-020-2	01	1	1405-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
