Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#78332) — 188 parça

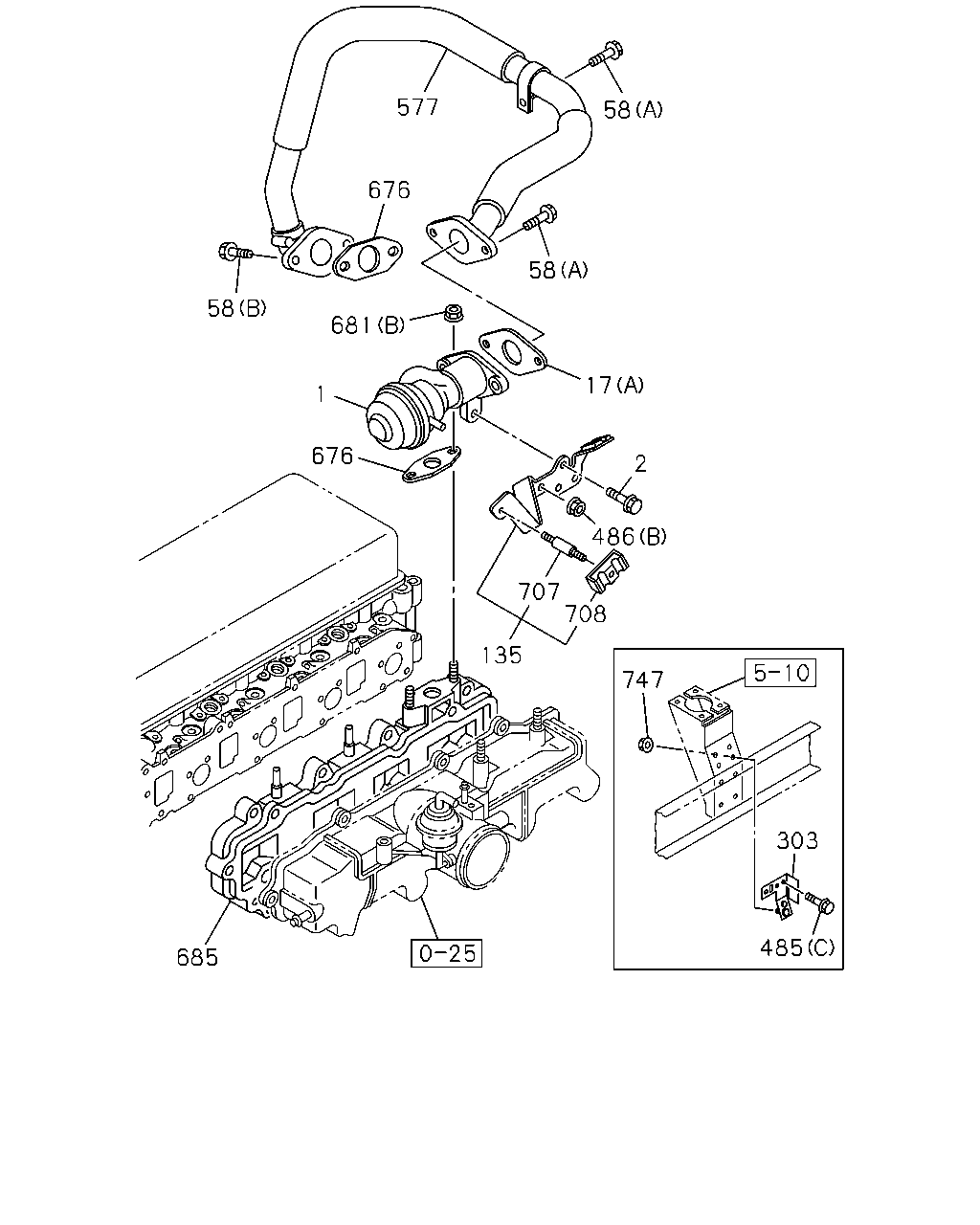

577 58 676 58 58 681 17 1 676 2 486 707 708 135 747 303 485 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR MALAYSIA EQUIPMENT(B10)	8-97208-656-4	01	1	1405-	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	1012-		●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MALAYSIA EQUIPMENT(B10) (B)	8-97192-765-0	03	1	1405-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97113-023-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97192-765-0	01	1	1012-1404	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. MALAYSIA EQUIPMENT(B10) (B)	8-97192-765-0	01	1	1405-	●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-		●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-		●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1012-		●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
485	03.671 BOLT; VSV 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
485	03.671 BOLT; VSV INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404	●
485	03.671 BOLT; VSV MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1405-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1012-1404	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. MALAYSIA EQUIPMENT(B10) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-	●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1012		●		●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202		●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202				●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1203-				●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	1012-		●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1012-		●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-	●

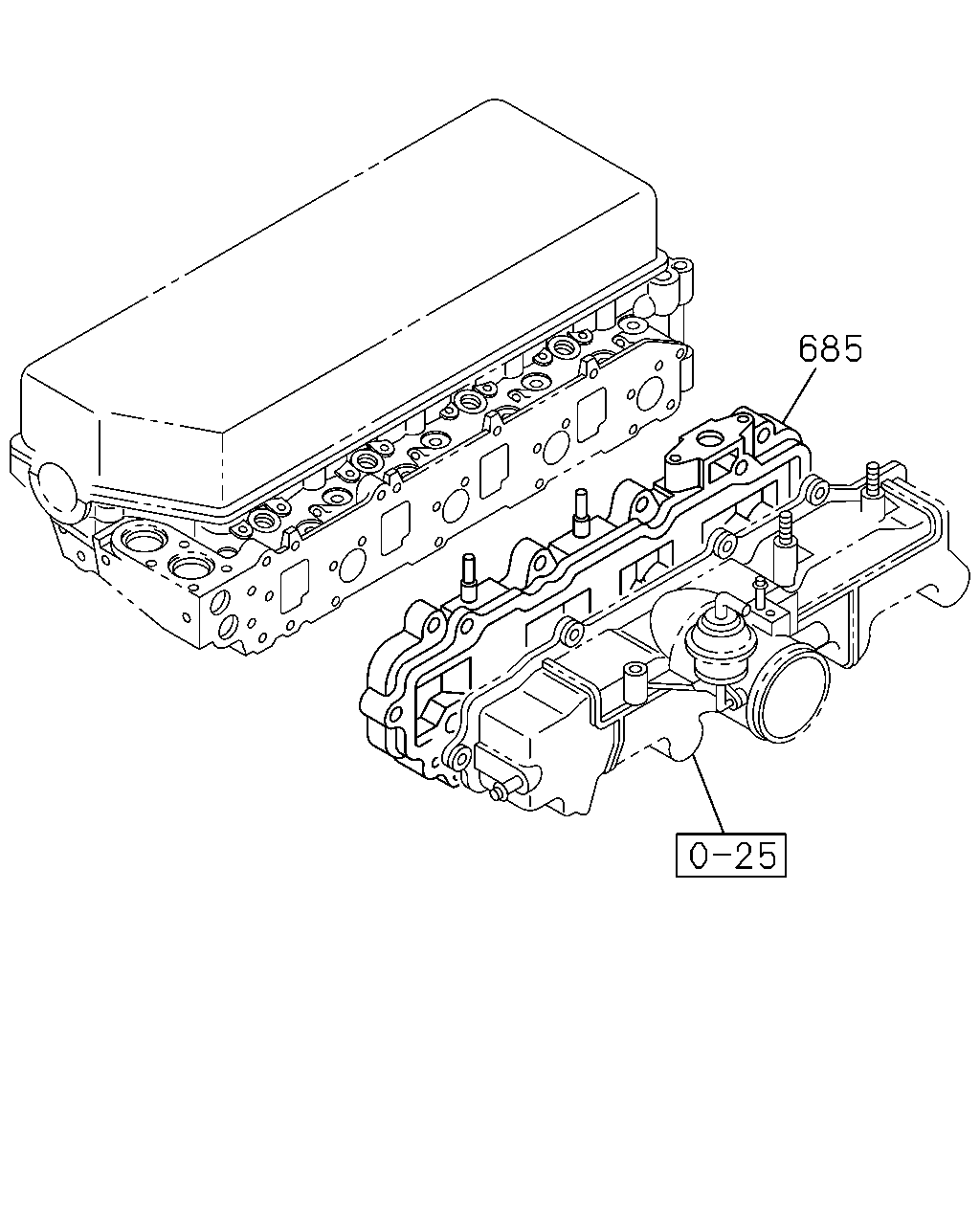

685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-			●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1012-		●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	1012-		●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1012-1012		●		●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202		●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202				●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1203-				●

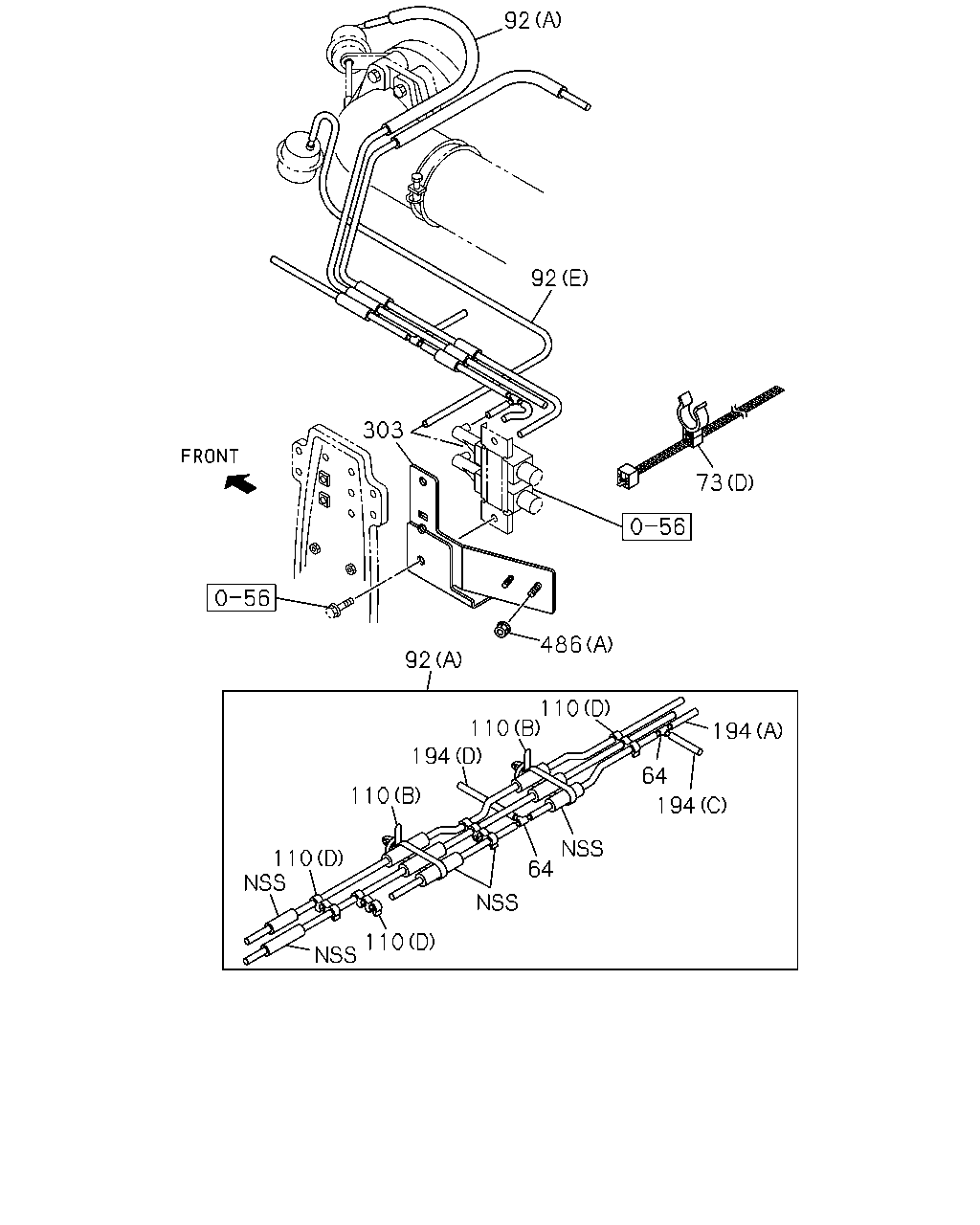

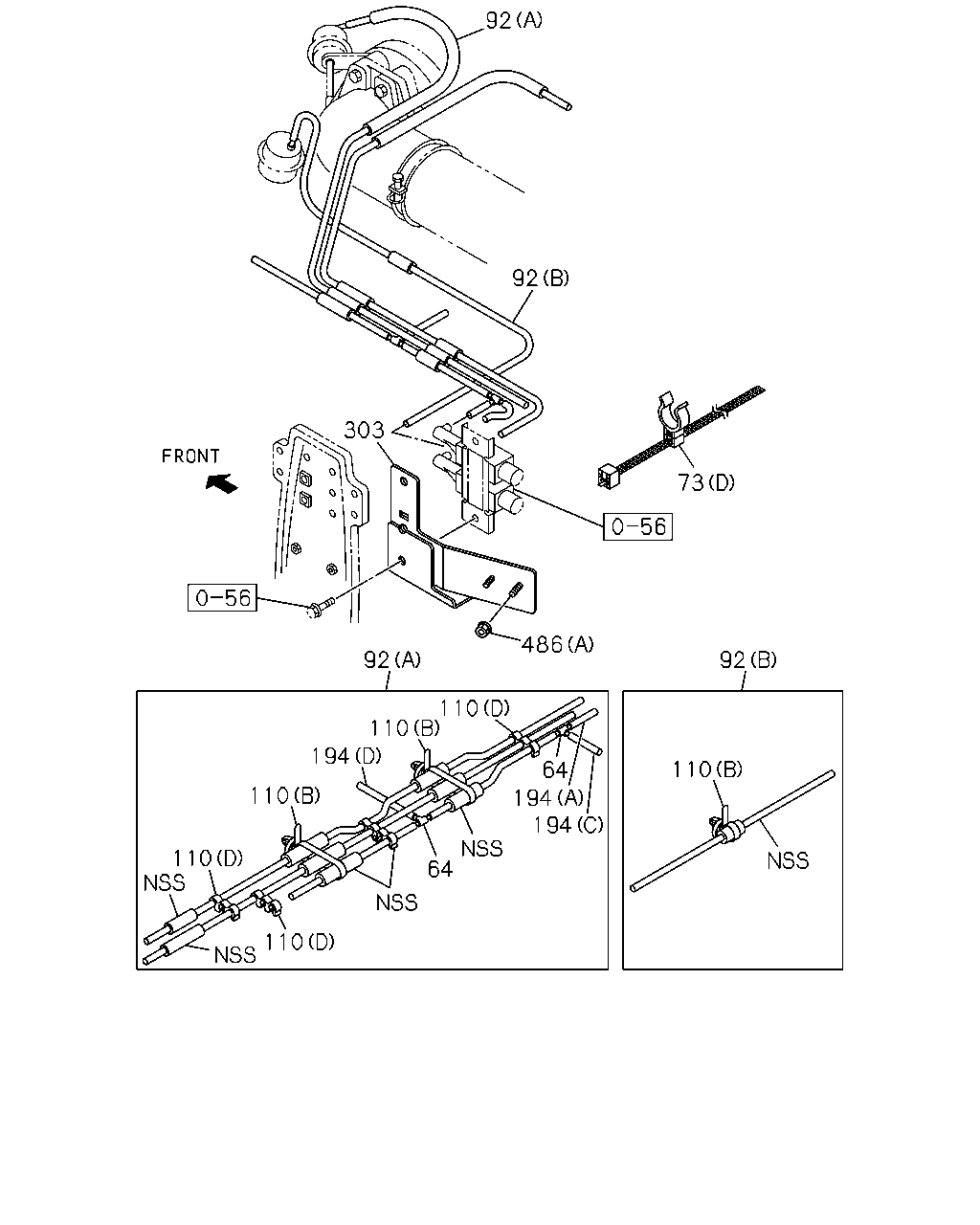

92 92 303 73 486 92 92 110 110 194 110 64 194 194 110 64 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012		●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-		●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC (B)	8-97208-495-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●

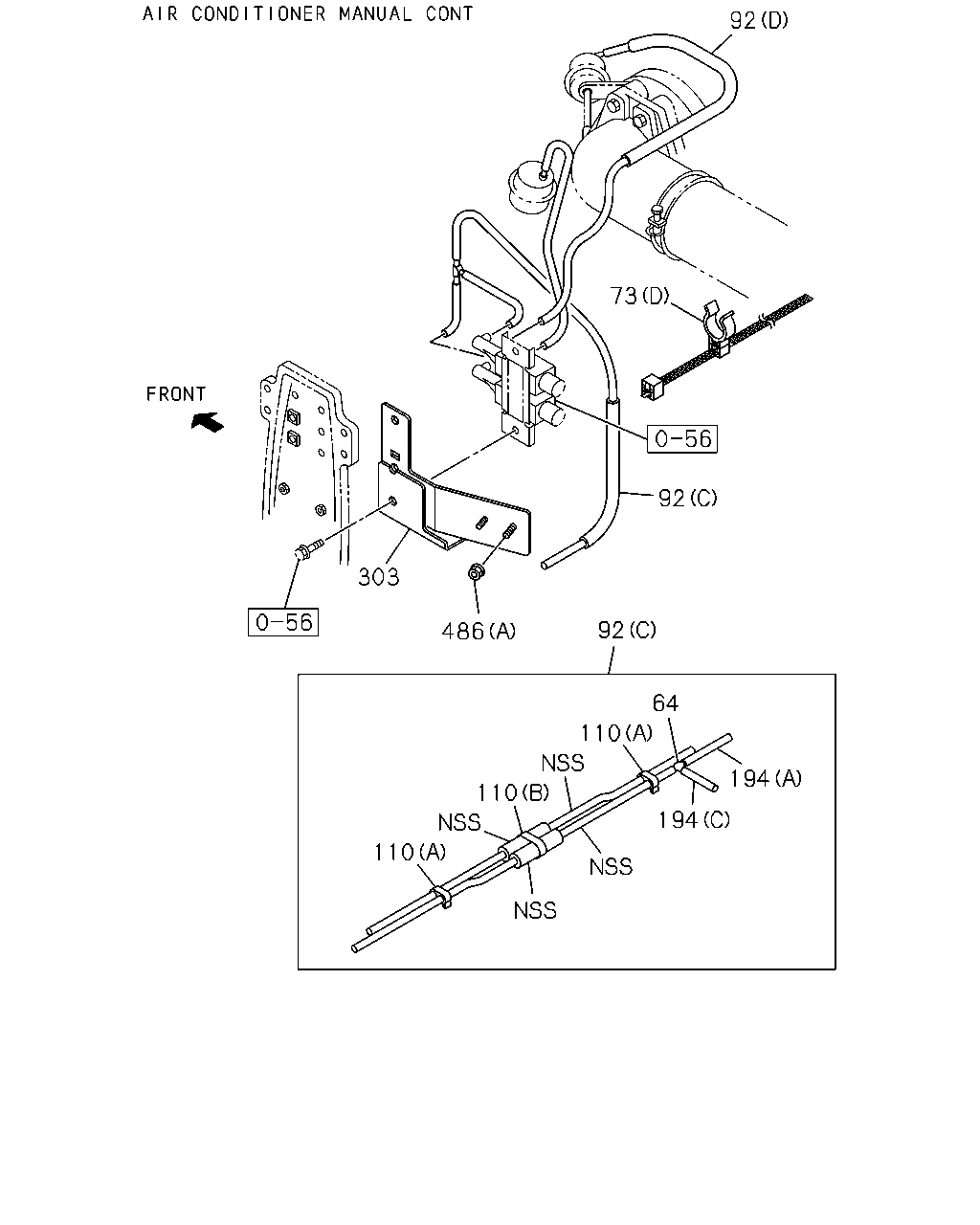

92 92 303 73 486 92 110 110 194 194 64 110 194 64 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012		●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-		●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC (B)	8-97208-495-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●

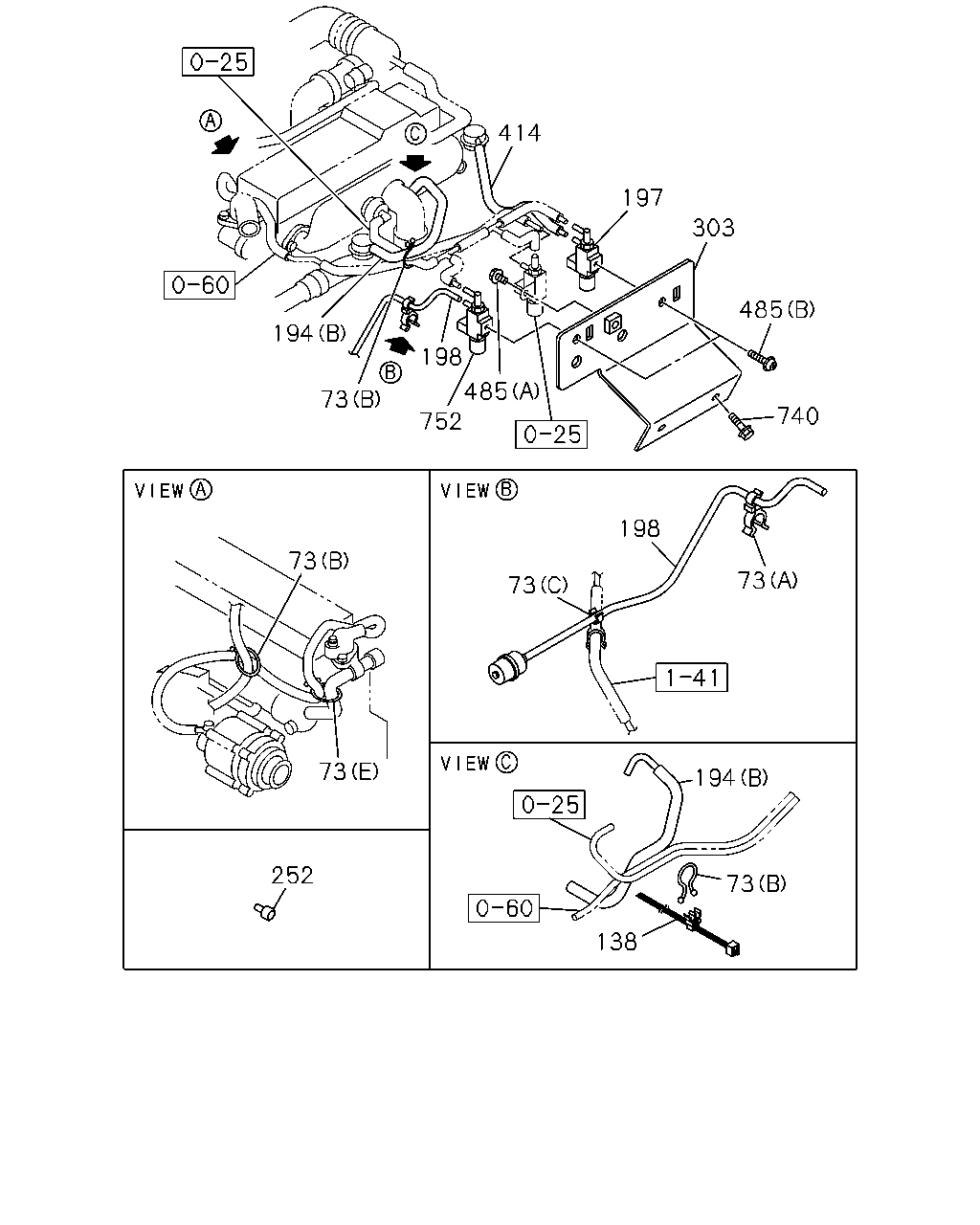

414 197 303 485 740 198 73 73 73 752 485 198 73 194 252 73 194 73 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	1012-	●
138	03.675 CLIP; BAND,VAC HOSE	8-98090-689-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC (B)	8-97208-495-0	01	1	1012-	●
197	03.670 VALVE; VAC SWITCHING MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 03.675	8-97171-030-0	01	1	1405-	●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	1012-	●
252	03.670 CAP; RUBBER,EGR VLV EURO2 SPECIFICATION(NT2) EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10) 04.931	8-97108-680-0	02	1	1012-	●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2)	8-98090-624-1	01	1	1405-	●
485	03.671 BOLT; VSV 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
485	03.671 BOLT; VSV INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404	●
485	03.671 BOLT; VSV MALAYSIA EQUIPMENT(B10) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1405-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. INDONESIA EQUIPMENT(B00), MALAYSIAEQUIPMENT(B10) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1012-1404	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. MALAYSIA EQUIPMENT(B10) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-	●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1012		●		●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202		●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202				●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1203-				●
740	03.680 BOLT; VAC REG VALVE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
752	03.670 VALVE; EVRV	8-94384-335-0	01	1	1012-	●

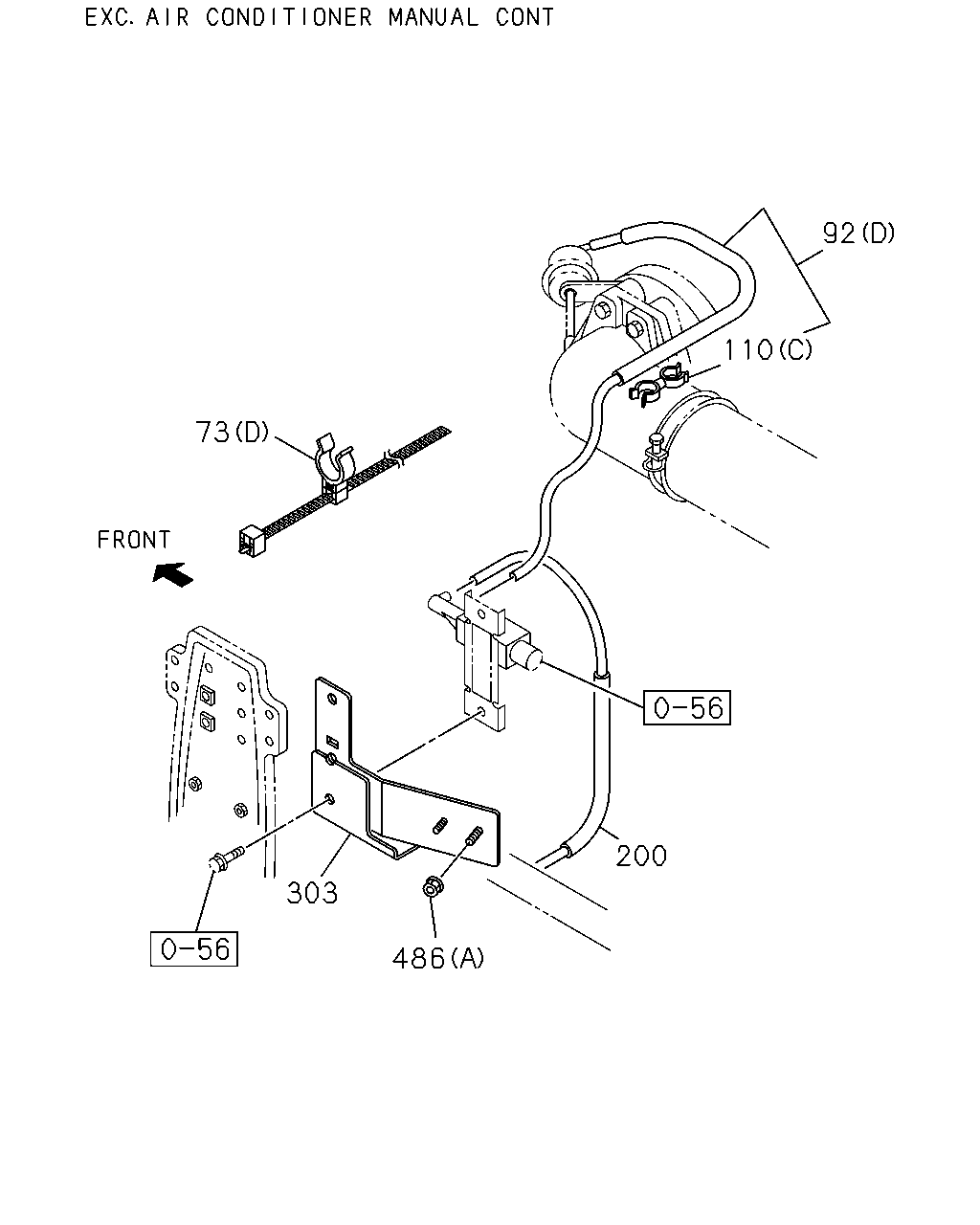

92 110 73 200 303 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012		●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-		●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-			●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-169-2	01	1	1012-			●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●

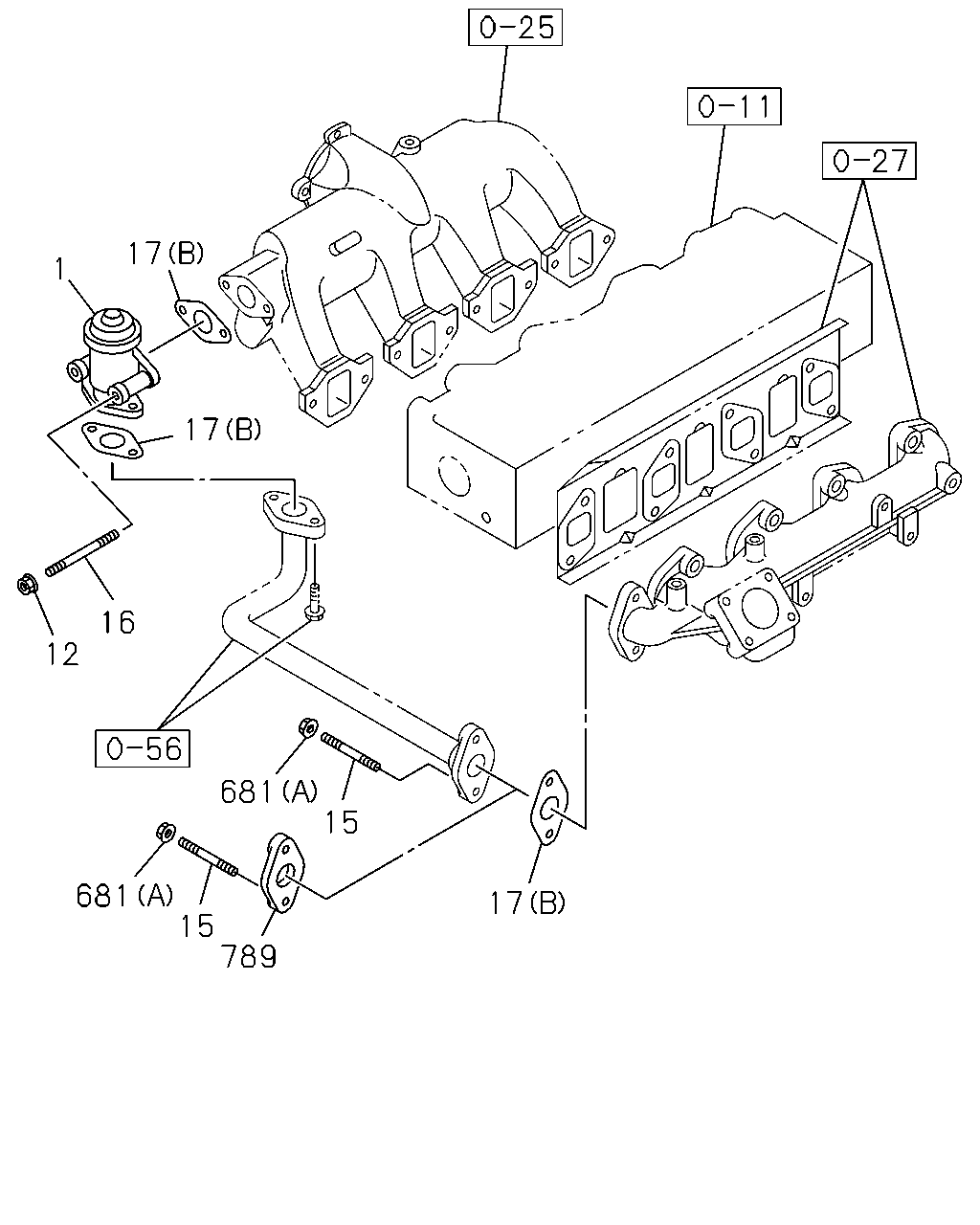

17 1 17 16 12 681 15 789 15 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR MALAYSIA EQUIPMENT(B10)	8-97208-656-4	01	1	1405-	●
1	03.670 VALVE; EGR	8-97115-533-3	01	1	1012-		●
12	03.671 NUT; EGR VLV MALAYSIA EQUIPMENT(B10) 01.540 M8 FLANGE	0-91180-208-0	02	1	1405-	●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-	●
16	03.275 STUD; EGR VLV MALAYSIA EQUIPMENT(B10) 01.097 M8X55 L=67	0-41010-855-0	02	1	1405-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). MALAYSIA EQUIPMENT(B10) (B)	8-97192-765-0	03	1	1405-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97113-023-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97192-765-0	01	1	1012-1404	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. MALAYSIA EQUIPMENT(B10) (B)	8-97192-765-0	01	1	1405-	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-	●
789	03.670 COVER; COOLER,EGR	8-98118-248-0	01	1	1012-1404	●
789	03.670 COVER; COOLER,EGR EXC. MALAYSIA EQUIPMENT(B10)	8-98118-248-0	01	1	1405-	●

92 73 92 303 92 486 64 110 194 110 194 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-		●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-	●
73	03.680 CLIP; VAC HOSE (A) ID=16.5 & 7	8-97226-171-0	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012		●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-		●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-			●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012		●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-		●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-			●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (C) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-			●
194	03.675 HOSE; VAC (B)	8-97208-495-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-		●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-		●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●	●

685

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-		●
	685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
