◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51284 - NLR/NMR55,71,85(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#78330) — 224 parça
çizim 64594
202 89 46 86 202 89 202 83 202 46 27 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
(A) M10X21 FLANGE 		8-97372-239-0 01 1 1012- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 1012- ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 1012- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012- ● ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 1012- ● ●

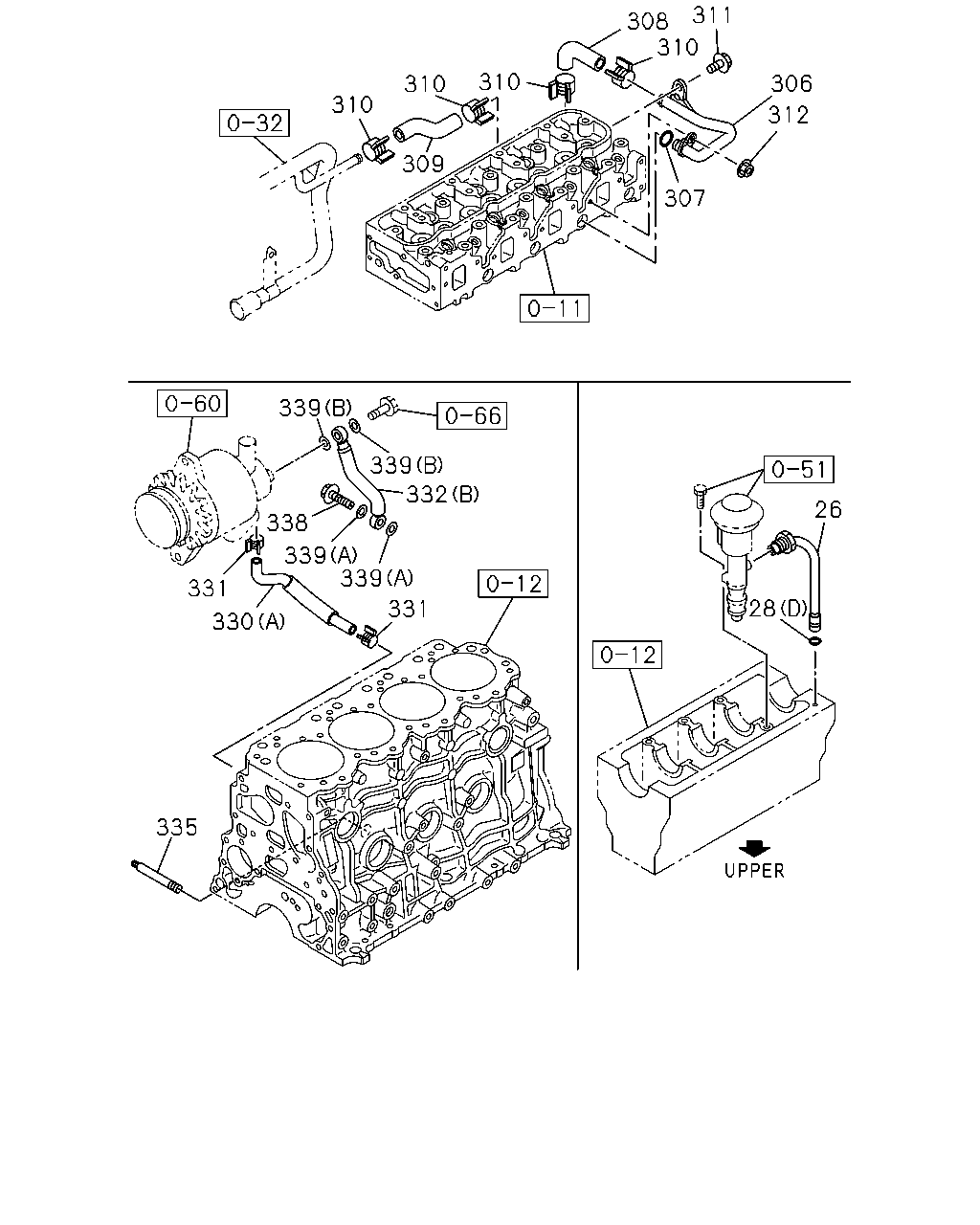

çizim 64705
26 28 331 339 339 338 332 339 339 331 330 335 312 307 306 310 311 308 310 310 309 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-94450-627-1 01 1 1012- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 1012- ● ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 1012- ● ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 1012- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97022-314-1 01 1 1012- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 1012- ● ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 1012- ● ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
330 03.278 HOSE; VAC PUMP,RETURN
(B) 		8-98204-694-0 01 1 1112- ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 1012-1111 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 1112- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●

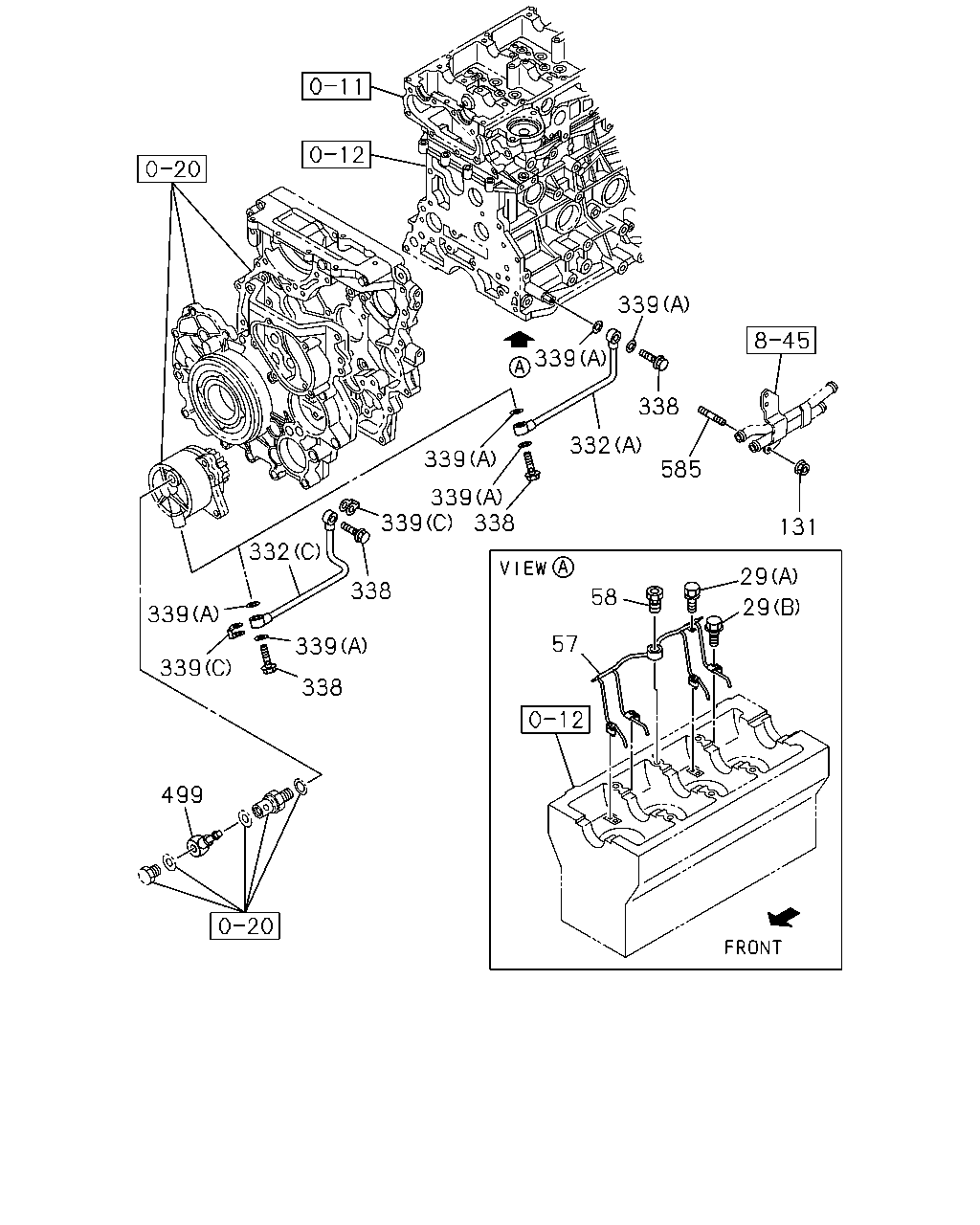

çizim 64777
339 339 332 338 585 29 29 131 339 338 339 339 332 338 339 338 339 339 499 57 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1012- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 1012- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1012-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 1012- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
499 04.681 PIPE; VACUUM 8-98027-553-0 01 1 1012- ●
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1012- ●

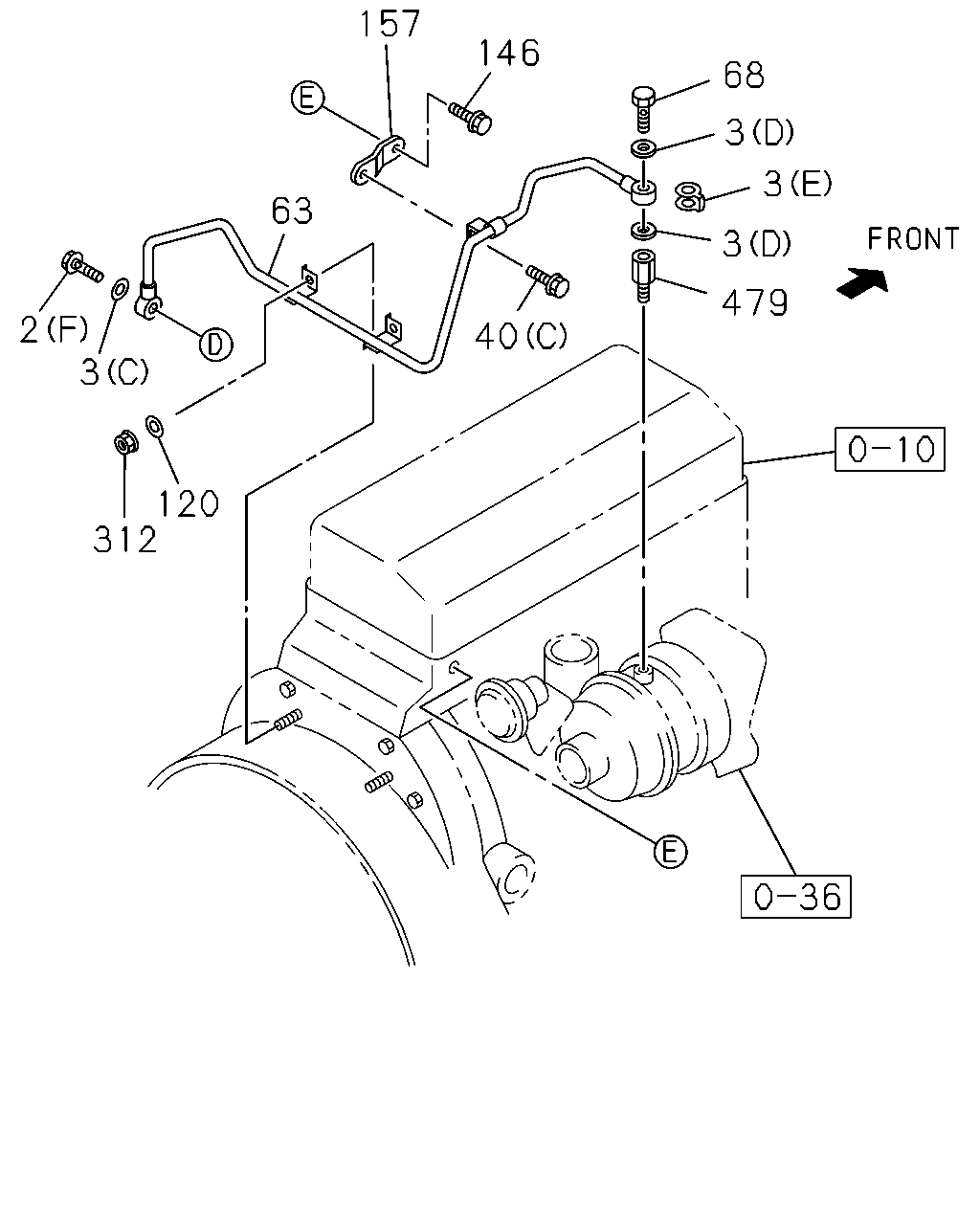

çizim 64798
68 3 3 3 479 40 146 157 63 3 2 312 120
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 1012- ●
120 01.531 WASHER; PL,PIPE FIX
03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 1310- ●
146 01.531 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-98043-093-0 01 1 1012- ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 1012- ●

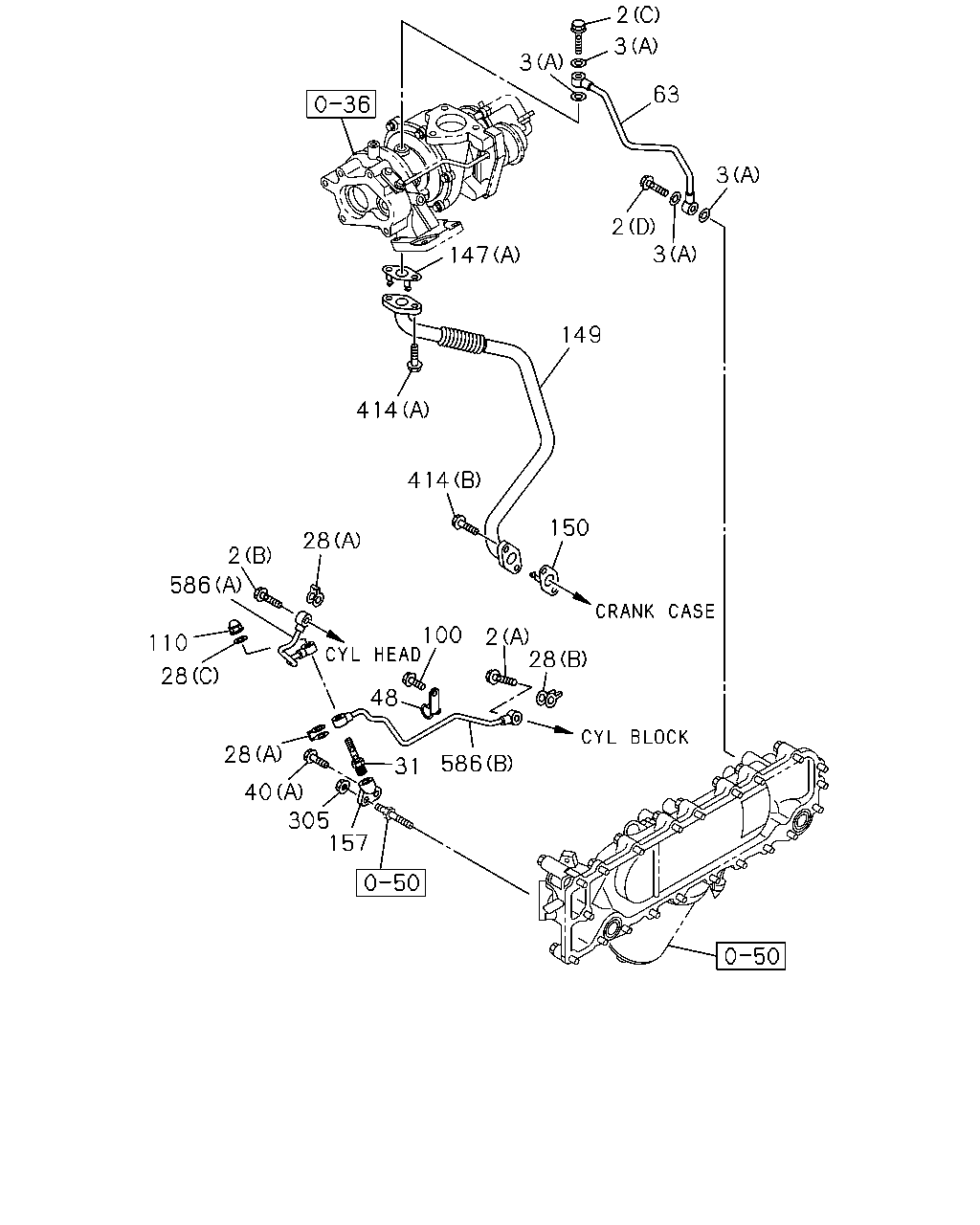

çizim 65029
2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 100 2 28 110 28 48 28 586 31 40 305 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
31 01.540 NIPPLE; OIL PIPE 8-98044-067-1 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ●
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98121-233-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ●
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
110 01.531 NUT; CAP OIL PIPE
00.349 M8 CAP NUT FLANGE 		8-97372-242-0 01 1 1012-1309 ●
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1310- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B) 		8-94362-672-1 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16 		8-98029-475-0 01 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 1012- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-98043-093-0 01 1 1012- ●
305 01.540 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
414 01.531 BOLT; OIL PIPE
09.242 (C) M6X16 FLANGE 		0-28050-616-0 02 1 1012- ●
414 01.531 BOLT; OIL PIPE
03.342 (A) M6X18 HEX SOCKET 		0-58330-618-0 02 1 1012-1107 ●
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1108- ●
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1012- ●
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98039-566-0 01 1 1012- ●
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98039-567-0 01 1 1012- ●
çizim 191119
3 3 3 1 2 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-4 01 1 1012- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●

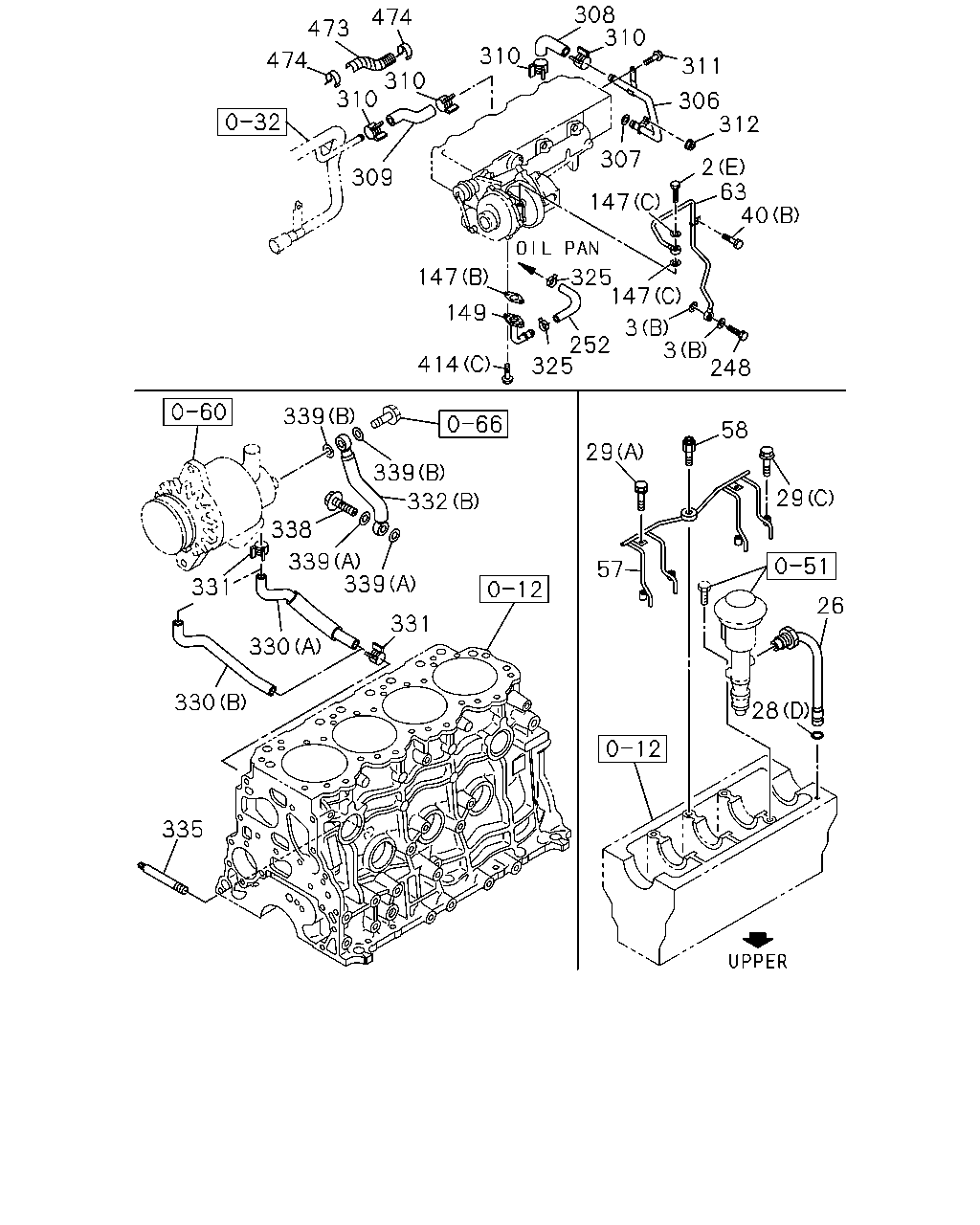

çizim 191122
335 330 330 331 338 339 339 331 332 339 339 29 57 58 29 26 28 248 3 3 147 252 325 414 149 147 325 40 63 2 312 306 311 310 308 310 307 147 310 310 309 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1012- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 1012- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1012-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B) 		8-94362-672-1 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16 		8-98029-475-0 01 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 1012- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-94450-627-1 01 1 1012- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 1012- ● ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 1012- ● ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 1012- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97022-314-1 01 1 1012- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 1012- ● ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 1012- ● ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 1012- ●
330 03.278 HOSE; VAC PUMP,RETURN
(B) 		8-98204-694-0 01 1 1112- ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 1012-1111 ● ●
330 03.278 HOSE; VAC PUMP,RETURN
(A) 		8-97073-920-2 01 1 1112- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
414 01.531 BOLT; OIL PIPE
09.242 (C) M6X16 FLANGE 		0-28050-616-0 02 1 1012- ●
414 01.531 BOLT; OIL PIPE
03.342 (A) M6X18 HEX SOCKET 		0-58330-618-0 02 1 1012-1107 ●
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1108- ●
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1012- ●
473 01.540 INSULATOR; HOSE 8-97101-331-0 02 1 1012- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
