0-51 — OIL PUMP AND OIL STRAINER (#78329) — 59 parça

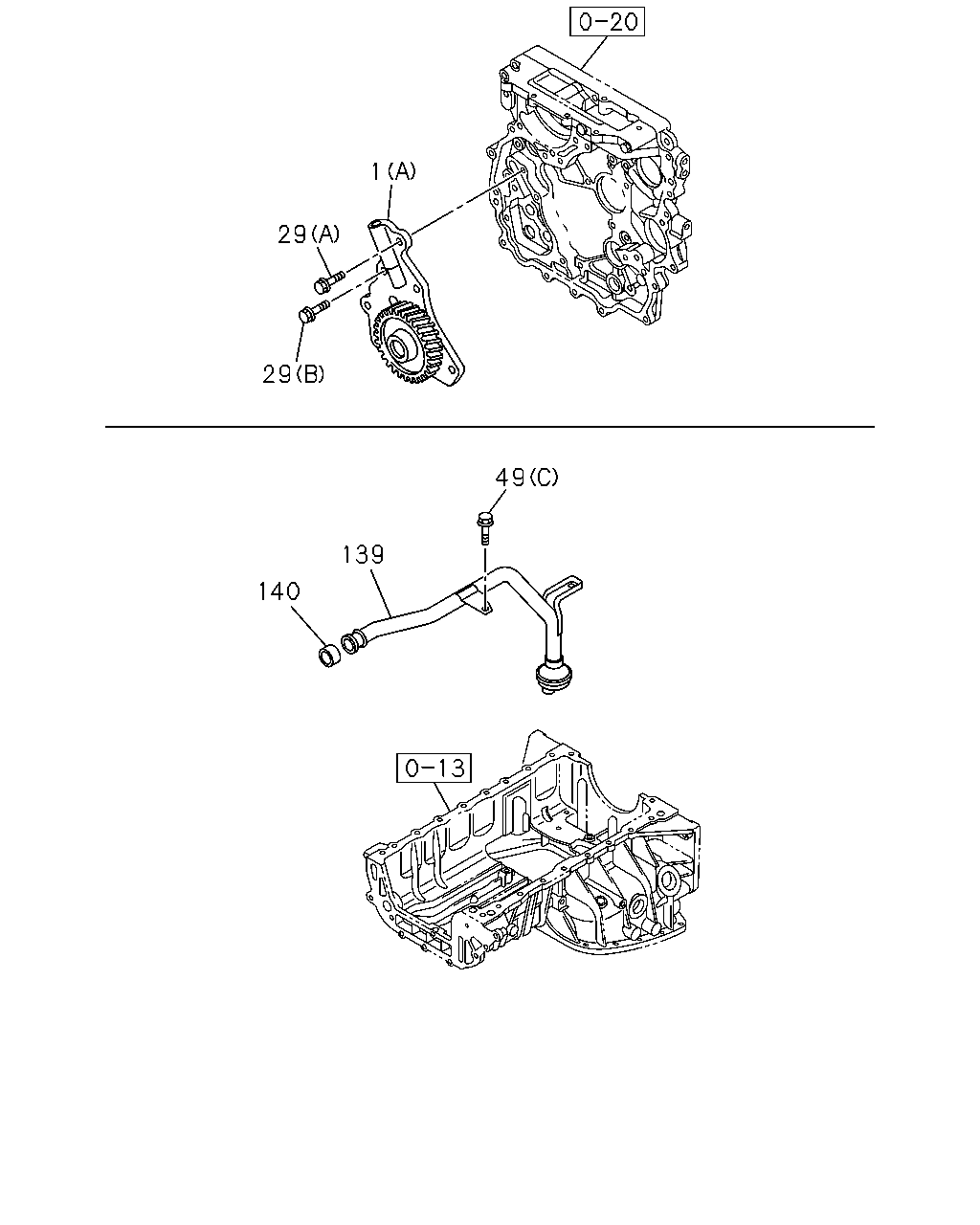

1 29 29 49 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.652 PUMP ASM; OIL (B)	8-97147-338-4	01	1	1012-1203	●	●
1	01.652 PUMP ASM; OIL (C)	8-98017-585-1	01	1	1204-	●	●
1	01.652 PUMP ASM; OIL (A)	8-98128-134-0	01	1	1012-1303			●
1	01.652 PUMP ASM; OIL (A)	8-98232-624-1	01	1	1304-			●
1	01.652 PUMP ASM; OIL (D)	8-97385-984-0	01	1	1012-				●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	1012-			●
29	01.652 BOLT; OIL PUMP 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●
29	01.652 BOLT; OIL PUMP 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1012-				●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1012-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	1012-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-1403			●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1404-			●
139	01.639 PIPE; OIL STRAINER	8-98149-035-0	01	1	1012-			●
140	01.639 GASKET; OIL STRAINER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97356-150-0	01	1	1012-			●

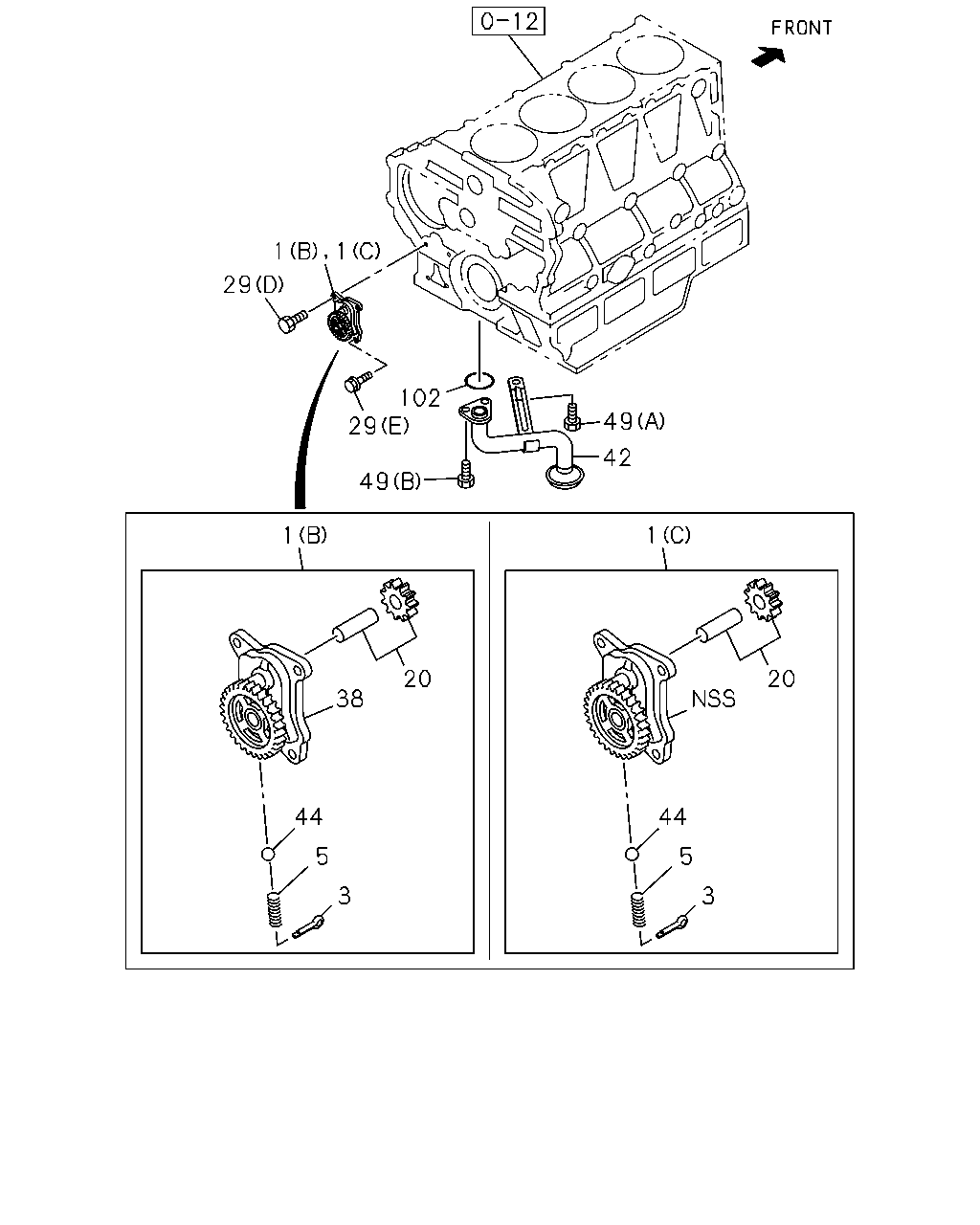

1 1 29 102 29 49 42 49 1 1 20 20 38 44 44 5 5 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.652 PUMP ASM; OIL (B)	8-97147-338-4	01	1	1012-1203	●	●
1	01.652 PUMP ASM; OIL (C)	8-98017-585-1	01	1	1204-	●	●
1	01.652 PUMP ASM; OIL (A)	8-98128-134-0	01	1	1012-1303			●
1	01.652 PUMP ASM; OIL (A)	8-98232-624-1	01	1	1304-			●
1	01.652 PUMP ASM; OIL (D)	8-97385-984-0	01	1	1012-				●	●
3	01.639 PIN; SPLIT 06.022 L=30	9-08104-030-0	01	1	1012-	●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	1012-	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	1012-				●	●
20	01.639 GEAR; DRIVE,OIL PUMP Z=9	8-97078-736-0	01	1	1012-1203	●	●
20	01.639 GEAR; DRIVE,OIL PUMP	8-98059-192-0	01	1	1204-	●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	1012-			●
29	01.652 BOLT; OIL PUMP 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●
29	01.652 BOLT; OIL PUMP 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1012-				●	●
38	01.657 CASE; OIL STRAINER	8-97147-505-3	01	1	1012-1203	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97230-894-0	01	1	1012-1203	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-98213-867-0	01	1	1204-	●	●
44	01.609 BALL; RELIEF VLV	5-09843-003-0	01	1	1012-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 00.724 (B) M8X16 FLANGE	0-28060-816-0	02	1	1012-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M10X80	8-97071-956-0	01	1	1012-	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-1403			●
49	01.531 BOLT; STRAINER,OIL PUMP 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1404-			●
102	01.656 GASKET; STRAINER ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5	8-94399-398-0	01	1	1012-	●	●

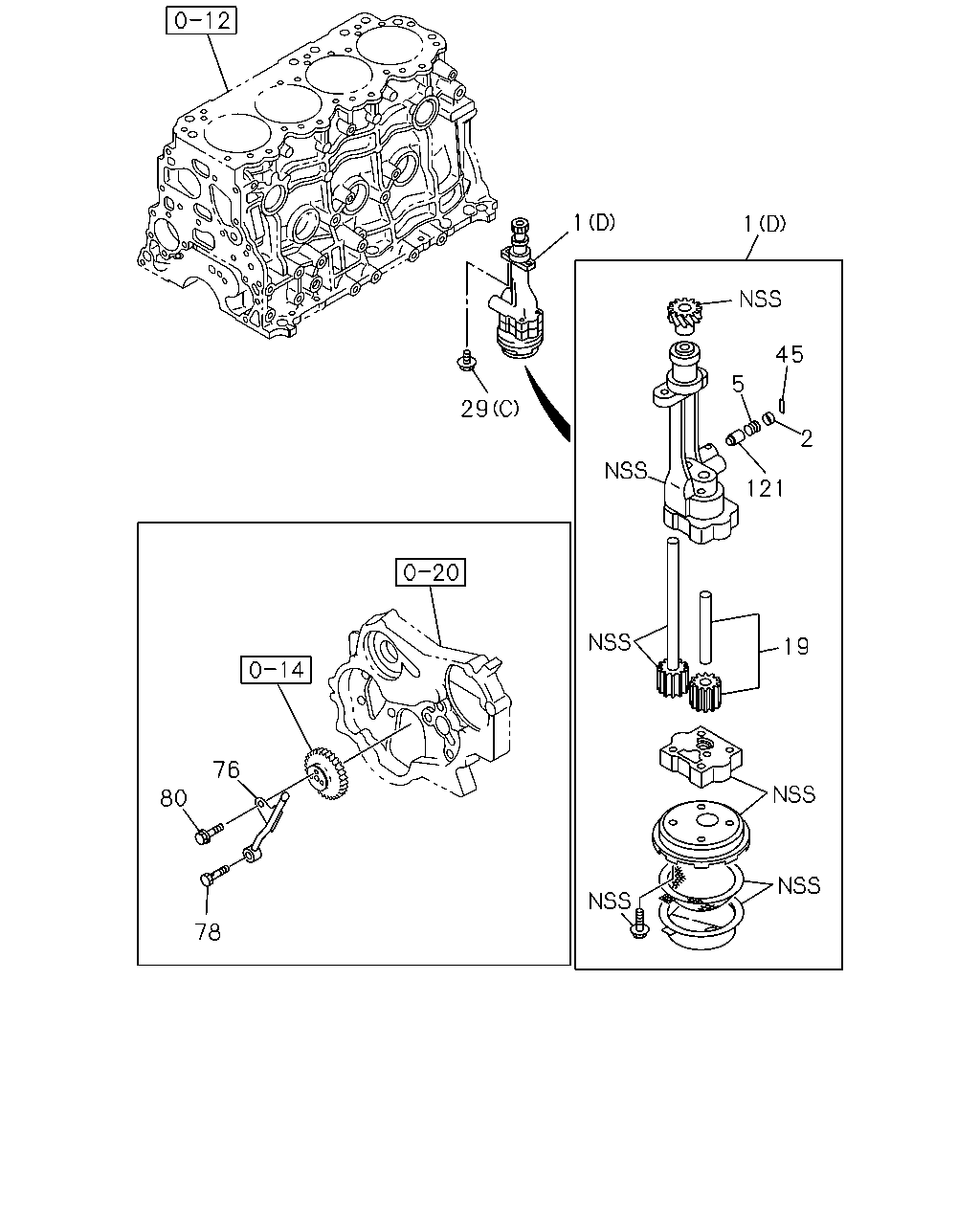

1 1 45 5 29 2 121 19 76 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.652 PUMP ASM; OIL (B)	8-97147-338-4	01	1	1012-1203	●	●
1	01.652 PUMP ASM; OIL (C)	8-98017-585-1	01	1	1204-	●	●
1	01.652 PUMP ASM; OIL (A)	8-98128-134-0	01	1	1012-1303			●
1	01.652 PUMP ASM; OIL (A)	8-98232-624-1	01	1	1304-			●
1	01.652 PUMP ASM; OIL (D)	8-97385-984-0	01	1	1012-				●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	1012-				●	●
5	01.609 SPRING; COIL	5-09580-098-0	01	1	1012-	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	1012-				●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	1012-				●	●
29	01.652 BOLT; OIL PUMP 06.174 (D) M8X25 FLANGE	0-28060-825-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP (E) M8X30 FLANGE	0-28060-830-0	02	1	1012-	●	●
29	01.652 BOLT; OIL PUMP 00.206 (B) M8X30 FLANGE	0-28050-830-0	04	1	1012-			●
29	01.652 BOLT; OIL PUMP 09.173 (A) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●
29	01.652 BOLT; OIL PUMP 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	1012-				●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	1012-				●	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	1012-				●	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	1012-				●	●
80	01.531 BOLT; OIL PIPE FIX 01.153 M8X22 W/LK WASHER	0-50540-822-0	01	1	1012-				●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	1012-				●	●
